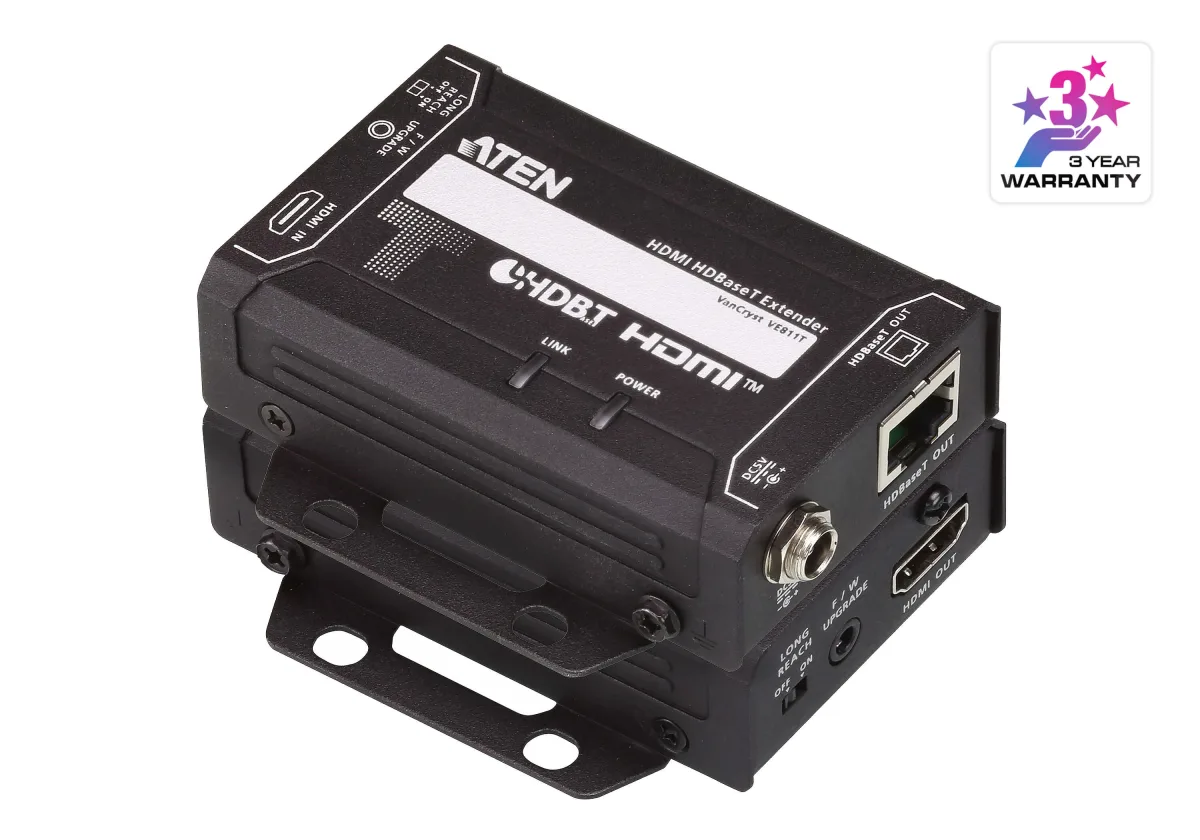

ATEN VanCryst VE811 HDMI HDBaseT Extender - Transmitter and receiver - video/audio extender - HDBaseT - up to 150 m - for ATEN VM5404, VM5808, VanCryst VM0808, VM1600, VM3200, VM5404, VM6809, VS0801, VS182

Description

The ATEN VE811 HDMI HDBaseT Extender guarantees the optimum HDMI connection up to 100 m over a single Cat 5e/6/6a or ATEN 2L-2910 Cat 6 cable. The VE811 meets HDMI Specification features including 3D, Deep Color, HD lossless audio formats and CEC pass-through. It supports Dolby Digital 5.1, DTS HD audio and video signals at resolutions up to 4K. In addition, the VE811 supports long reach mode, providing an effective means for extending HDMI signals up to 150m over a single Cat 5e/6 cable.
1x VE811T HDMI HDBaseT Transmitter
1x VE811R HDMI HDBaseT Receiver
2x 0AD6-1F05-26EG Power Adapters
1x User Instructions

Specifications

Features

Type	AV transmitter & receiver
Maximum resolution	4096 x 2160 pixels
Cable types supported	Cat5e, Cat6, Cat6a
Maximum transfer distance	150 m
Bandwidth	10.2 Gbit/s
Bandwidth	340 MHz
HDCP	Yes
Material	Metal
Impedance	100 Ω
Product colour	Black

Ports & interfaces

Connectivity technology	Wired
RJ-45 input ports	1
RJ-45 output ports	1
HDMI in	1
Number of HDMI outputs	1
Audio input	1
Audio output	1
DC-in jack	Yes

Power

Operating voltage (transmitter)	5 V
Operating voltage (receiver)	5 V

Operational conditions

Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80%
Storage relative humidity (H-H)	0 - 80%

Weight & dimensions

Weight	630 g
Receiver dimensions (WxDxH)	86.4 x 73 x 24.7 mm
Receiver weight	170 g
Transmitter dimensions (WxDxH)	86.4 x 73 x 24.7 mm
Transmitter weight	160 g

Packaging data

Quantity per pack	2 pc(s)
Package width	59 mm
Package depth	239 mm
Package height	160 mm
Package weight	705 g

Packaging content

Quick start guide	Yes

Logistics data

Master (outer) case width	250 mm
Master (outer) case length	325 mm
Master (outer) case height	175 mm
Master (outer) case gross weight	4.02 kg
Master (outer) case net weight	3.15 kg
Products per master (outer) case	5 pc(s)
