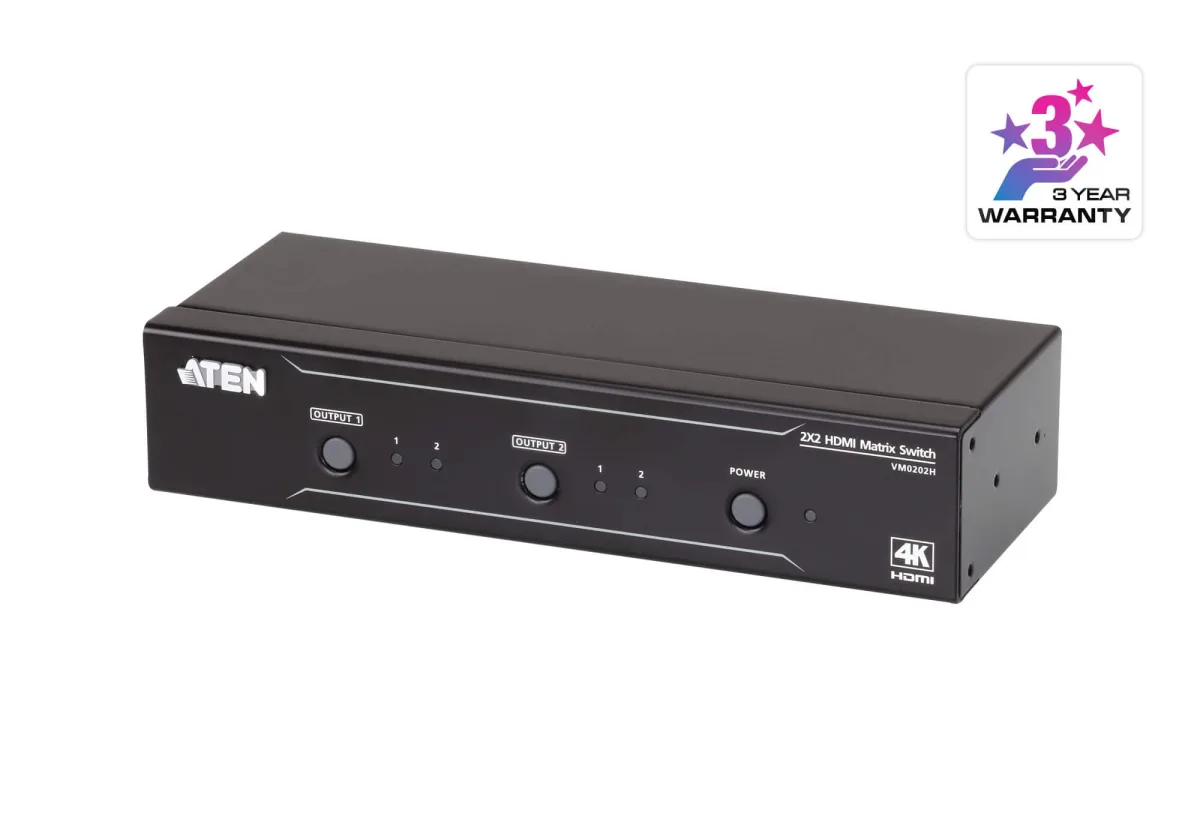

ATEN VanCryst VM0202H 2x2 4K HDMI Matrix - Video/audio switch - desktop, rack-mountable

Description

The VM0202H is a 2 X 2 HDMI Matrix Switch that meets HDMI Specification features including 3D, Deep Color up to 12- bit, and data rates up to 10.2 Gbps. Engineered for the future trend of high-definition video switching, the VM0202H supports computer and video signals at resolutions up to 4K.
1x VM0202H 2x2 4K HDMI Matrix Switch
1x Rack Mount Kit
1x 0AD6-1006-26EG Power Adapter
1x 2XRT-0106G IR Remote Control
1x 2XRT-0003G IR Receiver
1x User Instructions

Specifications

Features

Product type	AV matrix switcher
Data transfer rate	10.2 Gbit/s
Maximum pixel clock	340 MHz
Maximum resolution	4096 x 2160 pixels
HDCP	Yes
HDCP version	1.4
3D	Yes
Firmware upgradeable	Yes
Extended display identification data (EDID)	Yes
Supported resolutions	4096 x 2160, 3840 x 2160

Design

Housing colour	Black
Housing material	Metal
Rack mounting	Yes
Control type	Buttons
LED indicators	Yes
Remote control included	Yes

Display

Built-in display	No

Ports & interfaces

HDMI input ports quantity	2
HDMI output ports quantity	2
USB connector type	Micro-USB
USB ports quantity	1
RS-232 ports	1
DC-in jack	Yes

Power

Power consumption (typical)	4.3 W

Operational conditions

Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80%
Storage relative humidity (H-H)	0 - 80%

Logistics data

Products per master (outer) case	5 pc(s)
Master (outer) case gross weight	5.33 kg
Master (outer) case length	325 mm
Master (outer) case width	250 mm
Master (outer) case height	175 mm
Master (outer) case net weight	4.2 kg
Harmonized System (HS) code	85299097

Weight & dimensions

Width	200 mm
Depth	76 mm
Height	42 mm
Weight	840 g
Package width	59 mm
Package depth	239 mm
Package height	160 mm
Package weight	980 g

Packaging content

Rack mount kit	Yes
Manual	Yes
AC adapter included	Yes
IR receiver included	Yes
