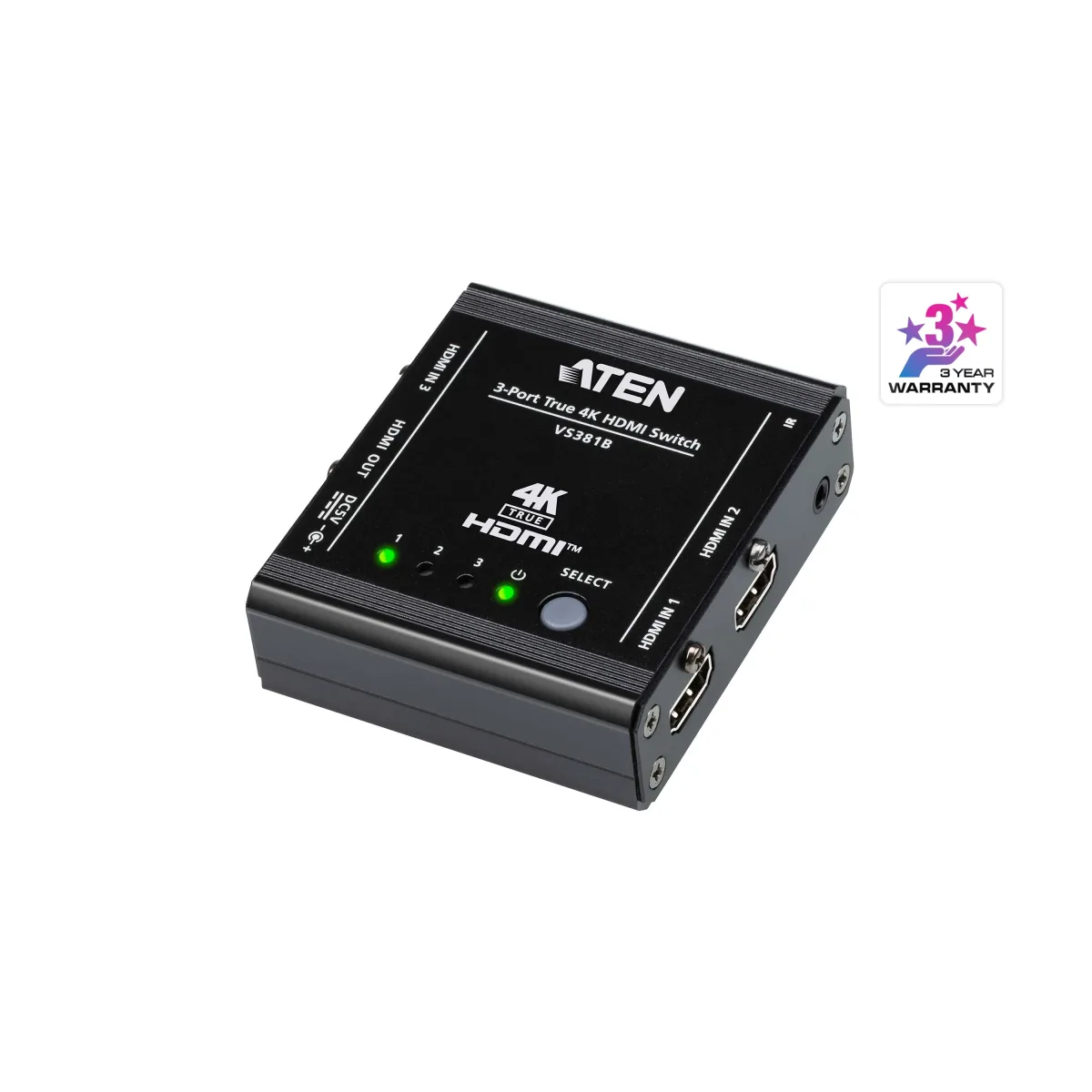

ATEN VS381B - Video/audio switch - 3 x HDMI - desktop - for ATEN VP2730, VanCryst VS184B

Description

The VS381B 3-Port True 4K HDMI Switch with Auto Switching provides you to switch 3 HDMI input sources to an HDMI display. It supports video resolutions up to True 4K (4096 x 2160 @ 60Hz 4:4:4), data rates up to 18 Gbps, HDR, 3D, Deep Color, and HD lossless audio formats. Furthermore, the VS381B offers switching methods between HDMI sources by front panel pushbuttons and IR remote control, enabling users to effortlessly select desired input.

Featuring above functionalities provides you a practical solution for auditorium, home theater, meeting rooms, trade shows, shopping centers, and more.

Package Contents

- 1x VS381B 3-Port True 4K HDMI Switch
- 1x USB to DC Power Cord
- 1x IR Remote Control
- 1x IR Receiver
- 1x User Instructions

Specifications

Ports & interfaces

Video port type	HDMI
HDMI ports quantity	4
HDMI in	3
Number of HDMI outputs	1
3.5 mm (1/8-inch) in	Yes
DC-in jack	Yes

Features

Material	Metal
Product colour	Black
Plug and Play	Yes
HDCP	Yes
Maximum refresh rate	60 Hz
Maximum operating distance	5 m
Supported graphics resolutions	3840 x 2160, 4096 x 2160
Bandwidth	18 Gbit/s
Bandwidth	600 MHz
Maximum resolution	4096 x 2160 pixels
External power adapter	Yes
3D	Yes
HD type	4K Ultra HD
Dolby technologies	Dolby Vision
Input impedance	100 Ω
HDCP version	2.2

Power

Power consumption (typical)	1.46 W

Weight & dimensions

Width	71.6 mm
Depth	79 mm
Height	25.5 mm
Weight	150 g

Packaging content

AC adapter included	Yes

Operational conditions

Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80%
Storage relative humidity (H-H)	0 - 80%

Logistics data

Harmonized System (HS) code	85176990
