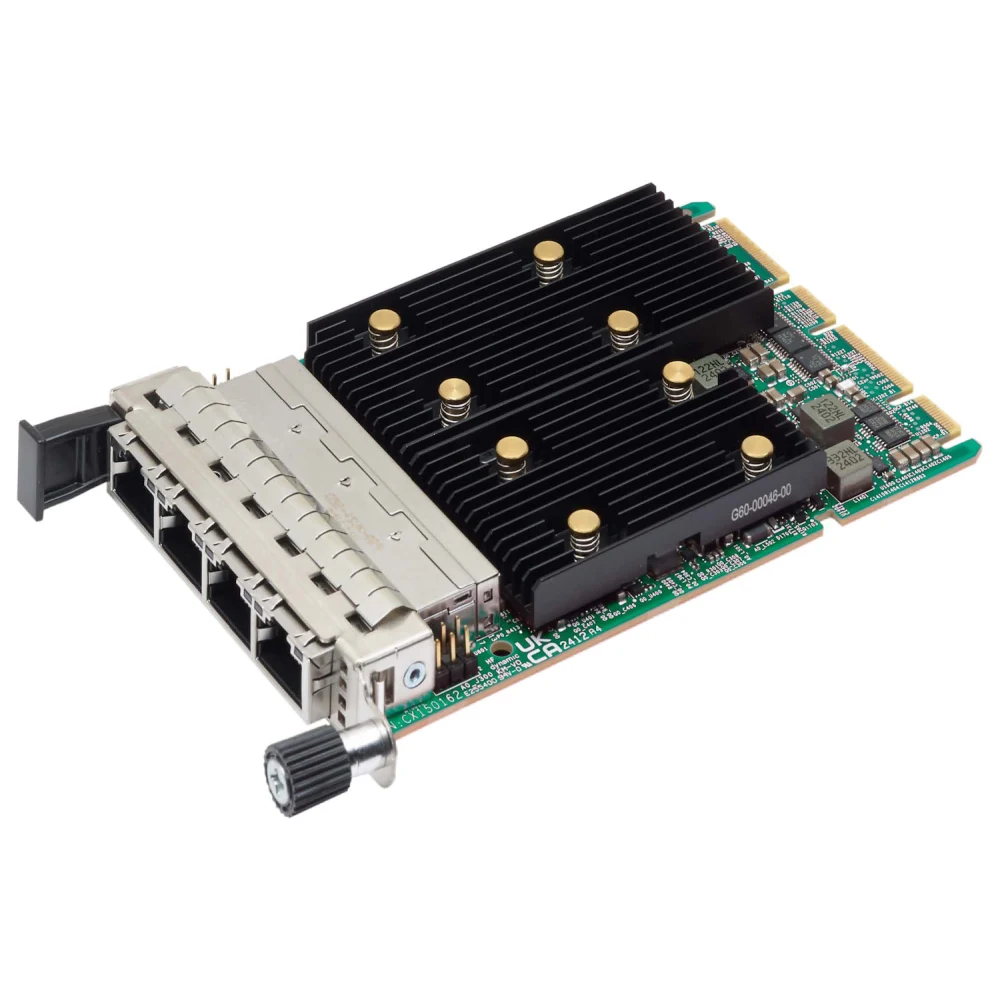

Broadcom 57412 - Network adapter - OCP - 10Gb Ethernet x 4

Description

The ThinkSystem Broadcom 57412 10GBASE-T Ethernet Adapters are four port 10 Gb Ethernet adapters that supports 10GBASE-T and 1000BASE-T Ethernet on Category 6 twisted-pair cables. They support networking virtualization technologies such as SR-IOV, VXLAN, and NVGRE.

This product guide provides essential presales information to understand the 57412 10GBASE-T adapters and their key features, specifications, and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the adapters and consider their use in IT solutions.

Specifications

Ports & interfaces

Connectivity technology	Wired
Host interface	OCP 3.0
Interface	Ethernet
Ethernet LAN (RJ-45) ports	4
PCI version	3.0
PCI Card form factor	Full-height (low-profile)

Network

Maximum data transfer rate	10000 Mbit/s
Networking standards	IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3an
Ethernet LAN	Yes
Ethernet interface type	10 Gigabit Ethernet, Gigabit Ethernet
Ethernet LAN data rates	1000,10000 Mbit/s
Cabling technology	10GBase-T
Jumbo frames support	Yes
Jumbo frames	9600
Link aggregation	Yes

Design

Component for	Server
Product colour	Multicolour
Internal	Yes

Operational conditions

Operating temperature (T-T)	0 - 55 °C
Storage temperature (T-T)	-40 - 65 °C
Operating relative humidity (H-H)	5 - 95%

Weight & dimensions

Width	168 mm
Height	69 mm
