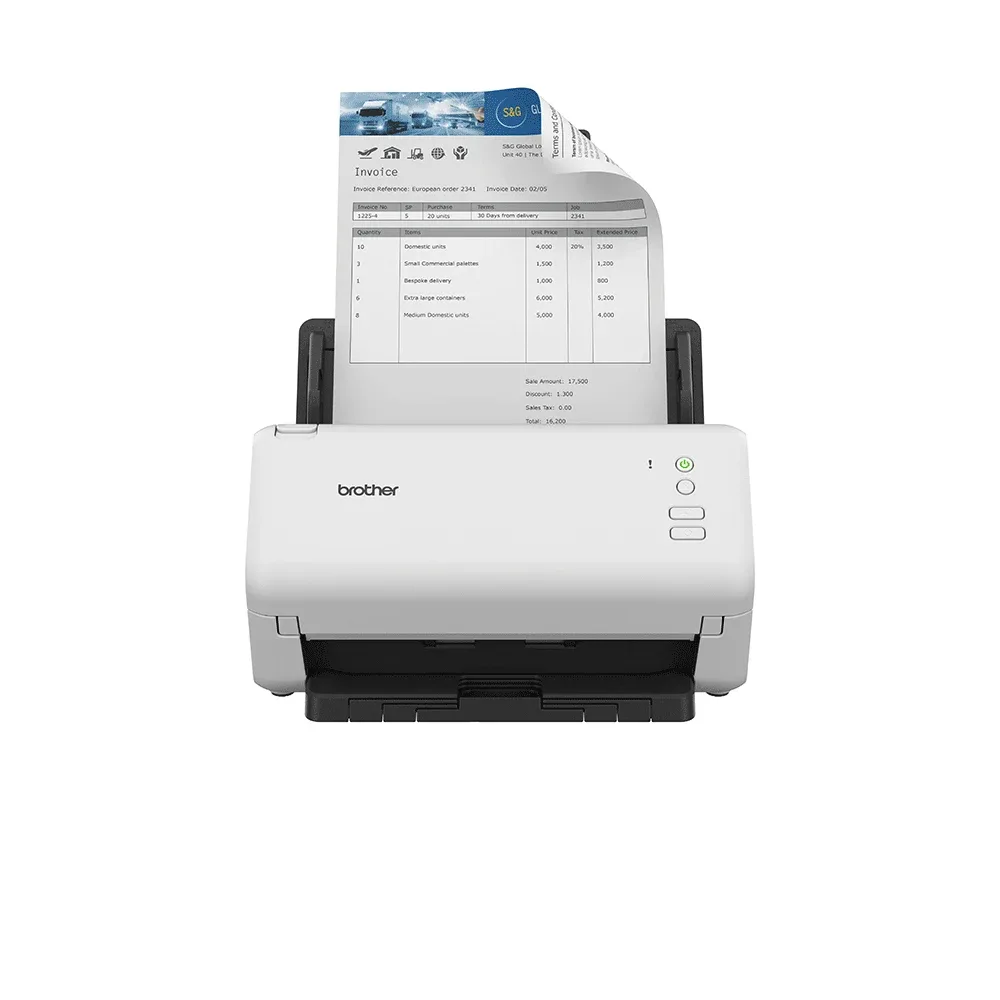

Brother ADS4100ZU1 ADS-4100 2-SIDED Scan Up to 35PPM / 70IPM 60 Sheet Automatic

Description

Manufacturer Code: ADS4100ZU1

Overview

Brother ADS-4100 2-SIDED SCAN UP TO is available through DCS Components. It sits within the SCANNERS DIMS A4 category.

Procurement and setup support

Availability may need confirming before quote approval. DCS can help with procurement, compatibility checks, configuration planning, installation support and long-term managed IT lifecycle support.

EAN: 4977766814485

Key product details

• Manufacturer code: ADS4100ZU1
• Category: SCANNERS DIMS A4
• EAN: 4977766814485

Specifications

Scanning

Maximum scan size	215.9 x 355.6 mm
Optical scanning resolution	600 x 600 DPI
Enhanced scan resolution	1200 x 1200 DPI
Colour scanning	Yes
Duplex scanning	Yes
Input colour depth	48 bit
Output colour depth	24 bit
Output greyscale depth	8 bit
Greyscale levels	256
ADF scan speed (b/w, A4)	35 ppm
ADF scan speed (colour, A4)	35 ppm
Duplex ADF scan speed (b/w, A4)	70 ipm
Duplex ADF scan speed (colour, A4)	70 ipm

Design

Scanner type	ADF scanner
Product colour	Black, White
Control type	Buttons
Built-in display	No

Performance

Sensor type	CIS
Light source	LED
Scan file formats	JPEG, PDF, TIFF
Daily duty cycle (max)	5250 pages
Maximum duty cycle	105000 pages per month
Scan to	Image, PC, USB
Scan drivers	ICA, SANE, TWAIN, WIA
Scanning noise level	59 dB

Input capacity

Auto document feeder (ADF) input capacity	60 sheets

Paper handling

Scanning media types supported	Business Card, Plain paper, Plastic Card, Recycled paper, Thick paper, Thin paper
Long-paper mode	Yes
Maximum ISO A-series paper size	A4
Media thickness (min)	0.08 mm
Card thickness (max)	1.1 mm
Paper tray media weight	40 - 200 g/m²
Auto Document Feeder (ADF) media weight	40 - 200 g/m²
Maximum scan width	21.6 cm
Maximum scan length	5 m

Ports & interfaces

USB port	Yes
USB version	2.0/3.2 Gen 1 (3.1 Gen 1)

Power

Power supply type	AC
Power consumption (typical)	23 W
Power consumption (standby)	5.4 W
Power consumption (off)	0.1 W
AC input frequency	50 - 60 Hz
Power consumption (sleep)	1.4 W
Output voltage	24 V
Output current	1.9 A

Weight & dimensions

Width	299.5 mm
Depth	215.9 mm
Height	190.5 mm
Weight	2.6 kg

Packaging data

Quantity per pack	1 pc(s)
Package width	391 mm
Package depth	243 mm
Package height	320 mm
Package weight	3.31 kg

Packaging content

Cables included	AC, USB

System requirements

Windows operating systems supported	Yes
Mac operating systems supported	Yes
Linux operating systems supported	Yes
Server operating systems supported	Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019

Operational conditions

Operating temperature (T-T)	5 - 35 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	20 - 80%
Storage relative humidity (H-H)	10 - 90%

Other features

Cable lock slot	Yes
Compliance certificates	RoHS
Certification	GS Mark, WHQL

Logistics data

Harmonized System (HS) code	84716070
