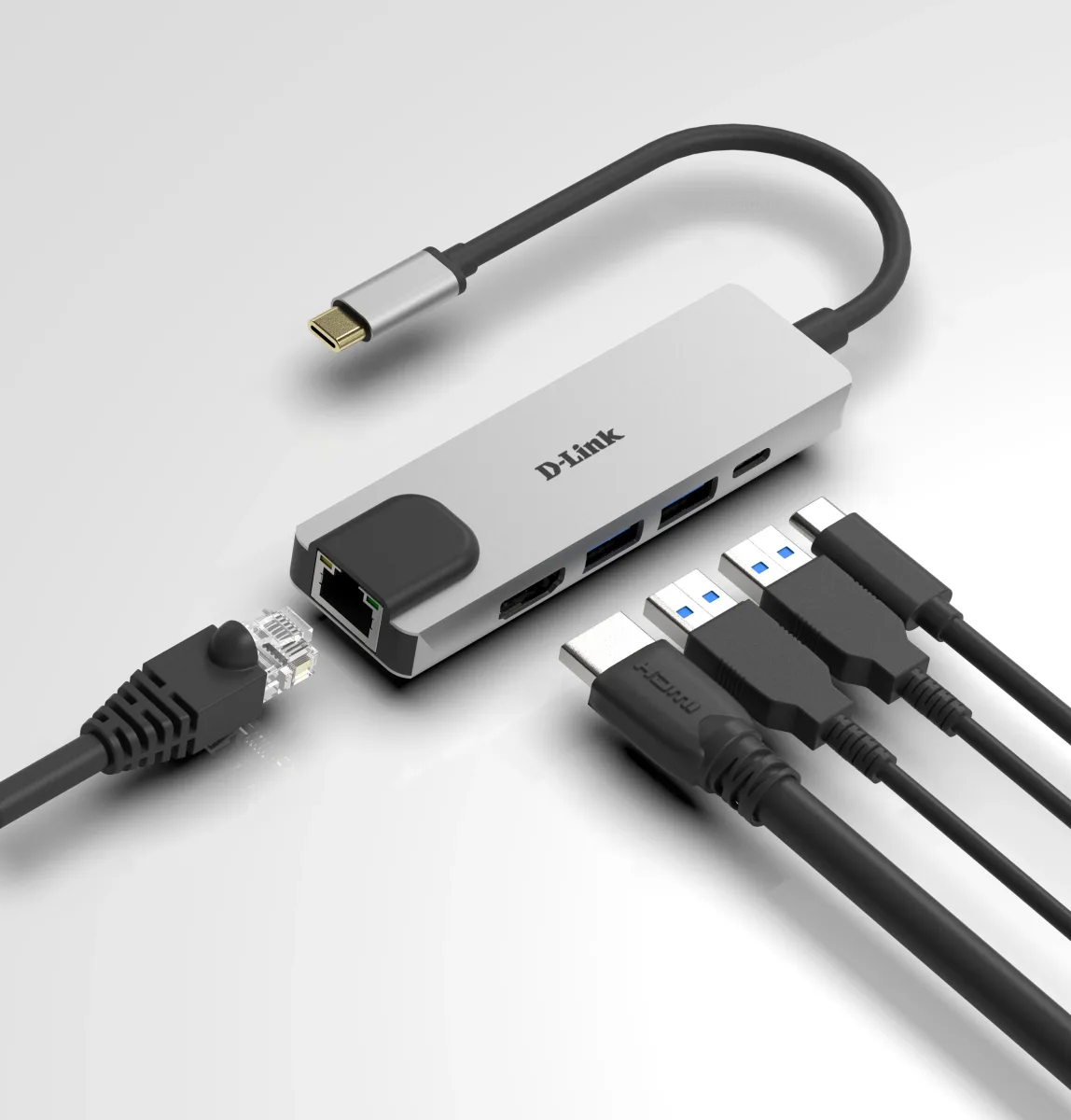

D-Link DUB-M520 - Docking station - USB-C / Thunderbolt 3 - HDMI - 1GbE

Description

D-Link 5-in-1 USB-C Hub with HDMI/Ethernet and Power Delivery. Connectivity technology: Wired, Host interface: Thunderbolt 3, USB Power Delivery up to: 60 W. Ethernet LAN data rates: 10,100,1000 Mbit/s, Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x. Product colour: Aluminium, HD type: 4K Ultra HD, Maximum digital resolution: 4096 x 2160 pixels. Input current: 0.12 A. Other operating systems supported: ChromeOS

Specifications

Ports & interfaces

Connectivity technology	Wired
Host interface	Thunderbolt 3
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
USB Power Delivery (USB PD)	Yes
USB Power Delivery up to	60 W
HDMI ports quantity	1
HDMI version	1.4
Microphone in	No
DC-in jack	No

Network

Ethernet LAN	Yes
Ethernet LAN (RJ-45) ports	1
Ethernet LAN data rates	10,100,1000 Mbit/s
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Full duplex	Yes

Performance

Card reader integrated	No
HD type	4K Ultra HD
Maximum digital resolution	4096 x 2160 pixels
Product colour	Aluminium
LED indicators	Yes
Plug and Play	Yes
Housing material	Aluminium
Certification	CE, FCC, IC, RCM

Power

Input current	0.12 A
Wireless charging	No

Software

Windows operating systems supported	Yes
Mac operating systems supported	Yes
Other operating systems supported	ChromeOS

Operational conditions

Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-25 - 85 °C
Operating relative humidity (H-H)	5 - 80%
Storage relative humidity (H-H)	5 - 80%

Weight & dimensions

Width	103 mm
Depth	31 mm
Height	11 mm
Weight	49 g

Packaging data

Quantity per pack	1 pc(s)

Logistics data

Harmonized System (HS) code	84733020
