Description

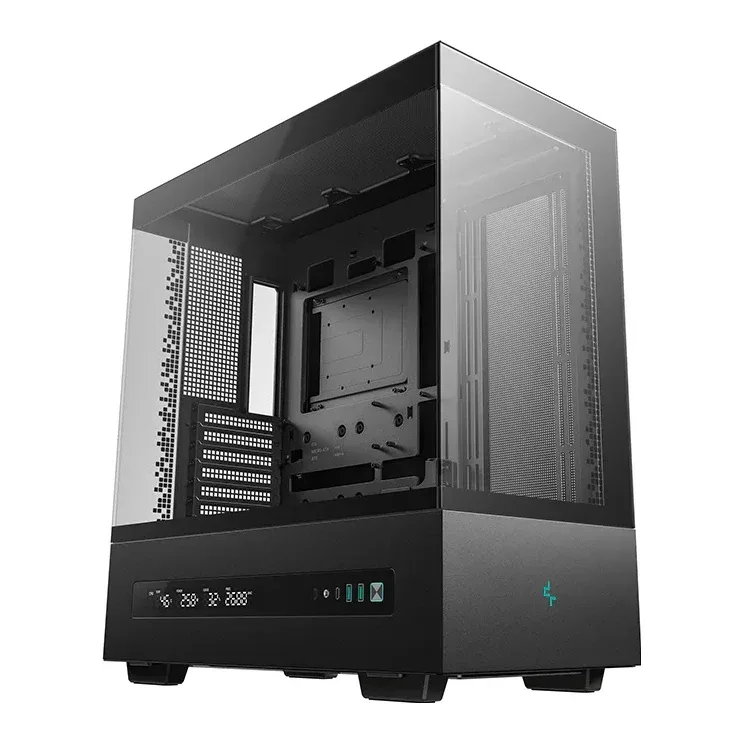

The DeepCool CH690 Digital Black ATX Case is designed with beauty and adaptability in mind. It features a semi-glass panel that offers an expansive view of installed components. For those seeking enhanced performance, the rear of the case supports DIY modifications, allowing users to replace the semi-glass panel with a mesh panel and fan bracket to boost horizontal airflow. Additionally, the integrated light strip slot enables the addition of light strips to create an immersive gaming atmosphere, blending aesthetics with functionality for a truly personalized setup.
Specifications Model Number: R-CH690-BKNNA0D-G-1
Case Type: Mid-Tower
Motherboard Support: Mini-ITX, Micro-ATX, ATX
Dimensions: 552mm (L) x 332mm (W) x 589mm (H)
Net Weight: 9.8 kg
Materials: ABS, SPCC, Tempered Glass
Front I/O Ports: 2 x USB 3.0
1 x USB Type-C (Gen 2)
1 x HD Audio/Mic
Drive Bays: 1 x 3.5" Drive Bay
2 x 2.5" Drive Bays
Expansion Slots: 8
Pre-Installed Fans: None
Fan Support: Top: 3 x 120mm / 3 x 140mm
Side: 3 x 120mm / 3 x 140mm
PSU Shroud: 3 x 120mm / 3 x 140mm
Rear: 1 x 120mm / 1 x 140mm
Radiator Support: Top: 120mm / 140mm / 240mm / 280mm / 360mm / 420mm
Side: 120mm / 140mm / 240mm / 280mm
PSU Shroud: 120mm / 240mm / 360mm
CPU Cooler Height Limit: 182mm
GPU Length Limit: 450mm
Power Supply Type: ATX PS2 (maximum length: 180mm)
Warranty: 1 Year
Key Features
- Form Factor: Mid Tower
- Motherboard Support: ATX
- PSU Included: None
- Case Colour: Black
- LED Colour: None
- USB 3.0: 2
- Side Panel: Tempered Glass
Category: Cases
Manufacturer Code: R-CH690-BKNNA0D-G-1
EAN: 6933412774037
Weight (KG): 9.8
VAT Rate: 20%
