Manufacturer Code: FVGRR
Overview

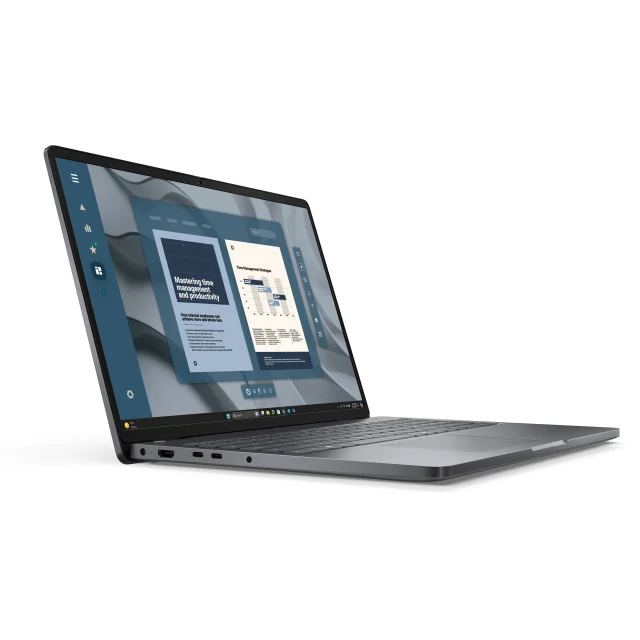

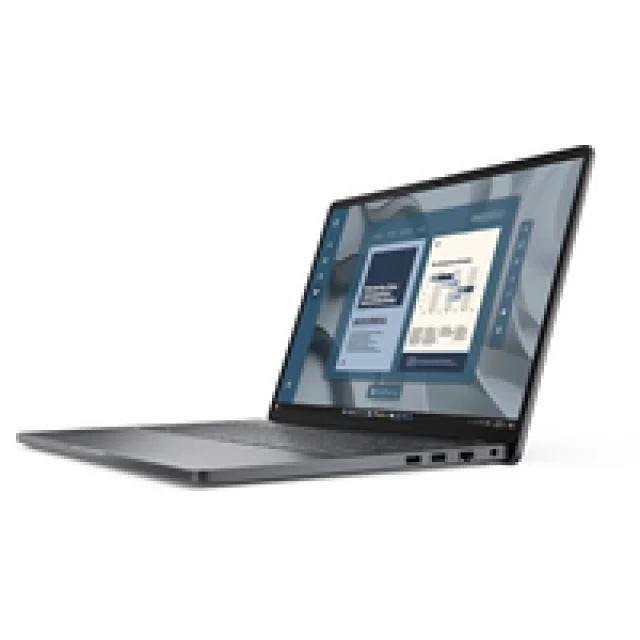

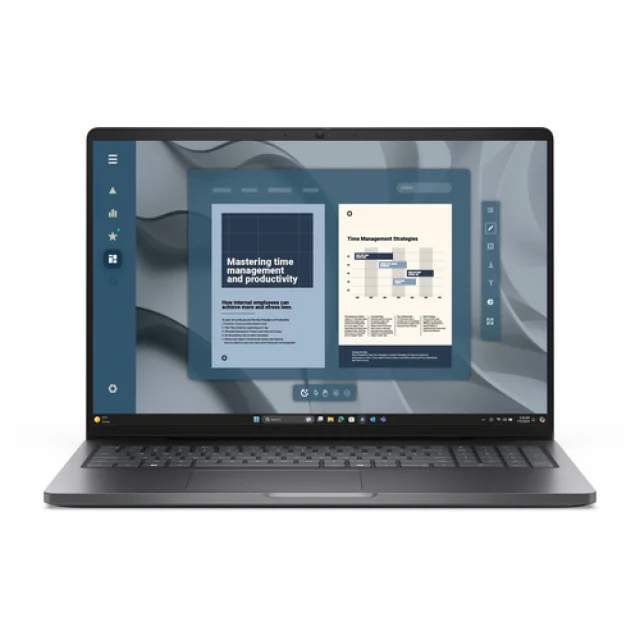

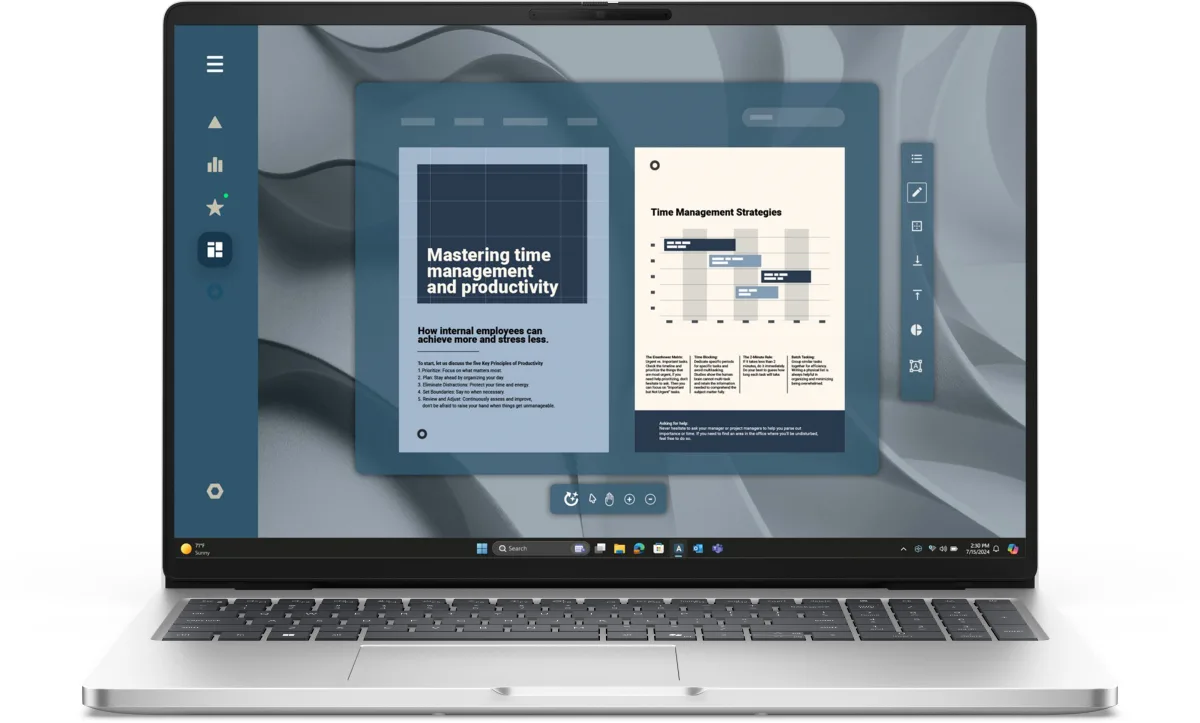

Dell Pro 16 PC16255 AMD Ryzen? 5 PRO 230 Processor (22 MB cache, 6 cores, 12 threads, up to 4.9 GHz, 16 TOPS NPU) 16 GB: 1 x 16 GB, DDR5, 5600 MT/s 512 GB, SSD 16", Non-Touch, FHD+, IPS, Anti-Glare, 300 nits, 45% NTSC, FHD IR Cam Fingerprint Reader FHD H is available through DCS Components. It sits within the Business Laptops category.
Procurement and setup support
Available for quote while live availability remains in stock. DCS can help with procurement, compatibility checks, configuration planning, installation support and long-term managed IT lifecycle support.
EAN: 5397184986844
Key product details
| Colour name | Magnetite |
|---|---|
| Product type | Laptop |
| Product colour | Black |
| Form factor | Clamshell |
| Display diagonal | 40.6 cm (16") |
|---|---|
| Display resolution | 1920 x 1200 pixels |
| Touchscreen | No |
| HD type | Full HD+ |
| Panel type | IPS |
| Native aspect ratio | 16:10 |
| Anti-glare screen | Yes |
| Display brightness | 300 cd/m² |
| Pixel density | 141 ppi |
| RGB colour space | NTSC |
| Colour gamut | 45% |
| Maximum refresh rate | 60 Hz |
| Contrast ratio (typical) | 1000:1 |
| Processor manufacturer | AMD |
|---|---|
| Processor family | AMD Ryzen™ 5 PRO |
| Processor generation | AMD Ryzen PRO 200 Series |
| Processor model | PRO 230 |
| Processor cores | 6 |
| Processor threads | 12 |
| Processor boost frequency | 4.9 GHz |
| Processor frequency | 3.5 GHz |
| L3 cache | 16 MB |
| L2 cache | 6 MB |
| Neural processor unit (NPU) | AMD Ryzen AI |
|---|---|
| Total processor performance up to | 31 TOPs |
| NPU performance up to | 16 TOPs |
| Internal memory | 16 GB |
|---|---|
| Internal memory type | DDR5-SDRAM |
| Memory form factor | SO-DIMM |
| Memory layout (slots x size) | 1 x 16 GB |
| Memory slots | 2x SO-DIMM |
| Maximum internal memory | 64 GB |
| Memory data transfer rate | 5600 MT/s |
| Total storage capacity | 512 GB |
|---|---|
| Storage media | SSD |
| Total SSDs capacity | 512 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 512 GB |
| SSD interface | PCI Express 4.0 |
| NVMe | Yes |
| SSD form factor | M.2 |
| M.2 SSD size | 2230 (22 x 30 mm) |
| Optical drive type | No |
| Discrete graphics card model | Not available |
|---|---|
| On-board graphics card | Yes |
| Discrete graphics card | No |
| On-board graphics card model | AMD Radeon 760M |
| Audio chip | Realtek ALC3204 |
|---|---|
| Audio system | High Definition Audio |
| Number of built-in speakers | 2 |
| Speaker power | 2.5 W |
| Built-in microphone | Yes |
| Number of microphones | 2 |
| Front camera | Yes |
|---|---|
| Front camera resolution (numeric) | 2.07 MP |
| Front camera resolution | 1920 x 1080 pixels |
| Front camera HD type | Full HD |
| Video capturing speed | 30 fps |
| Infrared (IR) camera | Yes |
| Privacy camera | Yes |
| Privacy type | Privacy shutter |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
|---|---|
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax) |
| Mobile network connection | No |
| Wi-Fi band | Tri-band (2.4 GHz / 5 GHz / 6 GHz) |
| Wi-Fi data rate (max) | 2400 Mbit/s |
| Antenna type | 2x2 |
| WLAN controller model | MediaTek MT7922 |
| WLAN controller manufacturer | MediaTek |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Bluetooth | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
|---|---|
| USB4 Gen 3x2 ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| Combo headphone/mic port | Yes |
| Power adapter barrel connector | 4.5 mm |
| USB Type-C DisplayPort Alternate Mode | Yes |
| PowerShare | Yes |
| Number of USB ports with PowerShare support | 1 |
| Hall sensor | Yes |
|---|
| Pointing device | Touchpad |
|---|---|
| Numeric keypad | Yes |
| Keyboard backlit | Yes |
| Keyboard language | UK English |
| Copilot key | Yes |
| Operating system architecture | 64-bit |
|---|---|
| Trial software | Activate Your Microsoft 365 For A 30 Day Trial |
| Operating system installed | Windows 11 Pro |
| Brand specific technologies | HDR Camera, TNR, Express Charge Boost capable |
|---|
| Number of battery cells | 3 |
|---|---|
| Battery capacity | 55 Wh |
| Battery voltage | 11.7 V |
| Battery recharge time | 4 h |
| Fast charging | Yes |
| Battery weight | 210 g |
| AC adapter frequency | 50 - 60 Hz |
|---|---|
| AC adapter input voltage | 100 - 240 V |
| DC-in jack | Yes |
| USB Type-C charging port | Yes |
| USB Type-C required charging power (min) | 45 W |
| USB Type-C required charging power (max) | 65 W |
| USB Power Delivery (USB PD) | Yes |
| USB charging voltage | 5,9,15,20 V |
| Cable lock slot | Yes |
|---|---|
| Cable lock slot type | Wedge |
| Fingerprint reader | Yes |
| Face recognition | Yes |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -40 - 65 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | -15.2 - 3048 m |
| Non-operating altitude | -15.2 - 10668 m |
| Operating shock | 140 G |
| Operating vibration | 0.66 G |
| Width | 358 mm |
|---|---|
| Depth | 251.8 mm |
| Height (front) | 1.89 cm |
| Height (rear) | 2.08 cm |
| Weight | 1.94 kg |
| AC adapter included | No |
|---|
| Surface treatment | textured |
|---|
