Manufacturer Code: TX50W
Overview

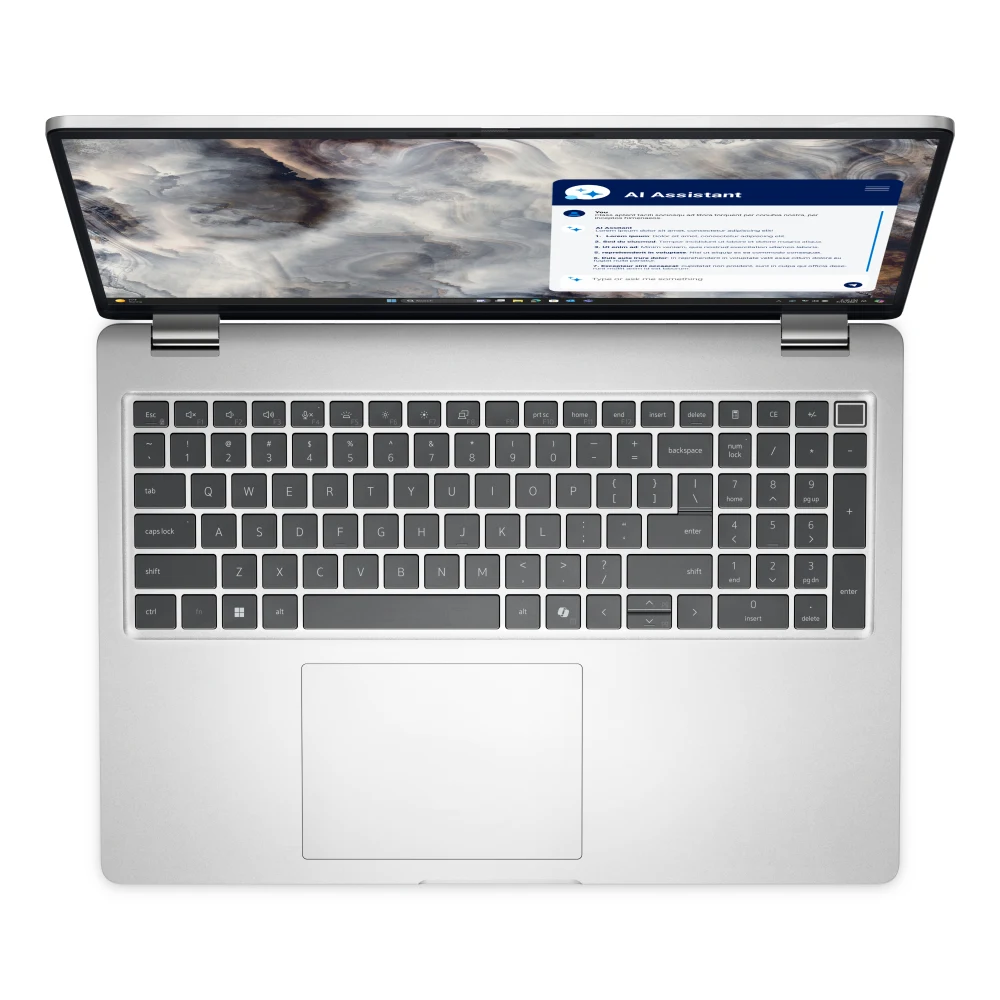

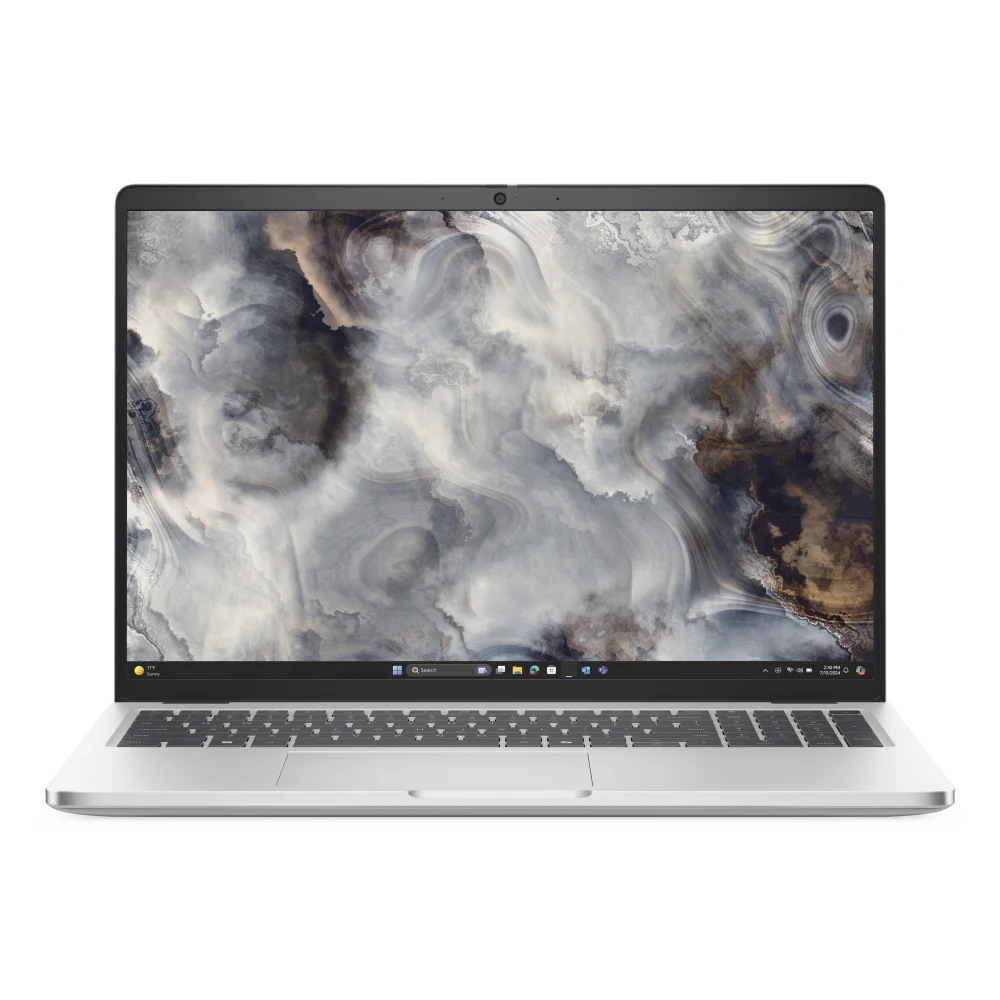

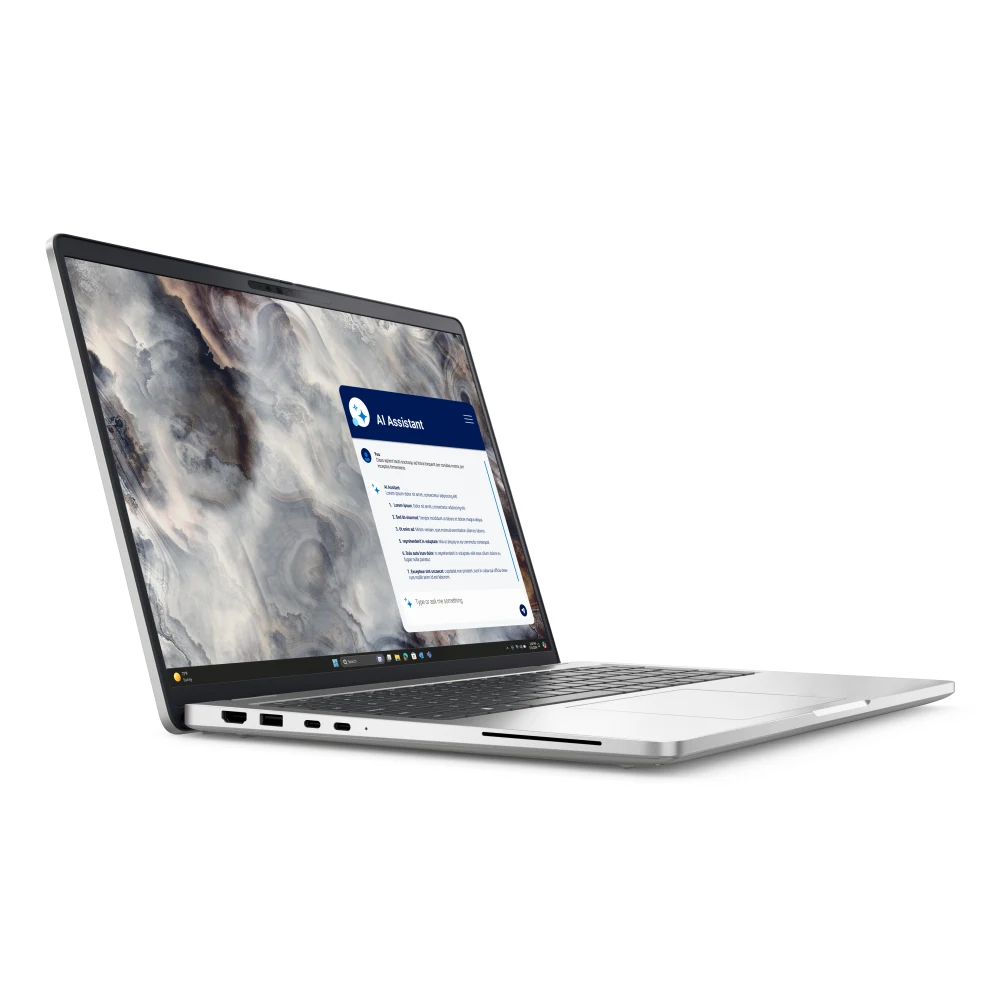

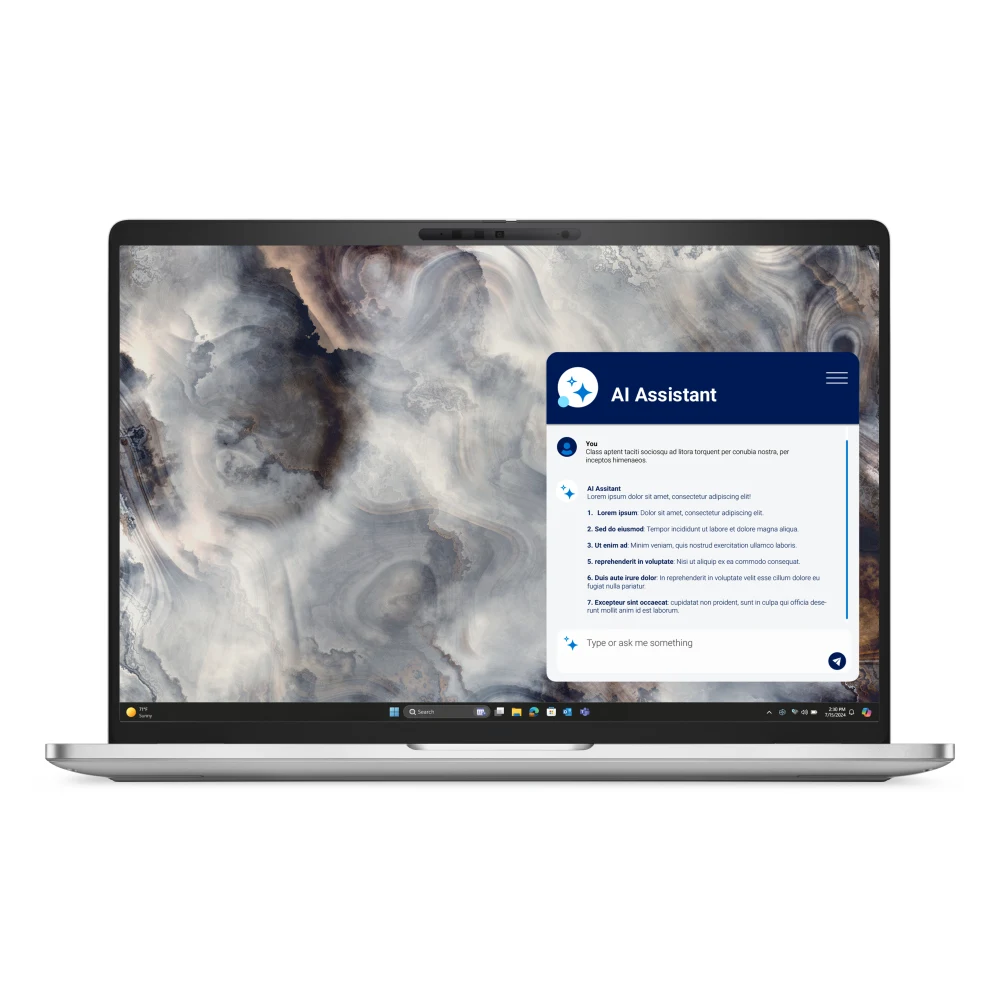

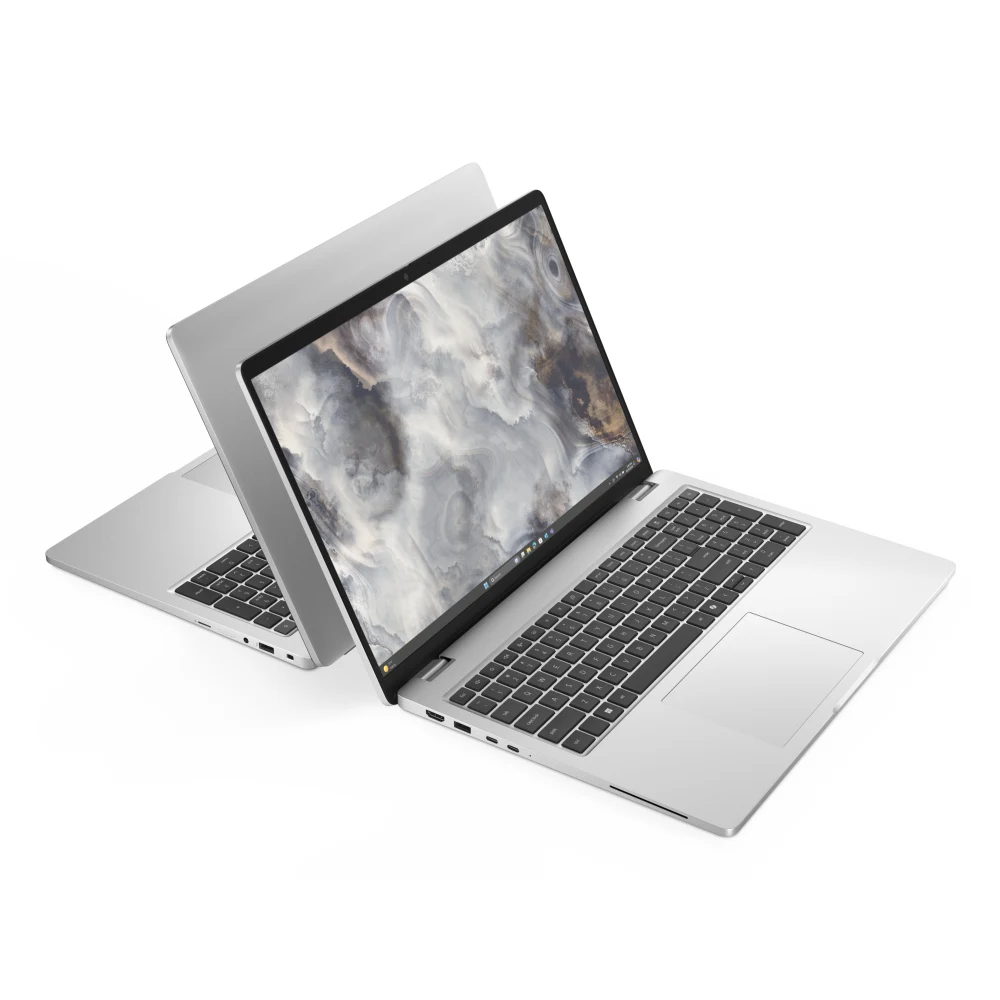

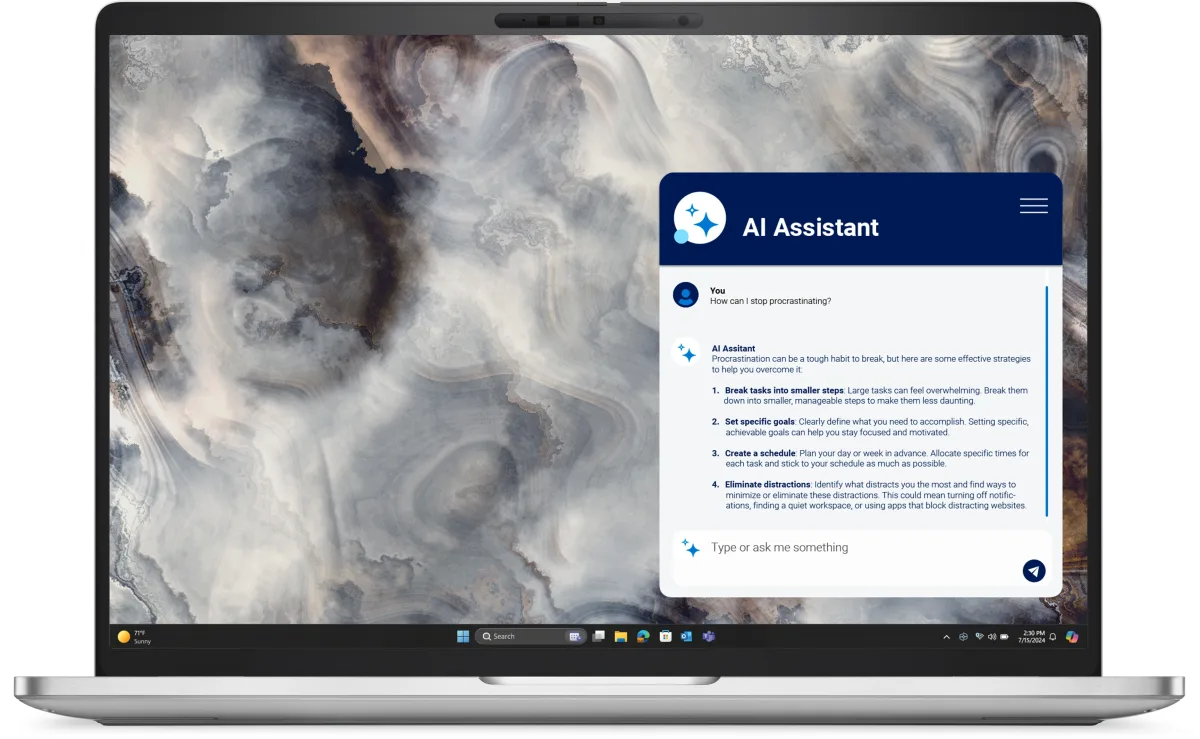

Dell Pro 16 Plus PB16250 Intel? Core? Ultra 7 268V, vPro? (48 TOPS NPU, 8 cores, up to 5.0 GHz) 32 GB: LPDDR5x, 8533 MT/s (onboard) 512 GB, SSD 16", Non-Touch, FHD+, IPS, Anti-Glare, 300 nits, 45% NTSC, FHD IR Cam Fingerprint Reader, No Smart Card Reader, is available through DCS Components. It sits within the Business Laptops category.
Procurement and setup support
Available for quote while live availability remains in stock. DCS can help with procurement, compatibility checks, configuration planning, installation support and long-term managed IT lifecycle support.
EAN: 5397184985489
Key product details
| Product type | Laptop |
|---|---|
| Product colour | Aluminium |
| Form factor | Clamshell |
| Housing material | Aluminium |
| Intel® vPro™ Platform Eligibility | Yes |
| Display diagonal | 40.6 cm (16") |
|---|---|
| Display resolution | 1920 x 1200 pixels |
| Touchscreen | No |
| HD type | Full HD+ |
| Panel type | IPS |
| Native aspect ratio | 16:10 |
| Anti-glare screen | Yes |
| Display brightness | 300 cd/m² |
| Pixel density | 142 ppi |
| RGB colour space | NTSC |
| Colour gamut | 45% |
| Maximum refresh rate | 60 Hz |
| Contrast ratio (typical) | 1000:1 |
| Processor manufacturer | Intel |
|---|---|
| Processor family | Intel Core Ultra 7 |
| Processor generation | Intel Core Ultra (Series 2) |
| Processor model | 268V |
| Processor cores | 8 |
| Processor threads | 8 |
| Processor boost frequency | 5 GHz |
| Performance cores | 4 |
| Low Power Efficient-cores | 4 |
| Performance-core Max Turbo Frequency | 5 GHz |
| Low Power Efficient-core Max Turbo Frequency | 3.7 GHz |
| Performance-core base frequency | 2.2 GHz |
| Low Power Efficient-core Base Frequency | 2200 MHz |
| Processor cache | 12 MB |
| Processor cache type | Smart Cache |
| Processor base power | 17 W |
| Maximum turbo power | 37 W |
| Copilot+ PC | Yes |
|---|---|
| Neural processor unit (NPU) | Intel AI Boost |
| Sparsity support | Yes |
| Windows Studio effects support | Yes |
| AI software frameworks supported by NPU | DirectML, OpenVINO, Windows ML, ONNX RT, WebNN |
| Total processor performance up to | 118 TOPs |
| NPU performance up to | 48 TOPs |
| GPU performance up to | 66 TOPs |
| Internal memory | 32 GB |
|---|---|
| Internal memory type | LPDDR5x-SDRAM |
| Memory form factor | On-board |
| Maximum internal memory | 32 GB |
| Memory data transfer rate | 8533 MT/s |
| Total storage capacity | 512 GB |
|---|---|
| Storage media | SSD |
| Total SSDs capacity | 512 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 512 GB |
| SSD interface | PCI Express 4.0 |
| NVMe | Yes |
| SSD form factor | M.2 |
| Optical drive type | No |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
| Discrete graphics card model | Not available |
|---|---|
| On-board graphics card | Yes |
| On-board GPU manufacturer | Intel |
| Discrete graphics card | No |
| On-board graphics card family | Intel Arc Graphics |
| On-board graphics card model | Intel Arc Graphics 140V |
| Audio chip | Cirrus Logic CS42L43 |
|---|---|
| Number of built-in speakers | 2 |
| Speaker power | 2.5 W |
| Built-in microphone | Yes |
| Number of microphones | 2 |
| Front camera | Yes |
|---|---|
| Front camera resolution (numeric) | 2.07 MP |
| Front camera resolution | 1920 x 1080 pixels |
| Front camera HD type | Full HD |
| Video capturing speed | 30 fps |
| Infrared (IR) camera | Yes |
| Privacy camera | Yes |
| Privacy type | Privacy shutter |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
|---|---|
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be) |
| Mobile network connection | No |
| Wi-Fi band | Tri-band (2.4 GHz / 5 GHz / 6 GHz) |
| Wi-Fi data rate (max) | 5760 Mbit/s |
| Antenna type | 2x2 |
| WLAN controller model | Intel Wi-Fi 7 BE201 |
| WLAN controller manufacturer | Intel |
| Bluetooth | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
|---|---|
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| Thunderbolt 4 ports quantity | 2 |
| Intel® Thunderbolt 4 | Yes |
| Combo headphone/mic port | Yes |
| USB Type-C DisplayPort Alternate Mode | Yes |
| PowerShare | Yes |
| Number of USB ports with PowerShare support | 1 |
| Pointing device | Touchpad |
|---|---|
| Numeric keypad | Yes |
| Keyboard backlit | Yes |
| Keyboard language | UK English |
| Copilot key | Yes |
| Operating system architecture | 64-bit |
|---|---|
| Trial software | Activate Your Microsoft 365 For A 30 Day Trial |
| Operating system installed | Windows 11 Pro |
| Brand specific technologies | Control Vault 3+, Express Charge Boost capable, HDR Camera, TNR |
|---|
| Number of battery cells | 3 |
|---|---|
| Battery capacity | 55 Wh |
| Battery voltage | 11.7 V |
| Fast charging | Yes |
| Battery charge indicator | Yes |
| Battery weight | 220 g |
| AC adapter frequency | 50 - 60 Hz |
|---|---|
| AC adapter input voltage | 100 - 240 V |
| USB Type-C charging port | Yes |
| USB Power Delivery (USB PD) | Yes |
| USB charging voltage | 5,9,15,20 V |
| Cable lock slot | Yes |
|---|---|
| Cable lock slot type | Wedge |
| Fingerprint reader | Yes |
| Face recognition | Yes |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Operating temperature (T-T) | 0 - 35 °C |
|---|---|
| Storage temperature (T-T) | -40 - 65 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | -15.2 - 3048 m |
| Non-operating altitude | -15.2 - 10668 m |
| Operating shock | 110 G |
| Non-operating shock | 160 G |
| Operating vibration | 0.66 G |
| Non-operating vibration | 1.3 G |
| Width | 358 mm |
|---|---|
| Depth | 251.4 mm |
| Height | 21.4 mm |
| Height (front) | 1.99 cm |
| Height (rear) | 2.06 cm |
| Weight | 1.84 kg |
| AC adapter included | No |
|---|
