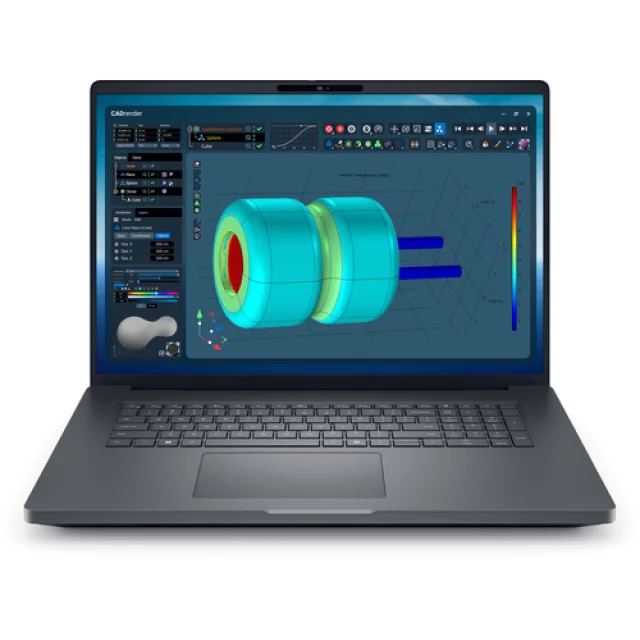

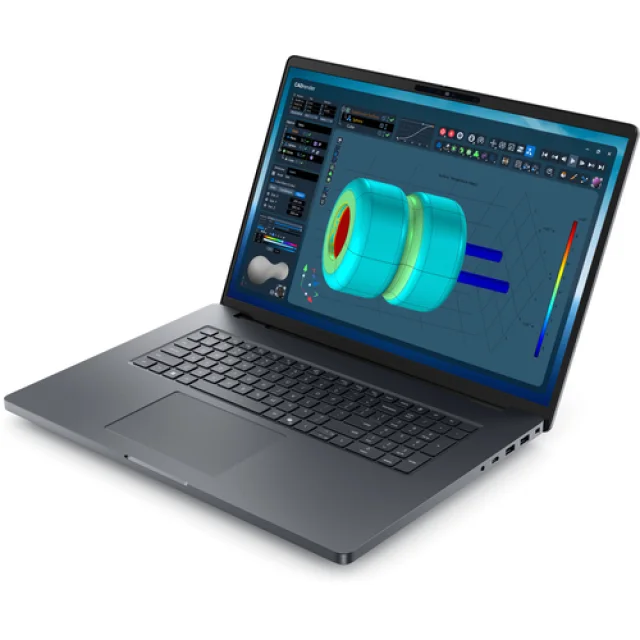

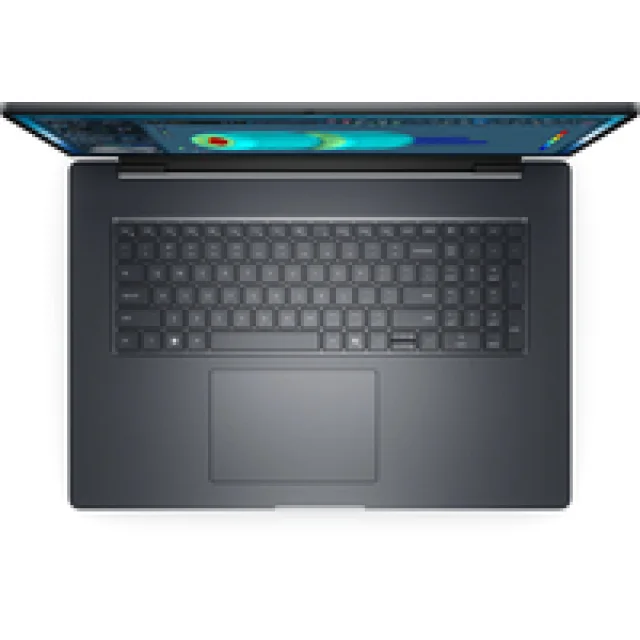

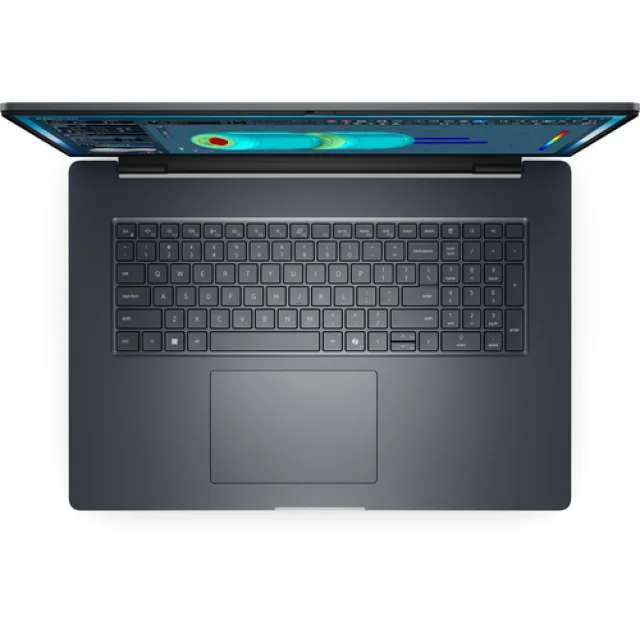

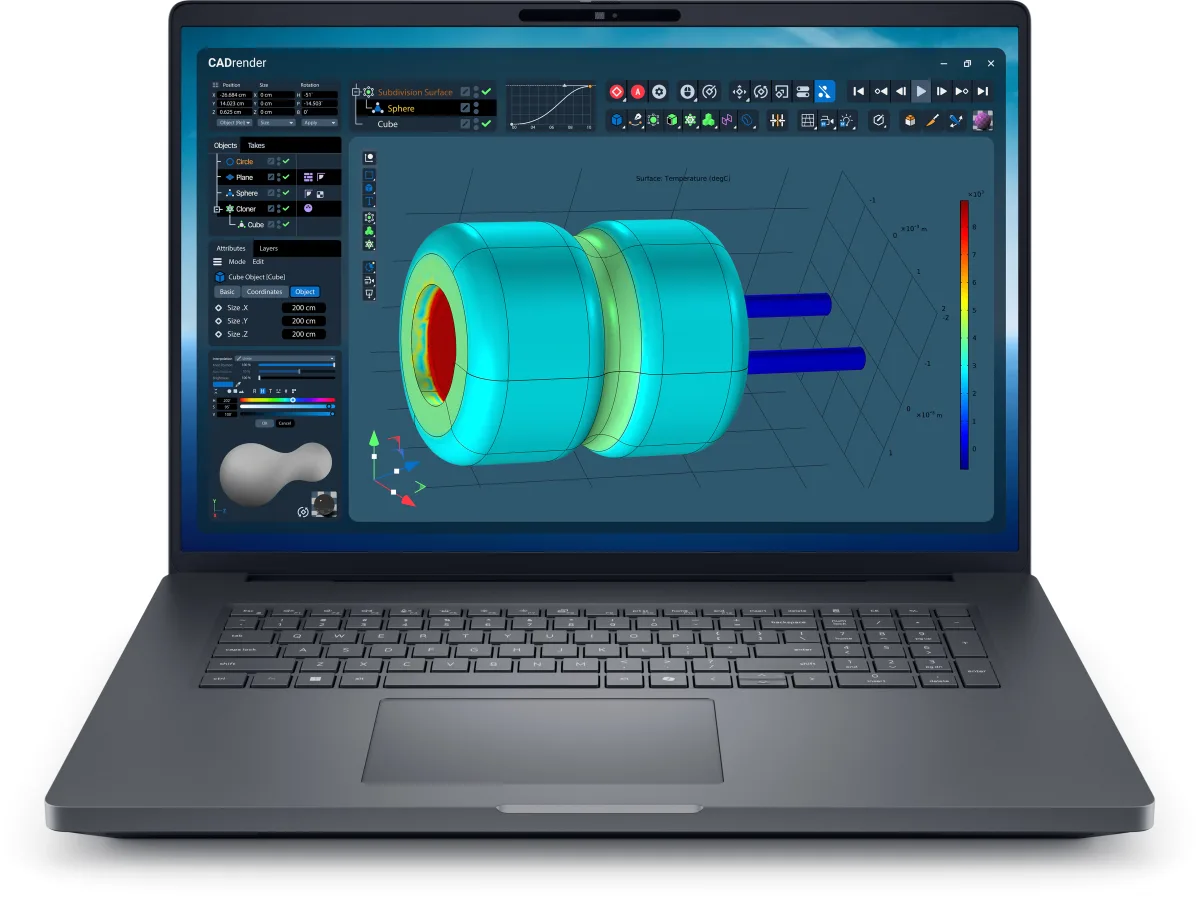

Dell Pro Max 18 Plus MB18250 - AI PC - Intel Core Ultra 9 - 285HX / up to 5.5 GHz - vPro Enterprise - Win 11 Pro - RTX PRO 3000 Blackwell - 32 GB RAM - 1 TB SSD SED, NVMe, TLC, Performance - 18" 2560 x 1600 (QHD+) @ 120 Hz - 2.5 Gigabit Ethernet - NFC, Wi-Fi 7 - magnetite - BTP - with 3 Years ProSupport

Description

Manufacturer Code: PX91H

Overview

Dell Pro Max 18 Plus MB18250 Intel? Core? Ultra 9 processor 285HX, 55W vPro 32GB: 2x16GB 6400 MTs DDR5 CSoDIMM, non-ECC 1 TB Performance SSD, SED Ready,TLC No Additional Hard Drive 18", Non-Touch, QHD+, LCD, 500 nits, 100% DCI-P3, IR Cam, mic NVIDIA? RTX? is available through DCS Components. It sits within the Notebook Workstations category.

Procurement and setup support

Available for quote while live availability remains in stock. DCS can help with procurement, compatibility checks, configuration planning, installation support and long-term managed IT lifecycle support.

EAN: 5397321002185

Key product details

• Manufacturer code: PX91H
• Category: Notebook Workstations
• EAN: 5397321002185

Specifications

Design

Colour name	Magnetite
Product type	Mobile workstation
Product colour	Black
Form factor	Clamshell
Intel® vPro™ Platform Eligibility	Yes

Display

Display diagonal	45.7 cm (18")
Display resolution	2560 x 1600 pixels
Touchscreen	No
HD type	Quad HD+
Panel type	WVA
Display technology marketing name	ComfortView Plus
Native aspect ratio	16:10
Anti-glare screen	Yes
Display brightness	500 cd/m²
Pixel density	168 ppi
RGB colour space	DCI-P3
Colour gamut	100%
Display response rise/fall	30 ms
Maximum refresh rate	120 Hz
Contrast ratio (typical)	1000:1

Processor

Processor manufacturer	Intel
Processor family	Intel Core Ultra 9
Processor generation	Intel Core Ultra (Series 2)
Processor model	285HX
Processor cores	24
Processor threads	24
Processor boost frequency	5.5 GHz
Performance cores	8
Efficient cores	16
Performance-core Max Turbo Frequency	5.5 GHz
Efficient-core Max Turbo Frequency	4.6 GHz
Performance-core base frequency	2.8 GHz
Efficient-core base frequency	2.1 GHz
Processor cache	36 MB
Processor base power	55 W
Maximum turbo power	160 W

Neural processor unit (NPU)

Neural processor unit (NPU)	Intel AI Boost
Sparsity support	Yes
Windows Studio effects support	Yes
AI software frameworks supported by NPU	DirectML, OpenVINO, Windows ML, ONNX RT, WebNN
Total processor performance up to	36 TOPs
NPU performance up to	13 TOPs
GPU performance up to	8 TOPs

Memory

Internal memory	32 GB
Internal memory type	DDR5-SDRAM
Memory form factor	CSODIMM
Memory layout (slots x size)	2 x 16 GB
Maximum internal memory	64 GB
Memory channels	Dual-channel
Memory data transfer rate	6400 MT/s
Non-ECC	Yes

Storage

Total storage capacity	1 TB
Storage media	SSD
Total SSDs capacity	1 TB
Number of SSDs installed	1
SSD capacity	1 TB
SSD memory type	TLC
SSD interface	PCI Express 4.0
NVMe	Yes
SSD form factor	M.2
Self-Encrypting Drive (SED)	Yes
Optical drive type	No
Card reader integrated	Yes
Compatible memory cards	SD, SDHC, SDXC

Graphics

Discrete GPU manufacturer	NVIDIA
Discrete graphics card model	NVIDIA RTX PRO 3000 Blackwell
Discrete graphics card memory	12 GB
Discrete graphics memory type	GDDR7
On-board graphics card	Yes
On-board GPU manufacturer	Intel
Discrete graphics card	Yes
On-board graphics card family	Intel® Graphics
On-board graphics card model	Intel® Graphics

Audio

Audio chip	Cirrus Logic CS42L43
Number of built-in speakers	2
Speaker power	2.5 W
Built-in microphone	Yes

Camera

Front camera	Yes
Front camera resolution (numeric)	8.29 MP
Front camera resolution	1920 x 1080 pixels
Front camera HD type	Full HD
Video capturing speed	30 fps
Infrared (IR) camera	Yes
Privacy camera	Yes
Privacy type	Privacy shutter

Network

Top Wi-Fi standard	Wi-Fi 7 (802.11be)
Mobile network connection	No
Wi-Fi band	Tri-band (2.4 GHz / 5 GHz / 6 GHz)
Wi-Fi data rate (max)	5760 Mbit/s
WLAN controller model	Intel Wi-Fi 7 BE200
WLAN controller manufacturer	Intel
Ethernet LAN	Yes
Ethernet LAN data rates	10,1000,2500,100 Mbit/s
Bluetooth	Yes
Near Field Communication (NFC)	Yes

Ports & interfaces

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
HDMI version	2.1
Thunderbolt 4 ports quantity	1
Thunderbolt 5 ports quantity	2
Intel® Thunderbolt 4	Yes
Intel® Thunderbolt 5	Yes
Combo headphone/mic port	Yes
USB Type-C DisplayPort Alternate Mode	Yes
PowerShare	Yes

Performance

Ambient light sensor	Yes
Accelerometer	Yes
Hall sensor	Yes

Keyboard

Pointing device	Touchpad
Numeric keypad	Yes
Keyboard backlit	Yes
Keyboard language	UK English
Copilot key	Yes

Software

Operating system architecture	64-bit
Trial software	Activate Your Microsoft 365 For A 30 Day Trial
Operating system installed	Windows 11 Pro

Brand-specific features

Brand specific technologies	Express Charge Boost capable, TNR, HDR Camera, Control Vault 3+

Battery

Battery technology	Lithium-Ion (Li-Ion)
Number of battery cells	6
Battery capacity	96 Wh
Battery voltage	11.7 V
Battery recharge time	3 h
Fast charging	Yes

Power

USB Type-C charging port	Yes
USB Type-C required charging power (min)	90 W
USB Power Delivery (USB PD)	Yes

Security

Cable lock slot	Yes
Cable lock slot type	Noble
Fingerprint reader	Yes
Smart card reader	Yes
Trusted Platform Module (TPM)	Yes
Trusted Platform Module (TPM) version	2.0
Dell ControlVault	Yes

Operational conditions

Operating temperature (T-T)	0 - 35 °C
Storage temperature (T-T)	-40 - 65 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	-15.2 - 3048 m
Non-operating altitude	-15.2 - 10668 m
Operating shock	110 G
Non-operating shock	160 G
Operating vibration	0.66 G
Non-operating vibration	1.3 G

Weight & dimensions

Width	402 mm
Depth	279.9 mm
Height (front)	1.79 cm
Height (rear)	1.96 cm
Weight	3.25 kg

Packaging content

AC adapter included	No
