Manufacturer Code: FPT01
Overview

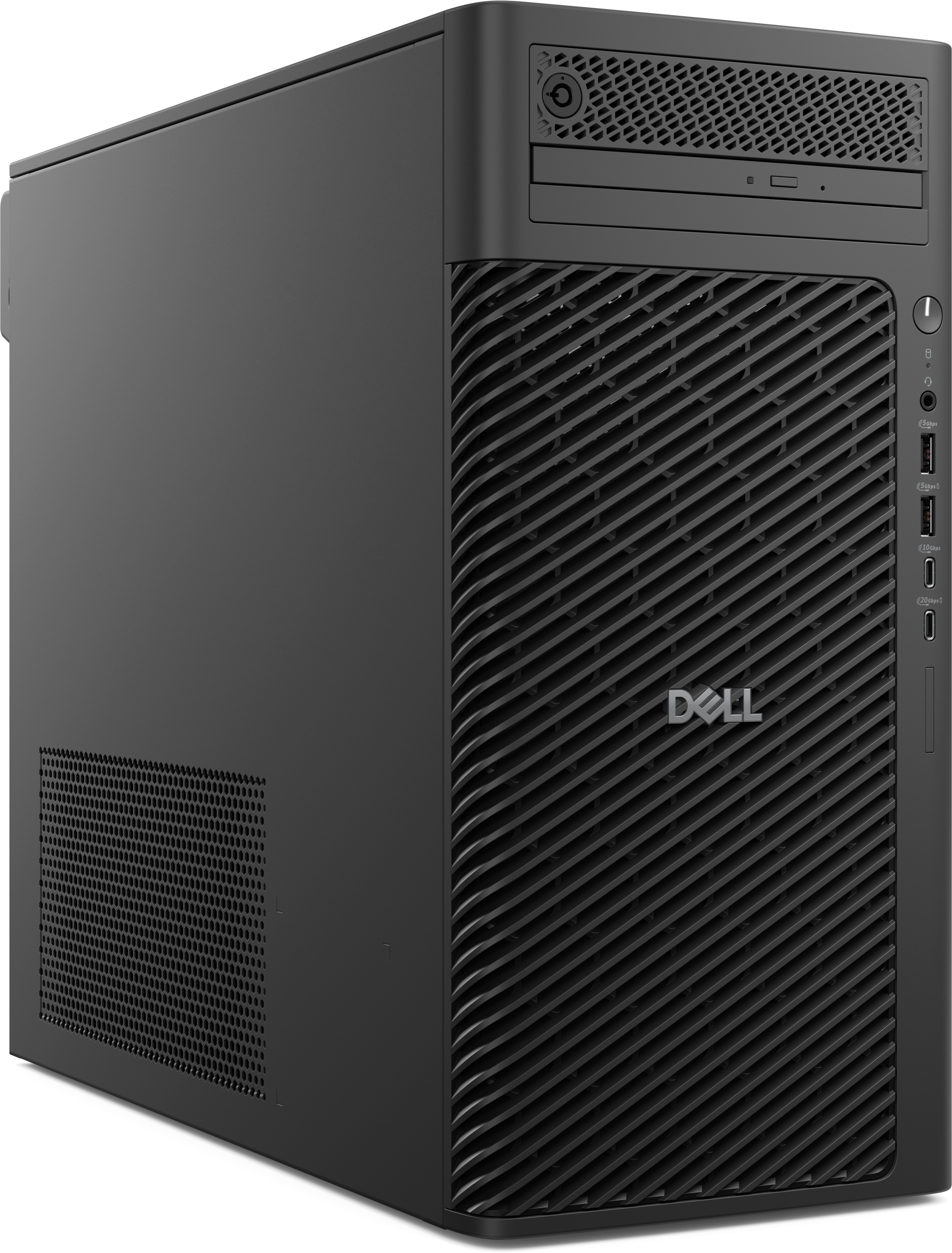

Dell Pro Max Tower T2 FCT2250 - Tower Core Ultra 9 285K / up to 5.7 GHz - vPro Enterprise - RAM 64 GB - SSD 1 TB - SED, NVMe, TLC - Intel Graphics - Gigabit Ethernet - Win 11 Pro - monitor: none - black - BTP - with 3 Years Basic Onsite is available through DCS Components. It sits within the Workstations category.
Key product details
Procurement and setup support
Available for quote while live availability remains in stock. DCS can help with procurement, compatibility checks, configuration planning, installation support and long-term managed IT lifecycle support.
EAN: 5397184936917
| Processor manufacturer | Intel |
|---|---|
| Processor family | Intel Core Ultra 9 |
| Processor generation | Intel Core Ultra (Series 2) |
| Processor model | 285K |
| Processor cores | 24 |
| Processor threads | 24 |
| Processor boost frequency | 5.7 GHz |
| Performance cores | 8 |
| Efficient cores | 16 |
| Performance-core Max Turbo Frequency | 5.5 GHz |
| Efficient-core Max Turbo Frequency | 4.6 GHz |
| Performance-core base frequency | 3.7 GHz |
| Efficient-core base frequency | 3.2 GHz |
| Processor cache | 36 MB |
| Processor cache type | Smart Cache |
| Number of processors installed | 1 |
| Processor base power | 125 W |
| Maximum turbo power | 250 W |
| Neural processor unit (NPU) | Intel AI Boost |
|---|---|
| Sparsity support | Yes |
| Windows Studio effects support | Yes |
| AI software frameworks supported by NPU | DirectML, OpenVINO, Windows ML, ONNX RT, WebNN |
| Total processor performance up to | 36 TOPs |
| NPU performance up to | 13 TOPs |
| GPU performance up to | 8 TOPs |
| Internal memory | 64 GB |
|---|---|
| Maximum internal memory | 128 GB |
| Internal memory type | DDR5-SDRAM |
| Memory layout (slots x size) | 2 x 32 GB |
| Memory slots | 4x DIMM |
| Non-ECC | Yes |
| Memory channels | Dual-channel |
| Memory data transfer rate | 5600 MT/s |
| Total storage capacity | 1 TB |
|---|---|
| Storage media | SSD |
| Optical drive type | No |
| Number of storage drives installed | 1 |
| Total SSDs capacity | 1 TB |
| Number of SSDs installed | 1 |
| SSD capacity | 1 TB |
| SSD memory type | TLC |
| SSD interface | PCI Express |
| NVMe | Yes |
| SSD form factor | M.2 |
| M.2 SSD size | 2280 (22 x 80 mm) |
| Discrete graphics card | No |
|---|---|
| On-board graphics card | Yes |
| Discrete graphics card model | Not available |
| On-board GPU manufacturer | Intel |
| On-board graphics card family | Intel® Graphics |
| On-board graphics card model | Intel® Graphics |
| Ethernet LAN | Yes |
|---|---|
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| LAN controller | Intel® I219-LM |
| Wi-Fi | No |
| USB 2.0 ports quantity | 2 |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 2 |
| Intel® Thunderbolt 4 | Yes |
| Thunderbolt 4 ports quantity | 1 |
| DisplayPorts quantity | 2 |
| DisplayPort version | 1.4a |
| Ethernet LAN (RJ-45) ports | 1 |
| Combo headphone/mic port | Yes |
| DC-in jack | Yes |
| Number of rear USB ports | 6 |
| Number of front USB ports | 4 |
| Number of SATA III connectors | 4 |
| PCI Express x4 (Gen 3.x) slots | 2 |
|---|---|
| PCI Express x4 (Gen 4.x) slots | 1 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| Chassis type | Tower |
|---|---|
| Volume | 32 L |
| Placement supported | Vertical |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Product colour | Black |
| Intel® vPro™ Platform Eligibility | Yes |
| Market positioning | Business |
|---|---|
| Motherboard chipset | Intel W880 |
| Trusted Platform Module (TPM) | Yes |
| Product type | PC |
| Trusted Platform Module (TPM) version | 2.0 |
| Operating system architecture | 64-bit |
|---|---|
| Operating system installed | Windows 11 Pro |
| Trial software | Activate Your Microsoft 365 For A 30 Day Trial |
| Intel® Active Management Technology (Intel® AMT) | Yes |
|---|
| Power supply | 1500 W |
|---|---|
| Power supply input voltage | 90 - 264 V |
| Power supply input frequency | 47/63 Hz |
| 80 PLUS certification | 80 PLUS Platinum |
| Operating temperature (T-T) | 0 - 35 °C |
|---|---|
| Storage temperature (T-T) | -40 - 65 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | -15.2 - 3048 m |
| Non-operating altitude | -15.2 - 10668 m |
| Operating vibration | 0.66 G |
| Non-operating vibration | 1.3 G |
| Operating shock | 110 G |
| Non-operating shock | 160 G |
| Sustainability certificates | ENERGY STAR, EPEAT Climate + |
|---|
| Width | 187.7 mm |
|---|---|
| Depth | 438 mm |
| Height | 387 mm |
| Weight | 9.7 kg |
| Mouse included on selected markets | Dell Optical Mouse-MS116 - Black |
|---|---|
| Keyboard included on selected markets | Dell Wired Keyboard - KB216 - UK (QWERTY) - Black |
| Cables included | AC |
| Total carbon footprint (kg of CO2e) | 406 |
|---|---|
| Carbon emissions, manufacturing (kg of CO2e) | 145.348 |
| Carbon emissions, logistics (kg of CO2e) | 15.428 |
| Carbon emissions, energy usage (kg of CO2e) | 231.42 |
| Carbon emissions, end-of-life (kg of CO2e) | 13.804 |
| PAIA version | GaBi version 1, 2024 |
| Display included | No |
|---|
| Audio chip | Realtek ALC3204 |
|---|---|
| Audio system | High Definition Audio |
| Doesn't contain | PVC/BFR |
|---|
