Manufacturer Code: T9WMV
Overview

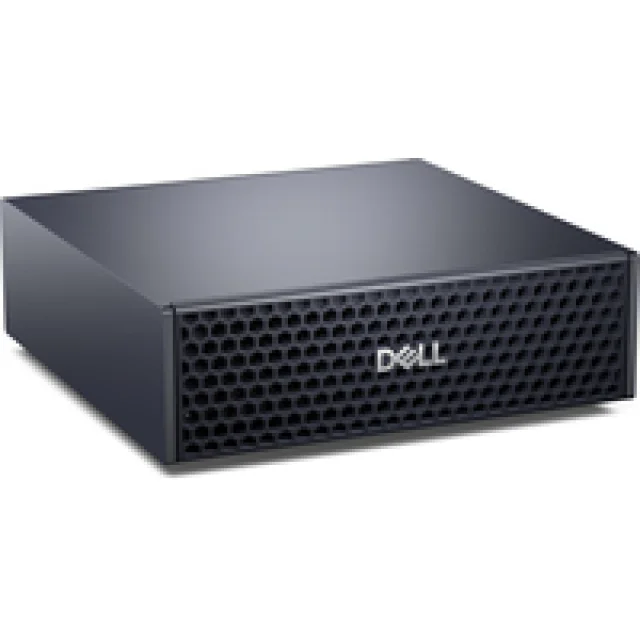

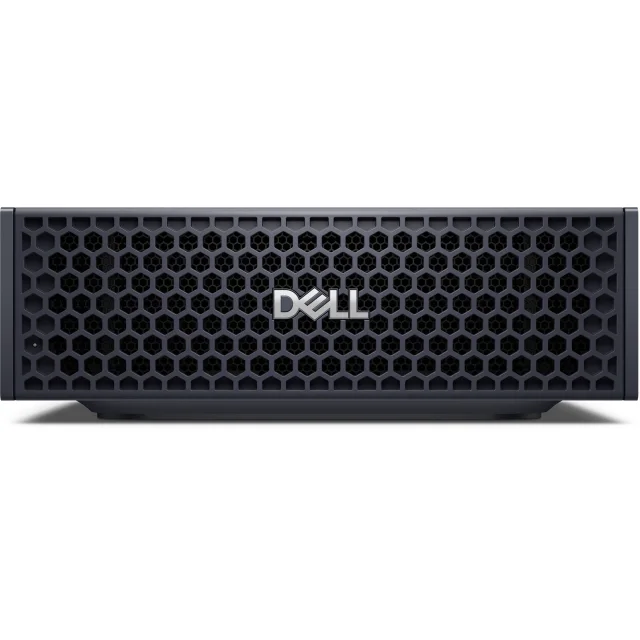

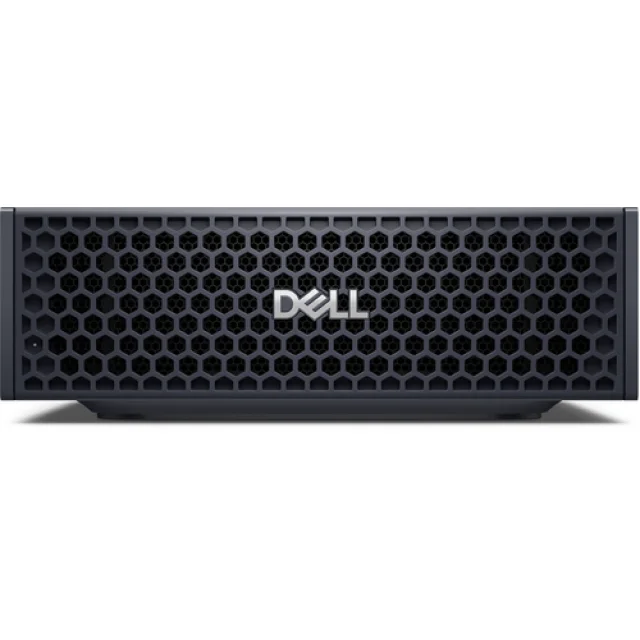

Dell Pro Max with GB10 FCM1253 NVIDIA GB10 Grace CPU (10 Cortex-X925 + 10 Cortex-A725 cores) 128GB LPDDR5X 2 TB, M.2 2230, SSD NVIDIA GB10 Blackwell GPU WIFI 7 & Bluetooth 5 Wireless Module 280W Type-C Power Adapter E5 Power Cord 1M for HK BD MY SG is available through DCS Components. It sits within the Workstations category.
Procurement and setup support
Available for quote while live availability remains in stock. DCS can help with procurement, compatibility checks, configuration planning, installation support and long-term managed IT lifecycle support.
EAN: 5397184987032
Key product details
| Processor manufacturer | Nvidia |
|---|---|
| Processor model | GB10 |
| Processor cores | 20 |
| Processor cache | 16 MB |
| NPU performance up to | 13 TOPs |
|---|
| Internal memory | 128 GB |
|---|---|
| Maximum internal memory | 128 GB |
| Internal memory type | LPDDR5x-SDRAM |
| Memory data transfer rate | 8533 MT/s |
| Total storage capacity | 2 TB |
|---|---|
| Storage media | SSD |
| Optical drive type | No |
| Number of storage drives installed | 1 |
| Total SSDs capacity | 2 TB |
| Number of SSDs installed | 1 |
| SSD capacity | 2 TB |
| SSD interface | PCI Express 4.0 |
| NVMe | Yes |
| SSD form factor | M.2 |
| M.2 SSD size | 2230 (22 x 30 mm) |
| Discrete graphics card | No |
|---|---|
| On-board graphics card | Yes |
| Discrete graphics card model | Not available |
| On-board GPU manufacturer | NVIDIA |
| On-board graphics card model | NVIDIA Blackwell |
| Ethernet LAN | Yes |
|---|---|
| Ethernet LAN data rates | 10,100,1000,10000 Mbit/s |
| LAN controller | NVIDIA ConnectX-7 |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be) |
| WLAN controller manufacturer | AzureWare |
| Bluetooth | Yes |

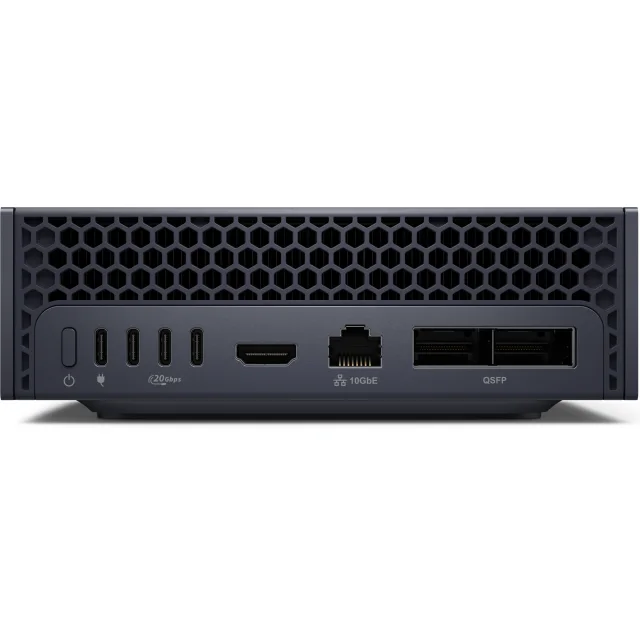

| USB 3.2 Gen 2x2 Type-C ports quantity | 3 |
|---|---|
| USB Type-C DisplayPort Alternate Mode | Yes |
| HDMI ports quantity | 1 |
| HDMI version | 2.1a |
| Ethernet LAN (RJ-45) ports | 1 |
| Product colour | Black |
|---|
| Trusted Platform Module (TPM) | Yes |
|---|---|
| Product type | Mini PC |
| Trusted Platform Module (TPM) version | 2.0 |
| Operating system installed | DGX OS |
|---|
| Power supply | 280 W |
|---|---|
| Power supply input voltage | 100 - 240 V |
| Operating temperature (T-T) | 0 - 35 °C |
|---|---|
| Storage temperature (T-T) | -40 - 65 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | -15.2 - 3048 m |
| Non-operating altitude | -15.2 - 10668 m |
| Operating vibration | 0.66 G |
| Non-operating vibration | 1.3 G |
| Operating shock | 110 G |
| Non-operating shock | 160 G |
| Width | 150 mm |
|---|---|
| Depth | 150 mm |
| Height | 51 mm |
| Weight | 1.34 kg |
| Total carbon footprint (kg of CO2e) | 427 |
|---|---|
| Total carbon emissions, standard deviation (kg of CO2e) | 110 |
| Carbon emissions, manufacturing (kg of CO2e) | 258.762 |
| Carbon emissions, logistics (kg of CO2e) | 61.488 |
| Carbon emissions, energy usage (kg of CO2e) | 99.064 |
| Carbon emissions, end-of-life (kg of CO2e) | 7.686 |
| PAIA version | PAIA 1.5.1, 2025 |
| Display included | No |
|---|
| Box contents | E5 Power Cord 1M for Europe |
|---|
| Doesn't contain | PVC/BFR |
|---|
