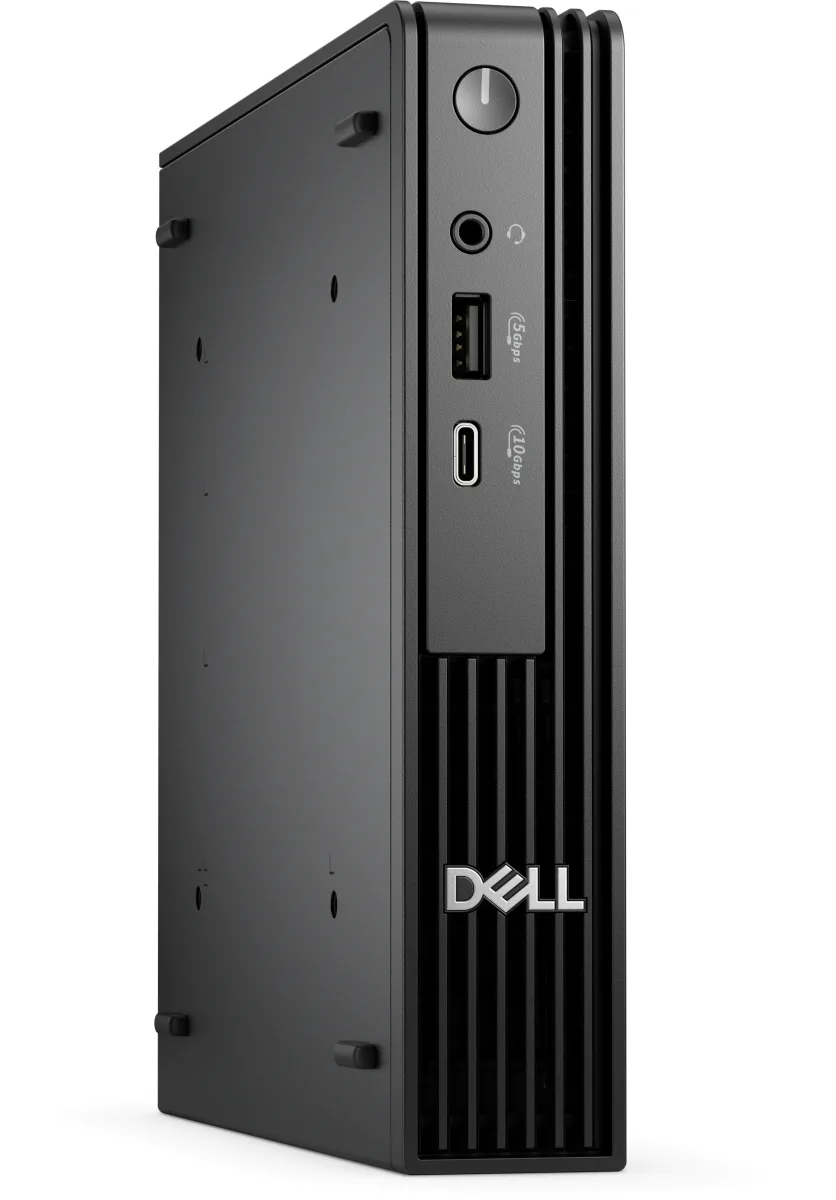

Dell Pro QCM1250 Mini Desktop PC, Intel Core i5-14500 14th Gen, 16GB DDR5-SDRAM, 512GB SSD, Windows 11 Pro with 1 Year Onsite Warranty

Description

Ultracompact desktops designed to maximise efficiency and productivity in small workspaces.

GENERAL

Product Type
Mini PC

Chassis Type
Micro PC

Placement Supported
Horizontal / Vertical

OPERATING SYSTEM

Operating System
Windows 11 Pro (64-bit)

PERFORMANCE

Processor Manufacturer
Intel

Processor Family
Intel® Core™ i5

Processor Generation
Intel® Core™ i5 (14th Gen)

Processor
Intel® Core™ i5-14500T

Processor Cores
14

Processor Threads
20

Processor Boost Frequency
Up to 4.8 GHz

Performance Cores
6

Efficient Cores
8

Performance-core Max Turbo Frequency
4.8 GHz

Efficient-core Max Turbo Frequency
3.4 GHz

Performance-core Base Frequency
1.7 GHz

Efficient-core Base Frequency
1.2 GHz

Processor Cache
24 MB Smart Cache

Number of Processors Installed
1

Processor Base Power
35 W

Maximum Turbo Power
92 W

Motherboard Chipset
Intel® Q870

NPU AI Framework Support
DirectML
OpenVINO
Windows ML
ONNX RT
WebNN

GRAPHICS

Graphics
Intel® UHD Graphics 770

Graphics Family
Intel® UHD Graphics

Discrete Graphics
Not available

MEMORY

Memory
16 GB DDR5-SDRAM (1 x 16 GB)

Memory Slots
2 x SO-DIMM

Maximum Memory
64 GB

Memory Channels
Single-channel

Memory Speed
4800 MT/s

ECC Support
Non-ECC

STORAGE

Storage
512 GB SSD

Total Storage Capacity
512 GB

Storage Media
SSD

Number of Installed Drives
1

SSD Interface
PCI Express 4.0

SSD Form Factor
M.2

NVMe
Yes

Optical Drive
None

DISPLAY

Display Included
No

AUDIO

Audio Chip
Realtek ALC3204

Audio System
High Definition Audio

CONNECTIVITY

Ethernet
10/100/1000 Mbit/s Gigabit Ethernet

LAN Controller
Intel WGI219LM

Wi-Fi
Wi-Fi 6E (802.11ax)

Wi-Fi Standards
802.11a
802.11b
802.11g
Wi-Fi 4 (802.11n)
Wi-Fi 5 (802.11ac)
Wi-Fi 6E (802.11ax)

WLAN Controller
Intel® Wi-Fi 6E AX211

Antenna Type
2x2 Internal

Bluetooth
Yes

PORTS & INTERFACES

Front USB Ports
2

Rear USB Ports
4

Front Audio Ports
1

USB Ports
2 x USB 2.0
3 x USB 3.2 Gen 1 Type-A
1 x USB 3.2 Gen 2 Type-C

Video Ports
1 x HDMI 2.1
1 x DisplayPort™ 1.4a

Network Ports
1 x Ethernet (RJ-45)

Other Ports
1 x Headphone / microphone combo jack
1 x DC-in jack

DESIGN

Cable Lock Slot
Yes

Cable Lock Type
Kensington

Trusted Platform Module (TPM)
Yes, TPM 2.0

DIMENSIONS & WEIGHT

Dimensions (W x D x H)
36 x 178 x 182 mm

Weight
1.16 kg

POWER

Power Supply
90 W

Input Voltage
100 - 240 V

Input Frequency
50 / 60 Hz

ENVIRONMENTAL CONDITIONS

Operating Temperature
10°C to 35°C

Storage Temperature
-40°C to 65°C

SUSTAINABILITY

Sustainability Certifications
ENERGY STAR®
EPEAT Climate+
EPEAT Gold

PACKAGE CONTENTS

Mouse Included
Dell Optical Mouse MS116 - Black (selected markets)

Keyboard Included
Dell Wired Keyboard KB216 UK (QWERTY) - Black (selected markets)

Key Features

• Case Style: Mini
• Processor: Intel Core i5
• Processor Cores: 14
• Storage: 512GB
• Memory: 16GB
• Graphics: On-Chip
• Operating Software: Windows 11 Pro

Category: Pre-built systems

Manufacturer Code: 20PN3

EAN: 5397184936221

Weight (KG): 1.16

VAT Rate: 20%
