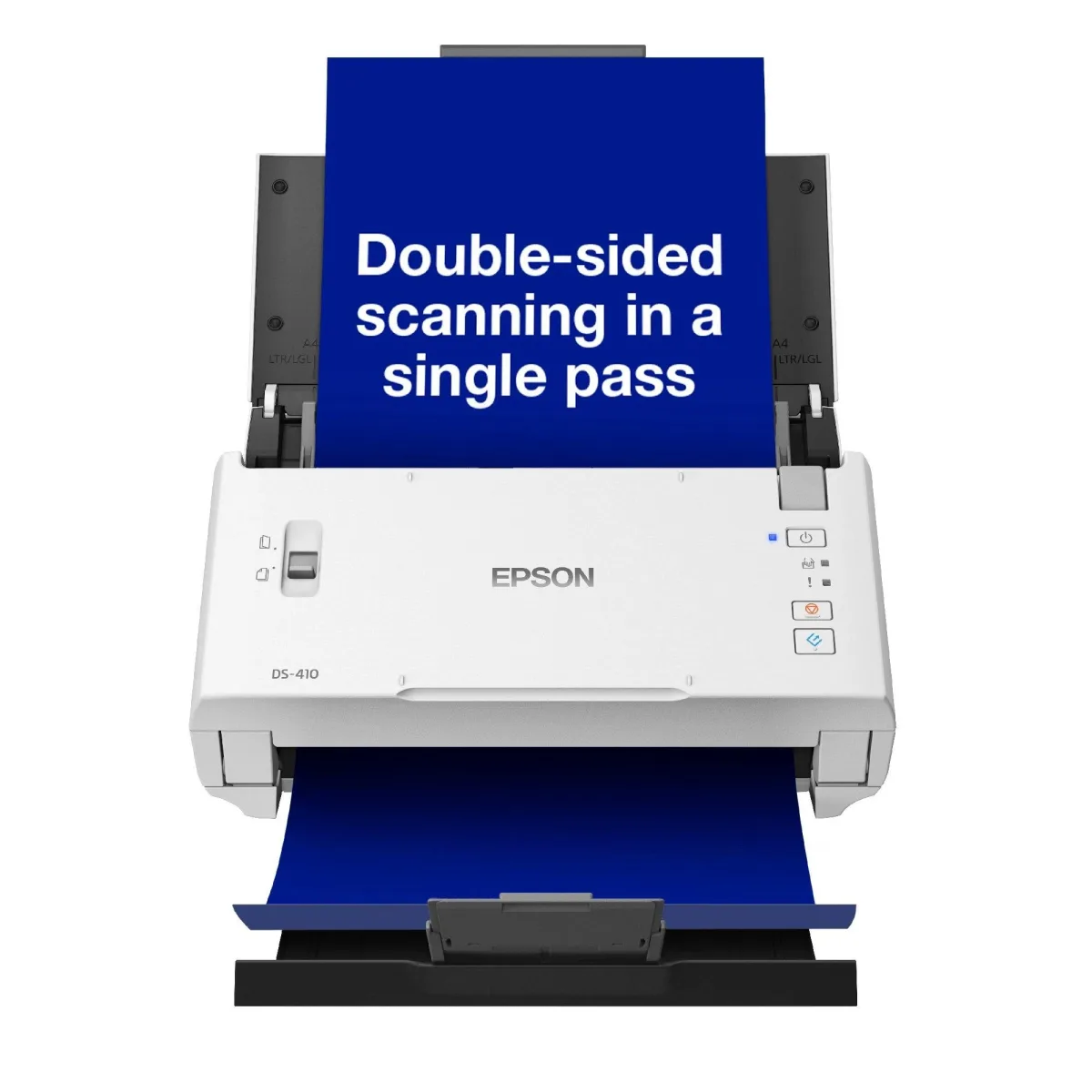

DS410 - Document scanner - Duplex - A4 - 600 dpi x 600 dpi - up to 26 ppm (mono) / up to 26 ppm (colour) - ADF (50 sheets) - up to 3000 scans per day - USB 2.0

Description

A4 sheet-fed business scanner
The WorkForce DS-410 scanner offers outstanding productivity features at an entry-level price. This makes it ideal for small or home-office users looking to buy a feature-packed business scanner, as well as IT departments that want to invest in robust, versatile desktop scanners for their business.


The DS-410 provides a range of invaluable productivity features including double feed detection and paper protection technology to make sure originals are protected and ensures every page is scanned. A set of advanced LED sensors detects when two pieces of paper have been picked at once, instantly stopping the machine and alerting the user. Meanwhile paper protection helps prevent misfeeds and damage by stopping automatically when the device detects stapled or skewed documents.


It has automatic feed mode for fast and simple scanning - just insert sheets and the scanner will begin, while a 50-sheet automatic document feeder makes it easy to scan large piles of documents.


The DS-410 has a robust build to handle everything office life can throw at it, and a very compact body to take up minimal desk space, so it's easy to fit into even the smallest of offices. It can scan at speeds of up to 26ppm/52ipm, and handle paper weights from 50g/m² to 209g/m². Also, manual A3 mode allows ad-hoc scanning of larger-format originals.


The scanner is bundled with Epson’s Document Capture Pro 2.0 software, which offers a simple but powerful software solution for scanning, separating and routing documents throughout a business.

Specifications

Scanning

Maximum scan size	215.9 x 3048 mm
Optical scanning resolution	600 x 600 DPI
Colour scanning	Yes
Duplex scanning	Yes
Input colour depth	10 bit
Output colour depth	8 bit
ADF scan speed (b/w, A4)	26 ppm
ADF scan speed (colour, A4)	26 ppm

Design

Scanner type	Sheet-fed scanner
Product colour	Black, White
Built-in display	No

Performance

Sensor type	CIS
Scan file formats	BMP, JPG, PDF, PNG, TIFF
Daily duty cycle (max)	3000 pages
Scan drivers	ISIS, TWAIN, WIA

Input capacity

Standard input capacity	50 sheets
Auto document feeder (ADF) input capacity	50 sheets

Paper handling

Scanning media types supported	Business Card, Post Card(JPN)
Maximum ISO A-series paper size	A4
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5, B6
Letter	Yes
Legal	Yes
Auto Document Feeder (ADF) media weight	50 - 209 g/m²

Ports & interfaces

USB port	Yes
USB version	2.0
Standard interfaces	USB 2.0

Power

Power supply type	AC
Power consumption (off)	0.2 W
AC input frequency	50 - 60 Hz
Input voltage	100 - 120 V
Power supply	15 W

Weight & dimensions

Width	297 mm
Depth	152 mm
Height	154 mm
Weight	2.5 kg

Packaging data

Quantity per pack	1 pc(s)
Package width	245 mm
Package depth	395 mm
Package height	240 mm
Package weight	3.6 kg

Packaging content

Cables included	AC, USB
Bundled software	Epson Device Admin, Epson Document Capture (Mac only), Epson Document Capture Pro (Windows only), Epson Scan 2

Sustainability

Sustainability certificates	ENERGY STAR

System requirements

Compatible operating systems	Mac OS 10.10.x, Mac OS 10.11, Mac OS 10.6+, Mac OS 10.7.x, Mac OS 10.8.x, Mac OS 10.9.x, Mac OS X 10.11.x, Mac OS X 10.12, Windows 10, Windows 10 (32/64 bit), Windows 11, Windows 7, Windows 8, Windows 8.1, Windows Server 2003 R2 x64, Windows Server 2008 R2, Windows Server 2012 R2, Windows Vista, Windows XP
Windows operating systems supported	Yes
Mac operating systems supported	Yes
Server operating systems supported	Windows Server 2003 R2, Windows Server 2008 R2, Windows Server 2012 R2

Operational conditions

Operating temperature (T-T)	5 - 35 °C
Storage temperature (T-T)	60 - 25 °C
Operating relative humidity (H-H)	15 - 80%
Storage relative humidity (H-H)	15 - 85%

Other features

Image formats supported	BMP, JPEG, TIFF, MTIFF, PNG
Printer features	RGB colour dropout, Skip blank page, A3 stitching (without carrier sheet), Automatic de-skew, RGB colour enhance, Auto-rotation, Text enhancement, Barcode Recognition, Full Zonal OCR
Scanner features	RGB colour dropout, Skip blank page, A3 stitching (without carrier sheet), Automatic de-skew, RGB colour enhance, Auto-rotation, Text enhancement, Barcode Recognition, Full Zonal OCR
Box contents	CD Manual, Main unit, Power cable, Setup guide, USB cable, Warranty card
Interface	USB 2.0

Logistics data

Products per pallet	72 pc(s)
Pallet gross length	120 cm
Pallet gross width	80 cm
Pallet gross height	2.07 m
Products per pallet layer	9 pc(s)
Products per pallet layer (UK)	12 pc(s)
Products per pallet (UK)	96 pc(s)
Pallet length (UK)	120 cm
Pallet height (UK)	2.07 m
Harmonized System (HS) code	84716070
