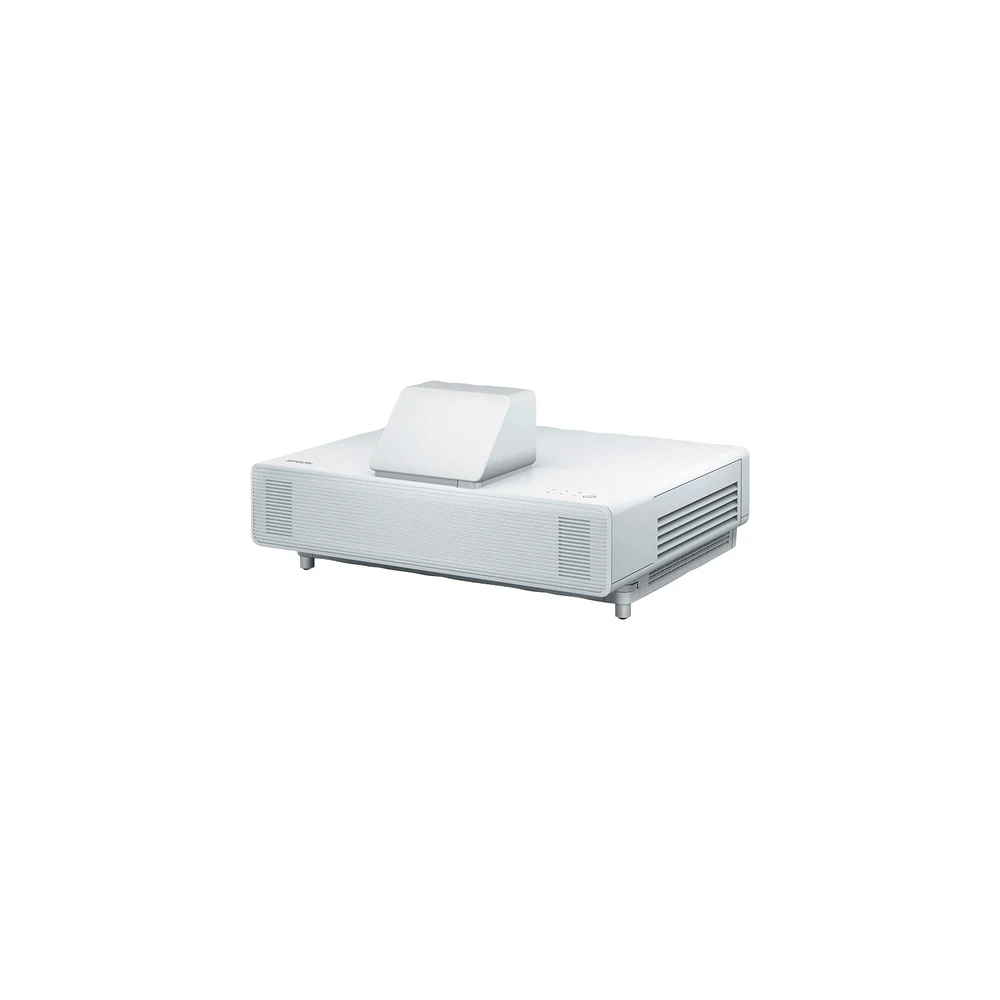

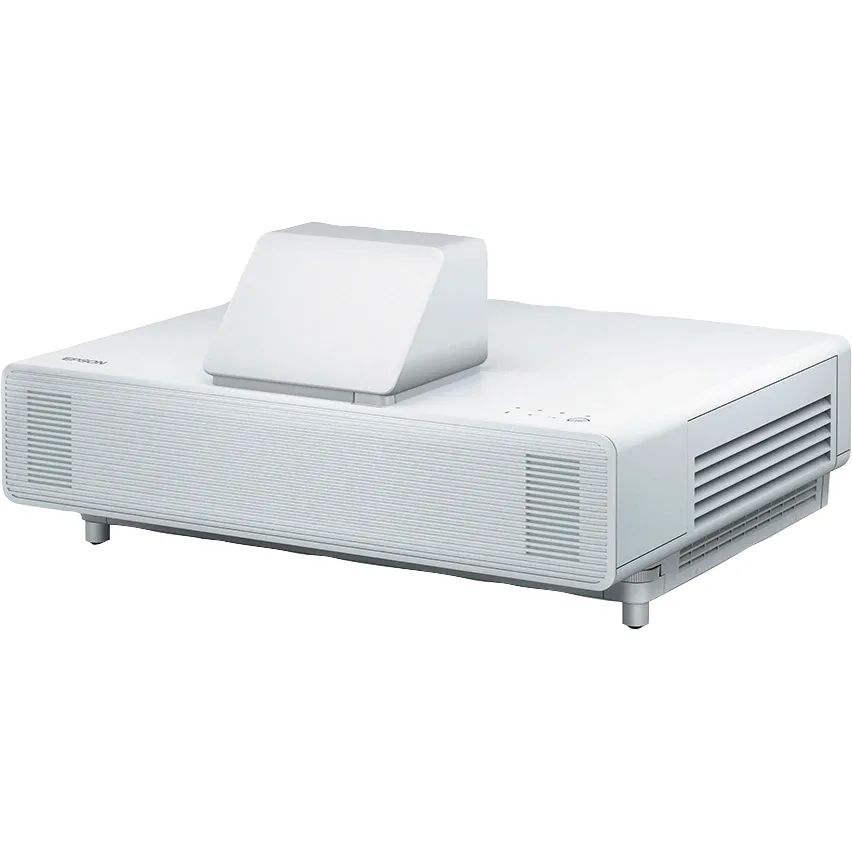

Epson EB-800F - 3LCD projector - 5000 lumens (white) - 5000 lumens (colour) - Full HD (1920 x 1080) - 16:9 - 1080p - ultra short-throw lens - LAN - white

Description

Digital signage solution
This laser display solution brings informative signage to life and produces scalable projections of up to 130 inches. It brings a fresh dimension to signage with borderless images and projection onto ultra-wide surfaces, including glass and curved walls. The EB-800F features Full HD 1080p image quality and delivers powerful and informative displays for retail, hospitality and visitor attractions.

Innovative and cost effective
Epson's advanced laser technology is robust and reliable, providing a fit-and-forget digital signage solution. It offers bright and vivid colours in a cost-effective solution that's capable of large display sizes.

Large and scalable images
The EB-800F enables scalable display sizes of up to 130 inches, in Full HD resolution with 5,000 lumen brightness and 3LCD technology for bright colours and high display quality even in bright spaces.

Versatile and easy to install
This sleek, stylish and bright display solution offers the flexibility to fulfil the most exacting brief, and the versatility to work in tight spaces. It can be mounted on the wall, ceiling, floor, or even hidden away to create added mystery. Its ultra-short-throw design enables projection of large images from a short distance. A black version is also available.

Flexible playback options
Content can be played directly from a USB stick, including: playlists, videos, and signage content using the built-in content playback feature and Epson Projector Content Manager software. Users can benefit from multi-projector and daisy-chain support for built-in edge blending, or illuminate an entire wall with one huge image. Also, the split screen feature allows users to connect multiple input sources to display different content sources simultaneously.

Specifications

Projector

Screen size compatibility	1651 - 3302 mm (65 - 130")
Projection distance (wide)	0 - 0.4 m
Projection distance (tele)	0 - 0.8 m
Contrast ratio (dynamic)	5000000:1
Projector brightness	5000 ANSI lumens
Projection technology	3LCD
Projector native resolution	1080p (1920x1080)
Contrast ratio (typical)	2500000:1
Native aspect ratio	16:9
Number of colours	1.07 billion colours
Projector brightness (economic mode)	3500 ANSI lumens
Vertical scan range	192 - 240 Hz
Keystone correction, horizontal	±3°
Keystone correction, vertical	±3°
Matrix size	1.57 cm (0.62")
Heat dissipation	1244 BTU/h

Light source

Light source type	Laser
Service life of light source	20000 h
Service life of light source (economic mode)	30000 h

Lens system

Focus	Manual
Focal length range	3.9 mm
Fixed focal length	3.9 mm
F-number (relative aperture)	1.5
Zoom capability	Yes
Zoom type	Auto
Zoom ratio	1.35:1
Throw ratio	0.27 - 0.37:1

Video

Full HD	Yes
3D	No
Video processing	10 bit
Video colour modes	Blackboard, Cinema, DICOM simulation mode, Dynamic, Multi-projection, Presentation, sRGB

Ports & interfaces

HDBaseT port	Yes
USB 2.0 ports quantity	2
USB 2.0 Type-B ports quantity	1
Audio (L/R) in	3
Audio (L/R) out	1
Serial interface type	RS-232C
VGA (D-Sub) ports quantity	3
HDMI ports quantity	4
Composite video in	1
DVI port	No

Network

Smart TV	No
Ethernet LAN	Yes
Ethernet LAN (RJ-45) ports	1
Ethernet LAN data rates	10,100 Mbit/s
Wi-Fi	No
Web browser	Yes

Storage

Card reader integrated	No

Features

Noise level (economic mode)	27 dB
Noise level	36 dB
Country of origin	Philippines
Password protection	Yes

Multimedia

Built-in speaker(s)	Yes
RMS rated power	8 W
Number of built-in speakers	2

Design

Market positioning	Business
Product type	Ultra short throw projector
Product colour	White
Placement	Ceiling, Desktop, Wall
Cable lock slot	Yes
Cable lock slot type	Kensington

Power

Power source	AC
Power consumption (typical)	366 W
Power consumption (standby)	0.5 W
Power consumption (economy mode)	262 W
AC input voltage	220 - 240 V
AC input frequency	50 - 60 Hz

Software

Software support	via: Crestron Integrated Partner, Crestron RoomView, Extron IP Link, Extron XTP, AMX Device Discovery, Control4 Simple Device Discovery Protocol

Operational conditions

Storage temperature (T-T)	-10 - 60 °C
Operating relative humidity (H-H)	20 - 80%
Storage relative humidity (H-H)	10 - 90%

Weight & dimensions

Width	458 mm
Depth	375 mm
Height	210 mm
Weight	9.4 kg
Package width	530 mm
Package depth	595 mm
Package height	345 mm
Package weight	13.2 kg

Packaging content

Remote control included	Yes
Batteries included	Yes
Cables included	AC
Warranty card	Yes
WLAN adapter included	Yes
Packaging content	CD manual, cable cover, lens cap, warranty document
Bundled software	Epson Creative Projection, EasyMP Multi PC Projection, Epson Projector Content Manager, Epson Projector Management

Technical details

Other features	A/V mute, Arc Correction, Auto Power On, Auto source search, Built-in speaker, Customizable user logo, Daisy chain Multi-Projection, Digital zoom, Direct Power on/off, Document Camera Compatible, Driverless installation, Edge Blending, Email notification, Home Screen, Horizontal and vertical keystone correction, Image Shift, JPEG Viewer, Long light source life, Network administration, Network projection, OSD copy function, PC Free, Power on button, Quick Corner, Schedule Function, Split-Screen-Function, Ultra-wide display (16:6), Web Control, Web Remote, iProjection App
USB display function	2 in 1: Image/ Sound
Sustainability certificates	TCO
Mobile app support	Yes

Logistics data

Quantity per pack	1 pc(s)
Products per pallet	12 pc(s)
Pallet gross weight	0 g
Products per pallet (UK)	12 pc(s)
Pallet weight (UK)	0 g
Harmonized System (HS) code	85286200

Other features

Option type	Wireless LAN unit
Interface	USB 2.0-A (2x), USB 2.0, Powered USB, RS-232C, Ethernet interface (100 Base-TX / 10 Base-T), Wireless LAN IEEE 802.11a/b/g/n/ac (optional), VGA in (2x), VGA out, HDMI in (3x), HDMI out, Composite in, HDBaseT, Miracast (optional), Jack plug out, Jack plug in (3x)
Control panel	0.62 inch with C2 Fine
Supported network protocols	HTTPS, IPv6, SNMP, ESC/VP.net, PJLink
Box contents	CD Manual, Cable cover, Lens cap, Power cable, Projector feet, Remote control incl. batteries, Warranty document
Security features	Kensington lock, Password lock, Padlock, Security cable hole, Password protection
