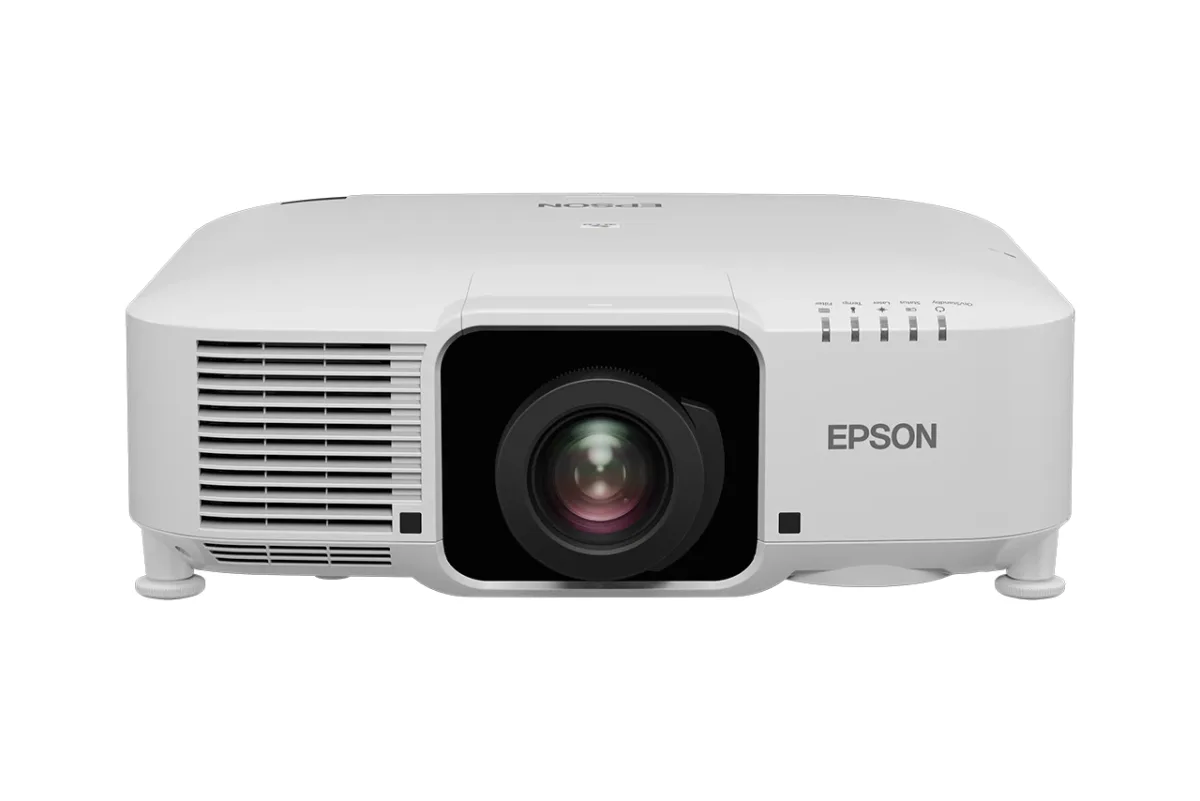

Epson EB-PQ2008W - 3LCD projector - 8000 lumens (white) - 8000 lumens (colour) - 3840 x 2160 - 16:10 - 4K - no lens - LAN - white

Description

8,000lm 4K projector
Designed to engage and captivate audiences with ultra-high resolution, large format content, the EB-PQ2008W uses 3LCD technology to deliver outstanding colour reproduction, while Epson's patented 4K Crystal Motion technology offers stunning image quality. Affordable and energy-efficient, the projector also features interchangeable lenses, a light and compact design and extensive connectivity.

Limitless creativity
Building on the success of the EB-PU Series, the EB-PQ2008W is not only small and light, but is highly affordable, versatile, energy-efficient and packed with advanced features. Allowing you the freedom to create unforgettable immersive experiences.

A revolutionary 4K experience
Marvel at the clarity of the images produced by Epson’s latest 4K technology. Combining its patented, state of the art 4K Crystal Motion and double micro-lens array technologies, Epson achieves a new benchmark in 4K image quality.

Fantastically flexible
Featuring a wide range of connectivity, including HDMI in/out supporting 120Hz 4K. This high brightness projector also benefits from cross-platform lens compatibility, using the same 4K lenses as the existing EB-PU Series, including the ELPLX02S zero-offset ultra-short throw lens which is perfect for immersive spaces. This projector is supplied 'body-only', allowing you to build the perfect solution for your installation.

Reliable
Built for exceptional reliability, the EB-PQ2008W is compatible with the ELPAF63 External Air Filter and provides up to 20,000 hours maintenance-free operation, or even longer in extended modes.

Extensive software
Compatible with the ELPEC01 camera, Epson Projector Professional Tool and Epson Config Tool for a wealth of calibration, assistance and control functionality.

Specifications

Projector

Smart projector	No
Contrast ratio (dynamic)	5000000:1
Projector brightness	8000 ANSI lumens
Projection technology	3LCD
Projector native resolution	UHD 4K (3840x2160)
Contrast ratio (typical)	3000:1
Native aspect ratio	16:9
Number of colours	1.07 billion colours
Projector brightness (economic mode)	5600 ANSI lumens
Keystone correction, horizontal	±30°
Keystone correction, vertical	±45°
Matrix size	2.64 cm (1.04")
Heat dissipation	1.707 BTU/h

Light source

Light source type	Laser
Service life of light source	20000 h
Service life of light source (economic mode)	30000 h

Lens system

Focus	Motorized
Focal length range	Varies by lens
Throw ratio	0.34 - 7.16:1, Varies by lens

Video

Analog signal format system	Not supported
Full HD	Yes
3D	No
Video processing	10 bit
Video colour modes	BT.709, Cinema, DICOM simulation mode, Dynamic, Multi-projection, Natural, Presentation

Ports & interfaces

HDBaseT port	Yes
Service port type	USB Type-B
USB 2.0 ports quantity	2
USB 2.0 Type-A ports quantity	2
USB 2.0 Type-B ports quantity	1
Serial interface type	RS-232C
HDMI ports quantity	3
DVI port	No

Network

Smart TV	No
Ethernet LAN	Yes
Ethernet LAN data rates	10,100 Mbit/s

Storage

Card reader integrated	No

Features

Interactive	No
Noise level (economic mode)	29 dB
On Screen Display (OSD)	Yes
Noise level	35 dB
High Dynamic Range (HDR) supported	Yes
High Dynamic Range (HDR) technology	High Dynamic Range 10 (HDR10), Hybrid Log-Gamma (HLG)
Password protection	Yes

Design

Market positioning	Presentation
Product colour	White
Placement	Ceiling, Desktop, Floor
Cable lock slot	Yes
Cable lock slot type	Kensington

Display

Built-in display	No
Colour depth	10 bit

Power

Power source	AC
Power consumption (typical)	453 W
Power consumption (standby)	0.5 W
Power consumption (economy mode)	410 W
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz

Operational conditions

Storage temperature (T-T)	-10 - 60 °C
Operating relative humidity (H-H)	20 - 80%
Storage relative humidity (H-H)	10 - 90%

Weight & dimensions

Width	545 mm
Depth	436 mm
Height	189 mm
Weight	18.6 kg
Package width	570 mm
Package depth	770 mm
Package height	270 mm
Package weight	23.8 kg

Packaging content

Remote control included	Yes
Batteries included	Yes
Bundled software	Epson Creative Projection, Epson Projector Config Tool, Epson Projector Content Manager, Epson Projector Management, Epson Projector Professional Tool

Technical details

Other features	21:9 aspect ratio support, A/V mute, Auto Power On, Auto source search, Direct Power on/off, Edge Blending, Frame interpolation, Freeze image, Horizontal and vertical keystone correction, Lens position memory, Long light source life, OSD copy function, Point correction, Quick Corner, Schedule Function, Web Control, Wireless LAN capable, iProjection App

Logistics data

Quantity per pack	1 pc(s)
Products per pallet	14 pc(s)
Pallet gross length	120 cm
Pallet gross width	80 cm
Pallet gross height	2.08 m
Products per pallet layer	2 pc(s)
Products per pallet layer (UK)	2 pc(s)
Products per pallet (UK)	14 pc(s)
Pallet length (UK)	120 cm
Pallet height (UK)	2.08 m

Other features

Option type	Air filter, Camera module, Ceiling mount, Wireless LAN unit
Interface	USB 2.0-A (2x), USB 2.0 Type B (Service Only), RS-232C, Ethernet interface (100 Base-TX / 10 Base-T), Wireless LAN IEEE 802.11a/b/g/n (optional), HDMI in (2x), HDMI out, HDBaseT, Jack plug out, Near Field Communication (NFC), USB content playback, Remote
Control panel	1.04 inch with C2 Fine
Supported network protocols	HTTPS, IPv6, SNMP, ESC/VP.net, PJLink
Box contents	Cable cover, Document Pack, Information sheet, Lens connector cap, Main unit, Power cable, Quick Start Guide, Remote control incl. batteries
Security features	Kensington lock, Control panel lock, Padlock, Wireless LAN unit lock, Wireless LAN security, Password protection
