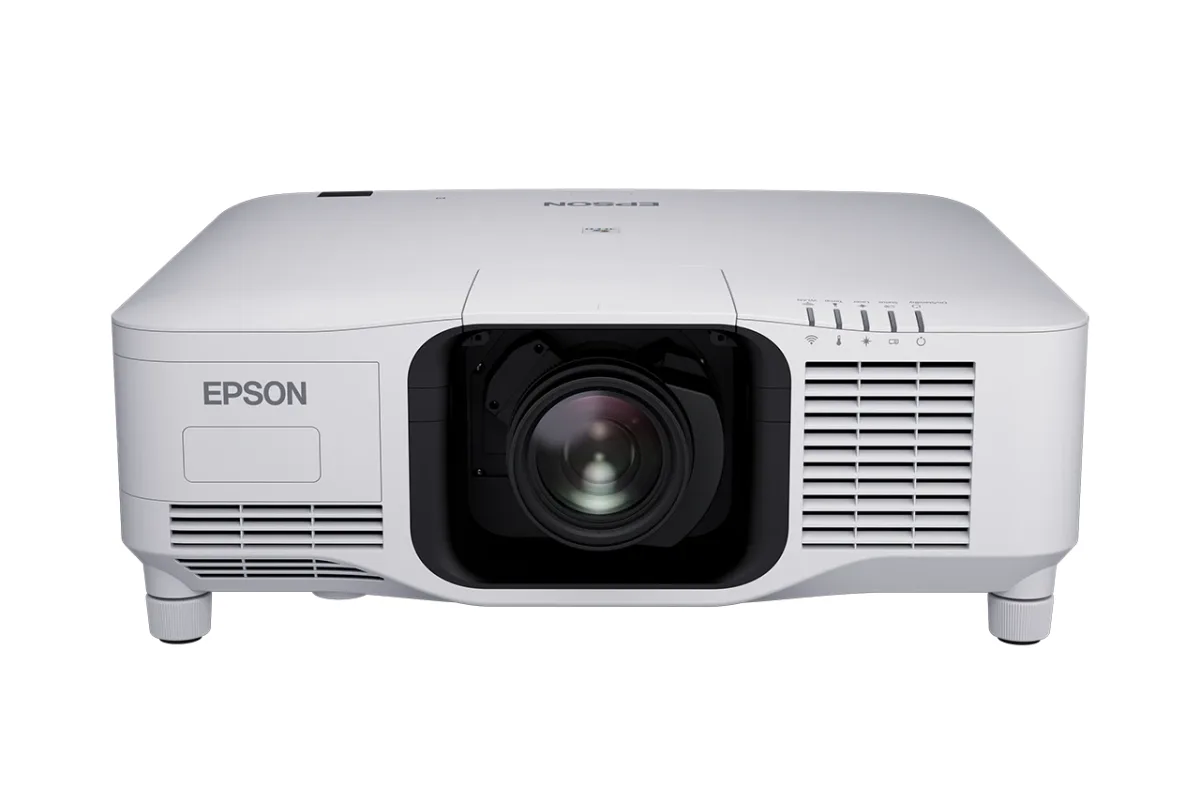

Epson EB-PU2116W - 3LCD projector - 16000 lumens (white) - 16000 lumens (colour) - WUXGA (1920 x 1200) - 16:10 - LAN - white

Description

16,000lm laser projector
The EB-PU2116W offers users significant advantages including much reduced size and weight, easier installation and set-up, simplified maintenance and great image quality. This ultra-lightweight, compact laser projector has been designed for use in large auditoriums, live events, concerts, conference rooms where it delivers high-impact immersive experiences.

Compact and lightweight
The reduced weight and size means the projector is easier to store, transport and install, saving on warehouse space as well as labour and delivery costs.

Outstanding image quality
This high lumens, 3LCD projector offers WUXGA resolution with 4K enhancement and HDR for rich textures and sharper images.

Flexibility
The EB-PU2116W's functionality enables simple installation, stacking, lens flexibility and control. It includes in-built processing for PC-free stacking which means two supported projectors can be stacked to double the brightness without the need for external computerware.

Reliability
Includes outstanding dust resistance as the hermetically sealed optical engine, and laser light source unit, ensure stable brightness output over long periods, even in high dust environments.

Specifications

Projector

Smart projector	No
Screen size compatibility	1524 - 25400 mm (60 - 1000")
Contrast ratio (dynamic)	5000000:1
Projector brightness	16000 ANSI lumens
Projection technology	3LCD
Projector native resolution	WUXGA (1920x1200)
Contrast ratio (typical)	2000:1
Native aspect ratio	16:10
Number of colours	1.07 billion colours
Projector brightness (economic mode)	11200 ANSI lumens
Keystone correction, horizontal	18°
Keystone correction, vertical	60°
Matrix size	2.62 cm (1.03")
White light output	16000 ANSI lumens
Colour light output	16000 ANSI lumens
Heat dissipation	3682 BTU/h

Light source

Light source type	Laser
Service life of light source	20000 h
Service life of light source (economic mode)	30000 h
Light source brightness	16000 lm

Lens system

Focus	Motorized
Focal length range	Varies by lens
Zoom capability	Yes
Zoom type	Auto
Zoom ratio	1.6:1
Throw ratio	0.35 - 7.41:1, Varies by lens
Vertical lens shift range	-60 - 60%
Lens position memory	10
Interchangeable lens	Yes

Video

Full HD	Yes
3D	No
Video processing	10 bit
Video colour modes	BT.709, Cinema, DICOM simulation mode, Dynamic, Multi-projection, Natural, Presentation

Ports & interfaces

HDBaseT port	Yes
Service port type	USB Type-B
USB 2.0 ports quantity	2
USB 2.0 Type-A ports quantity	2
Serial interface type	RS-232C
VGA (D-Sub) ports quantity	1
HDMI ports quantity	1
DVI port	Yes
AC (power) in	Yes

Network

Smart TV	No
Ethernet LAN	Yes
Wi-Fi	Yes
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n)

Storage

Card reader integrated	No

Features

Interactive	No
Noise level (economic mode)	34 dB
Projection modes	Ceiling
On Screen Display (OSD)	Yes
Noise level	38 dB
Country of origin	China
High Dynamic Range (HDR) supported	Yes
Password protection	Yes

Multimedia

Built-in speaker(s)	No

Design

Product type	Large venue projector
Product colour	White
Placement	Ceiling, Desktop, Flying frame
Cable lock slot	Yes
Cable lock slot type	Kensington

Display

Built-in display	No

Power

Power source	AC
Power consumption (typical)	1083 W
Power consumption (standby)	0.4 W
Power consumption (economy mode)	773 W
AC input voltage	200 - 240 V
AC input frequency	50 - 60 Hz

Software

Software support	via: AMX, Crestron (Network), Extron

Operational conditions

Storage temperature (T-T)	-10 - 60 °C
Operating relative humidity (H-H)	20 - 80%
Storage relative humidity (H-H)	10 - 90%

Weight & dimensions

Width	586 mm
Depth	492 mm
Height	218 mm
Weight	24.3 kg
Package width	715 mm
Package depth	790 mm
Package height	335 mm
Package weight	30.6 kg

Packaging content

Remote control included	Yes
Batteries included	Yes
Cables included	AC
Manual	Yes
Warranty card	Yes
WLAN adapter included	Yes
Packaging content	Cable cover, Lens connector cap, Power cable, Remote control incl. batteries, User manual, Warranty document
Bundled software	Epson Creative Projection, Epson Projector Config Tool, Epson Projector Content Manager, Epson Projector Management, Epson Projector Professional Tool

Technical details

Other features	21:9 aspect ratio support, 4K enhancement, A/V mute, Auto Power On, Auto source search, Direct Power on/off, Edge Blending, Freeze image, Horizontal and vertical keystone correction, Lens position memory, Long light source life, OSD copy function, Point correction, Power on button, Quick Corner, Schedule Function, Split-Screen-Function, Super resolution, Web Control, Web Remote, iProjection App

Logistics data

Quantity per pack	1 pc(s)
Products per pallet	4 pc(s)
Pallet gross length	120 cm
Pallet gross width	80 cm
Pallet gross height	149 cm
Products per pallet layer	1 pc(s)
Products per pallet layer (UK)	1 pc(s)
Products per pallet (UK)	4 pc(s)
Pallet length (UK)	120 cm
Pallet height (UK)	149 cm
Harmonized System (HS) code	85286200

Other features

Option type	Camera module, Ceiling mount, Wireless LAN unit
Interface	USB 2.0-A (2x), USB 2.0 Type B (Service Only), RS-232C, Ethernet Interface (1000 Base-T/ 100-Base TX/ 10-Base-T), VGA in, DVI in, HDMI in, HDBaseT, Jack plug out, Wireless LAN IEEE 802.11a/b/g/n (optional), Near Field Communication (NFC), USB content playback, Remote
Control panel	1.03 inch with C2 Fine
Supported network protocols	HTTPS, IPv6, SNMP, ESC/VP.net, PJLink
Box contents	Cable cover, Document Pack, Information sheet, Lens connector cap, Main unit, Power cable, Quick Start Guide, Remote control incl. batteries
Security features	Kensington lock, Security bar, Password lock, Wireless LAN unit lock, Wireless LAN security, Password protection
