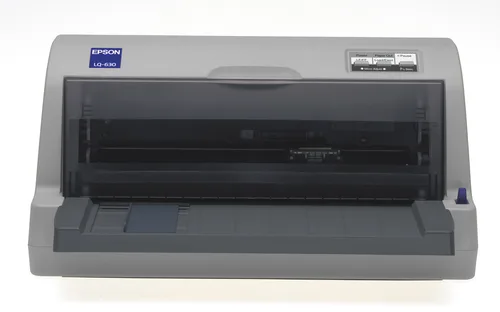

Epson LQ-630 Dot matrix flat-bed printer, 24 pins, 80 column, original + 4 copies, 300 cps HSD (10 cpi), Epson ESC/P2 - IBM PPDS emulation, 14 fonts, 8 Barcode fonts, 2 paper paths, single and continous sheet, paper park, Parallel and USB I/F

Description

LQ-630 is a small and reliable printer especially for counter application. With its small design with 80 columns, LQ-630 fits perfectly in environments where space is rather limited. The ejection of both, continuous paper and cut sheets at front side enables easy handling of the print outs only at the front side of the printer. Due to the printer's flatbed technology, LQ-630 can print even smallest cut sheet forms and stickers down to 9 cm x 7 cm. LQ-630 can ideally be used with retail stores, banks, post offices, doctors' surgeries, ticket shops, cinemas, pizza services. Moreover the printer is perfect for label and protocol printing with trade industrial firms.

Specifications

Printing

Maximum resolution	360 x 180 DPI
Maximum printing width (columns)	80
Colour	No
Maximum print speed	360 cps
Maximum number of copies	5 copies
Built-in barcodes	Code 39, POSTNET, UPC-A, UPC-E
Print speed	HighSpeed-Draft: 10 cpi: 300 chars/s, 12 cpi: 360 chars/s, Draft: 10 cpi: 225 chars/s, LQ: 10 cpi: 79 chars/s

Paper handling

Maximum print size	254 x 559 mm

Features

Product colour	Grey
Buffer size	32 KB
Sound pressure level (printing)	57 dB
Country of origin	China

Ports & interfaces

Standard interfaces	Parallel, USB 2.0

Endurance

Print head	24-pin
Print head life	200 million characters
Ribbon life	2 million characters
Mean time between failures (MTBF)	6000 h

Power

Power consumption (typical)	20 W
Power consumption (standby)	4.8 W
AC input voltage	220 - 240 V

Operational conditions

Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	10 - 80%

System requirements

Bundled software	Epson Status Monitor

Weight & dimensions

Width	386 mm
Depth	306 mm
Height	185 mm
Weight	3.5 kg

Packaging data

Quantity per pack	1 pc(s)
Package width	310 mm
Package depth	455 mm
Package height	265 mm
Package weight	5.2 kg

Other features

Print technology	Dot matrix
Box contents	Driver and utilities, Main unit, Power cable, Ribbon, Setup guide, Software (CD), User manual (CD), Warranty document
Compatible operating systems	Windows 2000, Windows 7, Windows 8, Windows 98, Windows XP

Logistics data

Products per pallet	35 pc(s)
Pallet gross width	120 cm
Pallet gross height	100 cm
Products per pallet layer	5 pc(s)
Products per pallet layer (UK)	7 pc(s)
Products per pallet (UK)	49 pc(s)
Pallet length (UK)	120 cm
Pallet height (UK)	2 m
