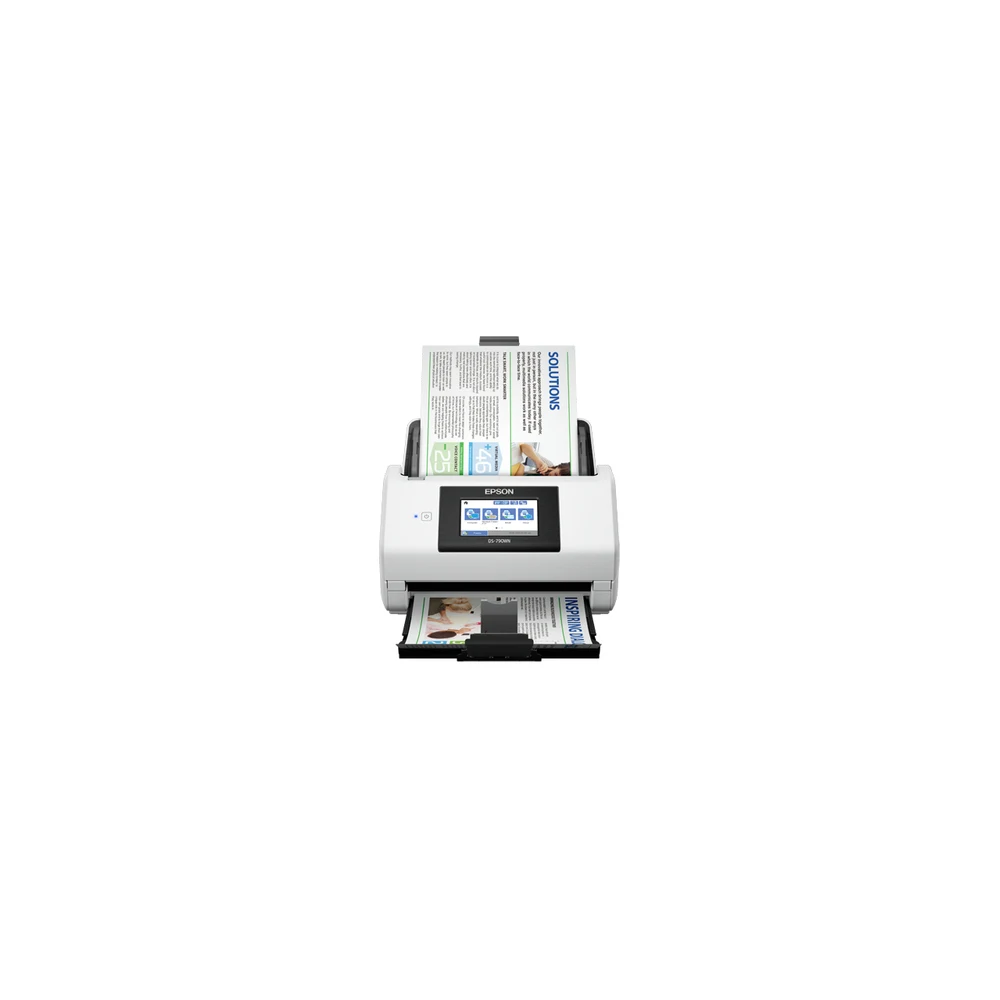

Epson WorkForce DS-790WN - Document scanner - Duplex - A4/Legal - 600 dpi x 600 dpi - up to 45 ppm (mono) / up to 45 ppm (colour) - ADF (100 sheets) - up to 7000 scans per day - USB 3.0, Gigabit LAN, Wi-Fi(n), USB 2.0 (Host)

Description

Premium network scanner
Easy-to-use, A4, high-speed, auto-duplex network scanner. Save files directly to a variety of destinations without the need to connect to a PC. System admins can take control of the device remotely and set up and authenticate user accounts using LDAP. The 10.9cm touchscreen allows control panel configuration for increased efficiency.

Advanced authentication
Prevent unauthorised access to the scanner or use of unauthorised features with a range of authentication methods, including ID cards (card reader not included), login credentials or pin codes. For advanced security options make use of Epson's WebConfig and Document Capture Pro Server - Authentication Edition.

ScanWay - standalone scanning
Route scanned documents directly to the right destination using the 10.9cm colour touchscreen without the need to connect to a PC. Scan direct to network and cloud folders, email addresses, or USB memory stick.

Connectivity
The DS-790WN offers a variety of connectivity options, such as USB 3.2, Wi-Fi, Wi-Fi Direct and Gigabit ethernet. In addition, it supports multiple platforms, including Windows, Mac OS, iOS, Android, Chromebook and Citrix. Scan from a phone or tablet using the Epson Smart Panel app.

Reliability
With a 7000 pages-per-day duty cycle and inbuilt sensors for paper jams, double-feeding, and dirt-on-glass detection, all documents are kept safe and scanned to the highest quality.

Specifications

Scanning

Maximum scan size	215.9 x 6096 mm
Optical scanning resolution	600 x 600 DPI
Duplex scanning	Yes
Input colour depth	30 bit
Output colour depth	24 bit
Input greyscale depth	10 bit
Output greyscale depth	8 bit

Design

Scanner type	Sheet-fed scanner
Product colour	Black, White
Display	LCD
Display diagonal	10.9 cm (4.29")
Touchscreen	Yes
Colour display	Yes
Control type	Touch
Built-in display	Yes

Performance

Daily duty cycle (max)	7000 pages
Scan to	E-mail, FTP, Software, Network folder, USB
Scan drivers	TWAIN, SANE, WIA, ICA, ISIS

Input capacity

Auto document feeder (ADF) input capacity	100 sheets

Paper handling

Scanning media types supported	Business Card, Envelopes, Plastic Card, Post Card(JPN)
Maximum ISO A-series paper size	A4
ISO A-series sizes (A0...A9)	A4, A5, A6, A8
ISO B-series sizes (B0...B9)	B5, B6
Letter	Yes
Legal	Yes
Auto Document Feeder (ADF) media weight	27 - 413 g/m²

Ports & interfaces

USB port	Yes

Network

Wi-Fi	Yes
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Ethernet LAN	Yes

Power

Power supply type	AC
Power consumption (typical)	15 W
Power consumption (standby)	1.5 W
AC input frequency	50 - 60 Hz
Input voltage	100 - 240 V

Weight & dimensions

Width	296 mm
Depth	212 mm
Height	217 mm
Weight	3.7 kg

Packaging data

Quantity per pack	1 pc(s)
Package width	270 mm
Package depth	370 mm
Package height	325 mm
Package weight	4.97 kg

Packaging content

Quick start guide	Yes
Bundled software	Document Capture Pro, Document Capture Pro Server 2.0, Document Capture Pro Server 2.0 Authentication Edition, Epson Document Capture (Mac only), Epson Scan 2

System requirements

Compatible operating systems	Linux, Mac OS X 10.6.8 or later, Windows 10, Windows 11, Windows 7, Windows 8, Windows 8.1, Windows Vista, Windows XP SP3, Windows Server 2003 SP2 or later, macOS 11 or later

Operational conditions

Operating temperature (T-T)	5 - 35 °C
Storage temperature (T-T)	-25 - 60 °C
Operating relative humidity (H-H)	15 - 80%
Storage relative humidity (H-H)	15 - 85%

Other features

Image formats supported	BMP, JPEG, TIFF, MTIFF, PNG
Printer features	Standalone operation, Skip blank page, Automatic de-skew, Auto-rotation, Text enhancement, Barcode Recognition, Full Zonal OCR
Scanner features	Standalone operation, Skip blank page, Automatic de-skew, Auto-rotation, Text enhancement, Barcode Recognition, Full Zonal OCR
Box contents	Driver and Utilities (CD), External AC power adapter with power cord, Main unit, Quick Start Guide, USB cable
Interface	Wi-Fi Direct, USB host, Ethernet Interface (1000 Base-T/ 100-Base TX/ 10-Base-T), Wireless LAN b/g/g 2.4GHz, USB 3.2 Gen 1x1

Logistics data

Products per pallet	48 pc(s)
Country of origin	Indonesia
Products per pallet layer	8 pc(s)
Products per pallet layer (UK)	10 pc(s)
Products per pallet (UK)	60 pc(s)
Harmonized System (HS) code	84716070
