Manufacturer Code: 9D9A7AA#ABU
Overview

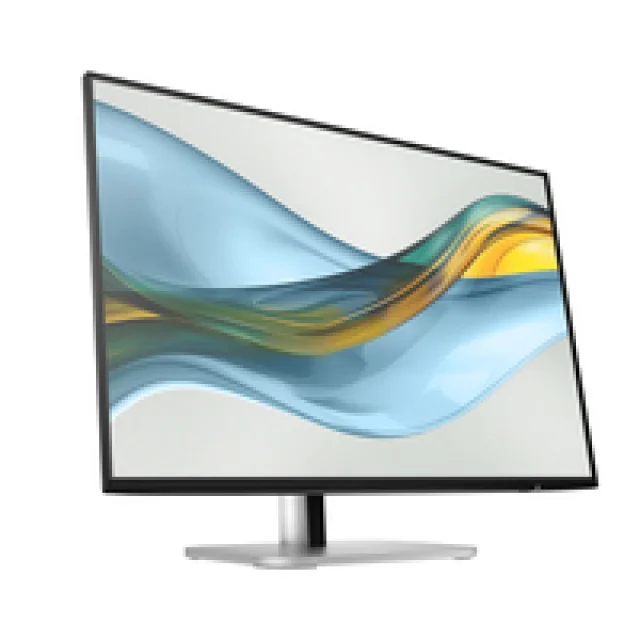

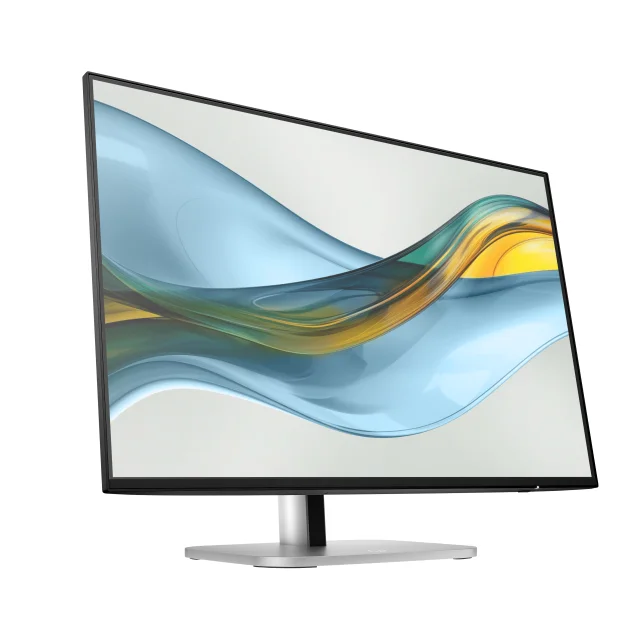

HP 524pn - Series 5 Pro - LED monitor - 24" - 1920 x 1200 WUXGA @ 100 Hz - IPS - 350 cd/m² - 1500:1 - 5 ms - HDMI, DisplayPort - jet black, silver (stand) is available through DCS Components. It sits within the Monitors category.
Key product details
Procurement and setup support
Available for quote while live availability remains in stock. DCS can help with procurement, compatibility checks, configuration planning, installation support and long-term managed IT lifecycle support.
EAN: 197961405026
| Display diagonal | 61 cm (24") |
|---|---|
| HD type | WUXGA |
| Native aspect ratio | 16:10 |
| Display technology | LCD |
| Panel type | IPS |
| LED backlight | Yes |
| Backlight type | Edge LED |
| Display brightness (typical) | 350 cd/m² |
| Display brightness | 350 cd/m² |
| Response time | 5 ms |
| Response time measurement type | GTG (Gray to Gray) |
| Display surface | Matt |
| Anti-glare screen | Yes |
| Screen shape | Flat |
| Supported graphics resolutions | 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 800, 1440 x 900 (WXGA+), 1600 x 900, 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 640 x 480 (VGA), 720 x 400, 720 x 480, 720 x 576, 800 x 600 (SVGA) |
| Contrast ratio (typical) | 1500:1 |
| Contrast ratio (dynamic) | 10000000:1 |
| Maximum refresh rate | 100 Hz |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 16.7 million colours |
| Pixel pitch | 0.27 x 0.27 mm |
| Pixel density | 94 ppi |
| Horizontal scan range | 30 - 130 kHz |
| Vertical scan range | 50 - 100 Hz |
| Viewable size, horizontal | 51.8 cm |
| Viewable size, vertical | 32.4 cm |
| Display diagonal (metric) | 61 cm |
| Haze rate | 25% |
| Surface hardness | 3H |
| Colour depth | 8 bit |
| Colour gamut | 100% |
| Display bezel technology | Micro-Edge |
| Flicker-free technology | Yes |
|---|---|
| HP segment | Business |
| Built-in camera | No |
|---|
| Market positioning | Business |
|---|---|
| Product colour | Black |
| Colour name | Jet black |
| Feet colour | Silver, Black |
| Built-in USB hub | Yes |
|---|---|
| USB hub version | 3.2 Gen 1 (3.1 Gen 1) |
| USB Type-A downstream ports quantity | 4 |
| HDMI ports quantity | 1 |
| HDMI version | 1.4 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.2 |
| HDCP | Yes |
| VESA mounting | Yes |
|---|---|
| Panel mounting interface | 100 x 100 mm |
| Height adjustment | Yes |
| Adjustable height (max) | 15 cm |
| Pivot | Yes |
| Swivelling | Yes |
| Swivel angle range | -45 - 45° |
| Tilt adjustment | Yes |
| Tilt angle range | -5 - 23° |
| On Screen Display (OSD) | Yes |
| Energy efficiency class (SDR) | C |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power supply type | Internal |
| Operating temperature (T-T) | 5 - 35 °C |
|---|---|
| Operating altitude | 0 - 5000 m |
| Non-operating altitude | 0 - 12192 m |
| Width (with stand) | 532.8 mm |
|---|---|
| Depth (with stand) | 189.5 mm |
| Height (with stand) | 517.5 mm |
| Weight (with stand) | 5.1 kg |
| Width (without stand) | 532.8 mm |
| Depth (without stand) | 47 mm |
| Height (without stand) | 342.9 mm |
| Package width | 621 mm |
|---|---|
| Package depth | 140 mm |
| Package height | 411 mm |
| Package type | Box |
| Warranty card | Yes |
| Cables included | HDMI, DisplayPort, USB Type-A to USB Type-B, AC |
|---|---|
| Quick start guide | Yes |
| Bundled software | HP Display Center; HP Client Management Script Library |
| Sustainability compliance | Yes |
|---|---|
| Sustainability certificates | ENERGY STAR, EPEAT, TCO |
| Sustainable technologies and materials | Low halogen; Molded paper pulp cushion inside box is 100% sustainably sourced and recyclable; Outside box and corrugated cushions are 100% sustainably sourced and recyclable; 85% ITE-derived closed loop plastic; Contains ocean-bound plastic; Contains 20% recycled glass in the monitor panel; At least 30% recycled metal including 90% recycled aluminum in the stand |
| Total carbon footprint (kg of CO2e) | 190 |
|---|---|
| Carbon emissions, manufacturing (kg of CO2e) | 153 |
| Carbon emissions, logistics (kg of CO2e) | 3 |
| Carbon emissions, end-of-life (kg of CO2e) | 2 |
| Total carbon emissions, w/o use phase (kg of CO2e) | 34 |
| Country of origin | China, Vietnam |
|---|---|
| UNSPSC-code | 43211902 |
| Compliance certificates | CECP, GS mark, CCC, CB, EAC, BIS, Federal Communications Commission (FCC), CE, BSMI |
| Manufacturer warranty | HP three-year limited warranty |
| General Product Safety Regulation (GPSR) URL | https://support.hp.com/us-en/document/ish_6126692-6126777-16?openCLC=true |
|---|
