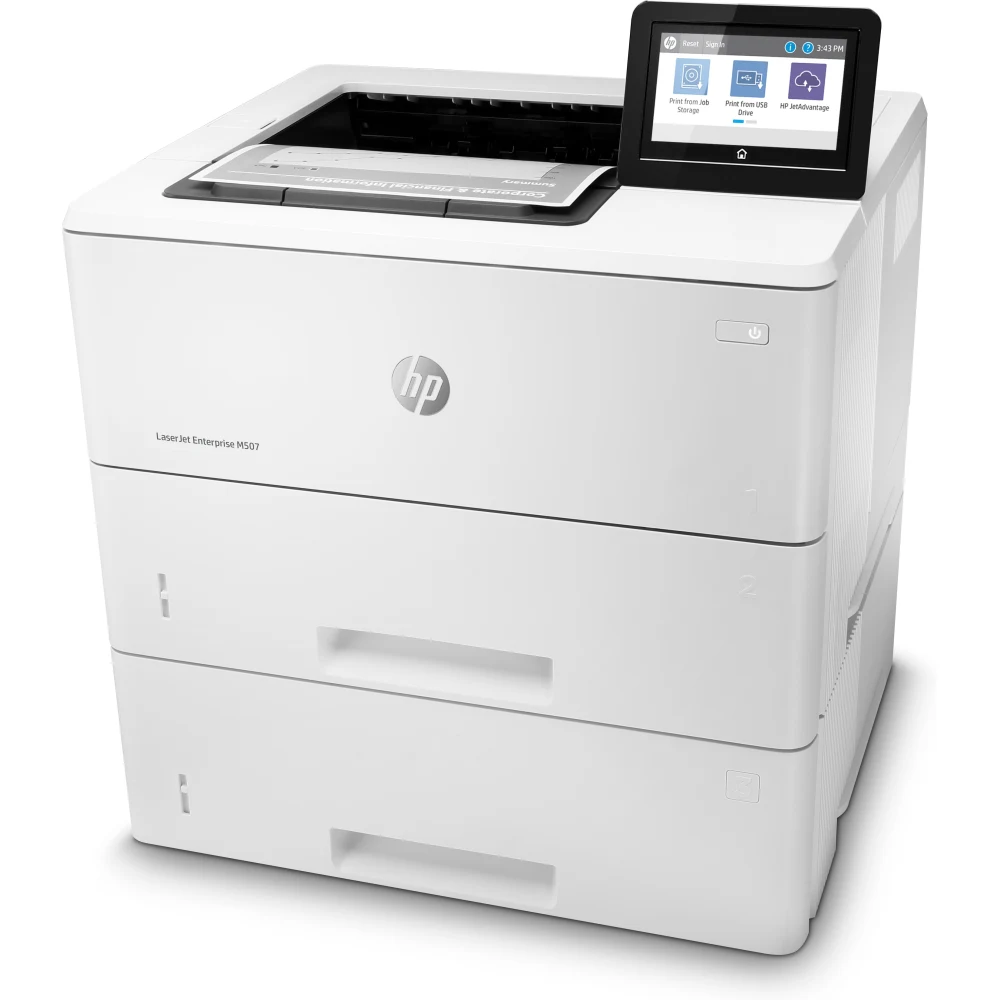

HP LaserJet Enterprise M507x - Printer - B/W - Duplex - laser - A4/Legal - 1200 x 1200 dpi - up to 43 ppm - capacity: 1200 sheets - USB 2.0, Gigabit LAN, Wi-Fi(n), USB 2.0 host, Bluetooth LE

Description

Manufacturer Code: 1PV88A#B19

Overview

HP LaserJet Enterprise M507x - Printer - B/W - Duplex - laser - A4/Legal - 1200 x 1200 dpi - up to 43 ppm - capacity: 1200 sheets - USB 2.0, Gigabit LAN, Wi-Fi(n), USB 2.0 host, Bluetooth LE is available through DCS Components. It sits within the Mono Laser Printers category.

Key product details

• Printer
• B/W
• Duplex
• laser
• A4/Legal

Procurement and setup support

Available for quote while live availability remains in stock. DCS can help with procurement, compatibility checks, configuration planning, installation support and long-term managed IT lifecycle support.

EAN: 192545078955

Specifications

Printing

Duplex printing mode	Auto
Print resolution black	1200 x 1200 DPI
Colour	No
Print technology	Laser
Duplex printing	Yes
Maximum resolution	1200 x 1200 DPI
Print speed (black, normal quality, A4/US Letter)	43 ppm
Warm-up time	150 s
Time to first page (black, normal)	5.9 s
Print margins (top, bottom, right, left)	4.3 mm
Watermark printing	Yes
Secure printing	Yes

Features

Maximum duty cycle	150000 pages per month
Recommended duty cycle	2000 - 7500 pages per month
Printing colours	Black
Number of print cartridges	1
Page description languages	PostScript 3, PDF 1.7, PCL 6
Printer fonts	Scalable, TrueType, Windows, PCL, PostScript
Country of origin	Philippines
Replacement cartridges	CF289A HP 89A Black Original LaserJet Toner Cartridge (5,000 pages);CF289X HP 89X High Yield Black Original LaserJet Toner Cartridge (10,000 pages);CF289Y HP 89Y Extra High Yield Black Original LaserJet Toner Cartridge (20,000 pages)
HP segment	Business

Input & output capacity

Total number of input trays	3
Total input capacity	1200 sheets
Total output capacity	250 sheets
Paper tray 1 input capacity	100 sheets
Paper tray 2 input capacity	550 sheets
Multi-Purpose tray	Yes
Multi-Purpose tray input capacity	100 sheets
Maximum number of input trays	5
Maximum input capacity	2300 sheets
Maximum output capacity	250 sheets

Paper handling

Maximum ISO A-series paper size	A4
Paper tray media types	Plain paper, Bond paper, Recycled paper, Envelopes, Card stock, Labels, Transparencies, Rough paper
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5
ISO C-series sizes (C0...C9)	C5, C6
Non-ISO print media sizes	Oficio, 16K
JIS B-series sizes (B0...B9)	B5, B6
Envelopes sizes	B5, C5, C6, DL
Photo paper sizes	10x15 cm
Custom media width	76.2 - 215.9 mm
Custom media length	127 - 355.6 mm
Paper tray media weight	60 - 200 g/m²

Ports & interfaces

Standard interfaces	Ethernet, USB 2.0, Wireless LAN
Direct printing	Yes
USB port	Yes
USB 2.0 ports quantity	3
Optional connectivity	Ethernet, Wireless LAN

Network

Network ready	Yes
Wi-Fi	Yes
Ethernet LAN	Yes
Ethernet LAN data rates	1000 Mbit/s
Wi-Fi Direct	Yes
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Bluetooth	Yes
Security algorithms	SNMPv3, SSL/TLS, EAP-PEAP, EAP-TLS, FIPS 140, HTTPS, IPSec
Mobile printing technologies	Mopria Print Service, HP ePrint, Apple AirPrint, Google Cloud Print

Performance

Internal memory	512 MB
Maximum internal memory	1536 MB
Memory slots	1
Built-in processor	Yes
Processor frequency	1200 MHz
Sound pressure level (printing)	54 dB
Sound power level (printing)	6.8 dB

Design

Market positioning	Business
Product colour	White
Built-in display	Yes
Display	CGD
Colour display	Yes
Display diagonal	10.9 cm (4.3")
Touchscreen	Yes
Control type	Buttons, Touch
Certification	CISPR 22:2008 (International) - Class A, CISPR32:2012 (International) - Class A, EN 55032:2012 (EU) - Class A, EN 61000-3-2:2014, EN 61000-3-3:2013, EN 55024:2010, EMC Directive 2014/30/EU, Issue 6 Class A. Other EMC approvals as required by individual countries.

Power

Power consumption (printing)	601 W
Power consumption (ready)	7.6 W
Power consumption (PowerSave)	0.06 W
Power consumption (off)	0.06 W
Energy Star Typical Electricity Consumption (TEC)	1.257 kWh/week
AC input voltage	220 - 240 V
AC input frequency	50/60 Hz

System requirements

Windows operating systems supported	Windows 7 Enterprise, Windows 7 Ultimate, Windows 7 Professional, Windows 7 Starter, Windows 7, Windows 8 Pro, Windows 8 Enterprise, Windows 8, Windows 8.1 Pro, Windows 8.1 Enterprise, Windows 8.1, Windows 10 Pro, Windows 10 Enterprise, Windows 10
Mac operating systems supported	Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, MacOS
Linux operating systems supported	Yes
Other operating systems supported	Android, iOS

Operational conditions

Operating temperature (T-T)	10 - 32.5 °C
Storage temperature (T-T)	-20 - 40 °C
Operating relative humidity (H-H)	10 - 80%

Sustainability

Sustainability compliance	Yes
Sustainability certificates	ENERGY STAR, Blue Angel, EPEAT Silver
Sustainable technologies and materials	Mercury free
Doesn't contain	Mercury

Carbon footprint

Total carbon footprint (kg of CO2e)	140
Carbon emissions, manufacturing (kg of CO2e)	111
Carbon emissions, logistics (kg of CO2e)	5
Total carbon emissions, w/o use phase (kg of CO2e)	21

Weight & dimensions

Width	418 mm
Depth	376 mm
Height	481 mm
Pallet dimensions (W x D x H)	1200 x 1000 x 2476 mm
Weight	16.3 kg

Packaging data

Package width	671 mm
Package depth	497 mm
Package height	465 mm
Package weight	22.6 kg

Packaging content

Warranty card	Yes
Cables included	AC
Quick installation guide	Yes

Brand-specific features

HP ePrint	Yes
HP Auto-On/Auto-Off	Yes
HP Dynamic security	Yes
HP Security tools	Identity management: Kerberos authentication; LDAP authentication; 1000 user PIN codes; Optional HP and 3rd party advanced authentication solutions (e.g.: badge readers); Network: IPsec/firewall with Certificate; Pre-Shared Key and Kerberos authentication; Supports WJA-10 IPsec configuration Plug-in; 802.1X authentication (EAP-PEAP; EAP-TLS); SNMPv3; HTTPS; Certificates; Access Control List; Data: Storage Encryption; Encrypted PDF & Email (uses FIPS 140 validated cryptographic libraries from Microsoft); Secure Erase; SSL/TLS (HTTPS); Encrypted Credentials; Device: Security lock slot; USB port disablement; Hardware integration pocket for security solutions; Intrusion Detection with Red Balloon Security Technology - Constant in-device monitoring for attacks; SureStart Secure Boot - BIOS Integrity Checking with self-healing capability; Whitelisting - loads only known good code (DLLs, EXEs, ...); Connection Inspector - helps ensure network connections to device are safe; Security management: Compatible with HP JetAdvantage Security Manager; HP Printer Security Plugin for Microsoft SCCM; Device Security Syslog Messages processed and accessable in ArcSight, Splunk, and McAfee(ESM) SIEMs
HP GTIN (EAN/UPC) with options	(ABT) 192545078917; (ABY) 192545078924; (ACQ) 192545078931; (B13) 192545078948; (B19) 192545078955; (BAZ) 192545078962
HP GTIN (EAN/UPC)	192545078917, 192545078924, 192545078931, 192545078948, 192545078955, 192545078962

Logistics data

Harmonized System (HS) code	84433210
Pallet gross weight	299.6 kg
Layers per pallet	5 pc(s)
Products per pallet	15 pc(s)

Technical details

Master (outer) cases per pallet layer	3 pc(s)
Compliance certificates	CECP
General Product Safety Regulation (GPSR) URL	https://support.hp.com/gb-en/product/setup-user-guides/hp-laserjet-enterprise-m507-series/model/19203859?sku=1PV88A ; https://h10032.www1.hp.com/ctg/Manual/c06187694.pdf

Other features

Recommended system requirements	2 GB available hard disk space; Internet connection; USB port; Internet browser; for additional OS hardware requirements. 2 GB available hard disk space; Internet connection or USB port; OS hardware requirements.
Recommended humidity operating range	30 - 70%
Recommended operating temperature range (T-T)	15 - 27 °C
Custom media sizes	Tray 1: 76.2 x 127 to 215.9 x 355.6 mm; Tray 2: 105 x 148 to 215.9 x 355.6 mm; Optional 550 sheet Tray: 105 x 148 to 215.9 x 355.6 mm
Envelope feeder	No
Electromagnetic compatibility	CISPR 22:2008 (International) - Class A, CISPR32:2012 (International) - Class A, EN 55032:2012 (EU) - Class A, EN 61000-3-2:2014, EN 61000-3-3:2013, EN 55024:2010, EMC Directive 2014/30/EU, Issue 6 Class A. Other EMC approvals as required by individual countries.
Compatible operating systems	Windows Client OS (32/64 bit), Win10, Win8.1, Win 8 Basic, Win8 Pro, Win8 Enterprise, Win8 Enterprise N, Win7 Starter Edition SP1, UPD Win7 Ultimate, Mobile OS, iOS, Android, Mac, Apple macOS Sierra v10.12, Apple macOS High Sierra v10.13, Apple macOS Mojave v10.14, Discrete PCL6 Printer Driver, For more information on the supported operating systems go to http://support.hp.com, Enter your product name and search, Click on User Guides and enter your product name and search for User Guide, Search for your (Product Name) - User Guide, Search for the Supported Operating Systems section, UPD PCL6 / PS Printer Drivers, Supported Operating systems, For more information on the supported operating systems see http://www.hp.com/go/upd
Acoustic power emissions (ready)	39 dB
Acoustic pressure emissions bystander (ready)	24 dB
Typical electricity consumption (TEC) number	Blue Angel: 1.257 kWh/Week; Energy Star 3.0: 0.420 kWh/Week
UNSPSC-code	43212105
Box contents	HP LaserJet Enterprise M507x Printer; HP Original LaserJet Toner Cartridge (5,000 pages); Regulatory flyer (CD replacement); Unpack flyer; Installation guide; Power cord; Warranty cards; Support flyers/phone number list
Printing	Mono printing
Processor frequency	1.2 GHz
Manufacturer warranty	One-year, next-business day, onsite warranty. Warranty and support options vary by product, country and local legal requirements.
