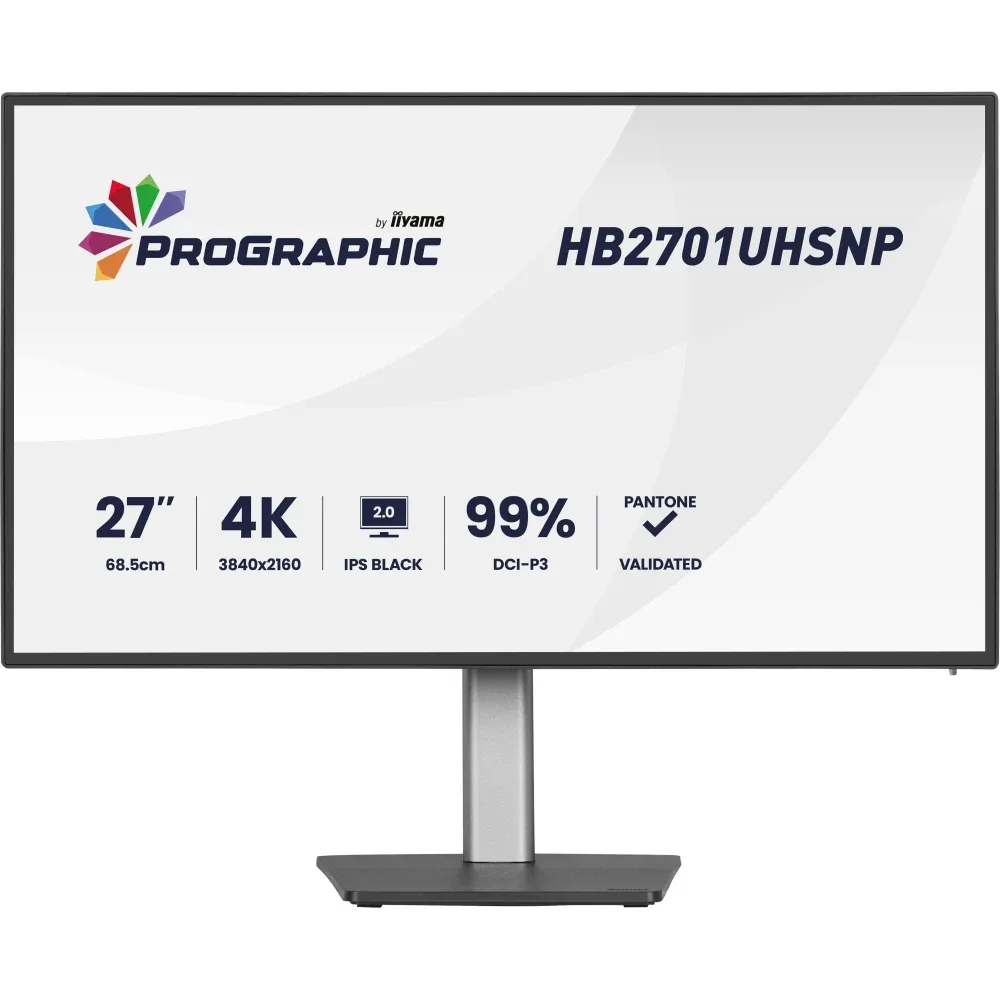

Iiyama ProGraphic HB2701UHSNP-B1 - LED monitor - 27" - 3840 x 2160 4K @ 60 Hz - IPS Black 2.0 - 450 cd/m² - 3000:1 - 4 ms - HDMI, DisplayPort, USB-C - speakers - black, matte

Description

Work with confidence on the 27′′ ProGraphic HB2701, a 4K UHD monitor engineered for designers, photographers, and content creators who demand uncompromising visual clarity. Powered by IPS Black 2.0 technology, it delivers deeper contrast and richer blacks, ensuring every shadow and detail is revealed with stunning precision. With 99% DCI-P3 coverage and Pantone Validated colour accuracy, your work translates seamlessly across print, video, and digital platforms. The AGLR anti-glare coating minimises reflections, keeping you focused whether you're in a bright studio or a dim workspace. These advanced features allow you to fully showcase your creativity and skills. Designed for productivity, the HB2701 features a 150mm height-adjustable stand, USB-C docking, and a built-in KVM switch, giving you a clean, connected setup ready for effortless multitasking.

Specifications

Display

Display diagonal	68.6 cm (27")
Display resolution	3840 x 2160 pixels
HD type	4K Ultra HD
Native aspect ratio	16:9
Display technology	LCD
Panel type	IPS Black
Touchscreen	No
Display brightness (typical)	450 cd/m²
Response time	4 ms
Response time measurement type	GTG (Gray to Gray)
Display surface	Matt
Screen shape	Flat
Contrast ratio (typical)	3000:1
Maximum refresh rate	60 Hz
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Display number of colours	1.07 billion colours
Pixel pitch	0.155 x 0.155 mm
Horizontal scan range	30 - 140 kHz
Vertical scan range	40 - 60 Hz
Viewable size, horizontal	59.7 cm
Viewable size, vertical	33.6 cm
Display diagonal (metric)	68.5 cm
High Dynamic Range (HDR) supported	Yes
High Dynamic Range (HDR) technology	High Dynamic Range (HDR) 400
DDC/CI	Yes
Colour depth	8 bit
Colour gamut standard	DCI-P3, NTSC, sRGB
sRGB coverage (typical)	100%
NTSC coverage (typical)	72%
DCI-P3 coverage	99%

Performance

Flicker-free technology	Yes
Low Blue Light technology	Yes

Multimedia

Number of speakers	2
RMS rated power	4 W
Built-in speaker(s)	Yes

Design

Market positioning	Graphics design
Product colour	Black

Ports & interfaces

Built-in USB hub	Yes
USB hub version	3.2 Gen 1 (3.1 Gen 1)
USB upstream port type	USB Type-B, USB Type-C
Number of upstream ports	2
Number of downstream ports	4
Number of USB Type-B upstream ports quantity	1
Number of USB Type-C upstream ports quantity	1
USB Type-A downstream ports quantity	3
USB Type-C downstream ports quantity	1
USB Type-C DisplayPort Alternate Mode	Yes
USB Power Delivery (USB PD)	Yes
USB Power Delivery up to	96 W
HDMI	Yes
HDMI ports quantity	1
DisplayPorts quantity	1
DisplayPort out quantity	1
Headphone out	Yes
Headphone outputs	1
Headphone connectivity	3.5 mm
Built-in KVM switch	Yes
HDCP	Yes

Network

Ethernet LAN	Yes

Ergonomics

VESA mounting	Yes
Panel mounting interface	100 x 100 mm
Cable management	Yes
Cable lock slot	Yes
Cable lock slot type	Kensington
Height adjustment	Yes
Adjustable height (max)	15 cm
Pivot	Yes
Swivelling	Yes
Swivel angle range	0 - 360°
Tilt adjustment	Yes
Tilt angle range	-5 - 23°
On Screen Display (OSD) languages	Czech, German, English, Spanish, French, Italian, Japanese, Dutch, Polish, Russian, Ukrainian

Power

Energy efficiency class (SDR)	G
Energy efficiency class (HDR)	G
Energy consumption (SDR) per 1000 hours	27 kWh
Energy consumption (HDR) per 1000 hours	37 kWh
Power consumption (typical)	27 W
Power consumption (standby)	0.5 W
Power consumption (off)	0.3 W
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Input current	2.3 A
Power supply type	Internal
Energy efficiency scale	A to G

Operational conditions

Operating temperature (T-T)	5 - 35 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	10 - 80%
Storage relative humidity (H-H)	10 - 90%

Weight & dimensions

Width (with stand)	614 mm
Depth (with stand)	224.5 mm
Height (with stand)	544 mm
Weight (with stand)	6.7 kg
Height (without stand)	404 mm

Packaging data

Package width	688 mm
Package depth	138 mm
Package height	463 mm
Package weight	9.7 kg
Package type	Box
USB cable length	1.8 m

Packaging content

Cables included	AC, USB, HDMI, DisplayPort, USB Type-C
DisplayPort cable length	1.8 m
HDMI cable length	1.8 m
Power cable length	1.8 m

Sustainability

Sustainability certificates	ErP, TCO

Other features

Packaging content	quick start guide, safety guide
User controls	picture adjust (contrast, brightness, uniformity, ACR, Eco, OD, gamma), colour settings (HDR, 6-axis, i-Style colour, colour space, RGB range, colour temp., user preset), PiP/PbP (PiP/PbP, sub source, PiP position, PiP size, swap), OSD (H/ position, V. position, OSD time, OSD background, DDC/CI control, display information), language, recall (recall all), miscellaneous (sharpness, video mode adjust, smart power, USB charge, MST DP-out, USB-C speed, shortcut key, opening logo, power LED, Mac address, FW version), KVM (HDMI, DP, USB-C), input select (input select, DisplayPort mode), audio settings (volume, mute, audio input)
Weight	6.7 kg
Width	614 mm
Depth	224.5 mm
Control panel	Joystick/Power: Up/Input Select, Down/Shortcut, Right/Shortcut, Left/Shortcut
Compliance certificates	CE, EAC, PSE, REACH, RoHS, TÜV mark, UKCA, VCCI, WEEE
Ethernet LAN (RJ-45) ports	1
