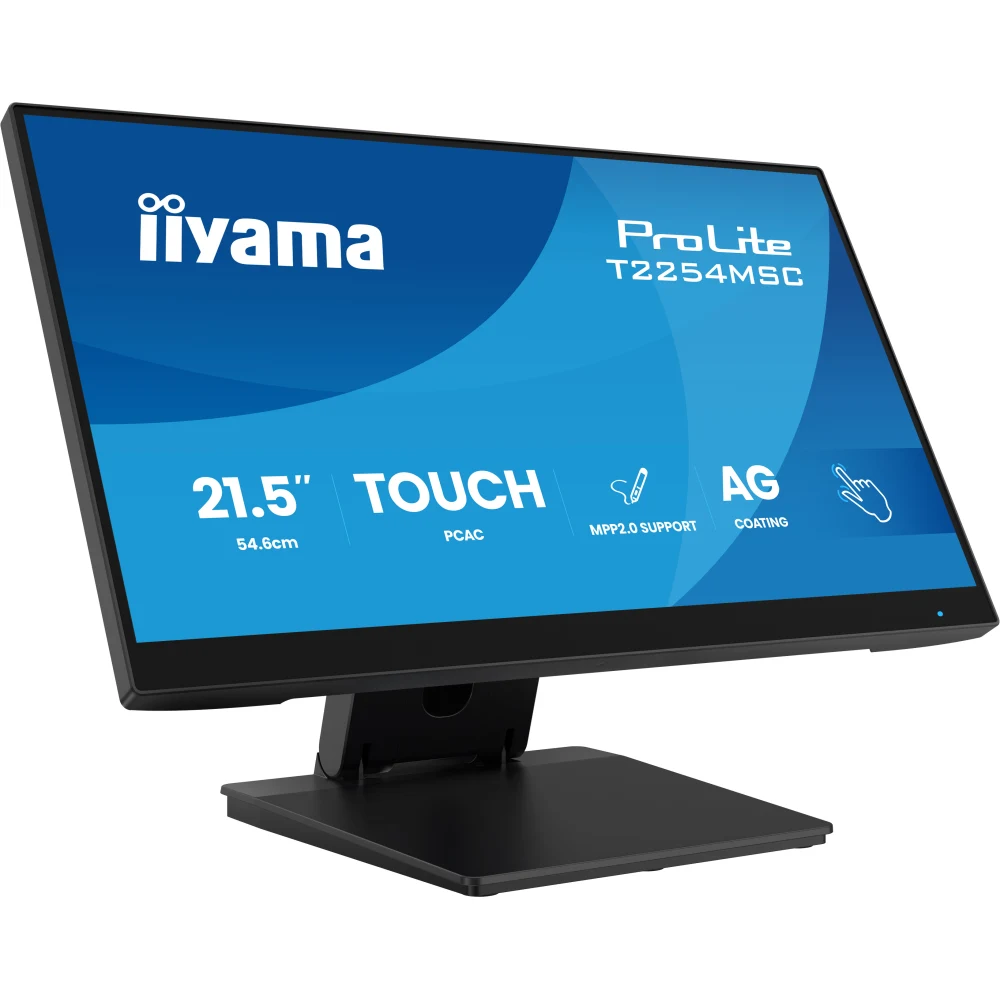

iiyama ProLite T2254MSC-B2AG - LED monitor - 21.5" (18.7" viewable) - touchscreen - 1920 x 1080 Full HD (1080p) @ 100 Hz - IPS - 300 cd/m² - 1300:1 - 4 ms - HDMI, DisplayPort - speakers - black

Description

Immersive interaction and elegant design - Discover the ProLite T2254MSC-B2AG, a vibrant 21.5" Full HD touchscreen monitor designed for exceptional interactive experiences. Featuring intuitive 10-point touch technology (Optical Bonded PCAP), which ensures smooth and precise touch response and low light reflection. In addition, the display is protected from moisture and potential condensation development. With built-in MPP2.0 support (Microsoft Pen Protocol), a stylus with tilt and pressure sensitivity can be used, providing a natural, precise and intuitive writing or drawing experience, just like a pen on paper. The vibrant colors of the IPS panel will captivate users with precise and natural interaction from any angle. Its sleek and stylish design, edge-to-edge glass and anti-glare surface offer durability and ease of cleaning, perfect for busy commercial environments, hospitality spaces, healthcare facilities and public areas. With adjustable ergonomics, neat cable management, built-in audio and seamless connectivity (HDMI, DisplayPort, USB 3.2 hub), it is an ideal choice for POS, self-service solutions and interactive signage.

Specifications

Display

Display diagonal	54.6 cm (21.5")
Display resolution	1920 x 1080 pixels
HD type	Full HD
Native aspect ratio	16:9
Display technology	LED
Panel type	IPS
Touchscreen	Yes
Touchscreen technology	Projected capacitive system
Touch technology	Multi-touch
Number of simultaneous touchpoints	10
Display brightness (typical)	300 cd/m²
Display brightness	300 cd/m²
Response time	4 ms
Response time measurement type	GTG (Gray to Gray)
Anti-glare screen	Yes
Screen shape	Flat
Contrast ratio (typical)	1300:1
Maximum refresh rate	100 Hz
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Display number of colours	16.7 million colours
Pixel pitch	0.082 x 0.082 mm
Horizontal scan range	30 - 120 kHz
Viewable size, horizontal	47.6 cm
Viewable size, vertical	26.8 cm
Display diagonal (metric)	54.6 cm
Surface hardness	7H
Colour depth	8 bit

Performance

Flicker-free technology	Yes
Low Blue Light technology	Yes
Palm rejection	Yes

Multimedia

Number of speakers	2
RMS rated power	4 W
Built-in speaker(s)	Yes

Design

Market positioning	Business
Product colour	Black
Front bezel colour	Black

Ports & interfaces

Built-in USB hub	Yes
USB hub version	3.2 Gen 1 (3.1 Gen 1)
Number of upstream ports	2
Number of downstream ports	2
USB Touch port	Yes
HDMI	Yes
HDMI ports quantity	1
DisplayPorts quantity	1
Headphone out	Yes
HDCP	Yes

Ergonomics

VESA mounting	Yes
Panel mounting interface	100 x 100 mm
Cable management	Yes
Cable lock slot	Yes
Cable lock slot type	Kensington
Height adjustment	Yes
Adjustable height (max)	11.2 cm
Tilt adjustment	Yes
Tilt angle range	5 - 90°
On Screen Display (OSD)	Yes
On Screen Display (OSD) languages	German, English, Spanish, French, Italian, Japanese, Dutch, Polish, Portuguese, Russian
Number of OSD languages	10
Plug and Play	Yes

Power

Energy efficiency class (SDR)	D
Energy efficiency class (HDR)	Not available
Energy consumption (SDR) per 1000 hours	13 kWh
Power consumption (typical)	15 W
Power consumption (standby)	0.3 W
Power consumption (off)	0.3 W
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power supply type	Internal
Energy efficiency scale	A to G

Weight & dimensions

Width (with stand)	489 mm
Depth (with stand)	241 mm
Height (with stand)	355 mm
Weight (with stand)	4.9 kg
Weight (without stand)	2.9 kg

Packaging data

Package width	570 mm
Package depth	151 mm
Package height	367 mm
Package weight	7.6 kg

Packaging content

Stand included	Yes
Cables included	AC, USB, HDMI
Quick start guide	Yes

Sustainability

Sustainability certificates	EPEAT, ErP, EPEAT Silver

Other features

Compatible operating systems	All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
Positional accuracy	2 mm
User controls	Picture adjust (brightness, contrast, eco, adv. contrast, Overdrive, X-Res technology,, black tuner), color settings (6-axis, i-Style color, blue light reducer, gamma, RGB range), color temperature), OSD (horizontal position, vertical position, rotate, time, background, DDC/CI control, display information), language, miscellaneous (sharpness. video mode adjust, opening logo, power led, usb charge), input select, audio settings (volume, mute audio), recall
Packaging content	Screwdriver
Active display area (W x H)	476 x 268 mm
Touch method	finger, glove (latex), capacitive stylus
USB ports quantity	2
Weight	4.9 kg
Height	355 mm
Width	489 mm
Depth	241 mm
Control panel	Joystick / power button - power/menu, up/input select, down, left/eco/i-Syle color/blue light reducer, right/volume
Compliance certificates	CE, EAC, REACH, RoHS, UKCA, WEEE
Mean time between failures (MTBF)	50000 h
Certification	CE, EAC, RoHS support, ErP, WEEE, REACH, ENERGY STAR®, UKCA
