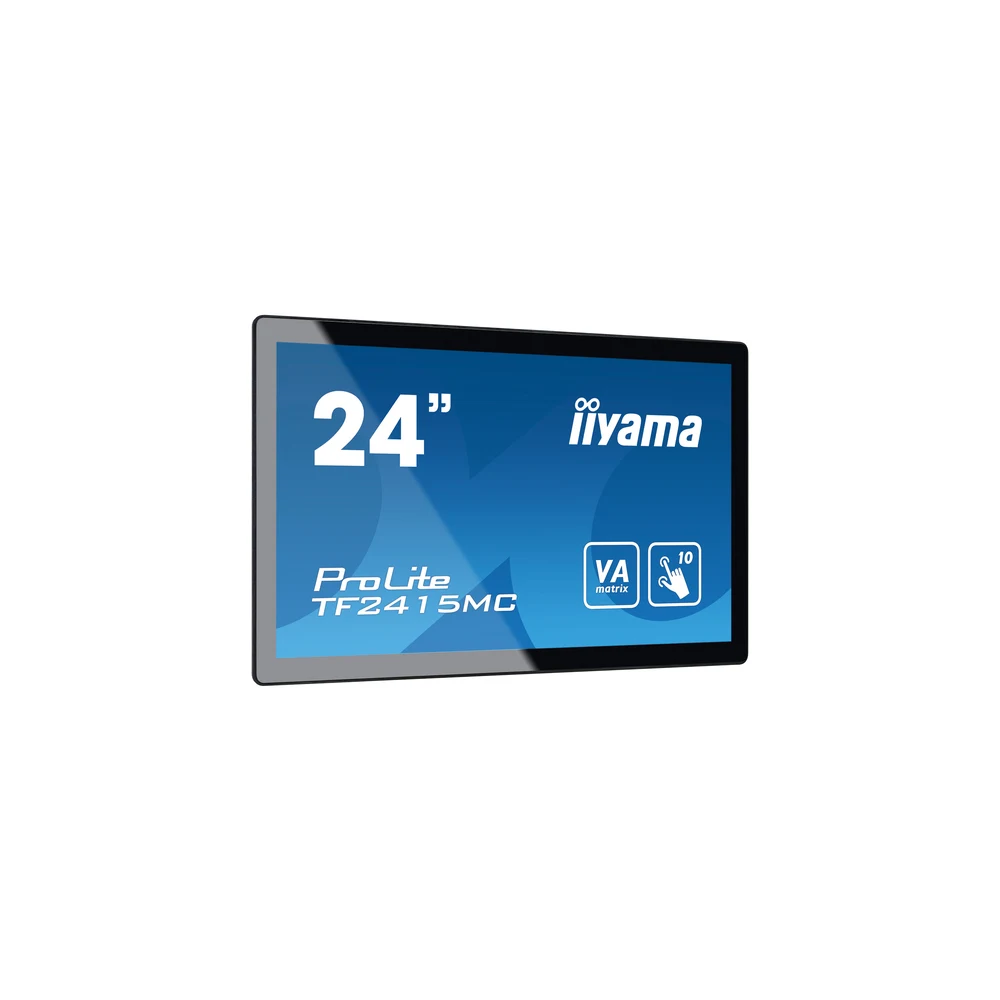

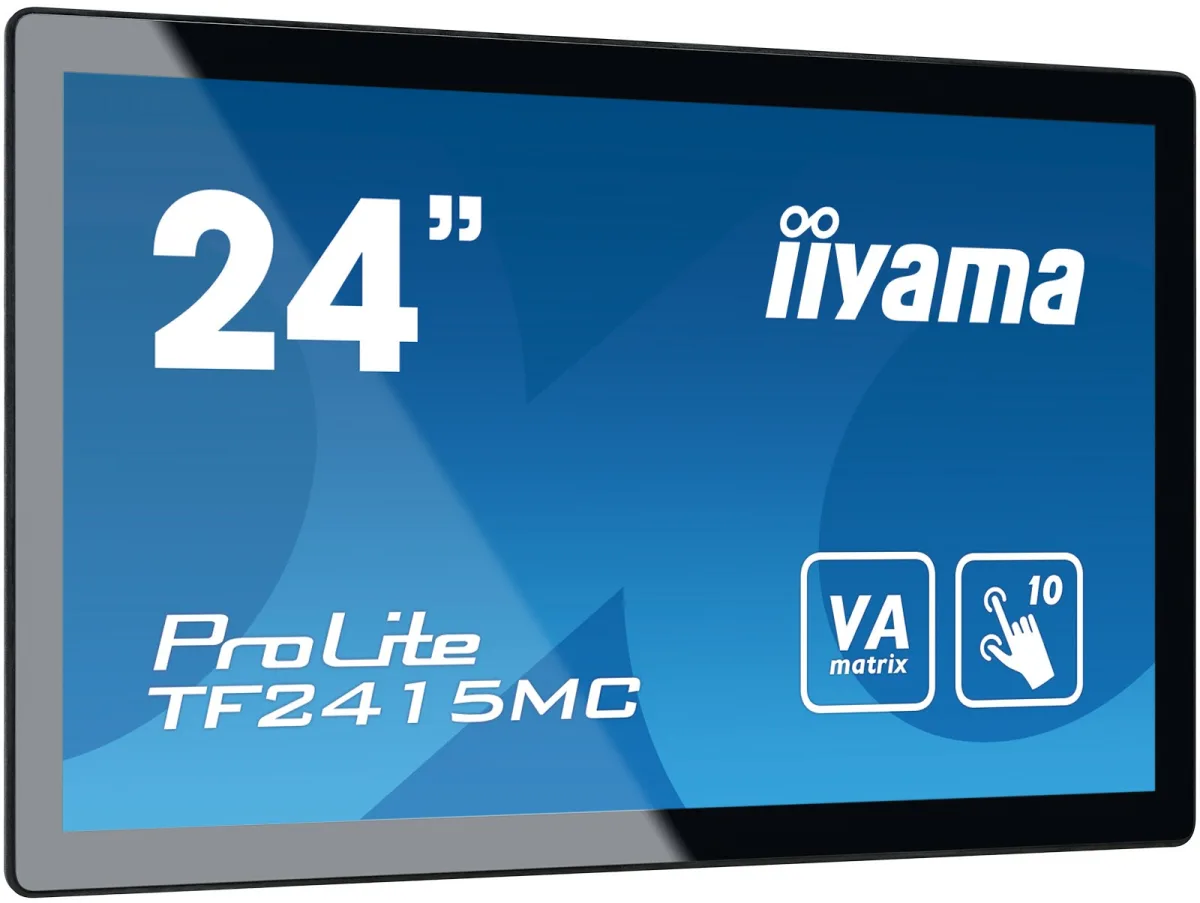

iiyama ProLite TF2415MC-B2 - LED monitor - 23.8" - open frame - touchscreen - 1920 x 1080 Full HD (1080p) @ 60 Hz - VA - 350 cd/m² - 3000:1 - 16 ms - HDMI, VGA, DisplayPort - black

Description

The ProLite TF2415MC-B2 (23.8 inch) uses PCAP touch technology and is built into an eye-catching bezel with edge-to-edge glass. Thanks to a glass overlay covering the screen and a rugged bezel, it guarantees high durability and scratch-resistance, making it perfect for kiosk and high use public facing applications. Equipped with a foam seal finish it supports seamless integration into kiosks and provides IP65 rating resulting in dust and water resistance from the front. Landscape, portrait and face-up orientation ensures flexible mounting possibilities in almost any installation. For ease of integration, the TF2415MC-B2 can be equipped with optional external mounting brackets ( OMK2-1 ) making it an ideal solution for kiosk integrators, industrial environments, control rooms and interactive multimedia.

Specifications

Display

Display diagonal	60.5 cm (23.8")
Display resolution	1920 x 1080 pixels
HD type	Full HD
Native aspect ratio	16:9
Display technology	LED
Panel type	VA
Touchscreen	Yes
Touchscreen type	Multi-user
Touchscreen technology	Projected capacitive system
Touch technology	Multi-touch
Number of simultaneous touchpoints	10
Display brightness (typical)	350 cd/m²
Display brightness	315 cd/m²
Response time	16 ms
Screen shape	Flat
Aspect ratio	16:9
Contrast ratio (typical)	3000:1
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Display number of colours	16.78 million colours
Pixel pitch	0.2745 x 0.2745 mm
Horizontal scan range	31.4 - 82 kHz
Vertical scan range	56 - 75 Hz
Viewable size, horizontal	52.7 cm
Viewable size, vertical	29.6 cm
Display diagonal (metric)	60.5 cm
Surface hardness	7H
Separate H/V sync	Yes

Performance

NVIDIA G-SYNC	No
AMD FreeSync	No
OmniTapps Multitouch compatibility	No

Multimedia

Built-in microphone	No
Built-in camera	No

Design

Product colour	Black
Front bezel colour	Black

Ports & interfaces

USB Touch port	Yes
VGA (D-Sub) ports quantity	1
HDMI	Yes
HDMI ports quantity	1
DisplayPorts quantity	1
Audio output	1
HDCP	Yes

Ergonomics

VESA mounting	Yes
Panel mounting interface	100 x 100 mm
Wall mountable	Yes
On Screen Display (OSD)	Yes
On Screen Display (OSD) languages	Traditional Chinese, German, English, Spanish, French, Italian, Japanese
Number of OSD languages	7
Plug and Play	Yes

Power

Energy efficiency class (SDR)	E
Energy consumption (SDR) per 1000 hours	22 kWh
Power consumption (typical)	24.4 W
Power consumption (standby)	1.06 W
Power consumption (off)	0.32 W
AC adapter output voltage	12 V
Power supply type	External
Energy efficiency scale	A to G

Operational conditions

Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	20 - 80%
Storage relative humidity (H-H)	10 - 90%

Weight & dimensions

Width (with stand)	575 mm
Depth (with stand)	42.5 mm
Height (with stand)	347 mm
Weight (with stand)	5.8 kg
Width (without stand)	575 mm
Depth (without stand)	42.5 mm
Height (without stand)	347 mm
Weight (without stand)	5.8 kg

Packaging content

Cables included	AC, USB, HDMI, DisplayPort
Quick start guide	Yes

Sustainability

Sustainability certificates	ErP

Other features

International Protection (IP) code	IP65
Compatible operating systems	All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
AC adapter included	Yes
Display viewable area (HxV)	527.04 x 296.46 mm
Placement supported	Horizontal/Vertical
Brightness	315 cd/m²
Packaging content	AC adapter, Touch Panel Driver Disk (CD-ROM), external control pad
Active display area (W x H)	527.04 x 296.46 mm
Weight	5.8 kg
Height	347 mm
User controls	picture (contrast, brightness, H. position, V. position, phase, clock, auto adjust), advanced (color temp., sharpness), OSD (timeout, position, H. position, V. position, touch switch), option (reset, language, source select, display mode, factory)
Touch method	stylus, finger, glove (latex)
Width	575 mm
Depth	42.5 mm
Control panel	Menu, Scroll up/ Brightness, Scroll down/ Contrast, Select, Power
Glass protection	Yes
Compliance certificates	CB, CE, cULus, REACH, RoHS, WEEE
Supplied AC adapter type	AC
Certification	CB, CE, TÜV-Bauart, CU, cULus

Logistics data

Harmonized System (HS) code	85285210
