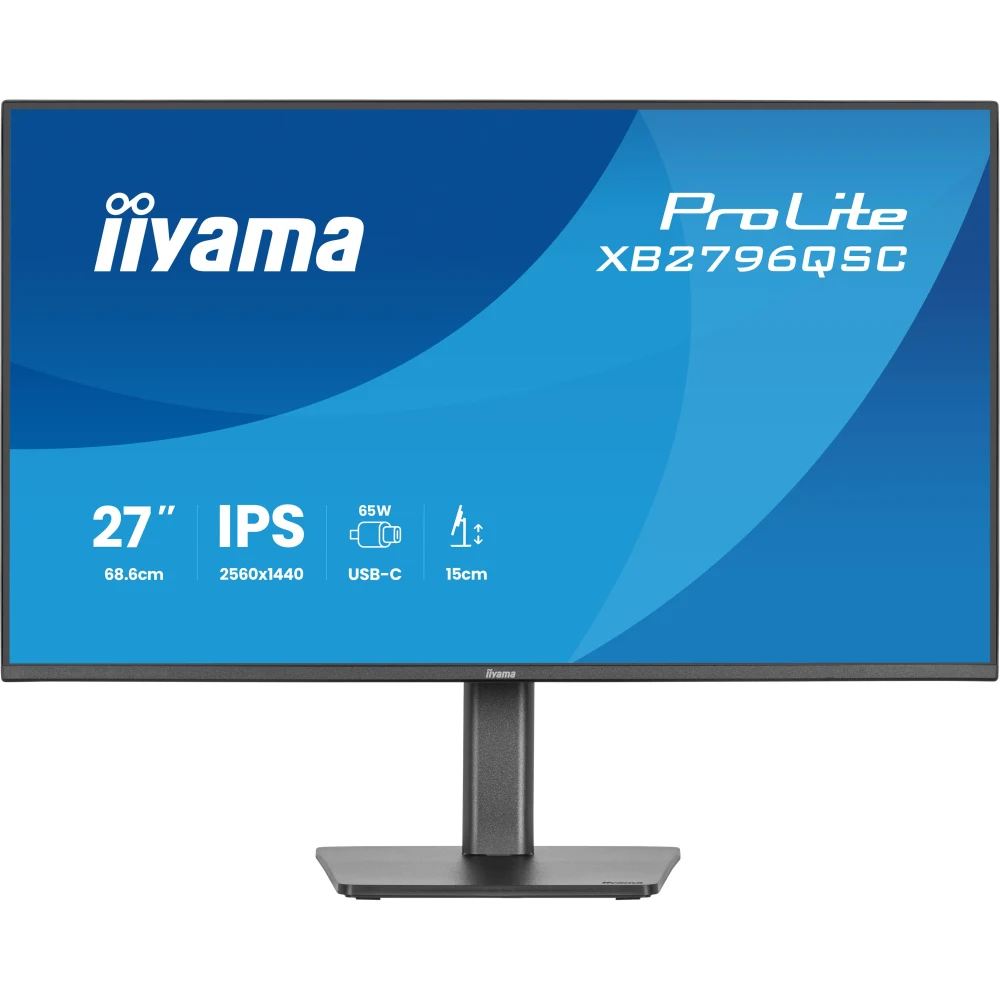

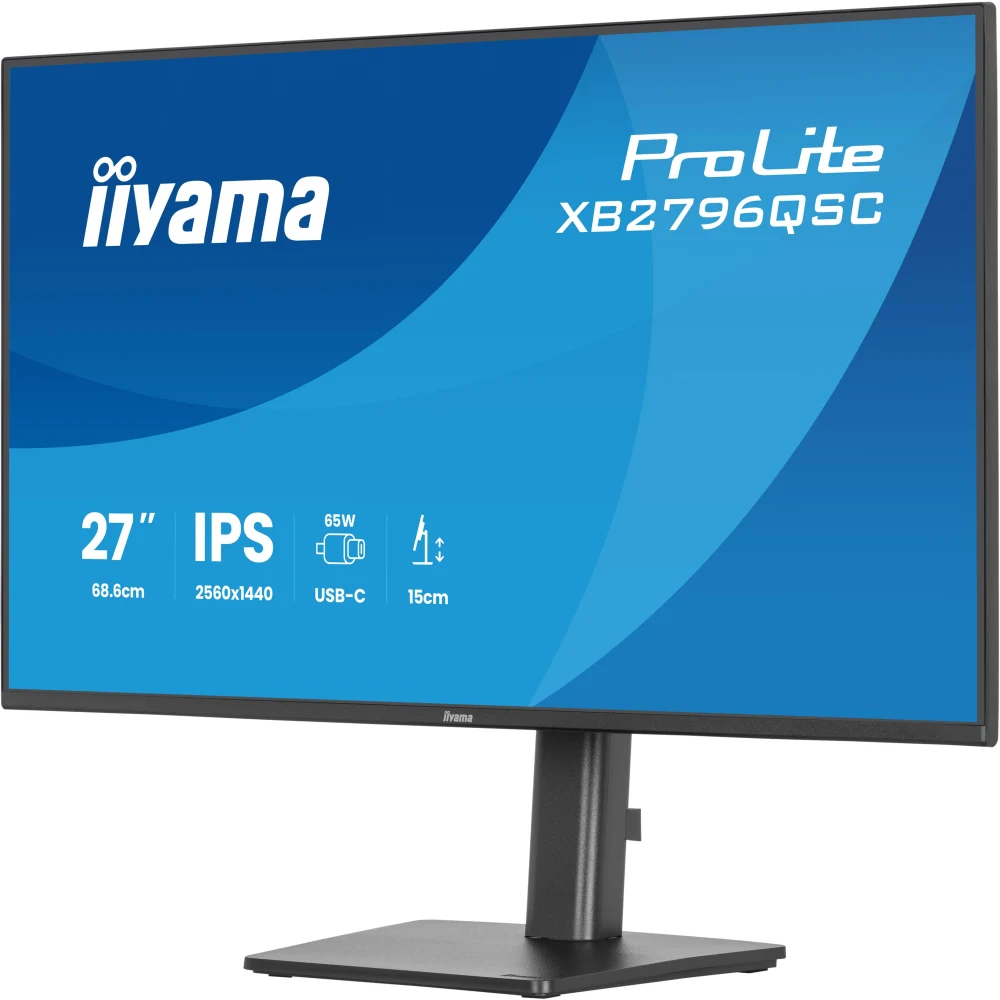

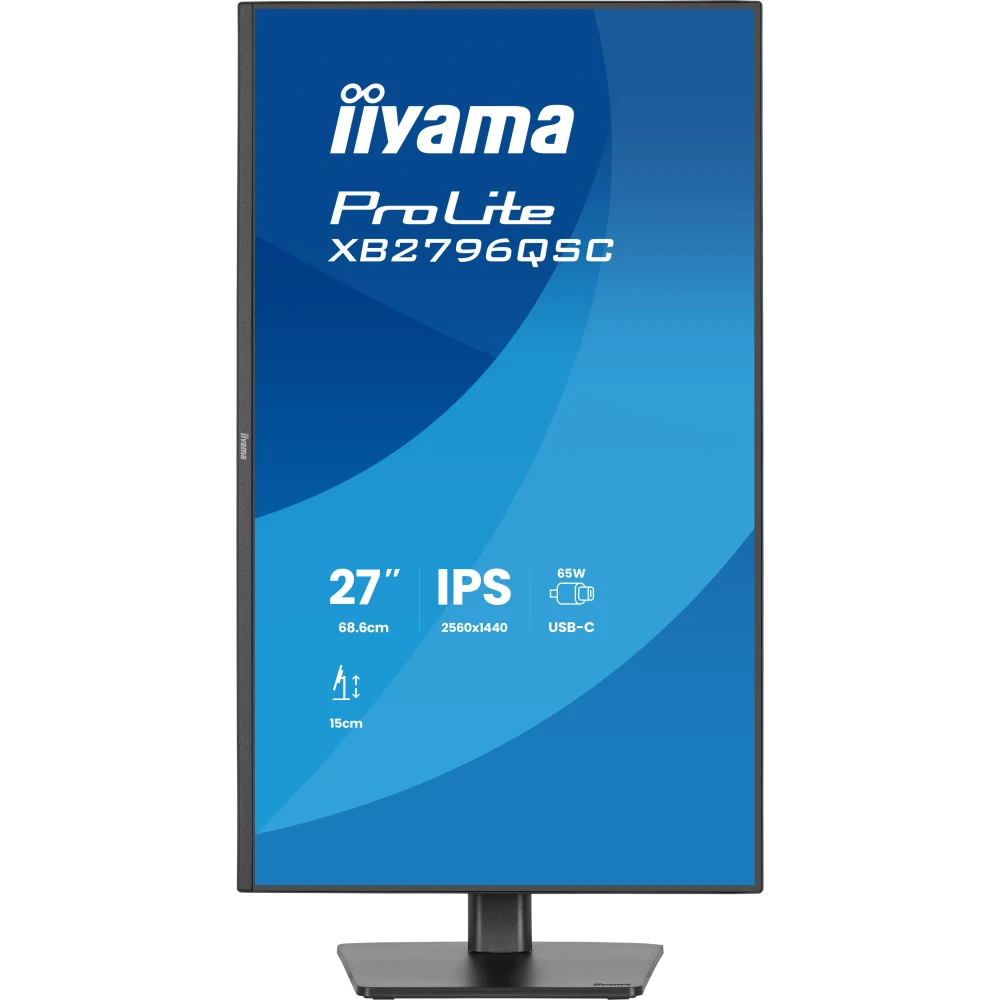

iiyama ProLite XB2796QSC-B1 - LED monitor - 27" - 2560 x 1440 QHD @ 75 Hz - IPS - 350 cd/m² - 1000:1 - 4 ms - HDMI, USB-C - speakers - black, matte

Description

Manufacturer Code: XB2796QSC-B1

Overview

iiyama ProLite XB2796QSC-B1 - LED monitor - 27" - 2560 x 1440 QHD @ 75 Hz - IPS - 350 cd/m² - 1000:1 - 4 ms - HDMI, USB-C - speakers - black, matte is available through DCS Components. It sits within the Monitors category.

Key product details

• LED monitor
• 27"
• 2560 x 1440 QHD @ 75 Hz
• IPS
• 350 cd/m²

Procurement and setup support

Available for quote while live availability remains in stock. DCS can help with procurement, compatibility checks, configuration planning, installation support and long-term managed IT lifecycle support.

EAN: 4948570127023

Specifications

Display

Display diagonal	68.6 cm (27")
Display resolution	2560 x 1440 pixels
HD type	Quad HD
Native aspect ratio	16:9
Display technology	LED
Panel type	IPS
Touchscreen	No
Display brightness (typical)	350 cd/m²
Response time	4 ms
Response time measurement type	GTG (Gray to Gray)
Display surface	Matt
Screen shape	Flat
Contrast ratio (typical)	1000:1
Contrast ratio (dynamic)	80000000:1
Maximum refresh rate	75 Hz
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Display number of colours	16.7 million colours
Pixel pitch	0.233 x 0.233 mm
Horizontal scan range	30 - 120 kHz
Vertical scan range	48 - 75 Hz
Viewable size, horizontal	59.7 cm
Viewable size, vertical	33.6 cm
Display diagonal (metric)	68.5 cm
DDC/CI	Yes
Colour gamut standard	NTSC, sRGB
sRGB coverage (typical)	96%
NTSC coverage (typical)	72%

Performance

Flicker-free technology	Yes
Low Blue Light technology	Yes

Multimedia

Number of speakers	2
RMS rated power	4 W
Built-in speaker(s)	Yes

Design

Market positioning	Business
Product colour	Black
Frameless design	Yes

Ports & interfaces

Built-in USB hub	Yes
USB hub version	3.2 Gen 1 (3.1 Gen 1)
USB upstream port type	USB Type-C
Number of upstream ports	1
Number of downstream ports	2
Number of USB Type-C upstream ports quantity	1
USB Type-A downstream ports quantity	1
USB Type-C downstream ports quantity	1
USB Type-C DisplayPort Alternate Mode	Yes
USB Power Delivery (USB PD)	Yes
USB Power Delivery up to	65 W
HDMI	Yes
HDMI ports quantity	1
HDMI version	1.4
Headphone out	Yes
Headphone outputs	1
Headphone connectivity	3.5 mm
HDCP	Yes

Ergonomics

VESA mounting	Yes
Panel mounting interface	100 x 100 mm
Cable management	Yes
Cable lock slot	Yes
Cable lock slot type	Kensington
Height adjustment	Yes
Adjustable height (max)	15 cm
Pivot	Yes
Pivot angle	-90 - 90°
Swivelling	Yes
Swivel angle range	-60 - 60°
Tilt adjustment	Yes
Tilt angle range	-5 - 23°
On Screen Display (OSD)	Yes
On Screen Display (OSD) languages	Czech, German, English, Spanish, French, Italian, Japanese, Dutch, Polish, Russian, Ukrainian
Number of OSD languages	11

Power

Energy efficiency class (SDR)	E
Energy efficiency class (HDR)	Not available
Energy consumption (SDR) per 1000 hours	20.1 kWh
Power consumption (typical)	20 W
Power consumption (standby)	0.4 W
Power consumption (off)	0.3 W
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power supply type	Internal
Energy efficiency scale	A to G

Operational conditions

Operating temperature (T-T)	5 - 35 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	10 - 80%
Storage relative humidity (H-H)	10 - 90%

Weight & dimensions

Width (with stand)	613.5 mm
Depth (with stand)	224.5 mm
Height (with stand)	550.5 mm
Weight (with stand)	6 kg
Height (without stand)	404.5 mm

Packaging data

Package width	690 mm
Package depth	140 mm
Package height	465 mm
Package weight	7.6 kg
Package type	Box
USB cable length	1 m

Packaging content

Cables included	AC, USB Type-C
Quick start guide	Yes
Power cable length	1.8 m

Sustainability

Sustainability certificates	ErP

Other features

User controls	picture adjust (brightness, contrast, Eco, ACR, OD, X-Res technology, black tuner), colour settings (6-axis, i-Style colour, blue light reducer, gamma, RGB range, colour temperature), OSD (OSD H. position, OSD V. position, OSD time, OSD background, OSD rotate, display information), language, miscellaneous (sharpness, video mode adjust, opening logo, power LED, USB-C speed, USB charge, DDC/Ci control), Input select, audio settings (volume, mute audio), recall (recall all)
Packaging content	quick start guide, safety guide
Weight	6 kg
Width	613.5 mm
Depth	224.5 mm
Control panel	Joystick: Menu (Centre), Up/ Signal Select, Down/ Brightness/ OD/ Eco/ i-Style Colour, Left/ Volume Down, Right/ Volume Up, Power
Compliance certificates	CE, EAC, PSE, REACH, RoHS, TÜV mark, UKCA, VCCI, WEEE
