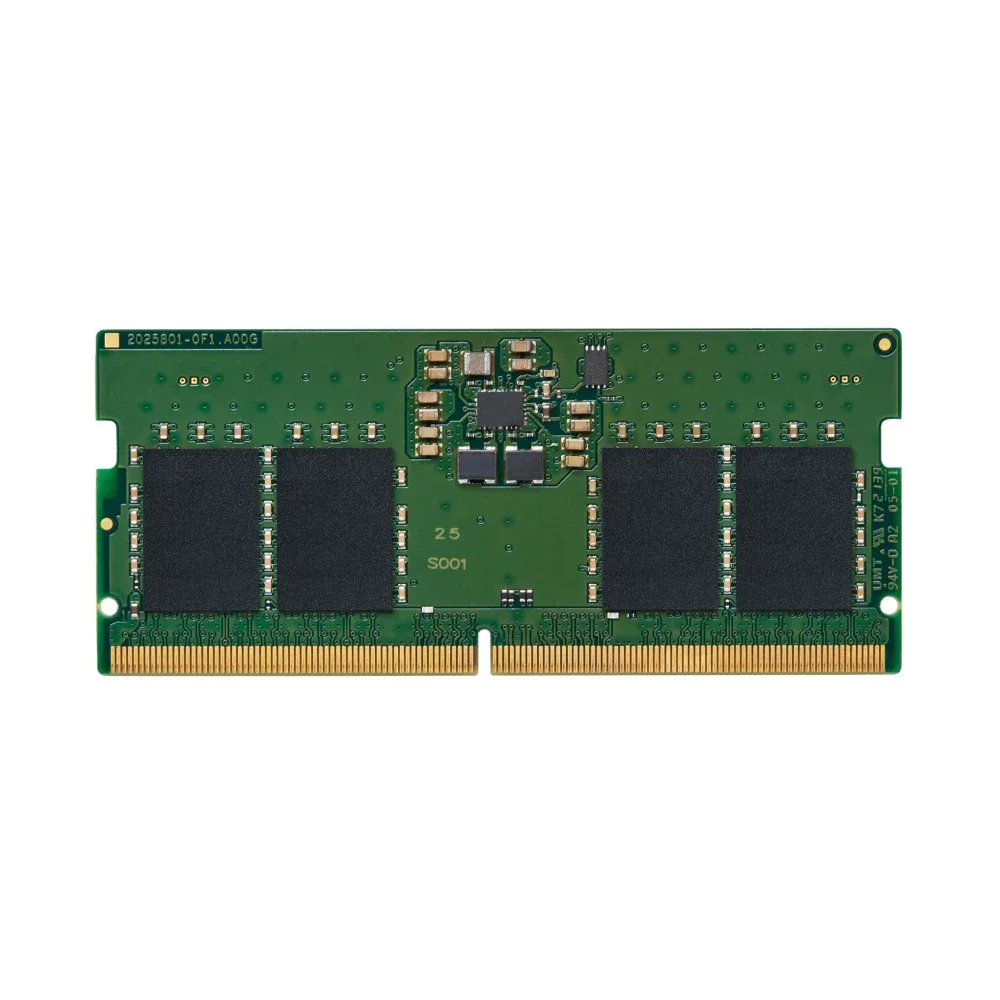

Kingston ValueRAM KVR56S46BS6-8 8GB (1x 8GB) SODIMM System Memory, 5600MHz, DDR5, CL46

Description

KVR56S46BS6-8 8GB, 1Rx16 1G x 64-Bit, PC5-5600 CL46 262-Pin SODIMM
Kingston ValueRAM's KVR56S46BS6-8 is a 1G x 64-bit (8GB) DDR5-5600 CL46 SDRAM (Synchronous DRAM), 1Rx16, memory module, based on four 1G x 16-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR5-5600 timing of 46-45-45 at 1.1V. Each 262-pin SODIMM uses gold contact fingers.

Features
Power Supply: VDD = 1.1V Typical
VDDQ = 1.1V Typical
VPP = 1.8V Typical
VDDSPD = 1.8V to 2.0V
On-Die ECC
PCB: Height 1.18” (30.00mm)
RoHS Compliant and Halogen-Free

Specification

Product Type
Memory Module

Capacity
8 GB

Memory Type
DDR5 SDRAM - SO-DIMM 262-pin

Upgrade Type
Generic

Data Integrity Check
On-die ECC

Speed
5600 MHz (PC5-44800)

Latency Timings
CL46 (46-45-45)

Features
Single rank, unbuffered

Voltage
1.1 V

Lead Plating
Gold

Compliant Standards
RoHS, UL 94 V-0, halogen-free, JEDEC

Manufacturer Warranty
Limited Lifetime Warranty

Key Features

• Form Factor: SODIMM
• DDR Type: DDR5
• Speed: 5600MHz
• Capacity: 8GB (1x 8GB)
• RGB: No

Category: Memory

Manufacturer Code: KVR56S46BS6-8

EAN: 740617334074

Weight (KG): 0.01

VAT Rate: 20%
