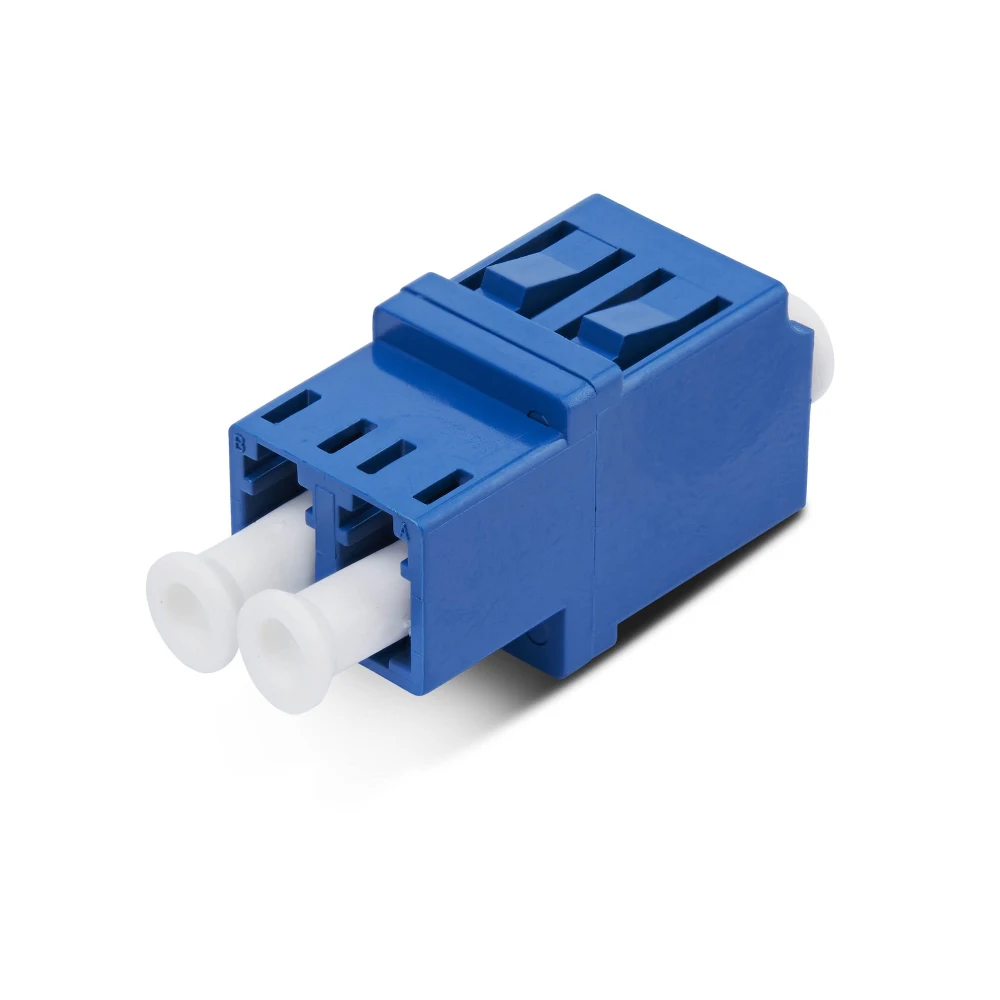

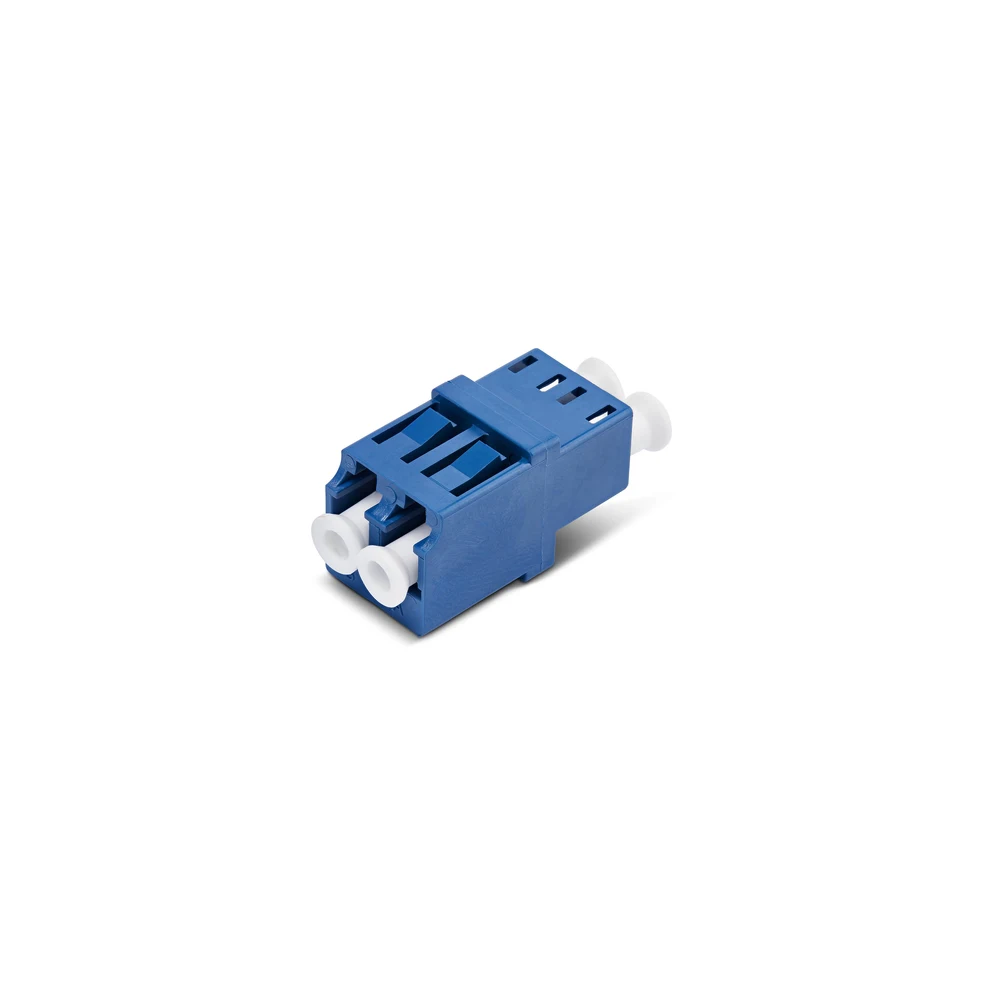

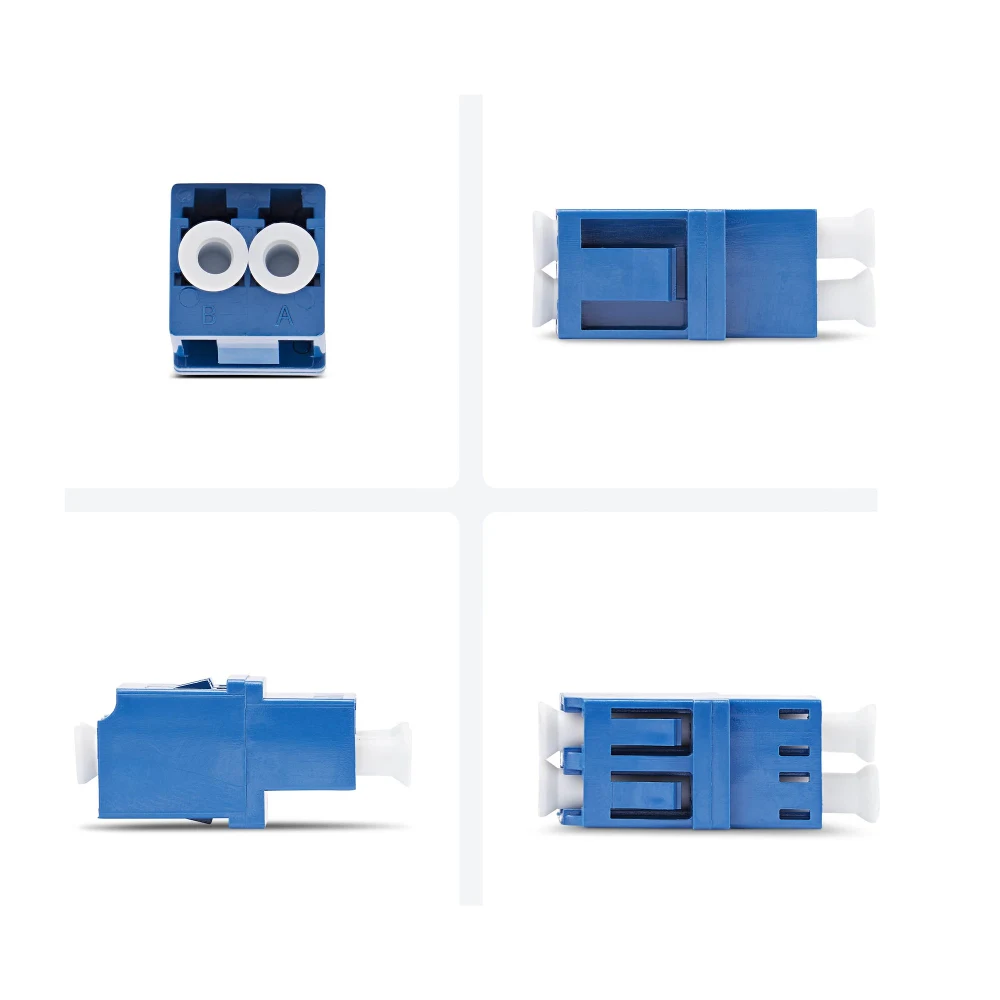

Startech - Network coupler - TAA Compliant - LC/UPC single-mode (F) to LC/UPC single-mode (F) - fibre optic - duplex - 9 / 125 micron - OS1/OS2 - keystone jack, passive - blue

Description

Connect two Single Mode LC fiber cables or establish fiber connectivity on a rackmount patch panel

Extend a Single Mode fiber connection by connecting two LC Duplex cables with this LC to LC Coupler. The female to female fiber coupler maintains optimal signal integrity while achieving low insertion loss that exceeds industry standards.

Toolless Installation for Quick Setup

The LC Fiber Coupler supports Single Mode LC/LC fiber cables. It is compatible with OS1/OS2 (9/125µm) fiber core/cladding. The coupler features toolless setup to simplify installation into fiber patch panels and rackmount/wall enclosure. Ideal for fast deployment in data centers, enterprise networks, and telecom applications.

Built for Reliable Performance

The LC/LC Keystone Coupler features a durable ABS housing and ceramic-lined inner sleeves for precise fiber alignment, minimizing signal loss for long-lasting reliability and performance.

Specifications

Features

Number of connectors	2
Connector type	LC/UPC
Duplex	Yes
Product colour	Blue, White
Fiber mode structure	Single-mode

Certificates

Compliance certificates	Trade Agreements Act (TAA), CE

Weight & dimensions

Width	12.9 mm
Depth	25.7 mm
Height	15.2 mm
Weight	3 g

Packaging data

Quantity per pack	1 pc(s)
Package width	120 mm
Package depth	90 mm
Package height	13 mm
Package weight	5 g

Logistics data

Master (outer) case width	430 mm
Master (outer) case length	335 mm
Master (outer) case height	400 mm
Products per master (outer) case	1000 pc(s)
