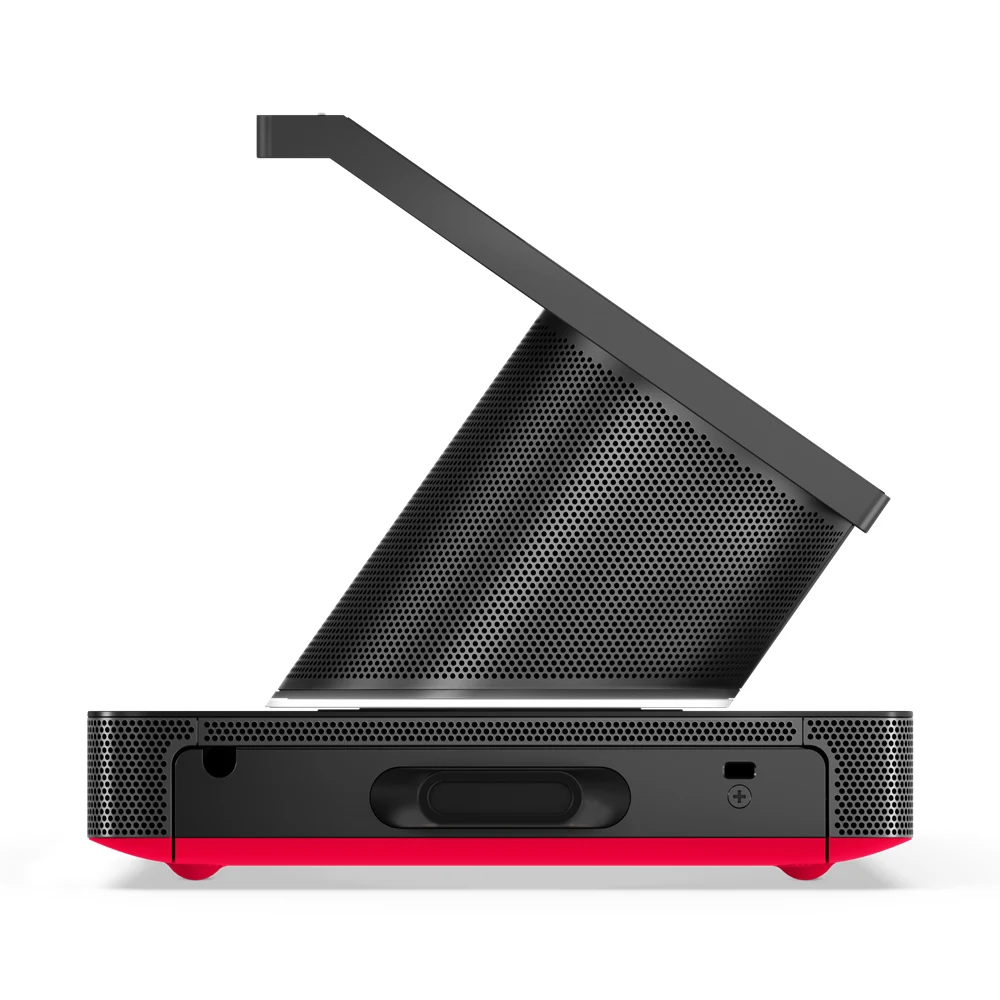

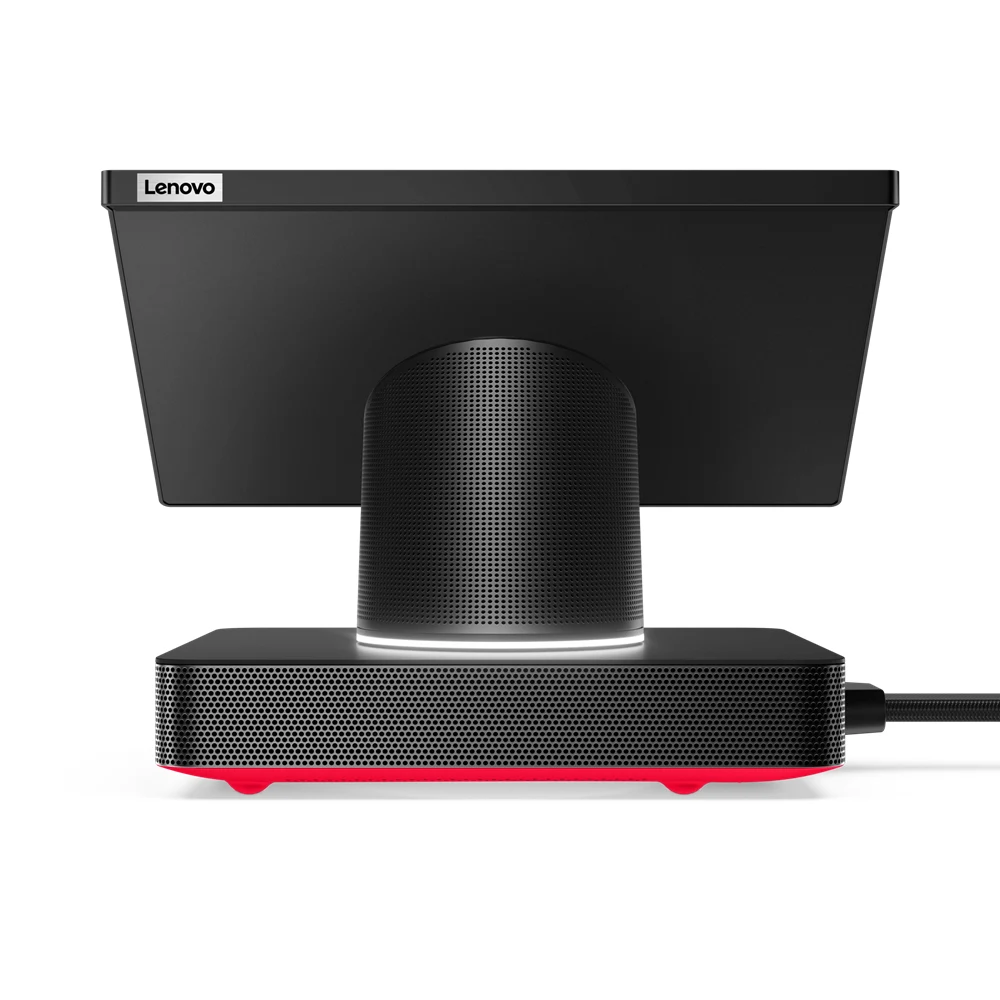

Lenovo ThinkSmart Hub 11H1 - Microsoft Teams

Description

Lenovo ThinkSmart Hub 11H1000KUK Video Conference Equipment - Small/Medium Room Size Supported - Black, Raven Black, Red - For Meeting Room - 1920 x 1200 Video (Live) - WUXGA - 1 x Network (RJ-45) - 1 x HDMI In - USB - Gigabit Ethernet - Wireless LAN - Internal Speaker(s) - Internal Microphone(s)

Overview

Lenovo THINKSMART HUB W11 IOT is listed under manufacturer code 11H1000KUK. It sits within the All-in-one pc category. DCS Components can help source this item as part of a quote-led procurement request.

Key product details

• Manufacturer code: 11H1000KUK
• Category: All-in-one pc
• EAN: 0197528904900

Procurement and setup support

DCS can help with procurement, compatibility checks, configuration planning, deployment support and long-term managed IT lifecycle support.

Specifications

Display

Display diagonal	25.6 cm (10.1")
Display resolution	1920 x 1200 pixels
Touchscreen	Yes
HD type	WUXGA
Native aspect ratio	16:10
Display brightness	320 cd/m²
Anti-glare screen	Yes

Processor

Processor manufacturer	Intel
Processor family	Intel® Core™ i5
Processor generation	8th gen Intel® Core™ i5
Processor model	i5-8365UE
Processor cores	4
Processor boost frequency	4.1 GHz
Processor frequency	1.6 GHz
Processor cache	6 MB
Processor cache type	Smart Cache

Memory

Internal memory	16 GB
Internal memory type	DDR4-SDRAM
Maximum internal memory	16 GB
Memory clock speed	2666 MHz

Storage

Total storage capacity	256 GB
Storage media	SSD
Total SSDs capacity	256 GB
Number of SSDs installed	1
SSD capacity	256 GB
SSD interface	PCI Express 3.0
NVMe	Yes
SSD form factor	M.2
Optical drive type	No
Card reader integrated	No

Graphics

Discrete graphics card	No
Discrete graphics card model	Not available
On-board graphics card	Yes
On-board GPU manufacturer	Intel
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics

Audio

Built-in speaker(s)	Yes
Number of speakers	4
RMS rated power	12 W
Built-in microphone	Yes

Camera

Built-in camera	No

Network

Wi-Fi	Yes
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
Wi-Fi standards	Wi-Fi 5 (802.11ac)
WLAN controller manufacturer	Intel
WLAN controller model	Intel Dual Band Wireless-AC 9560
Antenna type	2x2
Ethernet LAN	Yes
Ethernet LAN data rates	100,1000 Mbit/s
Bluetooth	Yes
Bluetooth version	5.0

Ports & interfaces

Ethernet LAN (RJ-45) ports	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
HDMI ports quantity	1
DisplayPorts quantity	1
Combo headphone/mic port	Yes

Design

Colour name	Black
Product colour	Black
Cable lock slot	Yes
Cable lock slot type	Kensington

Performance

Product type	All-in-One PC
Motherboard chipset	Intel SoC
Trusted Platform Module (TPM)	Yes
Trusted Platform Module (TPM) version	2.0

Software

Operating system architecture	64-bit
Operating system installed	Windows 11 IoT Enterprise SAC

Power

AC adapter power	90 W
AC adapter frequency	50 - 60 Hz
AC adapter input voltage	100 - 240 V

Weight & dimensions

Width (with stand)	240 mm
Depth (with stand)	200 mm
Height (with stand)	185.3 mm
Weight (with stand)	2.45 kg

Certificates

Compliance certificates	RoHS
Certification	TÜV Rheinland Ultra Low Noise

Packaging content

Mouse included	Yes
Keyboard included	Yes

Technical details

Box contents	ThinkSmart One Cable (1.83m)
