Choose processors, memory, storage and support, then send the specification to us for pricing.
Manufacturer Code: 7DCLA04XEA
Overview

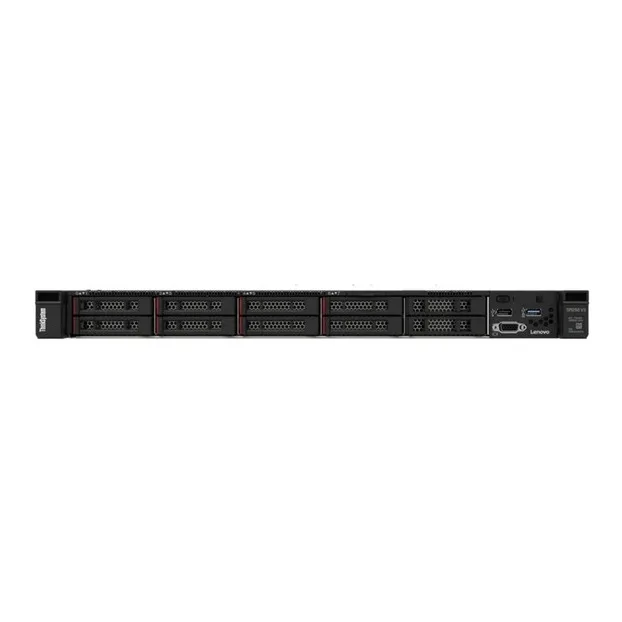

Lenovo ThinkSystem SR250 V3 7DCL - Server - rack-mountable 1U - 1-way - 1 x Xeon 6353P / up to 5.4 GHz - RAM 32 GB - hot-swap 2.5" bay(s) - no HDD - Matrox G200 - Gigabit Ethernet - no OS - monitor: none is available through DCS Components. It sits within the Rack Servers category.
Key product details
Procurement and setup support
Available for quote while live availability remains in stock. DCS can help with procurement, compatibility checks, configuration planning, installation support and long-term managed IT lifecycle support.
EAN: 5054444757995
| Processor manufacturer | Intel |
|---|---|
| Processor family | Intel® Xeon® |
| Processor model | 6353P |
| Processor frequency | 2.7 GHz |
| Processor boost frequency | 5.4 GHz |
| Performance cores | 8 |
| Processor cores | 8 |
| Processor cache | 24 MB |
| Motherboard chipset | Intel C266 |
| Number of processors installed | 1 |
| Internal memory | 32 GB |
|---|---|
| Internal memory type | DDR5-SDRAM |
| Memory slots | 4x DIMM |
| ECC | Yes |
| Memory clock speed | 4800 MHz |
| Memory layout (slots x size) | 1 x 32 GB |
| Maximum internal memory | 128 GB |
| RAID support | Yes |
|---|---|
| Supported RAID controllers | 545-8i |
| Internal drive bays | 8 |
| Supported storage drive interfaces | SAS, Serial ATA |
| On-board graphics card | Yes |
|---|---|
| Maximum graphics card memory | 16 MB |
| LAN controller | Broadcom BCM5720 |
|---|---|
| Ethernet LAN | Yes |
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN (RJ-45) ports | 2 |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| VGA (D-Sub) ports quantity | 1 |
| Serial ports quantity | 1 |
| Chassis type | Rack (1U) |
|---|---|
| Product colour | Black, Silver |
| Performance management | XClarity Controller Platinum |
|---|---|
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Compatible operating systems | Microsoft Windows Server Red Hat Enterprise Linux SUSE Linux Enterprise Server VMware ESXi |
|---|
| Redundant power supply (RPS) support | Yes |
|---|---|
| Power supply | 800 W |
| Number of redundant power supplies supported | 1 |
| Power supply input voltage | 100 - 240 V |
| Power supply input frequency | 50/60 Hz |
| Storage temperature (T-T) | -40 - 60 °C |
|---|---|
| Storage relative humidity (H-H) | 8 - 90% |
| Operating altitude | 0 - 3050 m |
| Width | 434.4 mm |
|---|---|
| Depth | 561 mm |
| Height | 43 mm |
| Supported storage drives form factor (rear) | 2.5" |
|---|
