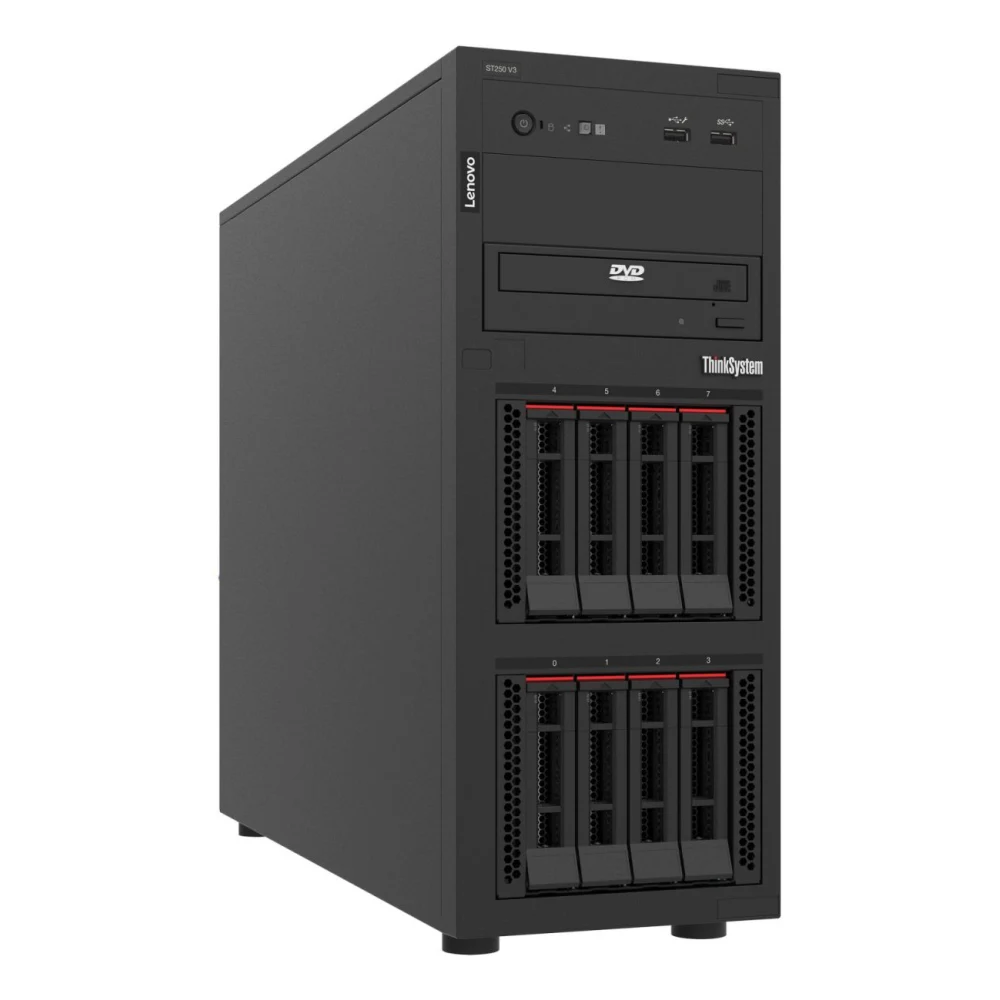

Lenovo ThinkSystem ST250 V3 7DCE - Server - tower 4U - 1-way - 1 x Xeon 6353P / up to 5.4 GHz - RAM 32 GB - hot-swap 2.5" bay(s) - no HDD - Matrox G200 - Gigabit Ethernet - no OS - monitor: none

Description

Manufacturer Code: 7DCEA04XEA

Overview

Lenovo ThinkSystem ST250 V3 7DCE - Server - tower 4U - 1-way - 1 x Xeon 6353P / up to 5.4 GHz - RAM 32 GB - hot-swap 2.5" bay(s) - no HDD - Matrox G200 - Gigabit Ethernet - no OS - monitor: none is available through DCS Components. It sits within the Tower Servers category.

Key product details

• Server
• tower 4U
• 1-way
• 1 x Xeon 6353P / up to 5.4 GHz
• RAM 32 GB

Procurement and setup support

Available for quote while live availability remains in stock. DCS can help with procurement, compatibility checks, configuration planning, installation support and long-term managed IT lifecycle support.

EAN: 5054444761565

Specifications

Processor

Processor manufacturer	Intel
Processor family	Intel® Xeon®
Processor model	6353P
Processor frequency	2.7 GHz
Processor boost frequency	5.4 GHz
Performance cores	8
Processor cores	8
Processor cache	24 MB
Number of processors installed	1

Memory

Internal memory	32 GB
Internal memory type	DDR5-SDRAM
Memory slots	4x DIMM
ECC	Yes
Memory clock speed	4800 MHz
Memory layout (slots x size)	1 x 32 GB
Maximum internal memory	128 GB

Storage

RAID support	Yes
RAID levels	0, 1, 5, 10, 50
Supported RAID controllers	545-8i
Hot-swap	Yes
Internal drive bays	8
Supported storage drive interfaces	SAS, Serial ATA

Graphics

On-board graphics card	Yes
Maximum graphics card memory	16 MB

Network

LAN controller	Broadcom 5720
Ethernet LAN	Yes
Cabling technology	10/100/1000Base-T(X)
Ethernet interface type	Gigabit Ethernet

Ports & interfaces

Ethernet LAN (RJ-45) ports	2
USB 2.0 ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	5
VGA (D-Sub) ports quantity	1
Serial ports quantity	1

Design

Chassis type	Tower
Product colour	Black

Performance

Performance management	XCC Platinum
Trusted Platform Module (TPM)	Yes
Trusted Platform Module (TPM) version	2.0

Software

Compatible operating systems	Microsoft Windows Server Red Hat Enterprise Linux SUSE Linux Enterprise Server VMware ESXi

Power

Redundant power supply (RPS) support	Yes
Power supply	800 W
Number of redundant power supplies supported	1

Operational conditions

Operating temperature (T-T)	5 - 45 °C
Storage temperature (T-T)	-40 - 60 °C
Operating relative humidity (H-H)	8 - 90%
Storage relative humidity (H-H)	8 - 90%
Operating altitude	0 - 3050 m

Certificates

80 PLUS certification	80 PLUS Platinum

Weight & dimensions

Width	176 mm
Depth	578 mm
Height	444 mm

Technical details

Supported storage drives form factor (rear)	2.5''
