Manufacturer Code: 64B1GAT1UK
Overview

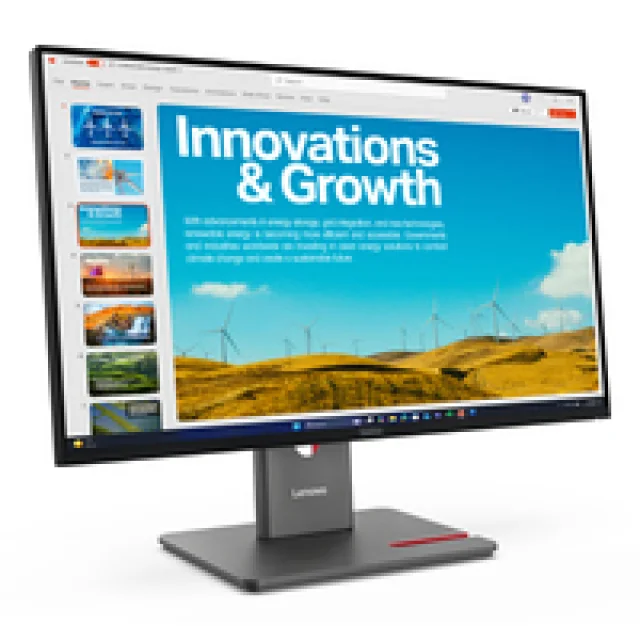

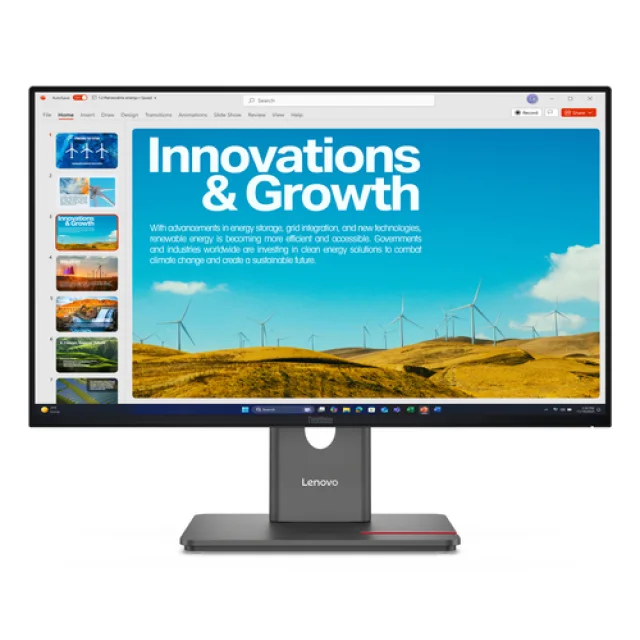

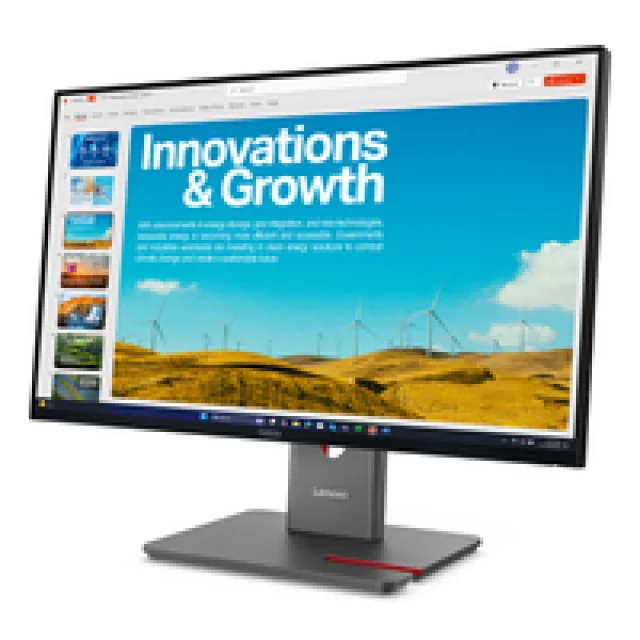

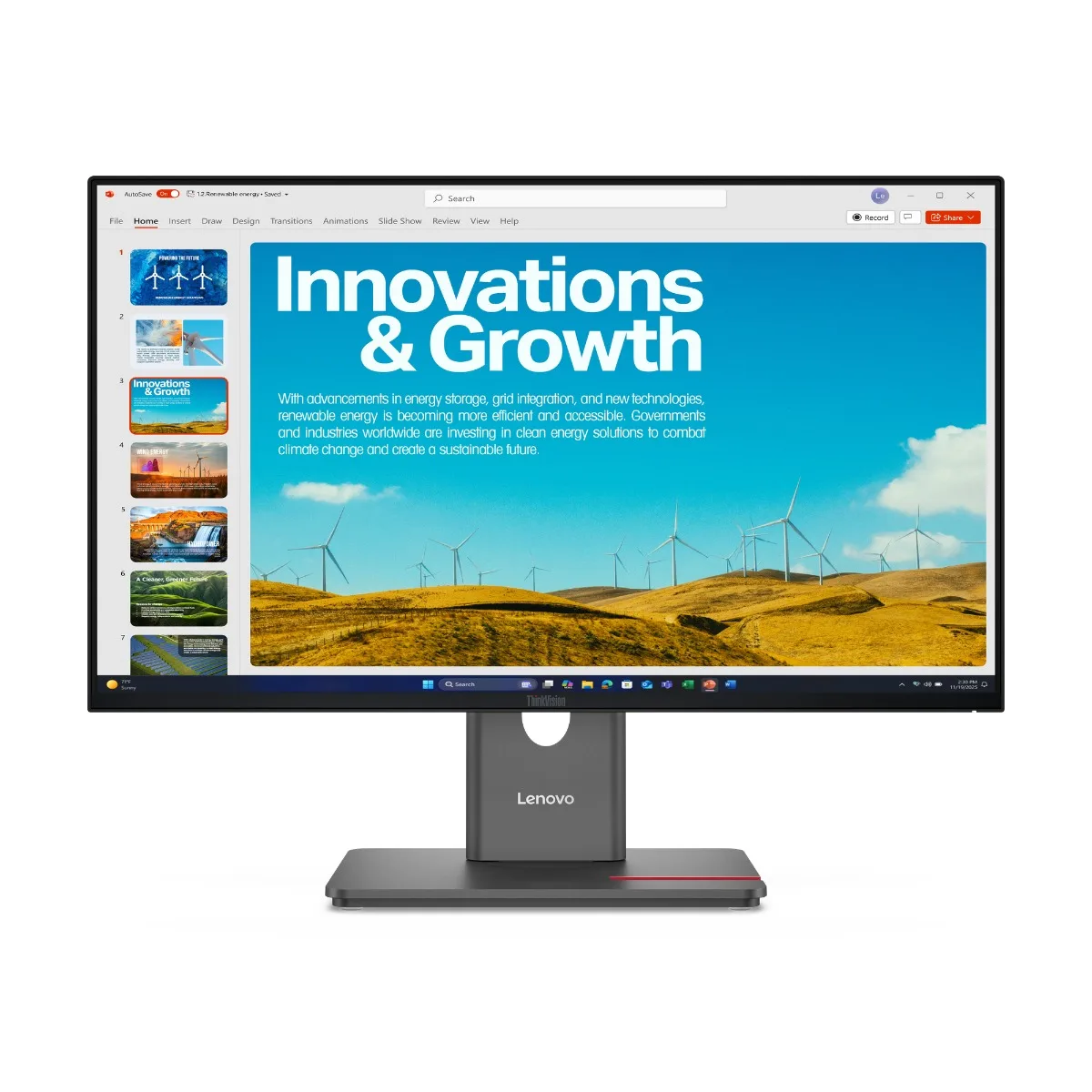

Lenovo ThinkVision P24QD-40 - LED monitor - 24" (23.8" viewable) - 2560 x 1440 QHD @ 120 Hz - IPS - 300 cd/m² - 1500:1 - DisplayHDR 10 - 4 ms - HDMI, DisplayPort, USB-C - eclipse black is available through DCS Components. It sits within the Monitors category.
Key product details
Procurement and setup support
Available for quote while live availability remains in stock. DCS can help with procurement, compatibility checks, configuration planning, installation support and long-term managed IT lifecycle support.
EAN: 0198156544711
| Display diagonal | 60.5 cm (23.8") |
|---|---|
| Display resolution | 2560 x 1440 pixels |
| HD type | Wide Quad HD |
| Native aspect ratio | 16:9 |
| Display technology | LED |
| Panel type | IPS |
| LED backlight | Yes |
| Backlight type | W-LED |
| Touchscreen | No |
| Display brightness (typical) | 300 cd/m² |
| Response time | 6 ms |
| Response time measurement type | GTG (Gray to Gray) |
| Anti-glare screen | Yes |
| Screen shape | Flat |
| Contrast ratio (typical) | 1500:1 |
| Contrast ratio (dynamic) | 3000000:1 |
| Maximum refresh rate | 120 Hz |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 16.7 million colours |
| Response time (fast) | 4 ms |
| Pixel pitch | 0.2058 x 0.2058 mm |
| Pixel density | 123 ppi |
| Viewable size, vertical | 52.7 cm |
| Viewable size diagonal | 29.6 cm |
| Display diagonal (metric) | 60.5 cm |
| High Dynamic Range (HDR) supported | Yes |
| High Dynamic Range (HDR) technology | High Dynamic Range 10 (HDR10) |
| Colour depth | 8 bit |
| Colour gamut standard | Rec. 709, sRGB |
| Colour gamut | 99% |
| sRGB coverage (typical) | 99% |
| NVIDIA G-SYNC | No |
|---|---|
| AMD FreeSync | No |
| Low Blue Light technology | Yes |
| Built-in speaker(s) | No |
|---|---|
| Built-in microphone | No |
| Built-in camera | No |
| Product colour | Black |
|---|---|
| Colour name | Eclipse Black |
| Front bezel colour | Black |
| Detachable stand | Yes |
| Feet colour | Black, Red |
| Built-in USB hub | Yes |
|---|---|
| USB upstream port type | USB Type-B, USB Type-C |
| Number of upstream ports | 1 |
| Number of USB Type-B upstream ports quantity | 1 |
| Number of USB Type-C upstream ports quantity | 1 |
| USB Type-A downstream ports quantity | 4 |
| USB Type-C downstream ports quantity | 1 |
| USB Type-C DisplayPort Alternate Mode | Yes |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery up to | 140 W |
| HDMI | Yes |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 2 |
| DisplayPort out quantity | 1 |
| DisplayPort out version | 1.4 |
| DisplayPort version | 1.4 |
| Headphone out | No |
| Built-in KVM switch | Yes |
| Ethernet LAN | Yes |
|---|
| VESA mounting | Yes |
|---|---|
| Panel mounting interface | 100 x 100 mm |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Height adjustment | Yes |
| Adjustable height (max) | 15.5 cm |
| Pivot | Yes |
| Pivot angle | -90 - 90° |
| Swivelling | Yes |
| Swivel angle range | -45 - 45° |
| Tilt adjustment | Yes |
| Tilt angle range | -5 - 23.5° |
| Plug and Play | Yes |
| Energy efficiency class (SDR) | D |
|---|---|
| Energy efficiency class (HDR) | F |
| Energy consumption (SDR) per 1000 hours | 14.2 kWh |
| Energy consumption (HDR) per 1000 hours | 22 kWh |
| Power consumption (typical) | 16 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (max) | 5 W |
| Power consumption (off) | 0.3 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power supply type | Internal |
| Energy efficiency scale | A to G |
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 10 - 80% |
| Storage relative humidity (H-H) | 5 - 95% |
| Width (with stand) | 539.8 mm |
|---|---|
| Depth (with stand) | 190 mm |
| Height (with stand) | 505.8 mm |
| Weight (with stand) | 5.6 kg |
| Width (without stand) | 539.8 mm |
| Depth (without stand) | 45.3 mm |
| Height (without stand) | 315.8 mm |
| Weight (without stand) | 3.6 kg |
| Bezel width (side) | 2 mm |
| Bezel width (top) | 2 mm |
| Bezel width (bottom) | 1.15 cm |
| Package width | 730 mm |
|---|---|
| Package depth | 123 mm |
| Package height | 420 mm |
| Package weight | 8.4 kg |
| Package type | Box |
| Stand included | Yes |
|---|
| Certification | ENERGY STAR Certified, TCO 10, TCO Edge 2.1, EU Energy Efficiency Level (Level-D), EPEAT Gold, Volatile Organic Compound Certification, RoHS, TÜV Rheinland Eye Comfort 5 Stars, Eyesafe Display 2.0, TÜV Low Blue Light (Hardware solution) |
|---|
