Manufacturer Code: 63E4GAT2UK
Overview

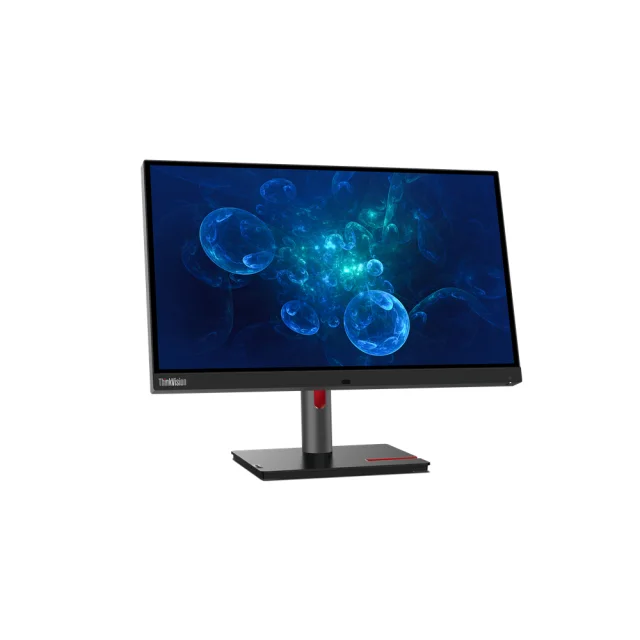

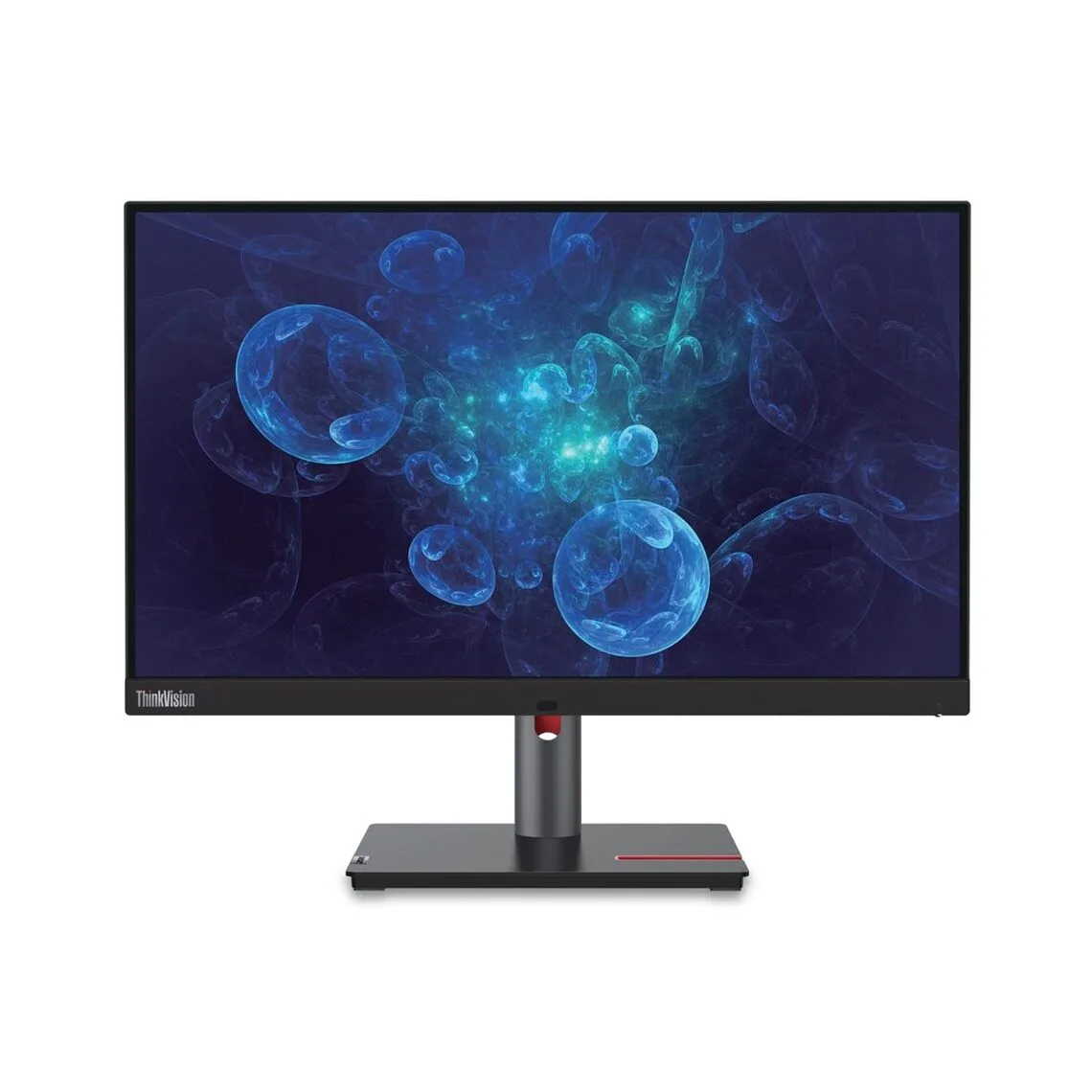

Lenovo ThinkVision P27pz-30 - LED monitor - 27" - 3840 x 2160 4K @ 60 Hz - IPS - 1200 cd/m² - 1000:1 - DisplayHDR 1000 - 4 ms - HDMI, DisplayPort, USB-C - raven black is available through DCS Components. It sits within the Monitors category.
Key product details
Procurement and setup support
Available for quote while live availability remains in stock. DCS can help with procurement, compatibility checks, configuration planning, installation support and long-term managed IT lifecycle support.
EAN: 196804350684
| Display diagonal | 68.6 cm (27") |
|---|---|
| Display resolution | 3840 x 2160 pixels |
| HD type | 4K Ultra HD |
| Native aspect ratio | 16:9 |
| Display technology | LCD |
| Panel type | IPS |
| Backlight type | Mini LED |
| Touchscreen | No |
| Display brightness (peak) | 1200 cd/m² |
| Display brightness (typical) | 650 cd/m² |
| Response time | 6 ms |
| Anti-glare screen | Yes |
| Screen shape | Flat |
| Contrast ratio (typical) | 1000:1 |
| Contrast ratio (dynamic) | 3000000:1 |
| Maximum refresh rate | 60 Hz |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 1.07 billion colours |
| Pixel pitch | 0.155 x 0.155 mm |
| Pixel density | 163 ppi |
| Viewable size, horizontal | 59.7 cm |
| Viewable size, vertical | 33.6 cm |
| High Dynamic Range (HDR) supported | Yes |
| High Dynamic Range (HDR) technology | DisplayHDR 1000, High Dynamic Range 10 (HDR10), Hybrid Log-Gamma (HLG) |
| Colour depth | 10 bit |
| Colour gamut standard | DCI-P3 |
| Colour gamut | 99% |
| sRGB coverage (typical) | 100% |
| Adobe RGB coverage | 99% |
| BT.2020 coverage | 81% |
| Response time (extreme) | 4 ms |
| Factory-calibrated | Yes |
| NVIDIA G-SYNC | No |
|---|---|
| AMD FreeSync | No |
| Windows operating systems supported | Windows 10, Windows 11 |
| Built-in speaker(s) | No |
|---|---|
| Built-in camera | No |
| Product colour | Black |
|---|---|
| Colour name | Raven black |
| Front bezel colour | Black |
| Feet colour | Black |
| Built-in USB hub | Yes |
|---|---|
| USB upstream port type | USB Type-C |
| Number of upstream ports | 2 |
| USB Type-A downstream ports quantity | 4 |
| USB Type-C downstream ports quantity | 1 |
| USB Type-C DisplayPort Alternate Mode | Yes |
| HDMI | Yes |
| HDMI ports quantity | 2 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 2 |
| DisplayPort version | 1.4 |
| Audio output | Yes |
| Headphone out | No |
| Built-in KVM switch | Yes |
| Ethernet LAN | Yes |
|---|
| VESA mounting | Yes |
|---|---|
| Panel mounting interface | 100 x 100 mm |
| Cable management | Yes |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Height adjustment | Yes |
| Adjustable height (max) | 15.5 cm |
| Pivot | Yes |
| Swivelling | Yes |
| Swivel angle range | -45 - 45° |
| Tilt adjustment | Yes |
| Tilt angle range | -5 - 23.5° |
| Picture-in-Picture | Yes |
| Energy efficiency class (SDR) | F |
|---|---|
| Energy efficiency class (HDR) | G |
| Energy consumption (SDR) per 1000 hours | 26 kWh |
| Energy consumption (HDR) per 1000 hours | 50 kWh |
| Power consumption (typical) | 26 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (max) | 315 W |
| Power consumption (off) | 0.3 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Energy efficiency scale | A to G |
| Width (with stand) | 613.5 mm |
|---|---|
| Depth (with stand) | 220.4 mm |
| Height (with stand) | 397.8 mm |
| Weight (with stand) | 8.8 kg |
| Width (without stand) | 613.5 mm |
| Depth (without stand) | 76.4 mm |
| Height (without stand) | 372.9 mm |
| Weight (without stand) | 6.2 kg |
| Bezel width (side) | 2 mm |
| Bezel width (top) | 2 mm |
| Bezel width (bottom) | 2.71 cm |
| Package width | 706 mm |
|---|---|
| Package depth | 163 mm |
| Package height | 504 mm |
| Package weight | 12 kg |
| USB cable length | 1 m |
| Stand included | Yes |
|---|---|
| Cables included | AC, USB |
| Quick start guide | Yes |
| Power cable length | 1.8 m |
| Sustainability certificates | ENERGY STAR, EPEAT Gold |
|---|
| Local dimming zones | 1152 |
|---|---|
| Picture-by-Picture (PbP) | Yes |
| Compliance certificates | RoHS |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN (RJ-45) ports | 1 |
| Certification | EU Energy Label (F-class) Volatile Organic Compound Certification TÜV Rheinland® Eye Comfort Certification TÜV Rheinland Flicker Free TÜV Rheinland Low Blue Light |
