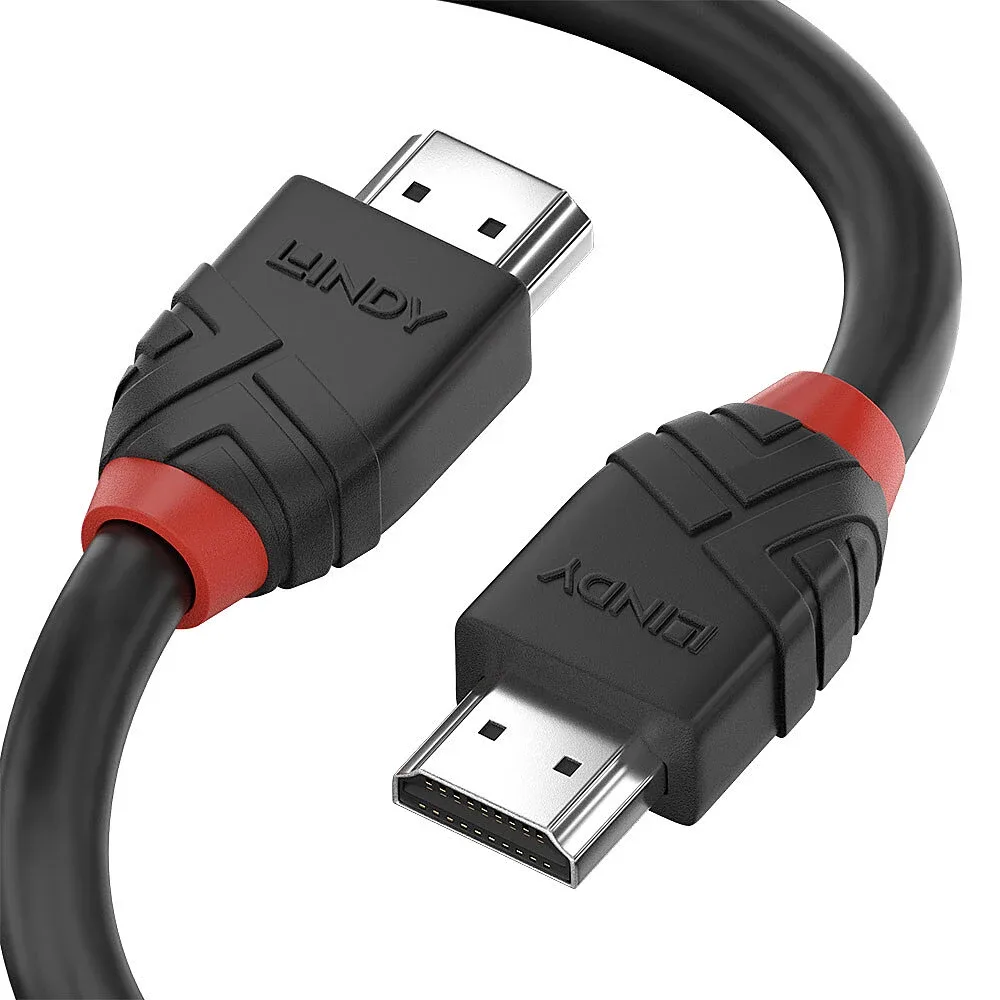

Lindy 36772 2m 8K60Hz HDMI Cable, Black Line

Description

Lindy 2m 8K60Hz HDMI Cable, Black Line

Key Features
Entry level High Speed HDMI 2.1 cable for home and small office applications
Supports UHD resolutions up to 7680x4320@60Hz 4:4:4 10bit
Robust PVC housing, nickel connectors, gold flashed contacts
Triple shielded cable, corrosion resistant copper coated steel 30AWG conductors
Supports 3D, 8K, 48Gbps, HEC, ARC, EARC CEC, Dolby® True HD, DTS-HD Master Audio, Dolby Atmos, DTS:X;
10 year warranty

From the lines cable connectivity concept developed by Lindy, Black Line High Speed HDMI cables are fully featured, entry level high resolution connection solutions, perfect for home and small office use.

Black Line 8k60hz or 4K120hz cables feature triple shielded construction with 30AWG copper coated steel conductors for premium performance and corrosion resistance. Nickel connectors and gold flashed contacts maintain signal integrity and reliability.

UHD resolutions up to 7680x4320@60Hz and 3840x2160@120hz are supported. 8K Black Line HDMI cables are also capable of transmitting 32 channel audio and Dolby® Atmos and DTS:X

The 8K Black line HDMI cable supports 48Gbps bandwidth capacity in cable lengths up to 5m.

Connectors

Connector A
HDMI Type A Male

Connector B
HDMI Type A Male

Housing Material
PVC

Connector Plating
Nickel Plating

Pin Construction
Copper Alloy

Pin Plating
Gold Plated

Dimensions (W x D x H)
20 x 34.2 x 10.9 mm (0.79 x 1.35 x 0.43 in)

Cable Construction

Length
2 m (6.56 ft)

Standard
Ultra High Speed HDMI

Colour
Black

Type
Round

Jacket Diameter
6 mm (0.24 in)

Jacket Material
PVC

Conductor Material
Copper Coated Steel

Conductor Gauge
30AWG

Shielding
Aluminum Foil

Technical Information

Supported Bandwidth
48Gbps

Maximum Resolution
7680 x 4320@60Hz 4:4:4,10bit

Nominal Attenuation
35GHz>-5.5dB(HBR1)
2.7GHz>-8.5dB(HBR2)
4.05GHz>-11.0dB(HBR3)

Minimum Bend Radius
70 mm

Operating Temperature
-10°C - 80°C (14°F - 176°F)

Storage Temperature
-20°C - 85°C (-4°F - 185°F)

Miscellaneous

Packaging Type
Polybag

Warranty (Years)
10

Product Compliance
RoHS & REACH UL

Key Features

• Connection A: HDMI (M)
• Connection B: HDMI (M)
• Length: 2m
• Colour: Black
