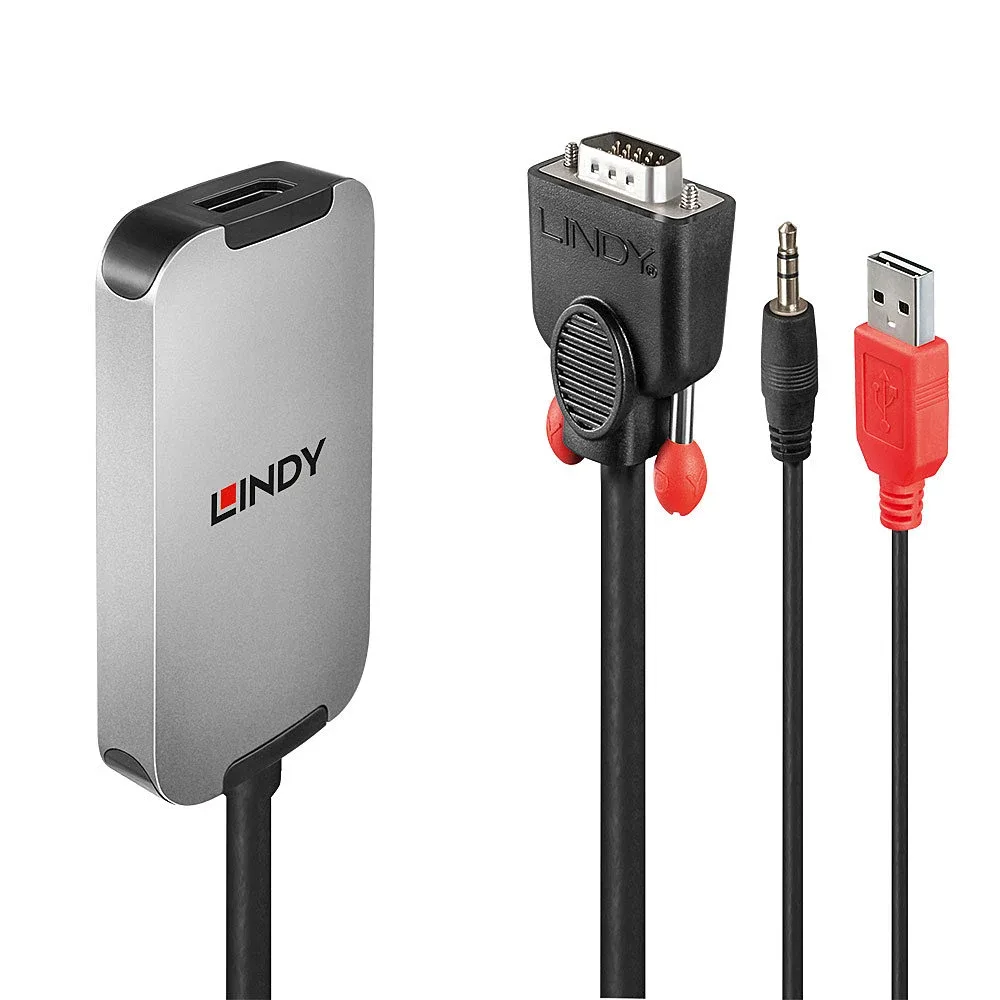

Lindy 38296 0.18m VGA & Audio (M) To DisplayPort (F) 1.2 USB Powered 1920x1080@60Hz Adapter Cable - Black
Lindy 38296 0.18m VGA & Audio (M) To DisplayPort (F) 1.2 USB Powered 1920x1080@60Hz Adapter Cable - Black
Description
An additional 3.5mm VGA audio connection also allows for audio to be embedded into DisplayPort to provide 2CH stereo to compliment a professional video experience, while a separate USB Type A connection ensures there is always enough power for even the most demanding scenarios.
Specifications
AV Interface:
VGA to DisplayPort
Interface Standard:
VGA, DisplayPort 1.2
Supported Bandwidth:
4.95Gbps
Maximum Input Resolution:
1920x1080
Maximum Output Resolution:
1920x1080@60Hz RGB 8bit
Chipset:
SiL8784CNUC
STDP2600
Supported Audio:
Stereo via 3.5mm
Separate Audio Ports:
3.5mm Stereo Audio Plug
Special Features:
USB Type A Male for power
Connectors
Input:
VGA Male, 3.5mm Male Stereo Audio, USB Type A Male (Power)
Output:
DisplayPort Female
Physical properties
Dimensions (approx.) WxDxH:
50x95x15mm (1.97x3.74x0.59in)
Cable Length:
180mm (7.09in)
Housing Material:
Aluminium
Jacket Material:
PVC
Jacket Diameter:
6mm (0.24in)
Net Weight:
0.114kg (0.25lb)
Operating Temperature:
0°C - 70°C (32°F - 158°F)
Storage Temperature:
-10°C - 80°C (14°F - 176°F)
Humidity:
20 - 85% RH (non-condensing)
Colour:
Black
Miscellaneous
Packaging Type:
Polybag
Packaging Dimensions:
174x194x20mm (6.85x7.64x0.79in)
Gross Weight:
0.122kg (0.27lb)
Warranty (Years):
2
Certified:
CE, UKCA, FCC, RoHS & REACH
Package Contents
VGA to DisplayPort 1.2 Converter
Key Features
- Connection A: VGA (M)
- Connection B: 3.5mm (M)
- Length: 0.18m
- Colour: Black
Supplier Category: Cables
Manufacturer Code: 38296
EAN: 4002888382960
Weight (KG): 0.15
VAT Rate: 20%
Overview
Lindy 38296 0.18m VGA & Audio (M) To DisplayPort (F) 1.2 USB Powered 1920x1080@60Hz Adapter Cable - Black is listed under manufacturer code 38296. It sits within the Cables & Adapters category. DCS Components can help source this item as part of a quote-led procurement request.
Key product details
- Manufacturer code: 38296
- Black
- Category: Cables & Adapters
- EAN: 4002888382960
Procurement and setup support
DCS can help with procurement, compatibility checks, configuration planning, deployment support and long-term managed IT lifecycle support.
Available Buying Options
Multiple purchasing options may be available for this product. In-stock and best-value options are shown first. DCS can help review the right option for availability, setup, deployment and support.
Manufacturer Ref: 38296
Low Stock
