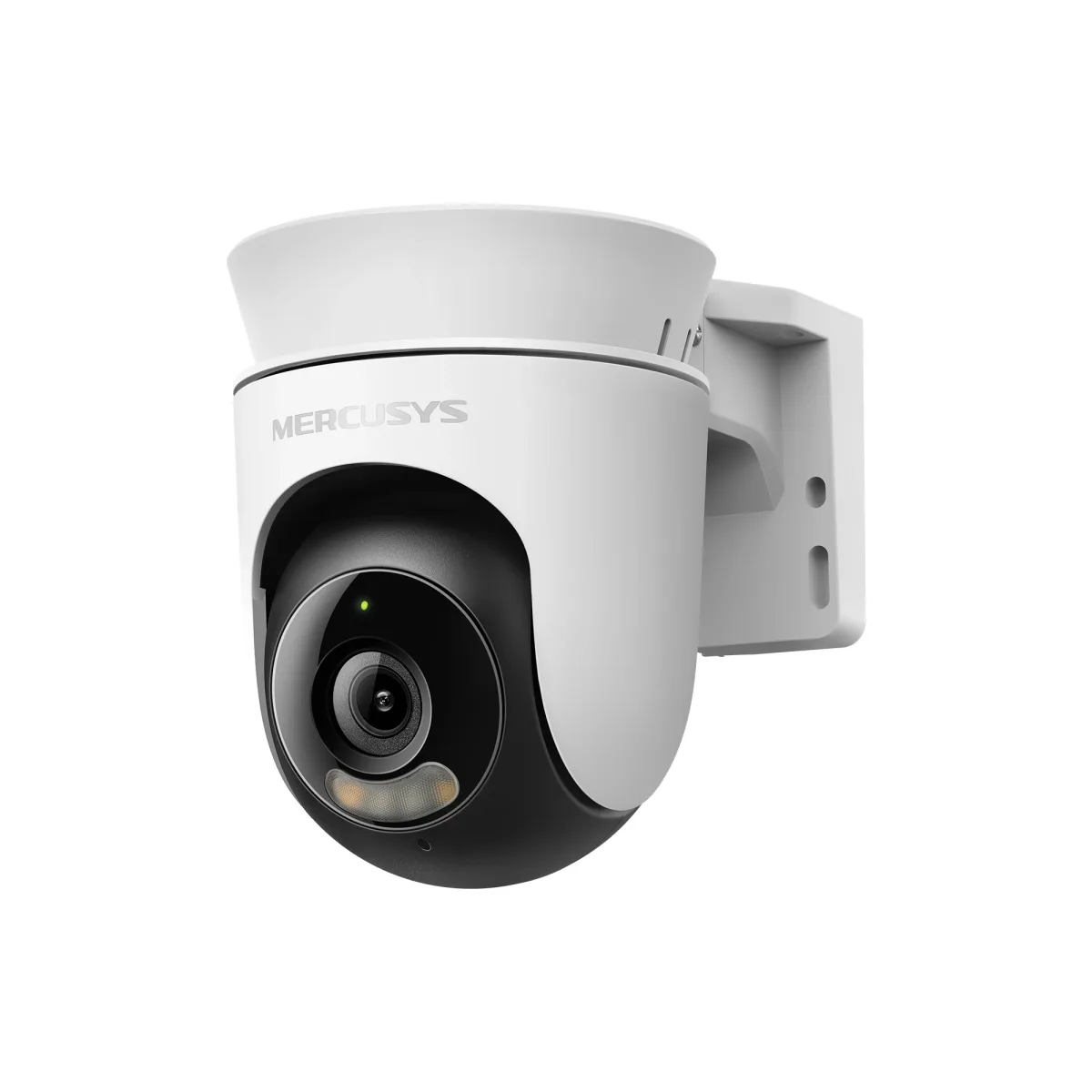

Mercusys MC510 Pan/Tilt Home Security WiFi Camera

Description

Mercusys MC510 Outdoor Pan/Tilt Security Wi-Fi Camera

2K QHD with 360° View - Delivers sharp 2K 3MP video and full 360° horizontal coverage to see every angle and every detail.
Smart Motion & Person Tracking - Automatically detects and tracks motion or people, ensuring key activity stays in focus.
Color Night Vision - Delivers vivid, detailed images even at night for 24/7 protection.
Focus on What Matters - Smart person and motion detection, combined with customizable activity zones, helps filter out irrelevant events and sends alerts only when needed.
Local & Cloud Storage - supports up to 512GB microSD cards and cloud storage for secure, flexible video backup.
Weatherproof for Outdoor Use - IP65-rated for reliable performance in rain, dust, or snow. Mounts easily to walls, ceilings, or poles.
Privacy Protection with Lens Shield - Activate the physical lens cover when monitoring isn’t needed for peace of mind at home.

2K QHD for Crisp Outdoor Details
See faces, vehicles, and movement in stunning 2K QHD clarity. Perfect for capturing complex outdoor details

360° Coverage with Smart Motion Tracking
One camera is all you need to keep an eye on your entire outdoor space. It auto-tracks motion and follows preset patrol routes to cover every corner.

Full-Color Night Vision
See clearly after dark with full-color night vision. Even in low-light or near-total darkness, the camera captures clear details and provides round-the-clock protection you can count on.

Two-Way Audio for Real-Time Communication
The built-in microphone and speaker let you hear and speak from your phone — whether you're greeting a guest, talking to a delivery driver, or calming your pet. Talk through the camera anytime.

Guard Your Home As If You're There
MC510 uses smart motion and person detection to ignore distractions like falling leaves or shifting light. When a real threat is detected, it triggers a flashing light and loud siren to alert and deter intruders.

Secure Local & Cloud Storage
Save all your important moments to a microSD card (up to 512 GB) or subscribe to MERCUSYS Camera Care for cloud service after a free trial.

Built to Withstand the Outdoors
With IP65 weatherproof protection, the camera stands strong against rain, dust, and snow. Perfect for outdoor use from sunny days to stormy nights. Supports wall-mount, pole-mount, and ceiling installation, so you can set it up wherever fits your needs.

Specifications

Camera
Image Sensor
1/3'' Progressive Scan CMOS not Starlight Sensor

Lens
Focal Length: 4 mm
Aperture: F2.0
Field of View: 87° (Diagonal), 74°(Horizontal), 40°(Vertical)

Motion Range
Pan Mechanical Range: 340° (360° Pan Coverage)
Tilt Mechanical Range: 90° (130° Tilt Coverage)

Night Vision
850 nm IR LED (98 ft/29.9 m)
Color Night Vision

Interface & Button
1x RESET Button
1x MicroSD Card Slot

Video & Audio
Maximum Resolution
2304x 1296 px

Digital Zoom
Supports 10.8x Zoom

Frame Rate
15/20/25/30 fps (15 fps by default)

Video Compression
H.264

Live View
Yes

Image Enhancement
3DNR

WDR
Audio Input & Output
Built-in Microphone and Speaker

Audio Communication
Two-Way Audio with Noise Cancellation

Siren Volume
88 dB (Level Measured at 4-inch/10-cm Distance)

Software
Security
128 bit AES Encryption with SSL/TLS
WPA/WPA2-PSK

Storage
Local Storage
MicroSD Card (Supports up to 512GB)

Cloud Storage
MERCUSYS Camera Care Cloud Storage Services (Subscription Required)

Network
Network Connectivity
Connect via WiFi

Wireless Connectivity
11 Mbps (802.11b)
54 Mbps (802.11g)
72.2 Mbps (802.11n)

RTSP
Yes

ONVIF
Yes

Power
Power Source
9V DC Power Adapter

Input Voltage
100–240 VAC, 50/60 Hz, 0.3 A

Output Voltage
9.0 V/0.85 A

General
Smart Integration
Google Assistant, Amazon Alexa

Weather Resistance
IP65

Mounting Options
Ceiling-Mounted
Pole-Mounted
Wall-Mounted

Operating Temperature
-20 oC–50 oC (-4oF–122oF )

Storage Temperature
-40oC–60oC (-40oF–140oF)

Operating Humidity
10%–90% RH, Non-Condensing

Storage Humidity
0%–90% RH, Non-Condensing

Dimensions ( W x D x H )
141.5 x 93 x 122 mm
(5.57 x 3.66 x 4.80 in)

Detection & Notifications
AI Detection
Motion Detection
Person Detection

Activity Zones
Yes
*Only works with motion detection

Output Notification
System Notification

Others
Certifications
CE, NCC, BSMI, NTRA, KC, RCM, ONVIF

Package Contents
Outdoor Pan/Tilt Home Security Wi-Fi Camera (MC510) x 1
Power Adapter x 1
Mounting Template Sticker x 1
Mounting Bracket x 1
Mounting Screws x 4
Bracket Screws x 2
Mounting Anchors x 4
Waterproof Foam Gasket x 1
Quick Start Guide

Key Features

• Bullet/Dome: Dome (Turret)
• SD Card Slot: Yes
• Resolution: 3mp
• Lens Size: 4mm

Category: Networking

Manufacturer Code: MC510

EAN: 6957939004613

Weight (KG): 0.65

VAT Rate: 20%
