Startech - Network coupler - TAA Compliant - MTP/MPO/APC single-mode (F) to MTP/MPO/APC single-mode (F) - fibre optic - 9 / 125 micron - OS1/OS2 - passive - green

Description

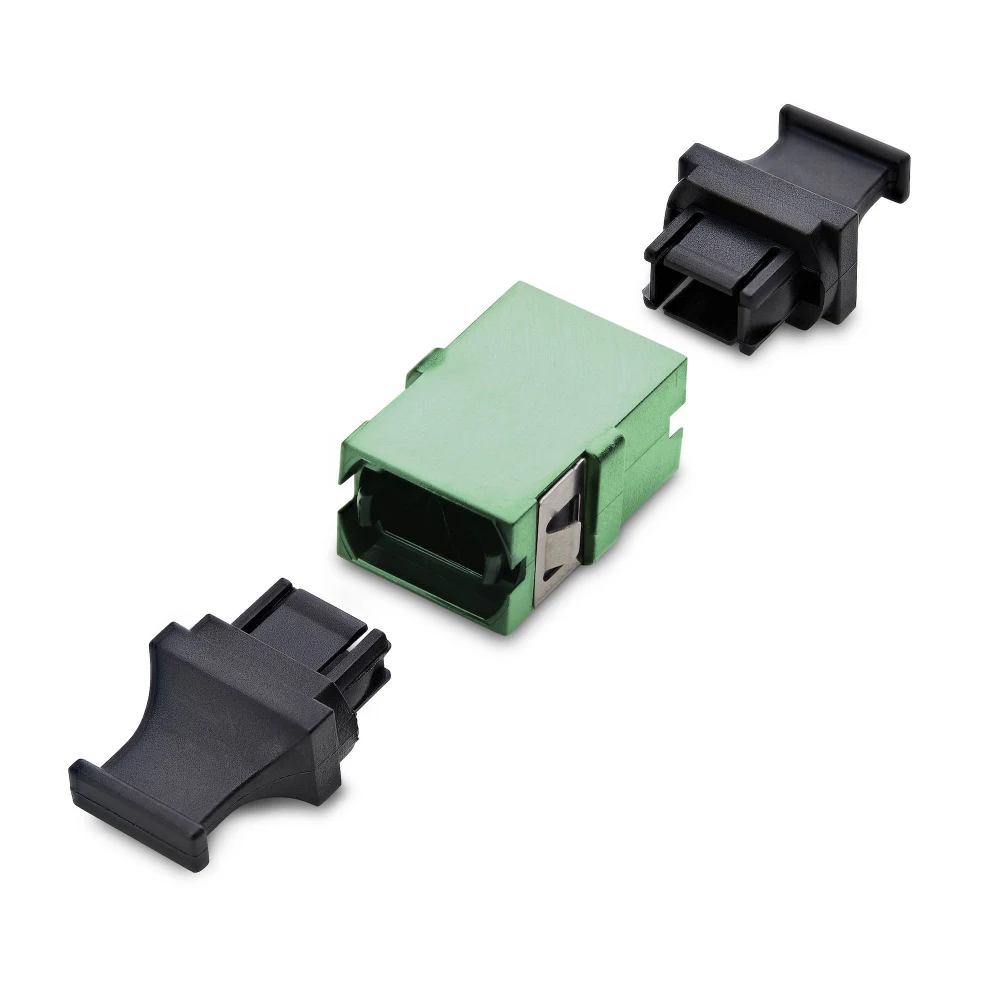

Connect two MPO/MTP fiber cables or establish multi-fiber connectivity on a fiber distribution panel

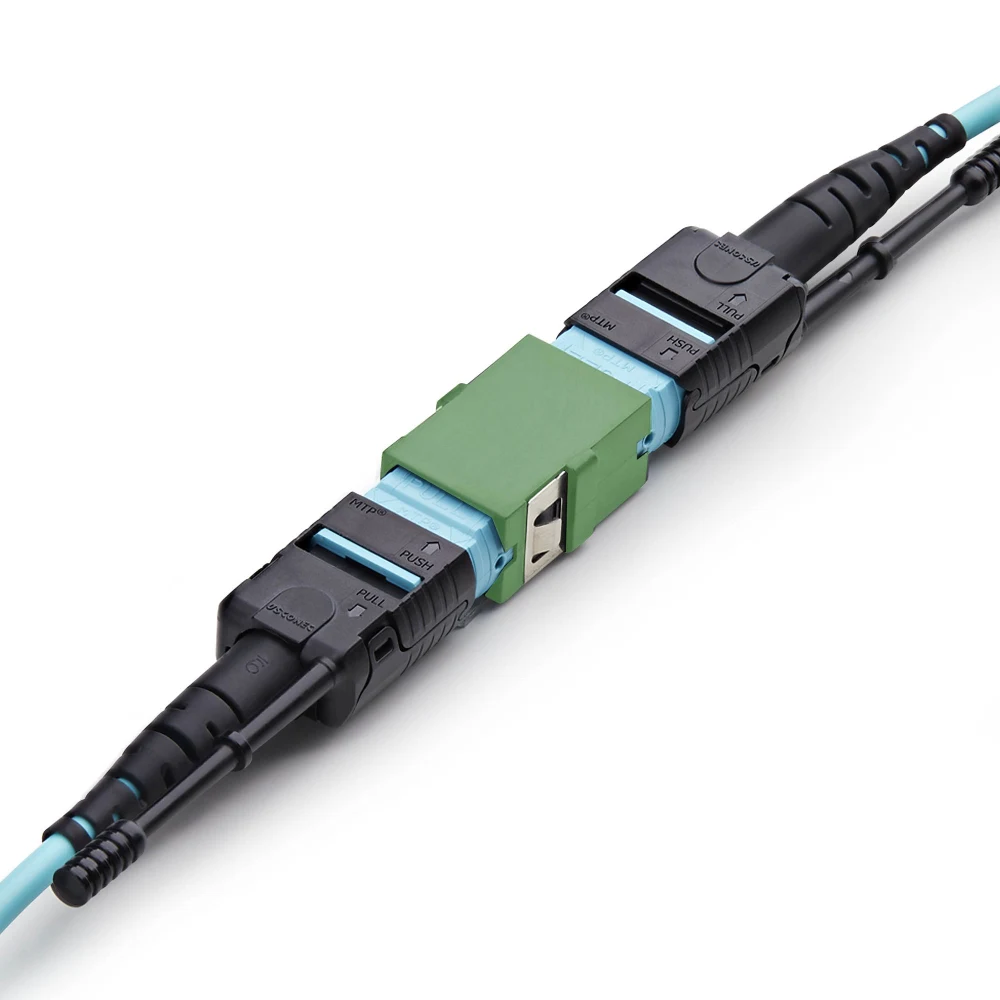

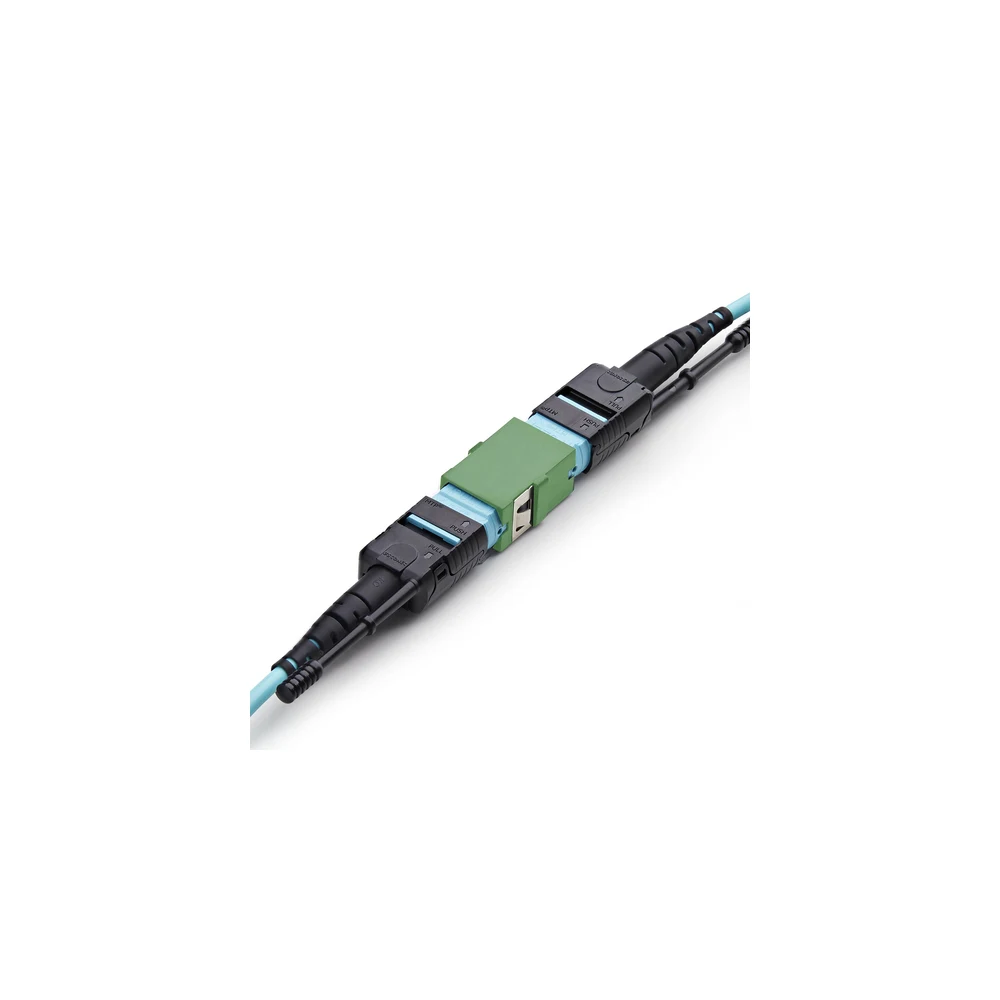

Extend a multi-fiber connection by connecting two MPO/MTP trunk cables with this MPO/MTP to MPO/MTP Coupler. The female-to-female fiber coupler supports both Single Mode and Multimode MPO/MTP connections, maintaining optimal signal integrity while achieving low insertion loss that exceeds industry standards.

Quick, Toolless Setup

The MPO/MTP Fiber Coupler is optimized for OS2/OS1 and OM3/OM4 fiber links. The coupler features toolless setup to simplify installation into fiber adapter panels and enclosures. Ideal for fast deployment in data centers, enterprise networks, and telecom applications.

Ideal for Fixed Installations

The MPO Coupler features a durable ABS housing and precision alignment structure for accurate multi-fiber mating, minimizing signal loss for long-lasting reliability and performance. The side metal mounting tabs enable fixed, secure positioning in high-density fiber installations.

Specifications

Features

Number of connectors	2
Connector type	MPO/MTP
Product colour	Green
Fiber mode structure	Single-mode
Category	OS1/OS2

Certificates

Compliance certificates	Trade Agreements Act (TAA), CE

Weight & dimensions

Width	14.7 mm
Depth	44.5 mm
Height	9.4 mm
Weight	4 g

Packaging data

Quantity per pack	1 pc(s)
Package width	120 mm
Package depth	90 mm
Package height	10 mm
Package weight	5 g

Logistics data

Master (outer) case width	430 mm
Master (outer) case length	335 mm
Master (outer) case height	400 mm
Products per master (outer) case	360 pc(s)
