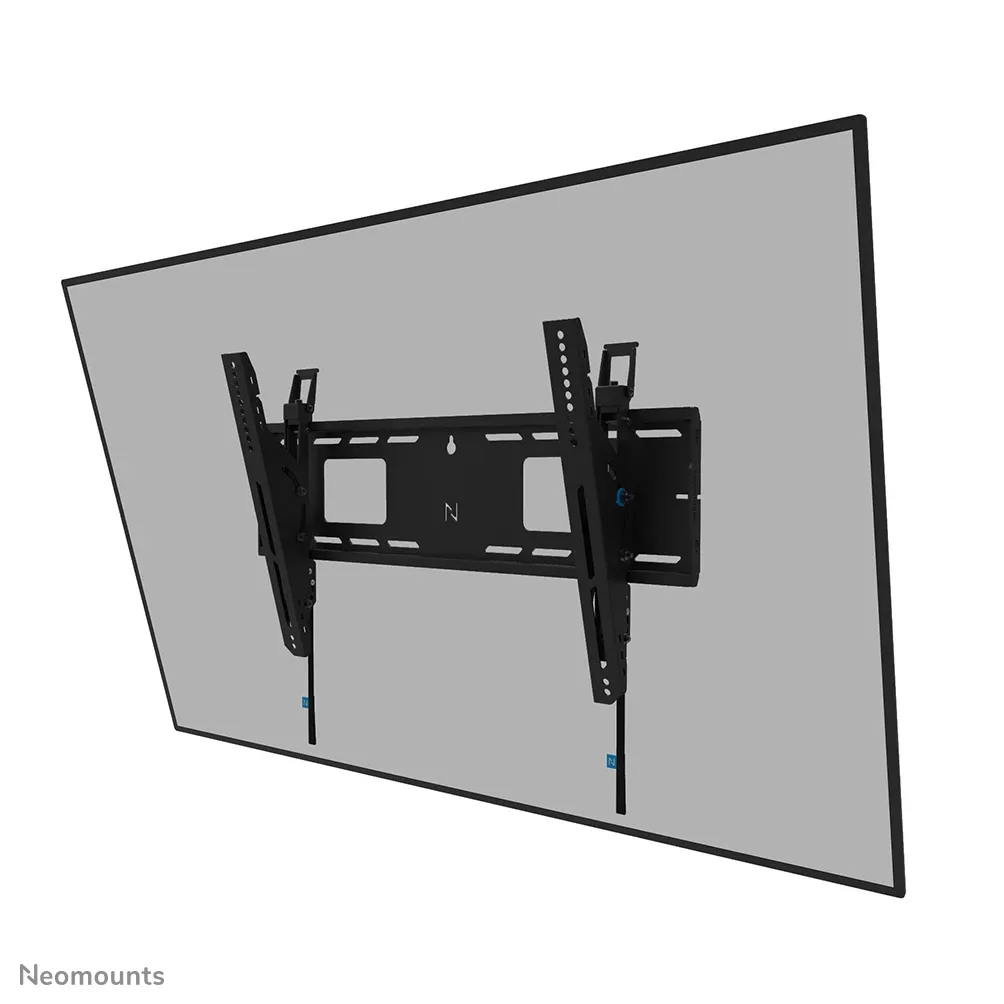

Neomounts LEVEL-750 - Mounting kit - for TV - heavy-duty - lockable - steel - black - screen size: 42"-86

Description

The Neomounts WL35-750BL16 LEVEL is the ultimate tiltable solution for securely mounting an interactive or heavy weight display up to 86" with a maximum capacity of 125 kg. The toolless tilt adjustment (+15°/-15°) allows you to create the optimum viewing angle. This heavy-duty wall mount features a sturdy high profile wall plate and is engineered for stability and precision, ensuring your screen is securely mounted even on uneven surfaces. The mount features individual adjustable brackets (10 mm) for securely adjusting the display height or levelling it.

The LEVEL-750 wall mount has a profile of 9,3 cm and is suitable for screens that meet VESA hole pattern 100x100 to 600x400 mm. Its quickly connectable wall plate allows for multiple screen mounting. Additionally, the wall plate is designed with specific cut-outs for wall sockets and securing devices and cables. It features various perforated holes for easy tie-wrap cable fixing and provides space for cable storage, ensuring a clean and tidy finishing.

The WL35-750BL16 includes a safe and practical pull & release system, allowing you to quickly attach and detach the display in a safe and secure manner. The tilt-lock prevents the display from tilting upwards when attaching it on or detaching it from the mount to enable a safe install. It is possible to lock the bracket using a padlock (not included) for extra screen security.

For a simple and effective storage, an optionally available, AV-rack can be installed to the left or right side of the mount.

Specifications

Mounting

Maximum weight capacity	125 kg
Minimum screen size	106.7 cm (42")
Number of displays supported	1
Maximum weight capacity (per display)	125 kg
Maximum screen size	2.18 m (86")
Minimum VESA mount	100 x 100 mm
Maximum VESA mount	600 x 400 mm
Panel mounting interface	100 x 200,100 x 100,100 x 150,120 x 120,150 x 200,200 x 100,200 x 150,200 x 200,200 x 300,200 x 400,300 x 100,300 x 200,300 x 300,350 x 350,400 x 200,400 x 300,400 x 400,400 x 600,440 x 400,500 x 400,600 x 300,600 x 200,600 x 400
Mounting type	Wall

Ergonomics

Height adjustment	Yes
Height adjustment range	0 - 10 mm
Tilt adjustment	Yes
Tilt angle range	-15 - 15°
Cable management	Yes
Distance to the wall (max)	9.3 cm

Design

Product colour	Black
Housing material	Steel

Technical details

Country of origin	China
Quantity per pack	1 pc(s)
Lockable	Padlock not included

Weight & dimensions

Width	686 mm
Depth	93 mm
Depth (max)	9.3 cm
Height	430 mm
Weight	5.5 kg

Packaging data

Package width	728 mm
Package depth	102 mm
Package height	209 mm
Package weight	6.9 kg

Logistics data

Master (outer) case width	746 mm
Master (outer) case length	227 mm
Master (outer) case height	324 mm
Master (outer) case gross weight	21.5 kg
Master (outer) case net weight	16.5 kg
Products per master (outer) case	3 pc(s)
Harmonized System (HS) code	7326909890
Products per pallet (EU)	60 pc(s)
