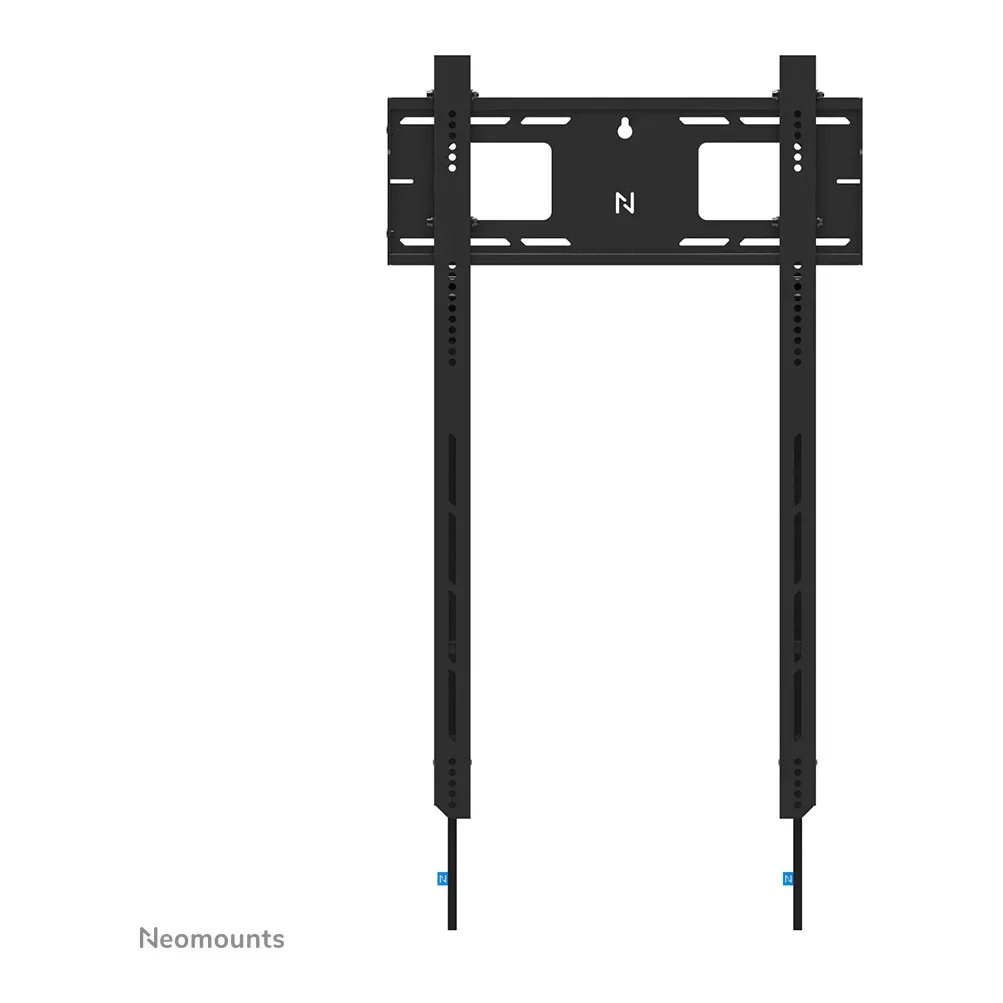

Neomounts LEVEL-750 - Mounting kit - for TV - heavy-duty - lockable - steel - black - screen size: 50"-98" - wall-mountable

Description

The Neomounts WL30-750BL18P LEVEL is the ultimate solution for securely portrait mounting an interactive or heavy weight display up to 98" with a maximum capacity of 100 kg. This heavy-duty wall mount features a high profile wall plate and is engineered for stability and precision, ensuring your screen is securely mounted even on uneven surfaces. The wall mount is designed to provide the sturdiest and most stable touch screen experience. The brackets of the WL30-750BL18P feature depth adjustable wall supports on the lower brackets for better weight distribution and maximum stability. The mount features individual adjustable brackets (10 mm) for securely adjusting the display height or levelling it.

The LEVEL-750 wall mount has a profile depth of 4,2 cm and is suitable for screens that meet VESA hole pattern 100x100 to 500x800 mm. Its quickly connectable wall plate allows for multiple screen mounting, while a clever kickstand service position provides easy access to cables and connectors, ideal when mounting large displays in portrait. Additionally, the wall plate is designed with specific cut-outs for wall sockets and securing devices and cables. It features various perforated holes for easy tie-wrap cable fixing and provides space for cable storage, ensuring a clean and tidy finishing.

The WL30-750BL18P includes an safe and practical pull & release system, allowing you to quickly attach and detach the display in a safe and secure manner. It is possible to lock the brackets using a padlock (not included) for extra screen security.

For a simple and effective storage, an optionally available, AV-rack can be installed to the left or right side of the mount.

Specifications

Mounting

Maximum weight capacity	100 kg
Minimum screen size	127 cm (50")
Number of displays supported	1
Maximum weight capacity (per display)	100 kg
Maximum screen size	2.49 m (98")
Minimum VESA mount	100 x 100 mm
Maximum VESA mount	500 x 800 mm
Panel mounting interface	100 x 200,100 x 100,100 x 150,120 x 120,150 x 200,200 x 100,200 x 150,200 x 200,200 x 300,200 x 400,300 x 100,300 x 200,300 x 300,350 x 350,400 x 200,400 x 300,400 x 400,400 x 600,440 x 400,460 x 640,500 x 500,500 x 400
Mounting type	Wall

Ergonomics

Height adjustment	Yes
Height adjustment range	0 - 10 mm
Cable management	Yes
Type	Fixed
Distance to the wall (max)	4.2 cm

Design

Product colour	Black
Housing material	Steel

Technical details

Country of origin	China
Lockable	Padlock not included

Weight & dimensions

Width	550 mm
Depth	42 mm
Depth (max)	4.2 cm
Height	684 mm
Weight	5.1 kg

Packaging data

Package width	933 mm
Package depth	90 mm
Package height	209 mm
Package weight	6.7 kg

Logistics data

Master (outer) case width	951 mm
Master (outer) case length	227 mm
Master (outer) case height	288 mm
Master (outer) case gross weight	21 kg
Master (outer) case net weight	15.3 kg
Products per master (outer) case	3 pc(s)
Harmonized System (HS) code	7326909890
Products per pallet (EU)	54 pc(s)
