Neomounts NM-D775DX - Mounting kit - full-motion - for 2 LCD displays - black - screen size: 10"-32" - clamp mountable, grommet, desk-mountable

Description

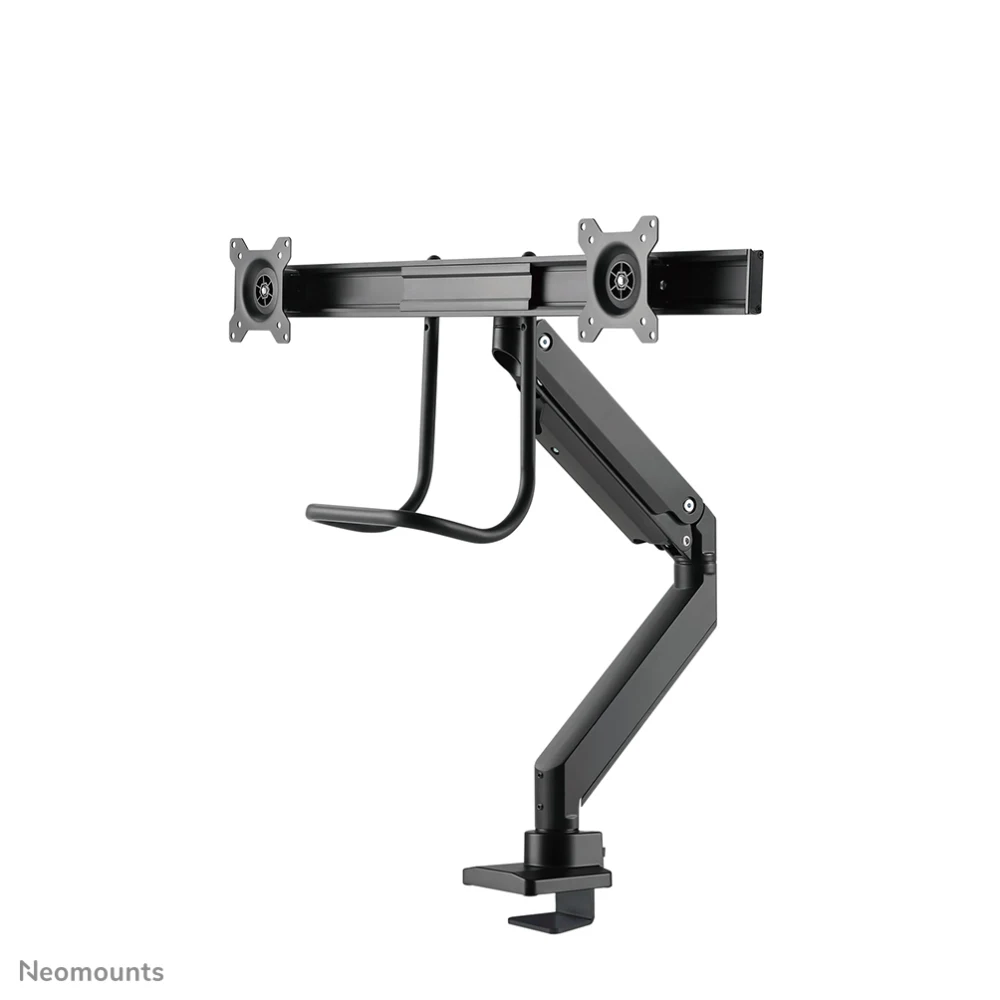

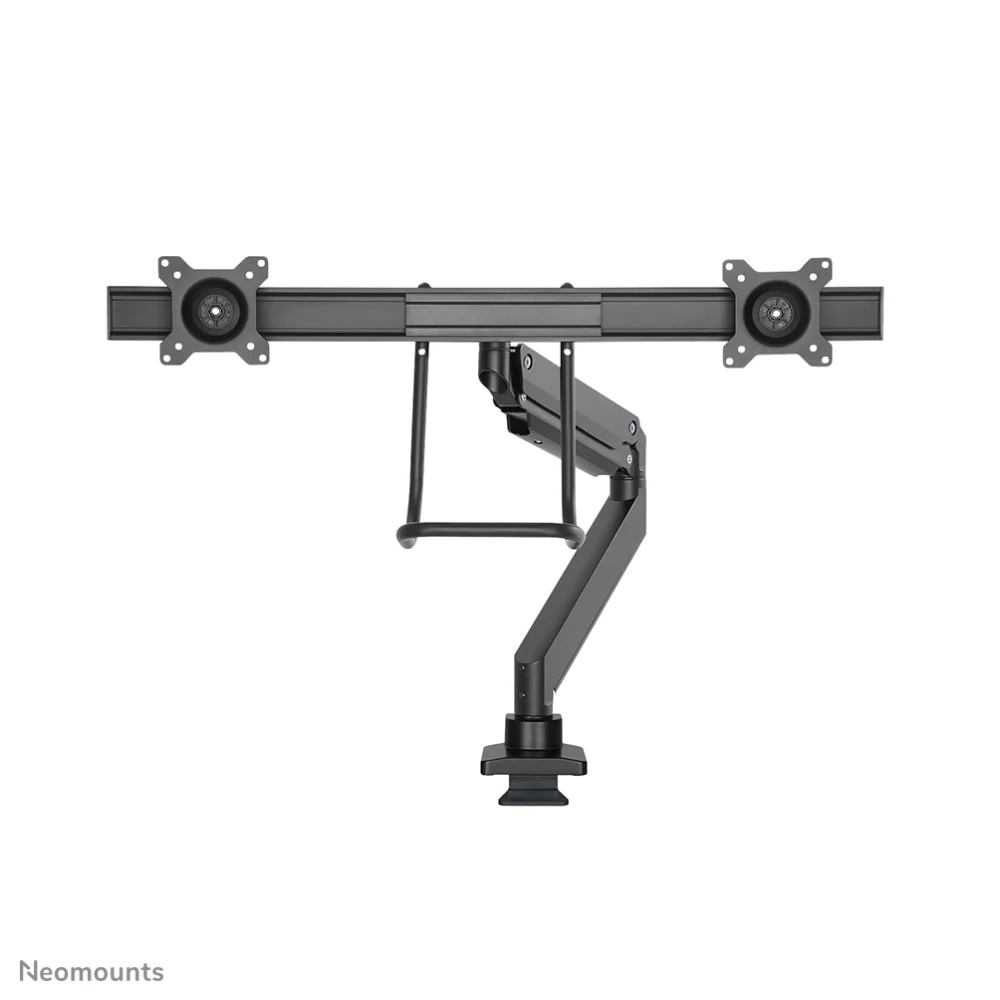

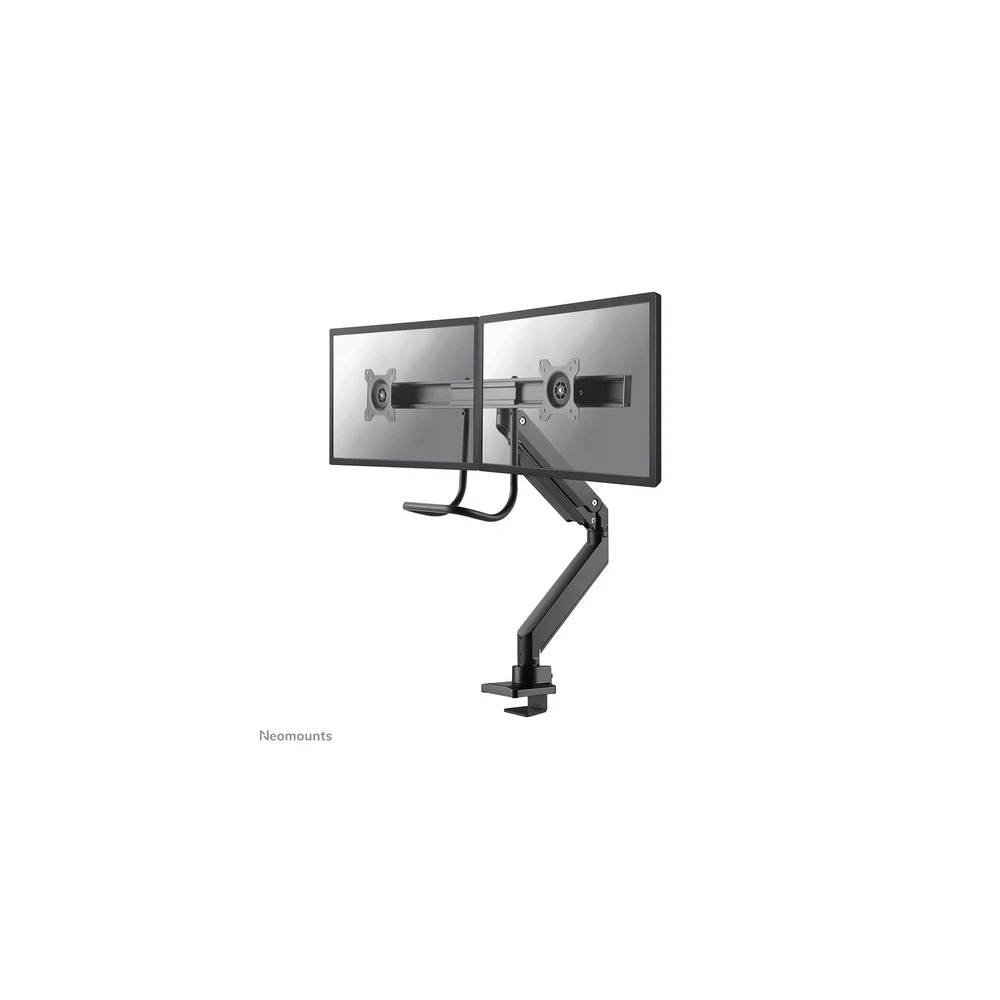

The Neomounts NM-D775DXBLACK is a tilt-, swivel and rotatable desk mount with crossbar and handle for 2 flat screens up to 32". This mount is a great choice for space saving placement on desks using a desk clamp or grommet mount.

Neomounts' unique tilt (20°), rotate (360°) and swivel (180°/360°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The mount is easily individually height adjustable to 60 centimetres using a gas spring. Depth adjustable from 0 to 63 centimetres. A unique cable management conceals and routes cables from mount to flat screen. Hide your cables to keep the workplace nice and tidy. The mount is equipped with a 180° stop mechanism.

Neomounts NM-D775DXBLACK with handle has three pivot points and is suitable for screens up to 32" (81 cm). The weight capacity of this product is 1 to 16 kg (max. 8 kg each screen). The desk mount is suitable for screens that meet VESA hole pattern 75x75 or 100x100mm. Different hole patterns can be covered using Neomounts VESA adapter plates.

By using an ergonomic mount neck- and back complaints can be avoided. Ideal for use in offices and on counters or in a reception area.

All installation material is included with the product.

Specifications

Mounting

Maximum weight capacity	8 kg
Minimum screen size	25.4 cm (10")
Number of displays supported	2
Maximum weight capacity (per display)	8 kg
Maximum screen size	81.3 cm (32")
Mounting	Clamp/Grommet
Mounting type	Desk
Minimum VESA mount	75 x 75 mm
Maximum VESA mount	100 x 100 mm
Panel mounting interface	100 x 100,75 x 75 mm
Desk thickness (min)	1 cm
Desk thickness (max)	4.5 cm

Ergonomics

Height adjustment	Yes
Height adjustment type	Gas spring
Height adjustment range	270 - 600 mm
Depth adjustment range	0 - 630 mm
Tilt adjustment	Yes
Tilt angle range	-10 - 10°
Swivelling	Yes
Swivel angle	360°
Swivel angle range	-90 - 90°
Rotating	Yes
Angle of rotation	360°
Pivot angle	-180 - 180°
Cable management	Yes

Design

Housing material	Steel
Product colour	Black

Weight & dimensions

Height	600 mm
Weight	5.92 kg

Packaging data

Package width	225 mm
Package depth	150 mm
Package height	895 mm
Package net weight	8.95 kg
Package weight	9 kg

Other features

Minimum weight	1 kg

Logistics data

Master (outer) case width	910 mm
Master (outer) case length	470 mm
Master (outer) case height	170 mm
Master (outer) case gross weight	9 kg
Products per master (outer) case	2 pc(s)
Country of origin	China
Master (outer) case net weight	9 kg
Harmonized System (HS) code	7326909890
Products per pallet (EU)	22 pc(s)
