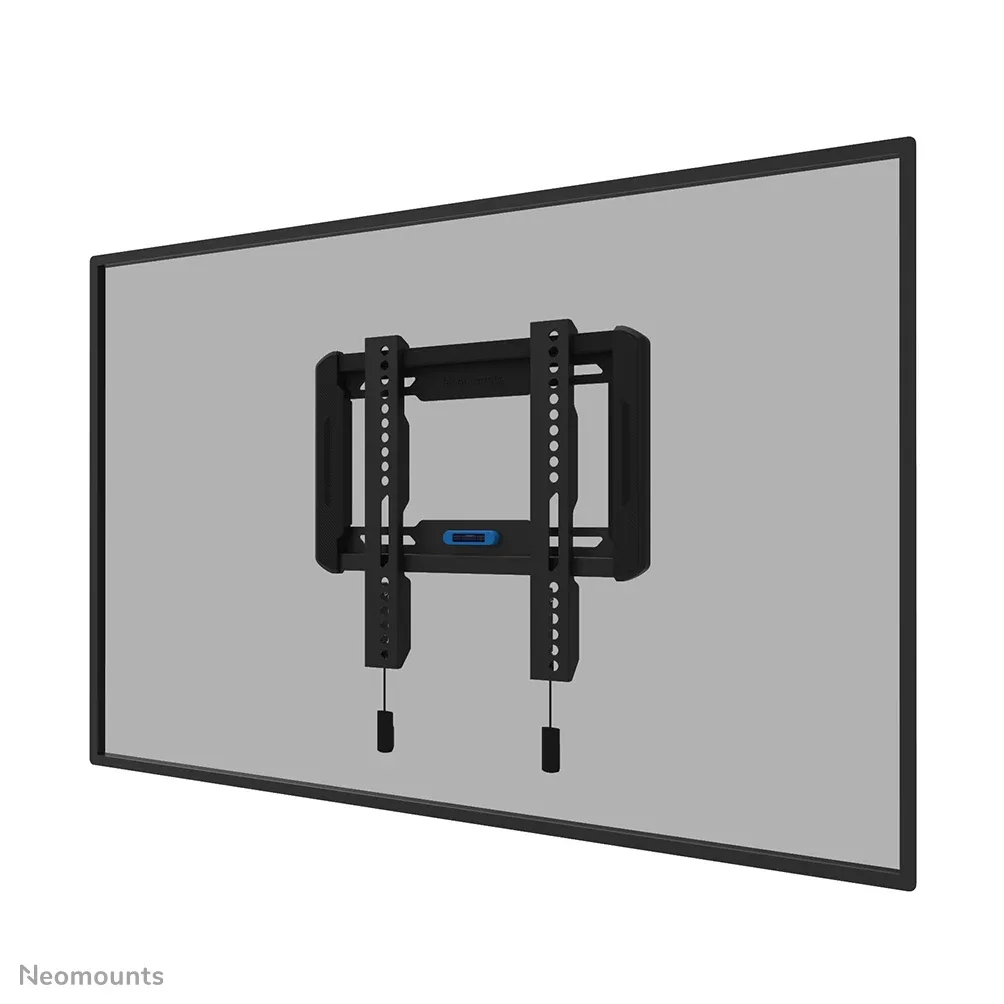

Neomounts WL30-550BL12 - Mounting kit (wall mount) - fixed - for TV - black - screen size: 24"-65

Description

The Neomounts WL30-550BL12 LEVEL is a fixed wall mount for flat screens up to 65" with a maximum weight capacity of 40 kg.

The LEVEL-550 wall mount is ultra-flat with a depth of 2,3 cm and is suitable for screens that meet VESA hole pattern 50x50 to 200x200mm.

The WL30-550BL12 features a nifty magnetic pull & release system, that allows you to attach the TV in a wink of an eye and secure the TV in safe and solid manner. Afterwards, the pull & release straps can be easily hidden behind the screen by clicking the magnet to the mount. The integrated spirit level assures easy installation of the mount.

Specifications

Mounting

Maximum weight capacity	40 kg
Minimum screen size	61 cm (24")
Number of displays supported	1
Maximum weight capacity (per display)	40 kg
Maximum screen size	165.1 cm (65")
Minimum VESA mount	50 x 50 mm
Maximum VESA mount	200 x 200 mm
Panel mounting interface	100 x 200,100 x 100,100 x 150,100 x 75,120 x 120,150 x 200,200 x 100,200 x 150,200 x 200,50 x 50,75 x 75,75 x 100,75 x 200
Mounting type	Wall

Ergonomics

Height adjustment	No
Type	Fixed
Distance to the wall (max)	2.3 cm

Design

Product colour	Black
Housing material	Steel

Technical details

Country of origin	China
Package net weight	1.4 kg
Lockable	Not lockable

Weight & dimensions

Width	315 mm
Depth	23 mm
Depth (max)	2.3 cm
Height	287 mm
Weight	950 g

Packaging data

Package width	335 mm
Package depth	247 mm
Package height	28 mm
Package weight	1.4 kg

Logistics data

Master (outer) case width	353 mm
Master (outer) case length	300 mm
Master (outer) case height	267 mm
Master (outer) case gross weight	14.5 kg
Master (outer) case net weight	10 kg
Products per master (outer) case	10 pc(s)
Harmonized System (HS) code	7326909890
Products per pallet (EU)	300 pc(s)
