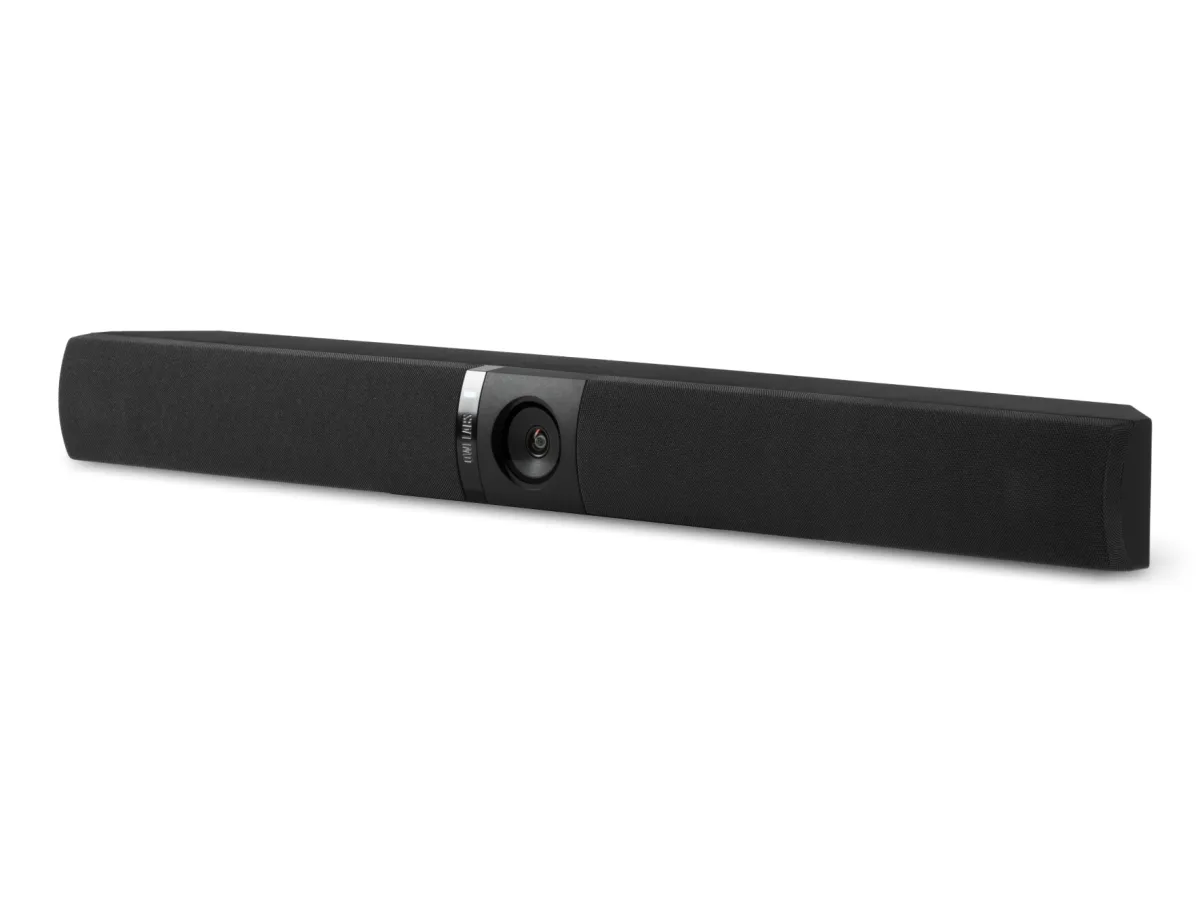

Owl Labs OWL BAR WITH SPEAKER FOCUS

Description

Owl Labs Video Conference Equipment - Grey - For Video Conferencing - 3840 x 2160 Video (Live) - 4K - 30 fps - MJPEG, YUY2 - 1 x Network (RJ-45) - 1 x HDMI In - 1 x HDMI Out - USB - Gigabit Ethernet - Wireless LAN - Internal Microphone(s)

Specifications

Performance

Number of cameras	1
Product colour	Grey
Product type	Video collaboration bar

Video

HD type	4K Ultra HD
Maximum video resolution	3840 x 2160 pixels
Supported video modes	360p, 1080p, 1440p, 2160p
Maximum frame rate	30 fps

Audio

Built-in speaker(s)	Yes
Number of speakers	1
Output level	83/1 dB
RMS rated power	5 W
Microphone pick-up range	5.48 m

Ports & interfaces

HDMI ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
DC-in jack	Yes

Network

Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Wi-Fi	Yes
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)

Camera

Megapixel (approx.)	48 MP
Camera type	Single camera
Sensor type	CMOS
Horizontal field of view	114°
Vertical field of view	73°

Microphone

Microphone sensitivity	69 dB
Microphone frequency	100 - 10000 Hz
Microphone direction type	Omnidirectional
Number of microphones	4

Logistics data

Country of origin	Vietnam
Harmonized System (HS) code	8525.5000.00

Computer system

Processor family	Snapdragon
Windows operating systems supported	Yes
Mac operating systems supported	Yes
Other operating systems supported	ChromeOS, Linux

Power

Power source type	DC

Certificates

Certified for Microsoft Teams	Yes

Weight & dimensions

Width	97 mm
Depth	769 mm
Height	76 mm
Weight	1.88 kg

Packaging data

Package width	149 mm
Package depth	820 mm
Package height	162 mm
Package weight	5 kg

Packaging content

Packaging content	Owl Bar, table stand, 6' USB Type C Cable, 6' HDMI cable, power supply, AC line cord, QSG, table card english, table card french, safety/regulatory/warranty slipsheet, Owl card holder, Owl Connect card, Owl Labs sticker
