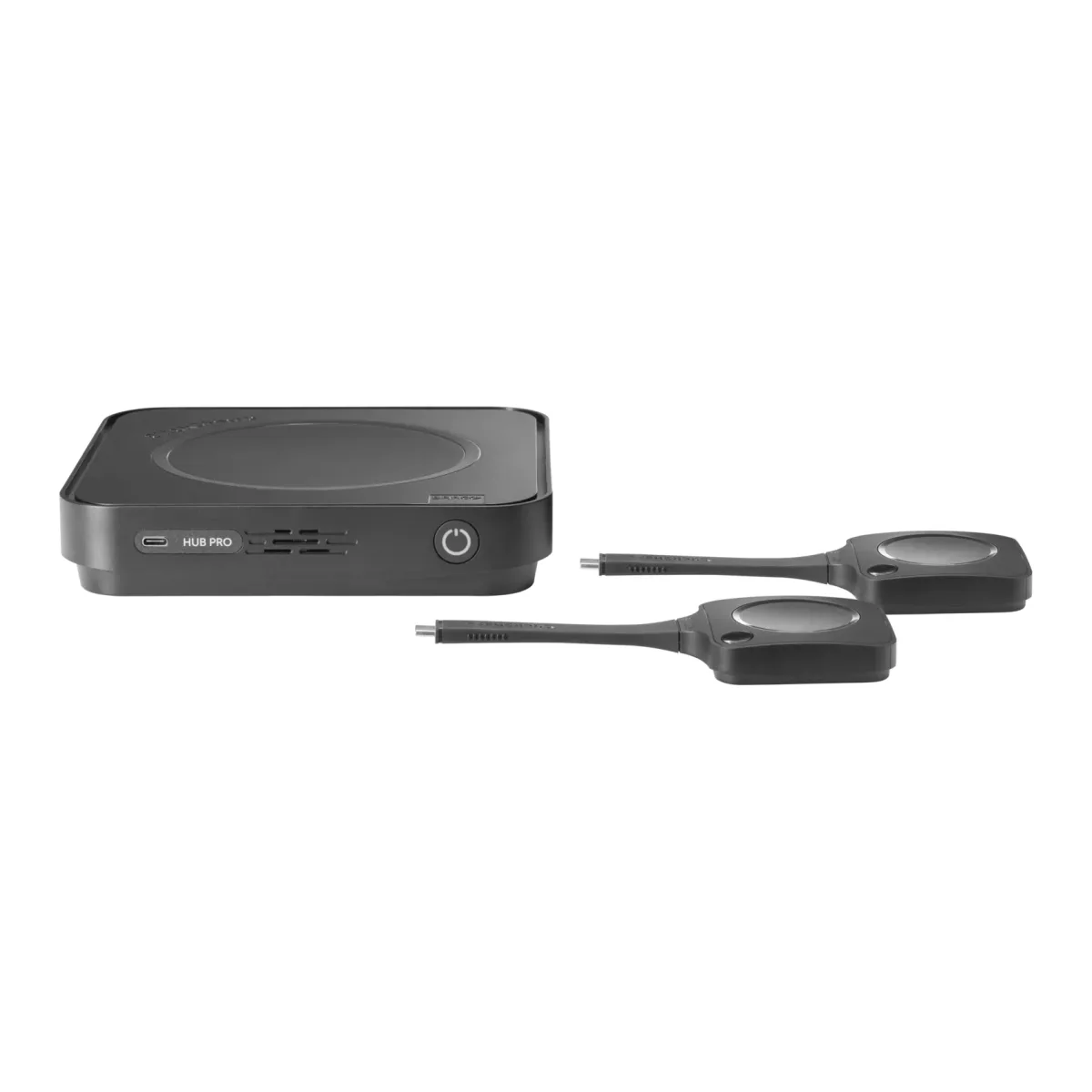

Standalone Product: Clickshare Hub Pro EU with 2 Buttons - It does not include the Panel, Gen5 Button Tray, Power Supply and Power Cord

Description

ClickShare Hub Pro is a premium modular, wireless video conferencing system for enhanced hybrid meetings. Featuring two next-gen ClickShare Buttons (with Wi-Fi 6E and USB-C DisplayPort™), it ensures meeting participants enjoy secure, 4K wireless content sharing. With dual display support, it guarantees highly visual and engaging meetings.

For IT managers and integrators, ClickShare Hub Pro offers a customizable solution for all room types, enterprise-grade security and compliance.

Next-gen ClickShare Button
The ClickShare Button 5th gen, featuring Wi-Fi 6E, offers faster speeds and more reliable connectivity for smooth, uninterrupted collaboration.

Featuring USB-C DisplayPort™, it enables guest-friendly, plug-and-play sharing — no software or drivers needed.

For added privacy and control, the ClickShare Button requires a deliberate press, preventing accidental sharing.
- Works seamlessly across all major OS in high-security environments
- Built-in security and user control

Specifications

Performance

Bluetooth	Yes
Bluetooth version	5.3
Product colour	Black
Product type	Video conferencing service management system
Noise level	25 dB

Video

HD type	5K Ultra HD
Maximum video resolution	5120 x 2160 pixels

Ports & interfaces

HDMI output ports quantity	2
HDMI version	2.0
USB 2.0 Type-C ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	4
USB Type-C DisplayPort Alternate Mode	Yes
Ethernet LAN (RJ-45) ports	1
DisplayPort version	1.4

Buttons

Presentation button included	Yes

Network

Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Wi-Fi	Yes
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
Networking standards	IEEE 802.15.1

Display

Built-in display	No

Features

Cable lock slot	Yes
Cable lock slot type	Kensington
Maximum operating distance	30 m

Logistics data

Country of origin	China

Computer system

Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64
Mac operating systems supported	Mac OS X 14.0 Sonoma, Mac OS X 15.0 Sequoia

Operational conditions

Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 85%
Storage temperature (T-T)	-20 - 60 °C
Storage relative humidity (H-H)	0 - 90%

Power

Power source type	USB
Power consumption (typical)	160 W
USB Power Delivery (USB PD)	Yes
USB Power Delivery up to	180 W

Certificates

Compliance certificates	CE, Federal Communications Commission (FCC)

Weight & dimensions

Width	180 mm
Depth	180 mm
Height	37 mm
Weight	720 g
Receiver dimensions (WxDxH)	63 x 161.3 x 16 mm

Packaging content

Control panel included	No
Packaging content	ClickShare Hub Pro Base Unit, 2 ClickShare Hub Button 5th Gen, Mounting disc, Safety manual, Quick setup guide
