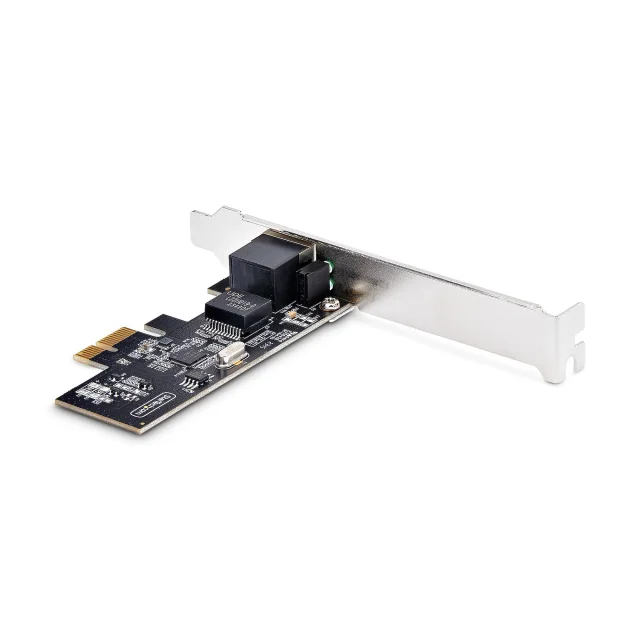

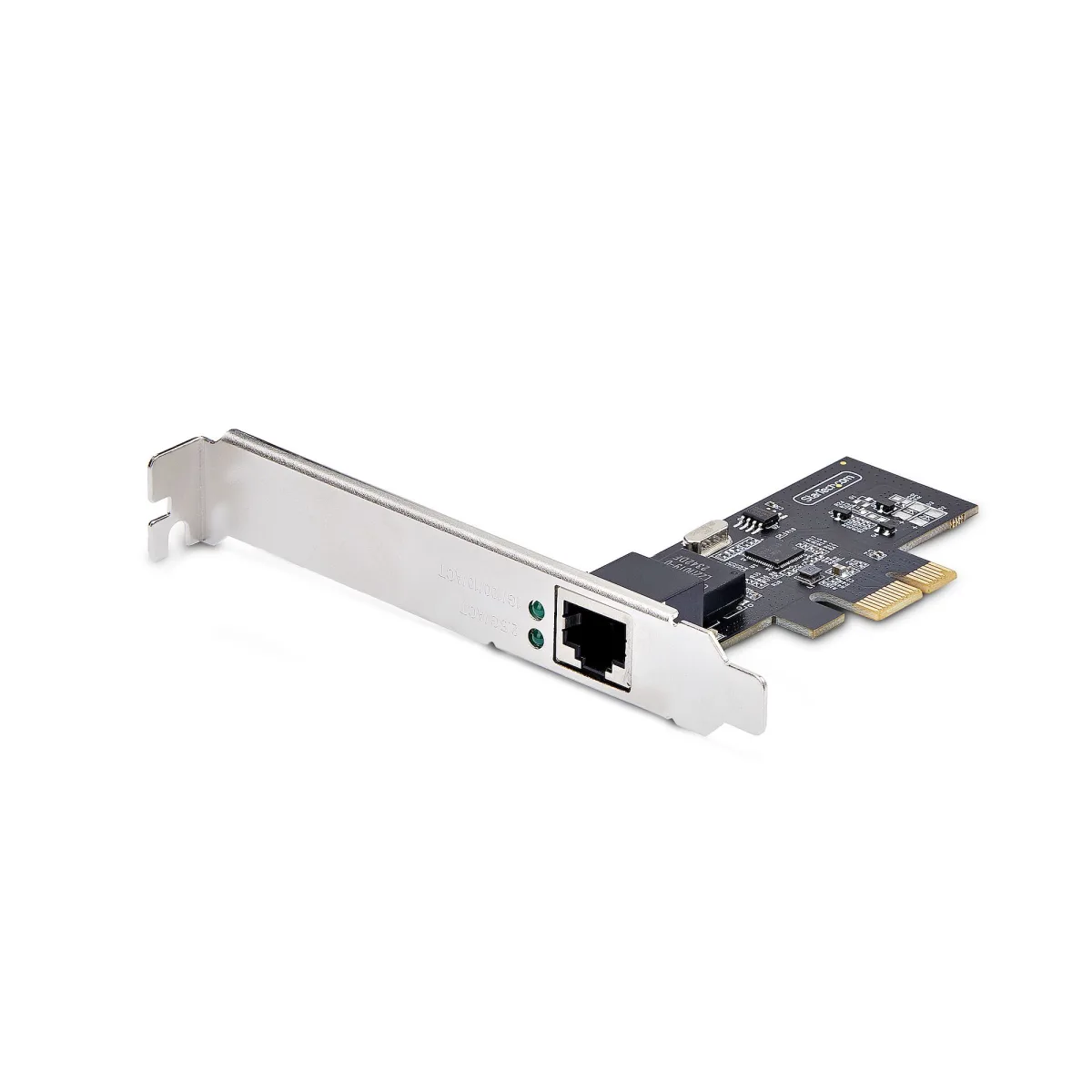

Startech 1-Port 2.5G NBASE-T PCIe Network Card, Computer Network Interface Card, Intel I225-V, Single-Port Ethernet, Multi-Gigabit NIC (PR12GI-NETWORK-CARD) - Network adapter - PCIe 2.0 low profile - 10/100/1000/2500Base-T x 1 - black

Description

Manufacturer Code: PR12GI-NETWORK-CARD

Overview

Startech 1-Port 2.5G NBASE-T PCIe Network Card, Computer Network Interface Card, Intel I225-V, Single-Port Ethernet, Multi-Gigabit NIC (PR12GI-NETWORK-CARD) - Network adapter - PCIe 2.0 low profile - 10/100/1000/2500Base-T x 1 - black is available through DCS Components. It sits within the NIC & Network Adapters category.

Key product details

• Network adapter
• PCIe 2.0 low profile
• 10/100/1000/2500Base-T x 1
• black

Procurement and setup support

Available for quote while live availability remains in stock. DCS can help with procurement, compatibility checks, configuration planning, installation support and long-term managed IT lifecycle support.

EAN: 0065030906203

Specifications

Ports & interfaces

Connectivity technology	Wired
Host interface	PCI Express
Interface	Ethernet
Ethernet LAN (RJ-45) ports	1
PCI version	2.0

Network

Maximum data transfer rate	2500 Mbit/s
Networking standards	IEEE 1588, IEEE 802.1Q, IEEE 802.1as, IEEE 802.1p, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3i, IEEE 802.3u
Ethernet LAN data rates	10,100,1000,2500 Mbit/s
Wake-on-LAN ready	Yes
Auto MDIX IEEE	Yes
Full duplex	Yes
Jumbo frames support	Yes
Auto-negotiation	Yes
Jumbo frames	9000

Design

Component for	PC/Server
Product colour	Black
Internal	Yes
Chipset	Intel I225-V
LED indicators	Yes

System requirements

Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64
Linux operating systems supported	Yes
Server operating systems supported	Windows Server 2019, Windows Server 2022

Operational conditions

Operating temperature (T-T)	5 - 50 °C
Storage temperature (T-T)	-10 - 70 °C
Operating relative humidity (H-H)	5 - 90%

Weight & dimensions

Width	89 mm
Depth	121 mm
Height	15 mm
Weight	100 g

Packaging data

Package width	170 mm
Package depth	142 mm
Package height	30 mm

Packaging content

Mounting brackets included	Yes
Quick installation guide	Yes

Logistics data

Master (outer) case width	605 mm
Master (outer) case length	385 mm
Master (outer) case height	325 mm
Products per master (outer) case	80 pc(s)
