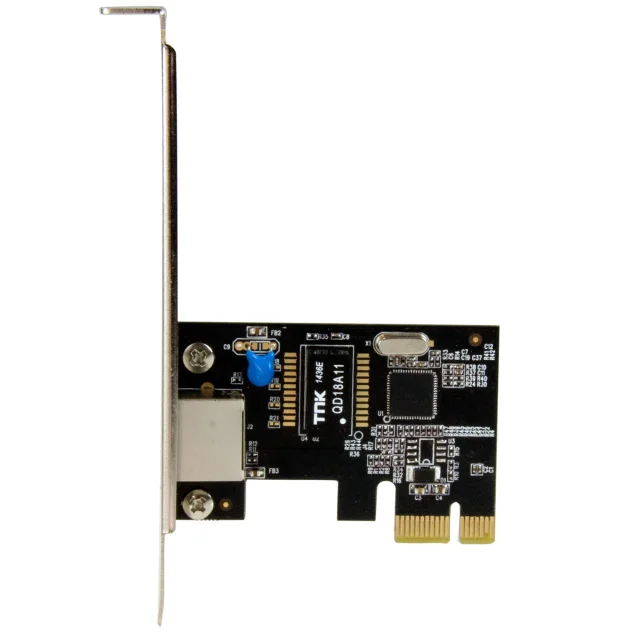

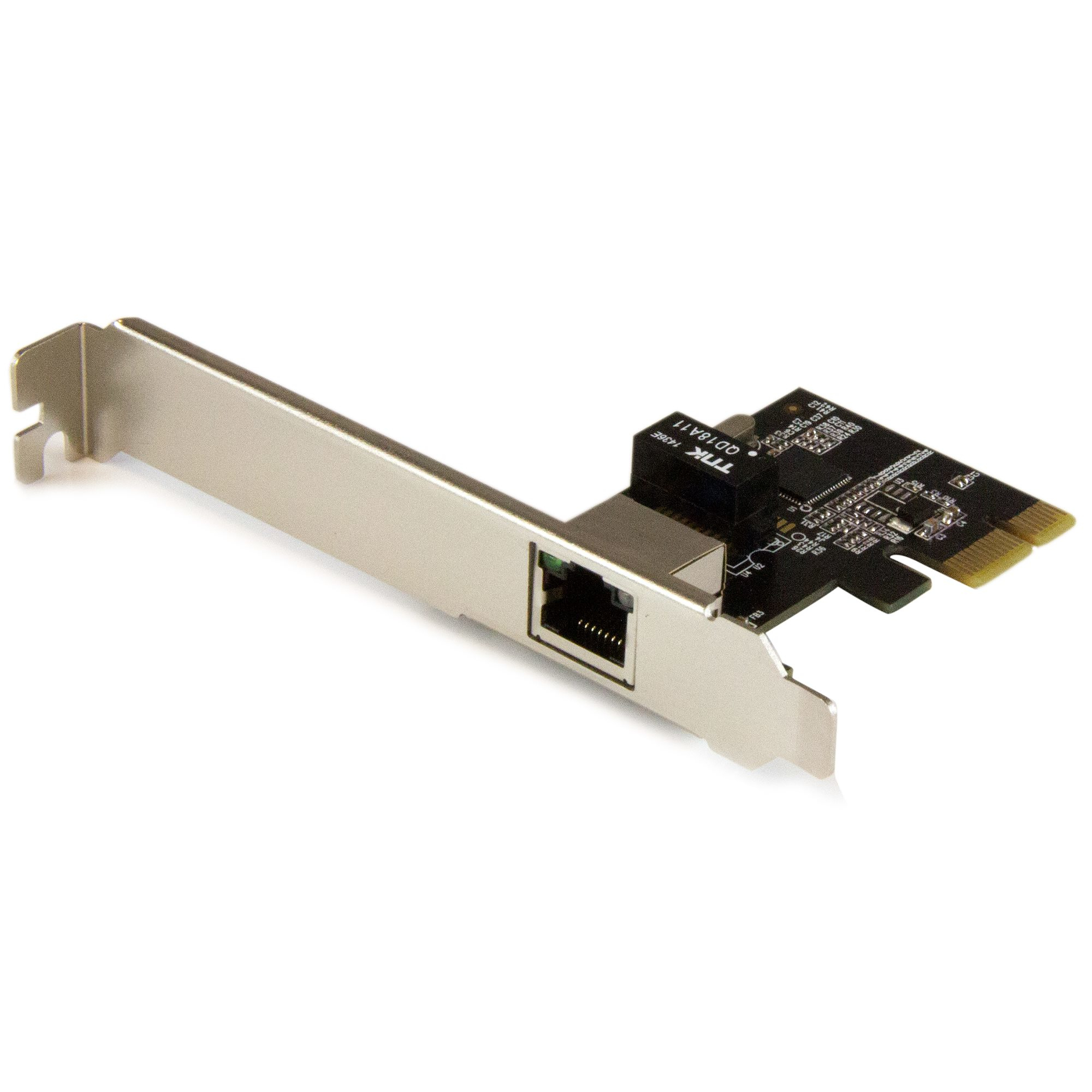

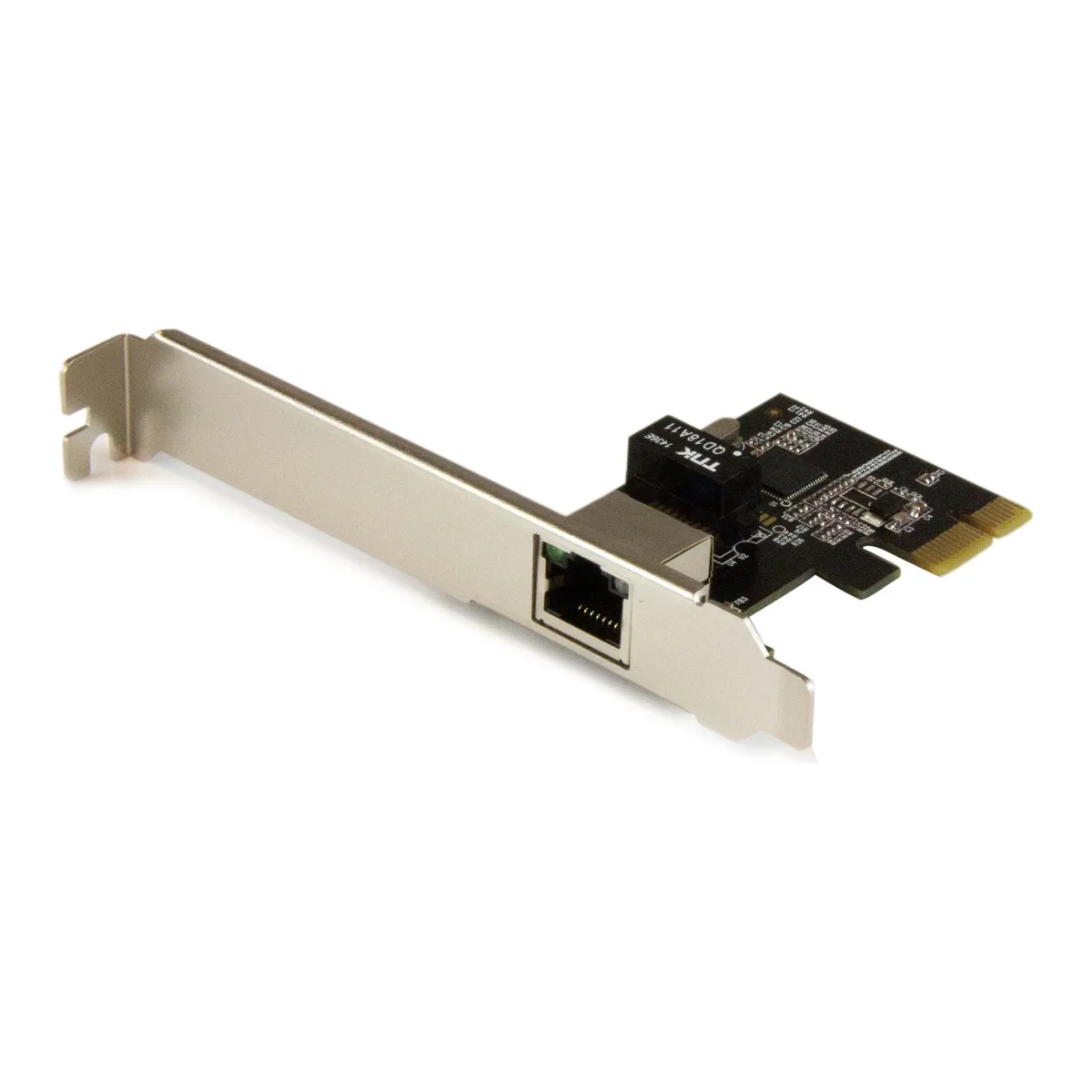

Startech 1-Port Gigabit Ethernet Network Card - PCI Express, Intel I210 NIC - Single Port PCIe Network Adapter Card with Intel Chipset (ST1000SPEXI) - Network adapter - PCI Express x1 low profile - 1GbE - 1000Base-T - black

Description

Manufacturer Code: ST1000SPEXI

Overview

Startech 1-Port Gigabit Ethernet Network Card - PCI Express, Intel I210 NIC - Single Port PCIe Network Adapter Card with Intel Chipset (ST1000SPEXI) - Network adapter - PCI Express x1 low profile - 1GbE - 1000Base-T - black is available through DCS Components. It sits within the NIC & Network Adapters category.

Key product details

• PCI Express, Intel I210 NIC
• Single Port PCIe Network Adapter Card with Intel Chipset (ST1000SPEXI)
• Network adapter
• PCI Express x1 low profile
• 1GbE

Procurement and setup support

Available for quote while live availability remains in stock. DCS can help with procurement, compatibility checks, configuration planning, installation support and long-term managed IT lifecycle support.

EAN: 0065030861038

Specifications

Ports & interfaces

Connectivity technology	Wired
Host interface	PCI Express
Interface	Ethernet
Ethernet LAN (RJ-45) ports	1

Network

Maximum data transfer rate	2000 Mbit/s
Networking standards	IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Cabling technology	10/100/1000BaseT(X)
Wake-on-LAN ready	Yes
Auto MDIX IEEE	Yes
Full duplex	Yes
Jumbo frames support	Yes
Auto-negotiation	Yes
VLAN tagging	Yes

Design

Component for	PC/Server
Product colour	Black, Metallic
Internal	Yes
Chipset	Intel® I210-AT
LED indicators	Activity

System requirements

Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Linux operating systems supported	Yes
Server operating systems supported	Windows Server 2008 R2, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019

Operational conditions

Operating temperature (T-T)	5 - 50 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	20 - 80%

Sustainability

Sustainability compliance	Yes

Weight & dimensions

Width	66 mm
Depth	120 mm
Height	18 mm
Weight	38 g

Packaging data

Package width	142 mm
Package depth	170 mm
Package height	28 mm
Package weight	100 g

Packaging content

Mounting brackets included	Yes
Manual	Yes

Technical details

Compliance certificates	CE, RoHS

Logistics data

Harmonized System (HS) code	85176990
Master (outer) case width	304 mm
Master (outer) case length	592 mm
Master (outer) case height	357 mm
Products per master (outer) case	80 pc(s)
