Manufacturer Code: ET1000S40LC2
Overview

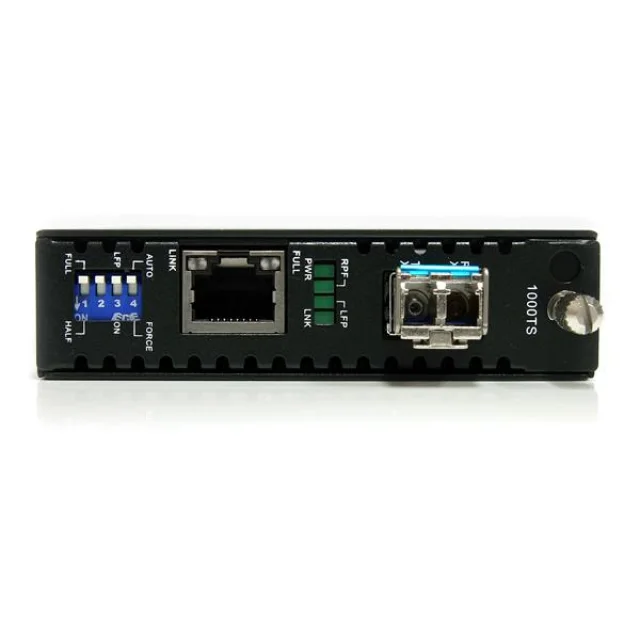

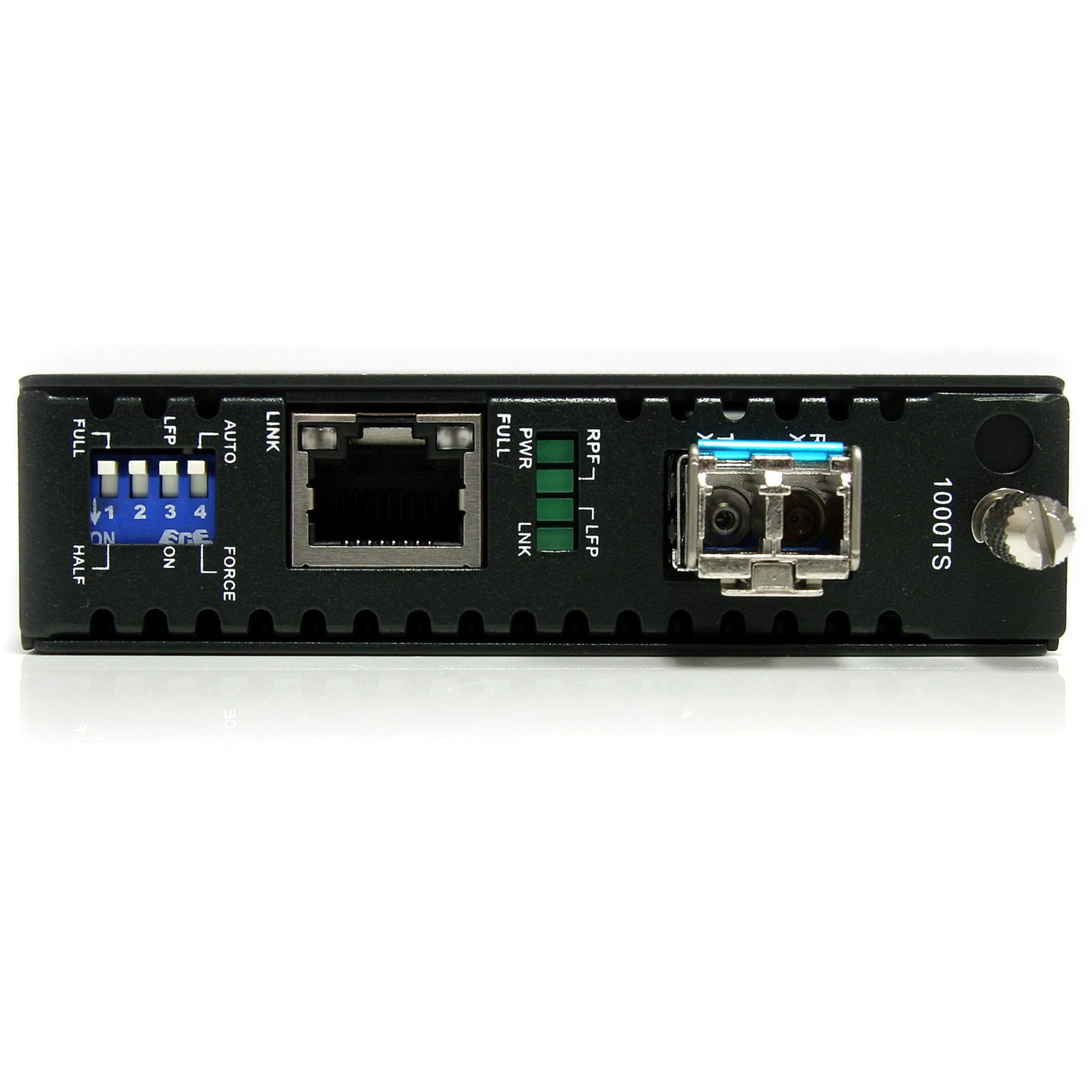

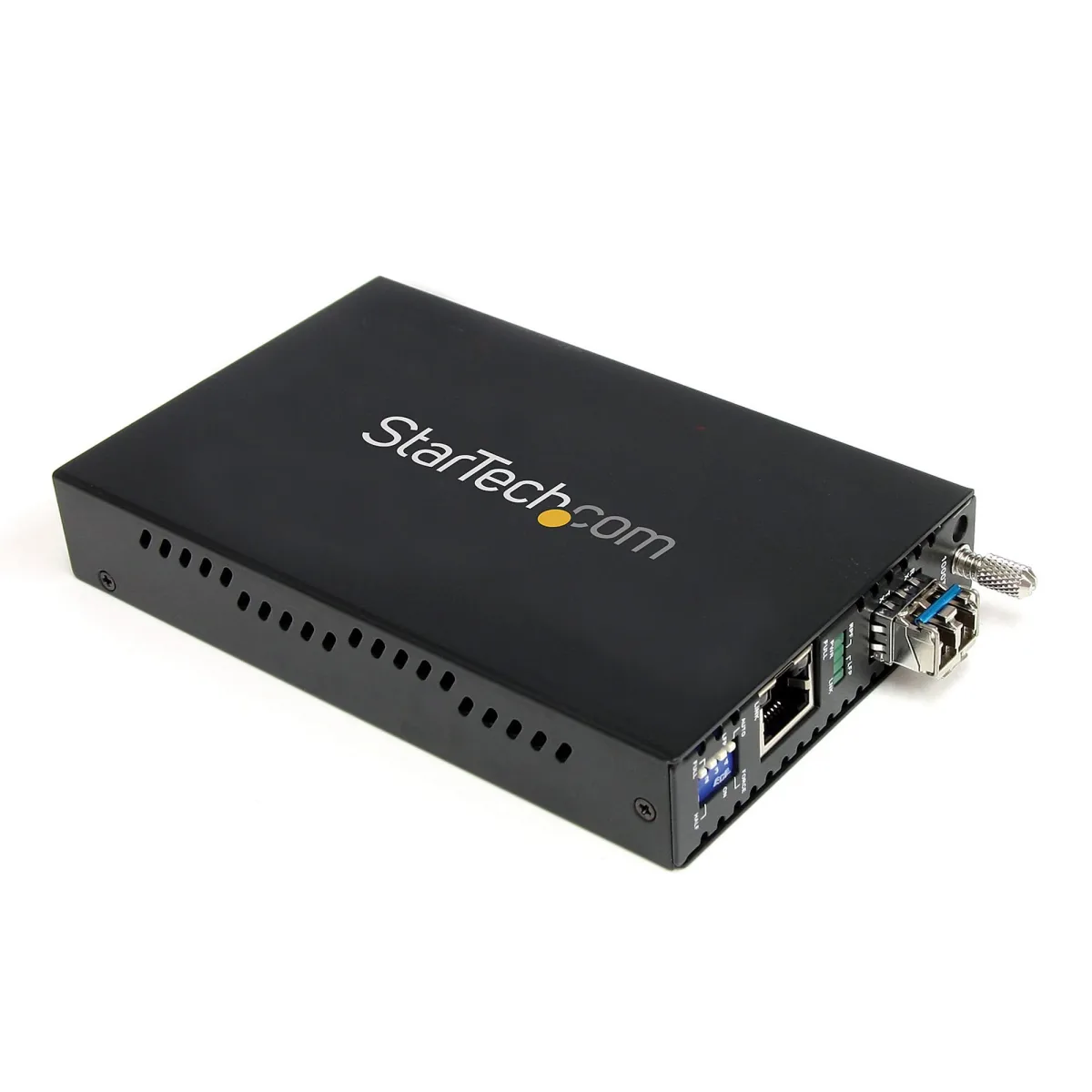

Startech 1000 Mbps Gigabit Single-Mode Copper to Fiber Media Converter - Ethernet (1000Base-T) to LC Fiber Converter (ET1000S40LC2) - Fibre media converter - 1GbE - 1000Base-LX, 1000Base-SX, 1000Base-T - RJ-45 / LC single-mode - up to 40 km - 1310 nm - fo is available through DCS Components. It sits within the Media Converters category.
Key product details
Procurement and setup support
Available for quote while live availability remains in stock. DCS can help with procurement, compatibility checks, configuration planning, installation support and long-term managed IT lifecycle support.
EAN: 0065030846066
| Maximum data transfer rate | 2000 Mbit/s |
|---|---|
| Converter input interface | 1000Base-T |
| Converter output interface | 1000Base-LX, 1000Base-SX |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Auto MDI/MDI-X | Yes |
| Duplex system | Full, Half |
| Maximum transfer distance | 40000 m |
|---|---|
| Wavelength | 1310 nm |
| Fiber mode structure | Single-mode |
| Mean time between failures (MTBF) | 65000 h |
| Internal | No |
|---|---|
| Plug and Play | Yes |
| Product colour | Black |
| Ethernet LAN (RJ-45) ports | 1 |
|---|---|
| Fiber ports quantity | 1 |
| Fiber optic connector | LC |
| DC-in jack | Yes |
| Output voltage | 12 V |
|---|---|
| Output current | 1 A |
| External power adapter | Yes |
| Weight | 620 g |
|---|
| Operating temperature (T-T) | 0 - 60 °C |
|---|---|
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Manual | Yes |
|---|
| Package width | 205 mm |
|---|---|
| Package depth | 138 mm |
| Package height | 89 mm |
| Package weight | 754 g |
| Compliance certificates | RoHS |
|---|---|
| Certification | CE, FCC |
| Harmonized System (HS) code | 85176990 |
|---|
| Dimensions (WxDxH) | 95 x 160 x 20 mm |
|---|---|
| Full duplex | Yes |
