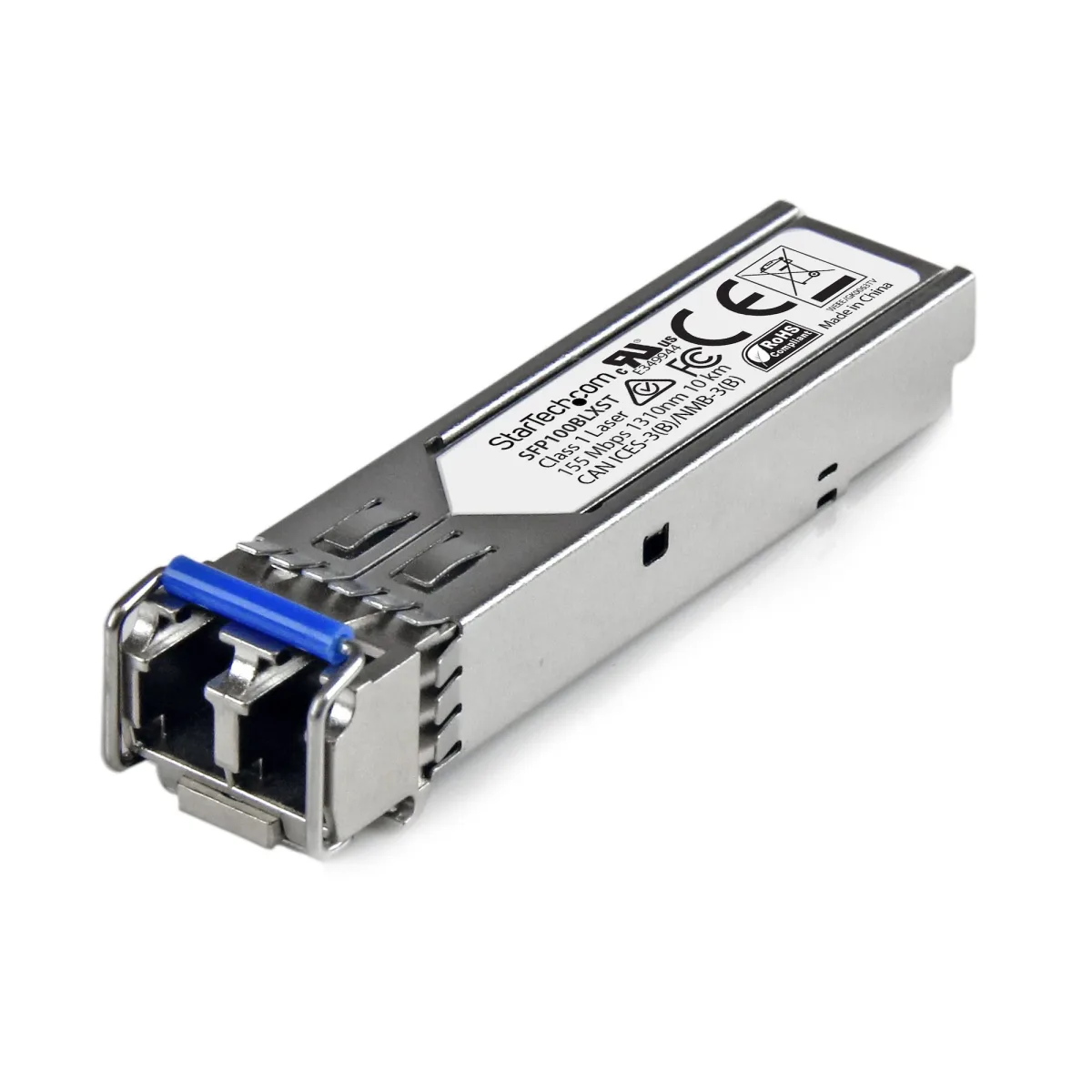

Startech MSA Uncoded Compatible SFP Module, 100BASE-LX, 100MbE Single Mode (SMF) Fiber Optic Transceiver, 100Mb Ethernet SFP, LC Connector, 10km, 1310nm, DDM, Mini GBIC Module, 100Mbps - Lifetime Warranty (SFP100BLXST)

Description

StarTech.com MSA Uncoded SFP Module - 100BASE-LX - 100Mb Ethernet SFP 100MbE Single Mode Fiber (SMF) Optic Transceiver Module - 10km DDM - MSA Uncoded SFP - 100BASE-LX 100Mbps - 100MbE Module - 100Mb Ethernet SFP 1310nm Single Mode (SMF) Transceiver - 10km (6.2mi) - LC Connector DDM - Hot-Swappable & MSA Compliant - Lifetime Warranty

Specifications

Performance

SFP transceiver type	Fiber optic
Maximum data transfer rate	155 Mbit/s
Interface type	SFP
Single-mode fiber (SMF) supported	Yes
Fiber optic connector	LC
SFP transceiver standard	LX
Maximum transfer distance	10000 m
Wavelength	1310 nm
Networking standards	IEEE 802.3u
Duplex system	Full, Half
Digital Diagnostics Monitoring (DDM)	Yes
Wavelength-division multiplexing (WDM)	No

Features

Product colour	Silver
Housing material	Aluminium
Hot-Plug support	Yes

Power

Power consumption (typical)	1 W

Certificates

Compliance certificates	RoHS
Certification	CE, FCC, UR

Operational conditions

Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-40 - 85 °C
Operating relative humidity (H-H)	5 - 95%

Weight & dimensions

Width	14 mm
Depth	59 mm
Height	13 mm
Weight	30 g

Packaging content

Quantity per pack	1 pc(s)

Packaging data

Package width	92 mm
Package depth	117 mm
Package height	33 mm
Package weight	95 g

Logistics data

Master (outer) case width	250 mm
Master (outer) case length	300 mm
Harmonized System (HS) code	85369010
Master (outer) case height	200 mm
Products per master (outer) case	36 pc(s)
Country of origin	China
