Manufacturer Code: ET90110ST2
Overview

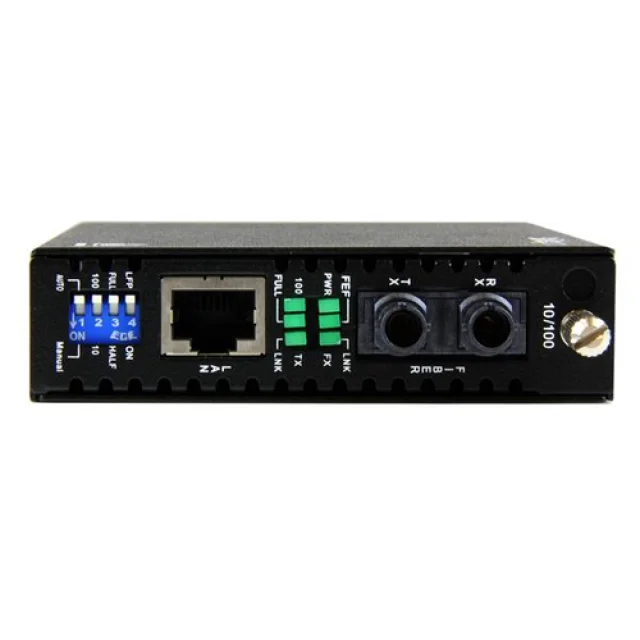

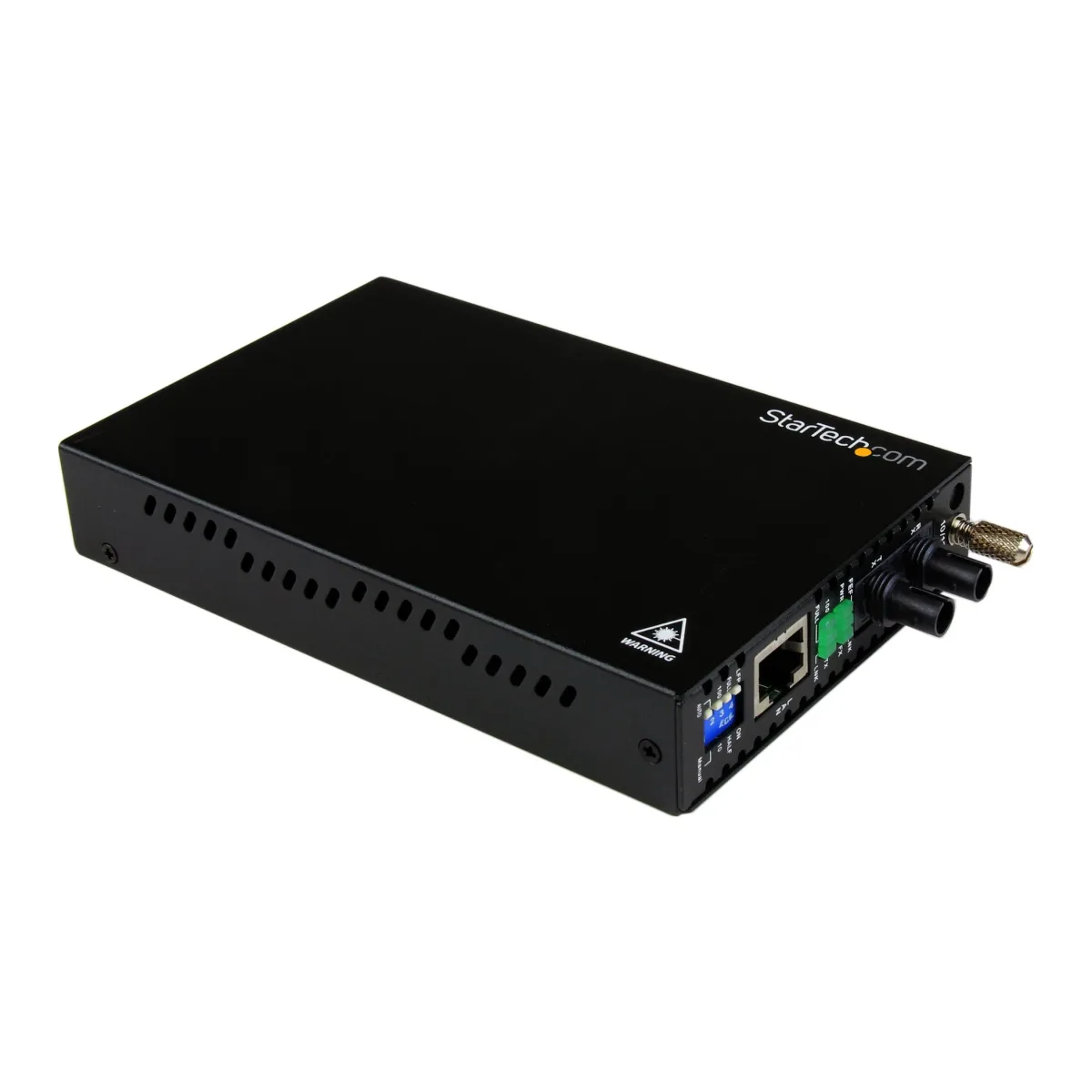

Startech 10/100 Mbps Ethernet to Fiber Optic Media Converter - Steel - Chassis Mount - ST Multimode - 1310nm - 2km (ET90110ST2) - Fibre media converter - 100Mb LAN - 10Base-T, 100Base-FX, 100Base-TX - RJ-45 / ST multi-mode - up to 2 km - 1310 nm - for P/N is available through DCS Components. It sits within the Media Converters category.
Key product details
Procurement and setup support
Available for quote while live availability remains in stock. DCS can help with procurement, compatibility checks, configuration planning, installation support and long-term managed IT lifecycle support.
EAN: 0065030846257
| Maximum data transfer rate | 200 Mbit/s |
|---|---|
| Converter input interface | 10Base-T |
| Converter output interface | 100Base-FX |
| Ethernet interface type | Fast Ethernet |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Auto MDI/MDI-X | Yes |
| Duplex system | Full, Half |
| Maximum transfer distance | 2000 m |
|---|---|
| Wavelength | 1310 nm |
| Fiber mode structure | Multi-mode |
| Internal | No |
|---|---|
| Plug and Play | Yes |
| Product colour | Black |
| Connectivity technology | Wired |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber ports quantity | 1 |
| Fiber optic connector | ST |
| DC-in jack | Yes |
| Output voltage | 12 V |
|---|---|
| Output current | 1 A |
| External power adapter | Yes |
| Weight | 600 g |
|---|
| Operating temperature (T-T) | 0 - 60 °C |
|---|---|
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Manual | Yes |
|---|
| Package width | 207 mm |
|---|---|
| Package depth | 137 mm |
| Package height | 90 mm |
| Package weight | 757 g |
| Compliance certificates | RoHS |
|---|---|
| Certification | CE, FCC |
| Harmonized System (HS) code | 85176990 |
|---|
| Dimensions (WxDxH) | 95 x 160 x 20 mm |
|---|---|
| Full duplex | Yes |
