Manufacturer Code: RK12WALHM
Overview

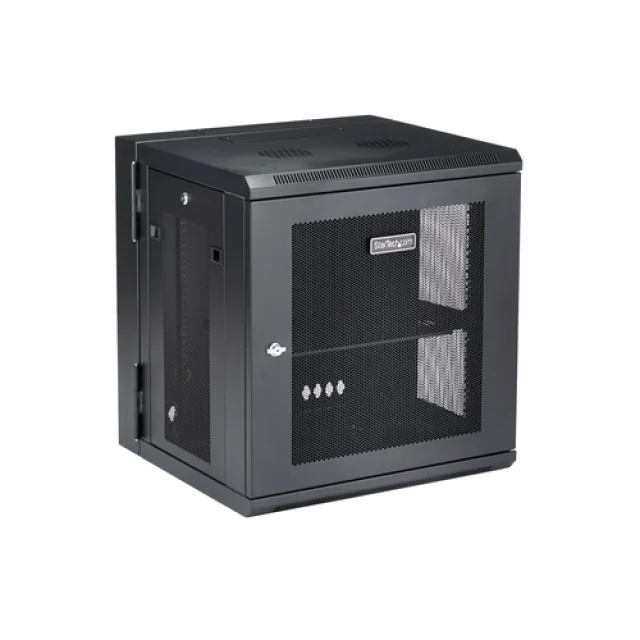

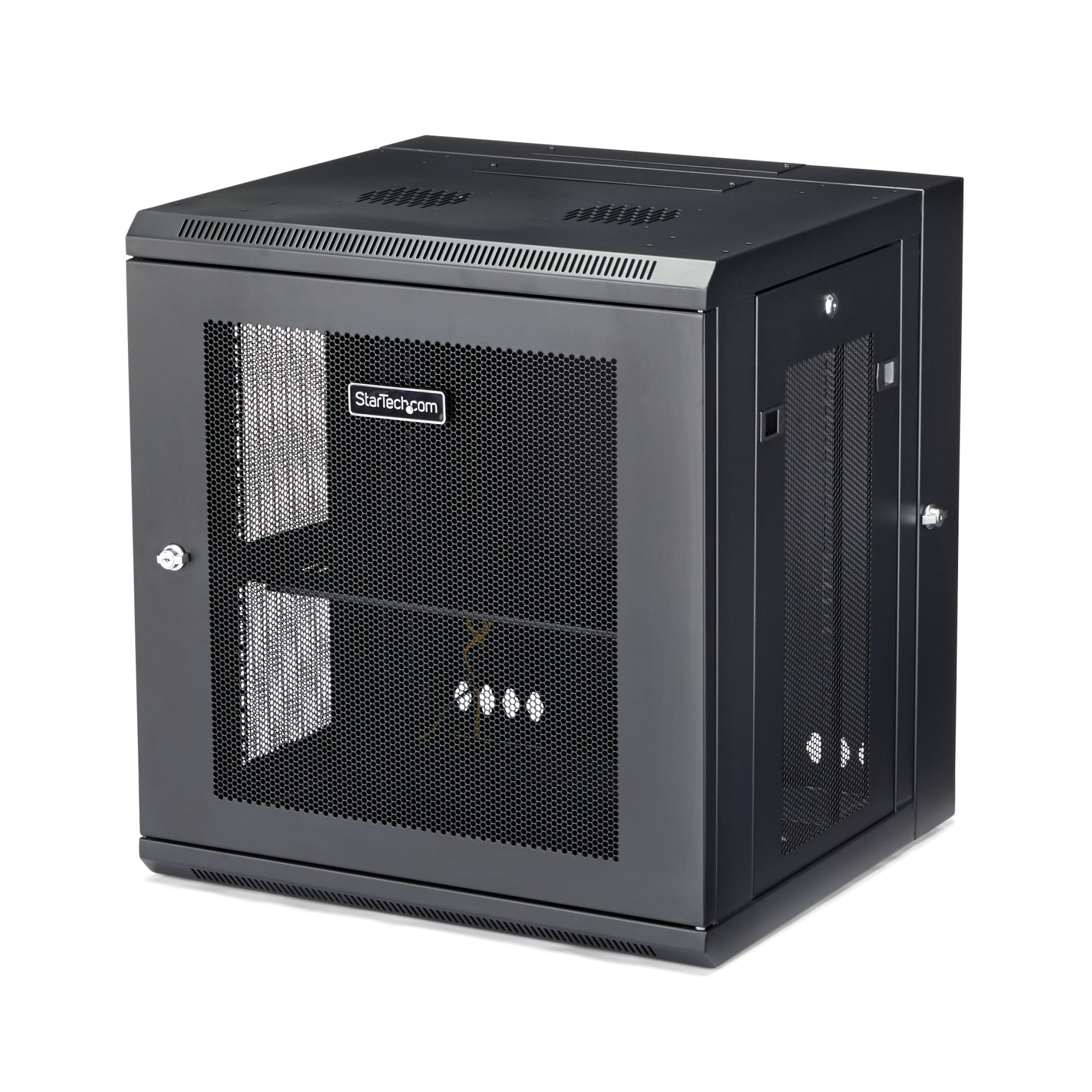

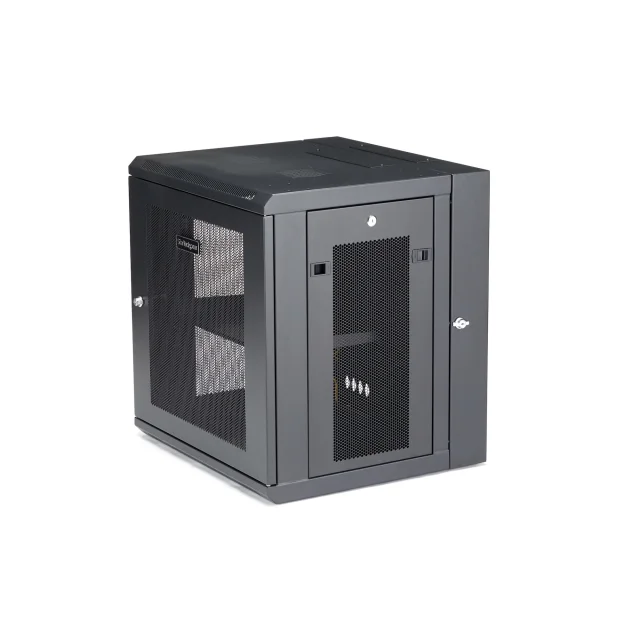

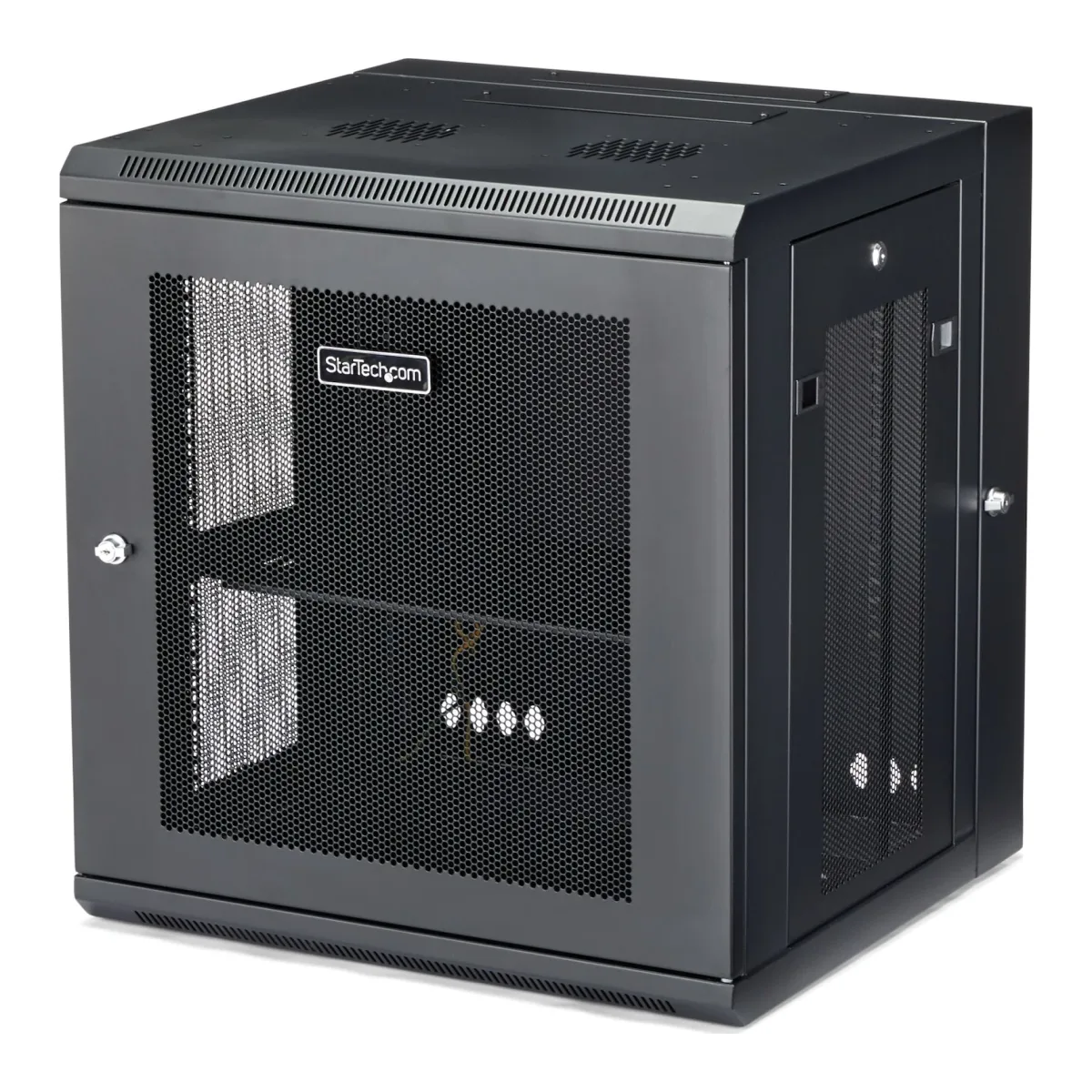

Startech 12U 19" Wall Mount Network Cabinet, 16" Deep Hinged Locking IT Network Switch Depth Enclosure, Vented Computer Equipment Data Rack with Shelf & Flexible Side Panels, Assembled - 12U Vented Cabinet (RK12WALHM) - Rack enclosure cabinet - wall mount is available through DCS Components. It sits within the Racking & Cabinets category.
Key product details
Procurement and setup support
Available for quote while live availability remains in stock. DCS can help with procurement, compatibility checks, configuration planning, installation support and long-term managed IT lifecycle support.
EAN: 0065030867405
| Rack capacity | 12U |
|---|---|
| Type | Wall mounted rack |
| Maximum weight capacity | 90 kg |
| Product colour | Black |
| Material | Steel |
| Frame type | Closed |
| Product design | 4-post |
| Back door construction | Steel |
| Front door construction | Steel |
| Side panel construction | Steel |
| Removable front door | Yes |
| Key lock | Yes |
| Front door key lock | Yes |
| Rack rail thickness | 2 mm |
| Adjustable mounting rails | Yes |
| Cable management | Yes |
| Mounting hole shape | Square |
| Width | 610 mm |
|---|---|
| Depth | 550 mm |
| Height | 640 mm |
| Inner width | 59.5 cm |
| Inner depth | 54.5 cm |
| Weight | 28.9 kg |
| Mounting depth (min) | 6 cm |
| Mounting depth (max) | 40 cm |
| Nuts included | Yes |
|---|---|
| Number of nuts | 50 |
| Screws included | Yes |
| Number of screws | 50 |
| Manual | Yes |
| Package width | 675 mm |
| Package depth | 625 mm |
| Package height | 720 mm |
| Package weight | 32.7 kg |
| Compliance certificates | CE, RoHS |
|---|
| Harmonized System (HS) code | 85381000 |
|---|---|
| Master (outer) case width | 675 mm |
| Master (outer) case length | 625 mm |
| Master (outer) case height | 720 mm |
| Products per master (outer) case | 1 pc(s) |
| Compliance industry standards | EIA/ECA-310-E |
|---|
