Manufacturer Code: RK1232WALHM
Overview

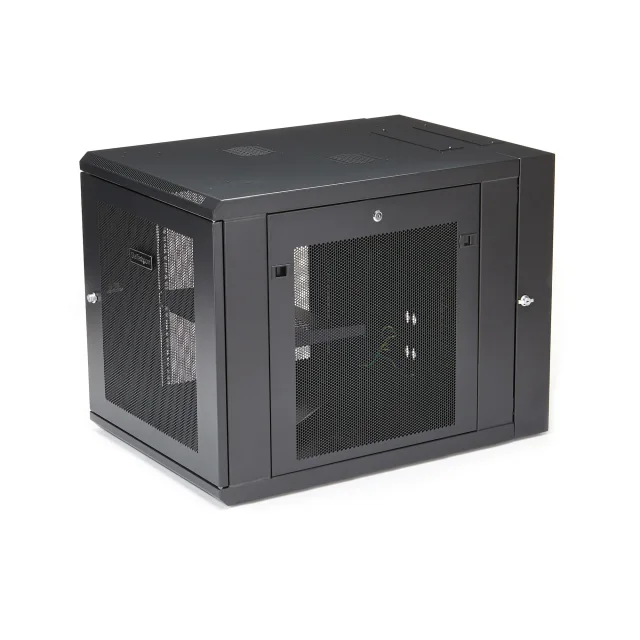

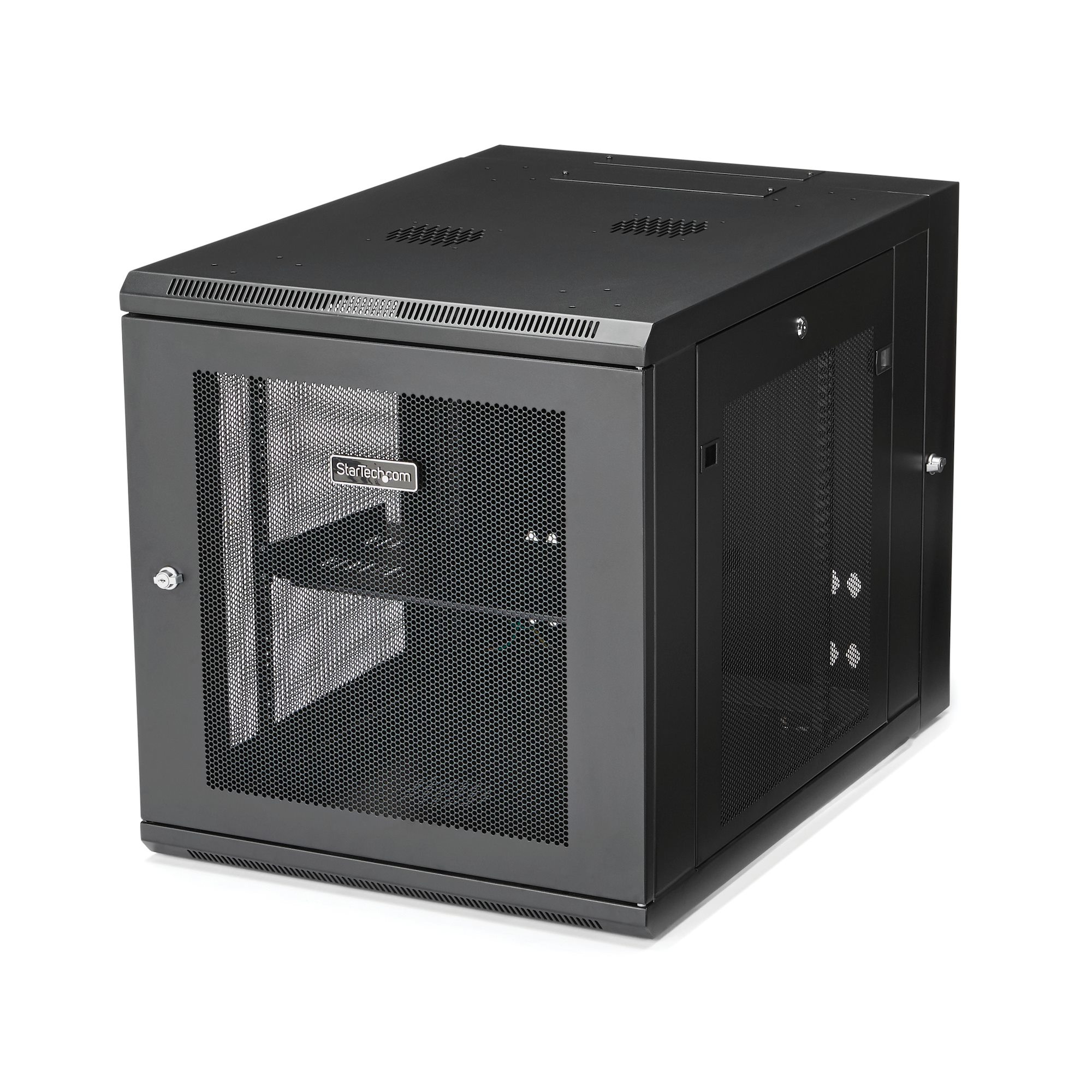

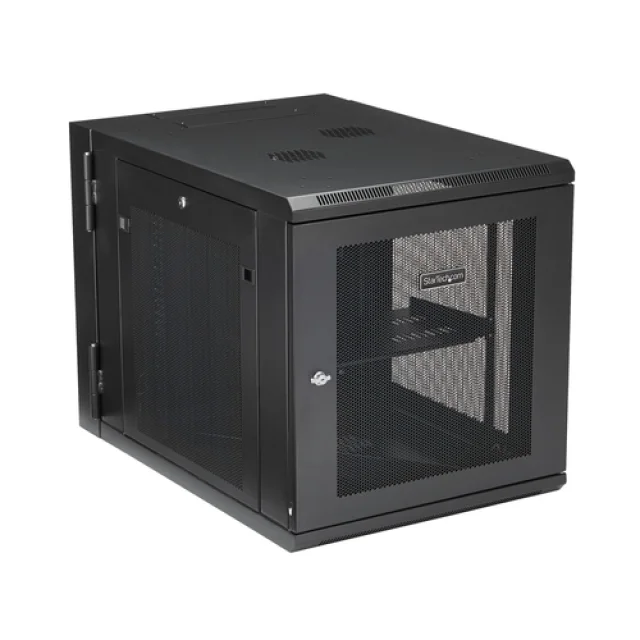

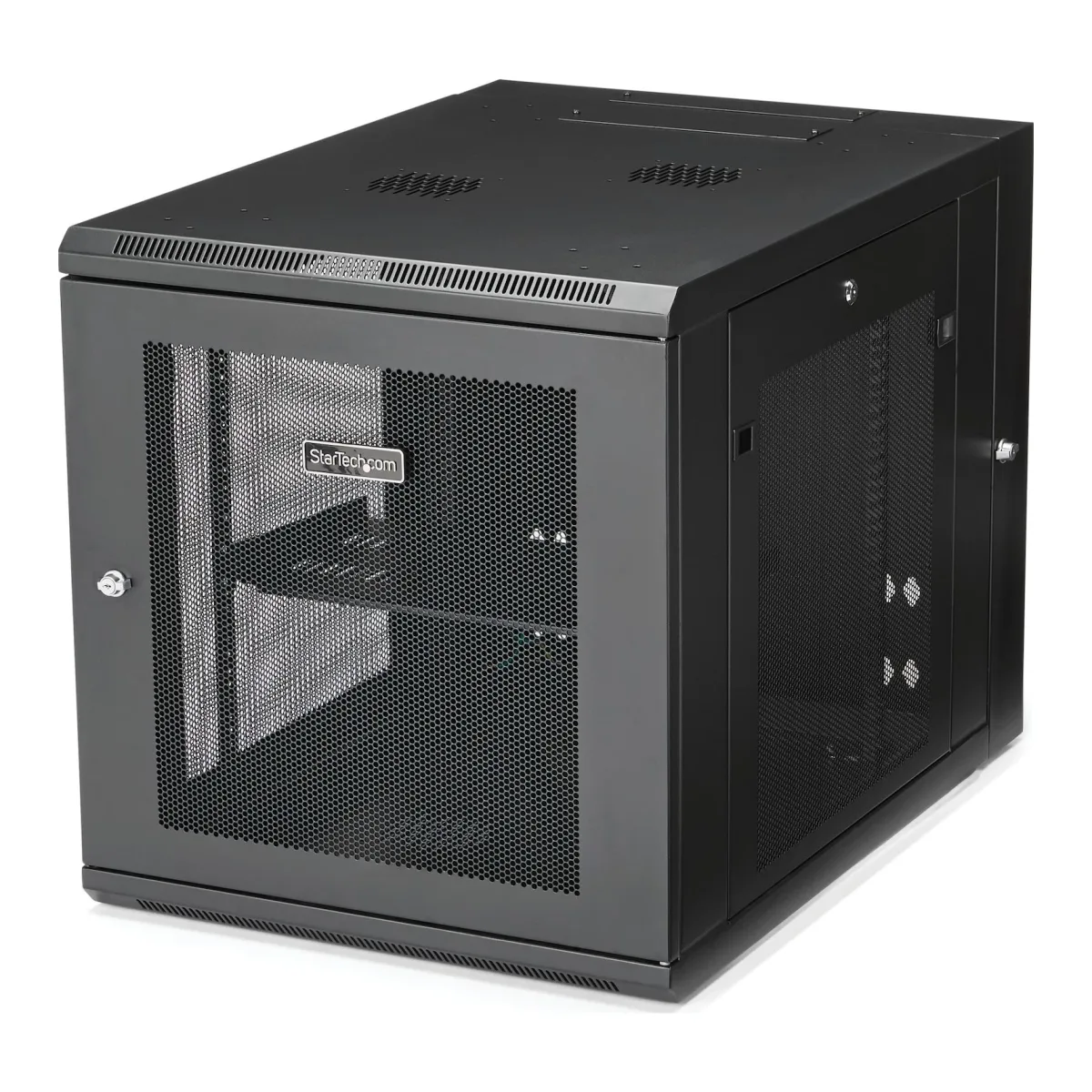

Startech 12U 19" Wall Mount Network Cabinet, 4 Post 24" Deep Hinged Server Room Data Cabinet- Locking Computer Equipment Enclosure with Shelf, Flexible Vented IT Rack, Pre-Assembled - 12U Vented Cabinet (RK1232WALHM) - Rack enclosure cabinet - wall mounta is available through DCS Components. It sits within the Racking & Cabinets category.
Key product details
Procurement and setup support
Available for quote while live availability remains in stock. DCS can help with procurement, compatibility checks, configuration planning, installation support and long-term managed IT lifecycle support.
EAN: 0065030870436
| Rack capacity | 12U |
|---|---|
| Type | Wall mounted rack |
| Maximum weight capacity | 90 kg |
| Product colour | Black |
| Material | Steel |
| Frame type | Closed |
| Product design | 4-post |
| Back door construction | Steel |
| Front door construction | Steel |
| Removable front door | Yes |
| Removable side panels | Yes |
| Key lock | Yes |
| Front door key lock | Yes |
| Adjustable mounting rails | Yes |
| Cable management | Yes |
| Mounting hole shape | Square |
| Castor wheels | No |
| Certification | REACH, CE |
| Width | 610 mm |
|---|---|
| Depth | 854 mm |
| Height | 640 mm |
| Inner width | 59.5 cm |
| Inner depth | 84.8 cm |
| Weight | 45.1 kg |
| Mounting depth (min) | 6 cm |
| Mounting depth (max) | 60.5 cm |
| Nuts included | Yes |
|---|---|
| Number of nuts | 50 |
| Screws included | Yes |
| Number of screws | 50 |
| Manual | Yes |
| Package width | 890 mm |
| Package depth | 640 mm |
| Package height | 785 mm |
| Package weight | 59 kg |
| Compliance certificates | CE, RoHS |
|---|
| Harmonized System (HS) code | 85381000 |
|---|---|
| Master (outer) case width | 885 mm |
| Master (outer) case length | 640 mm |
| Master (outer) case height | 660 mm |
| Products per master (outer) case | 1 pc(s) |
| Compliance industry standards | EIA/ECA-310-E |
|---|
