Manufacturer Code: RK1520WALHM
Overview

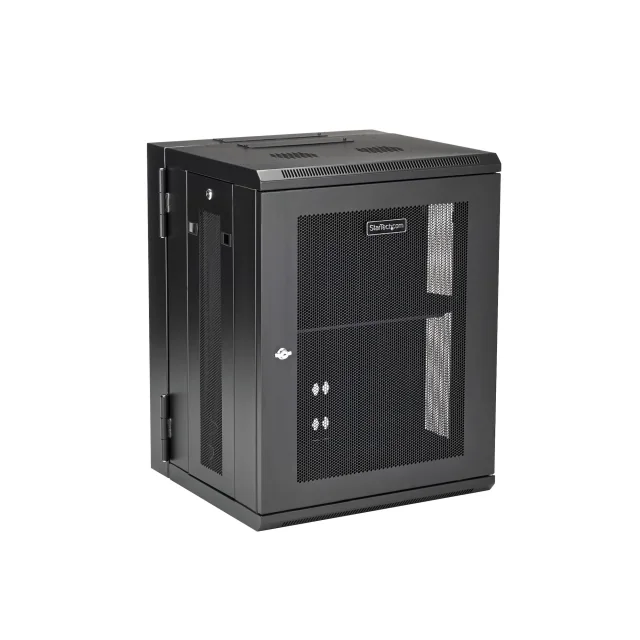

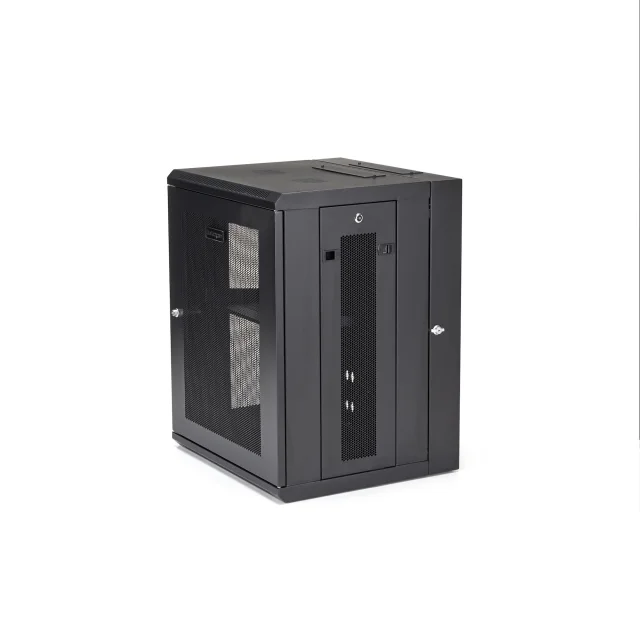

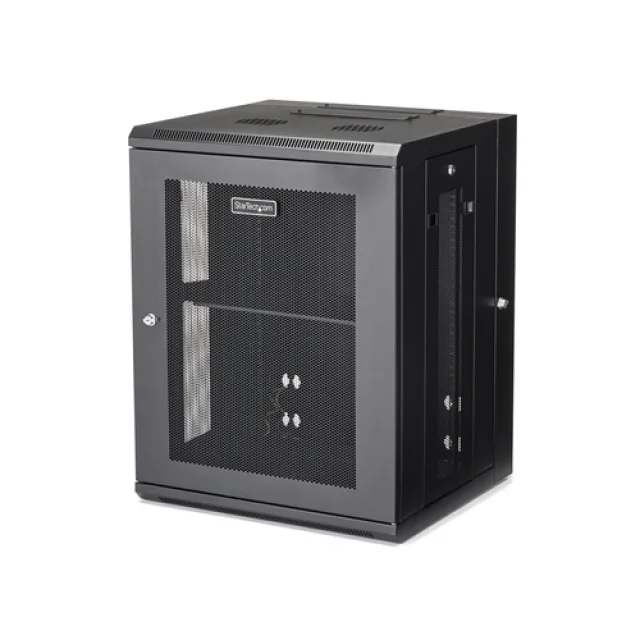

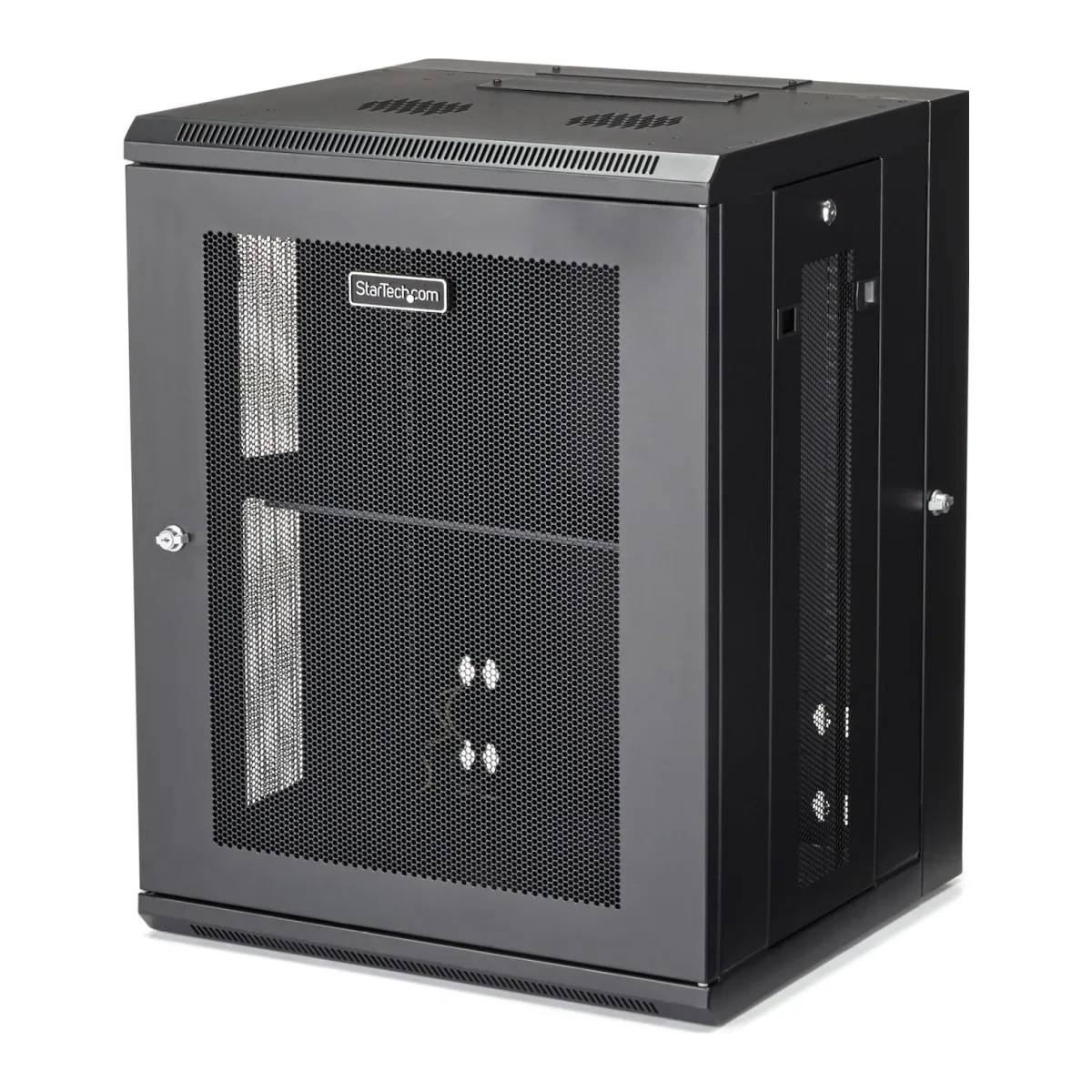

Startech 15U 19" Wall Mount Network Cabinet, 16" Deep Hinged Locking IT Network Switch Depth Enclosure, Assembled Vented Computer Equipment Data Rack with Shelf & Flexible Side Panels - 15U Vented Cabinet - Rack cabinet - 4-post - wall mountable - black - is available through DCS Components. It sits within the Racking & Cabinets category.
Key product details
Procurement and setup support
Available for quote while live availability remains in stock. DCS can help with procurement, compatibility checks, configuration planning, installation support and long-term managed IT lifecycle support.
EAN: 0065030870085
| Rack capacity | 15U |
|---|---|
| Type | Wall mounted rack |
| Maximum weight capacity | 90 kg |
| Product colour | Black |
| Material | Steel |
| Frame type | Closed |
| Product design | 4-post |
| Back door construction | Steel |
| Front door construction | Steel |
| Side panel construction | Steel |
| Removable front door | Yes |
| Side panels included | Yes |
| Back door key lock | Yes |
| Front door key lock | Yes |
| Side panel key lock | Yes |
| Rack rail thickness | 1.9 mm |
| Adjustable mounting rails | Yes |
| Cable management | Yes |
| Width | 610 mm |
|---|---|
| Depth | 553 mm |
| Height | 772 mm |
| Inner width | 59.6 cm |
| Inner depth | 54.7 cm |
| Weight | 39.6 kg |
| Mounting depth (min) | 6 cm |
| Mounting depth (max) | 41 cm |
| Nuts included | Yes |
|---|---|
| Number of nuts | 62 |
| Screws included | Yes |
| Number of screws | 62 |
| Manual | Yes |
| Package width | 635 mm |
| Package depth | 675 mm |
| Package height | 855 mm |
| Package weight | 84 kg |
| Compliance certificates | CE, RoHS |
|---|
| Harmonized System (HS) code | 85381000 |
|---|---|
| Master (outer) case width | 635 mm |
| Master (outer) case length | 675 mm |
| Master (outer) case height | 855 mm |
| Products per master (outer) case | 1 pc(s) |
| Compliance industry standards | EIA/ECA-310-E |
|---|
